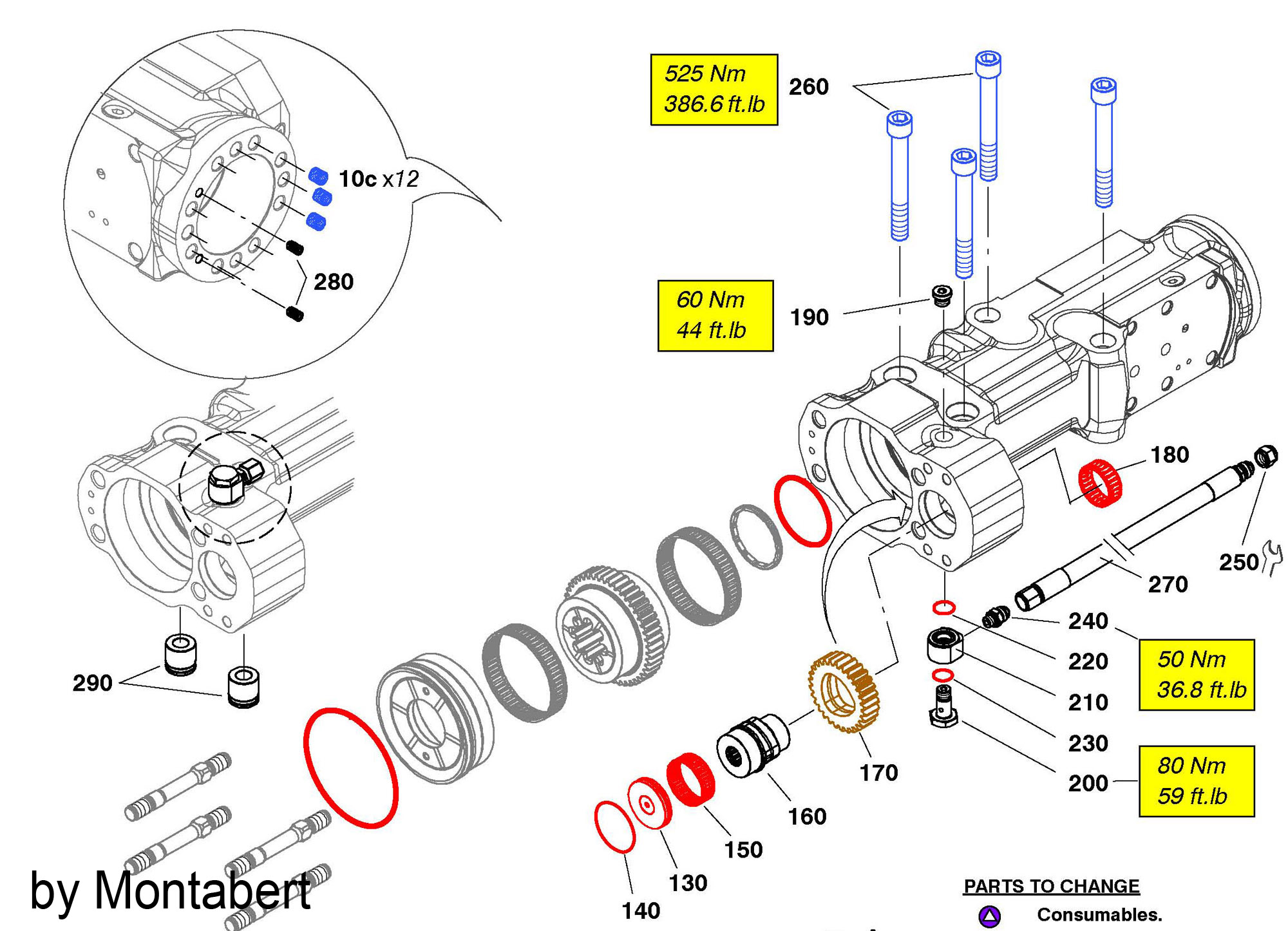

HC 95 SEALS PACKAGE #17179
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86752904
SEALS PACKAGE
140
86746484
COVER
150
86668993
ORING
160
86746559
NEEDLE BEARING
170
86746468
HUB MOTOR GEAR
180
86746476
GEAR
190
86746567
NEEDLE BEARING
200
86386505
PLUG
210
86746518
PIN ADAPTER
220
86746500
RING
230
86222858
ORING
240
86309424
ORING
250
86613437
ADAPTER
260
86247723
PLUG
270
86748753
SOCKET HEAD SCREW
280
86758208
HOSE
290
86758398
PLUG
HC 95 SEALS PACKAGE #17190
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86752912
SEALS PACKAGE
10
86748910
SLIDE SEAT
20
86748928
SPRING SEAT
30
86748902
SLIDE
40
86251519
SPRING
50
86312196
ADJUSTING SHIM
60
86752433
SEAL
70
86325602
ORING

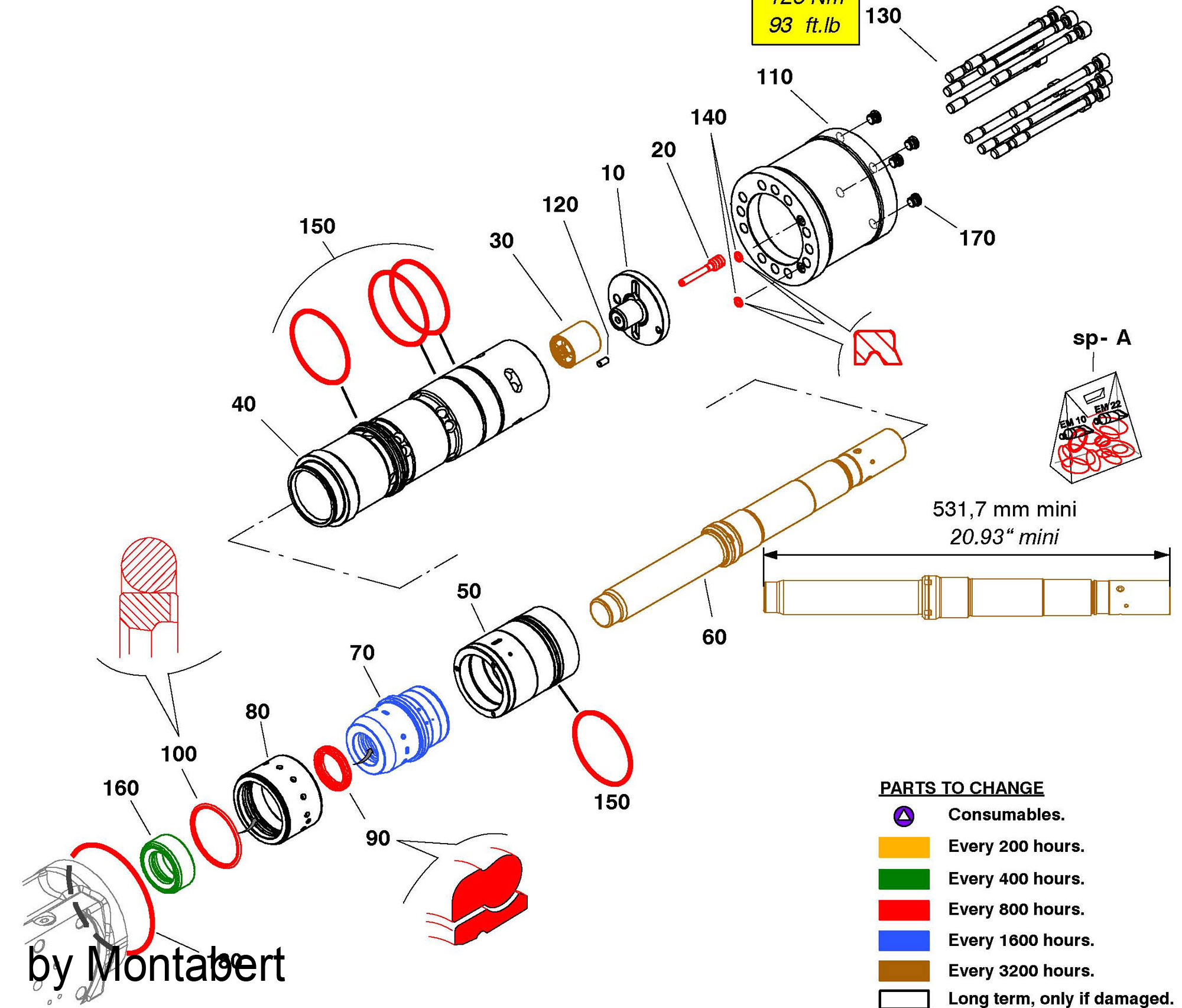

HC 95 SEALS PACKAGE #17198
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86795739
SEALS PACKAGE
10
86746914
DISTRIBUTION COVER
20
86746922
PUSH
30
86746930
DISTRIBUTOR
40
86746898
CYLINDER
50
86781747
DOWN CYLINDER
60
86746906
STRIKE PISTON
70
86747110
HYD. THRUST PISTON
80
86747045
THRUST LINER
90
86757465
SEAL
100
86752276
SEAL
110
86746948
REAR COVER
120
86668662
PIN
130
86745619
SCREW
140
86758182
SEAL
150
86754603
ORING
160
86746955
SHANK THRUST
170
86580966
THREADED PLUG
180
86746542
O RING
HC 95 SEALS PACKAGE #17209
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86752904
SEALS PACKAGE
10
86746914
DISTRIBUTION COVER
20
86746922
PUSH
30
86746930
DISTRIBUTOR
40
86746898
CYLINDER
50
86747128
DOWN CYLINDER
60
86746906
STRIKE PISTON
70
86747110
HYD. THRUST PISTON
80
86747045
THRUST LINER
90
86757465
SEAL
100
86752276
SEAL
110
86746948
REAR COVER
120
86668662
PIN
130
86745619
SCREW
140
86758182
SEAL
150
86754603
ORING
160
86746955
SHANK THRUST
170
86386885
PLUG

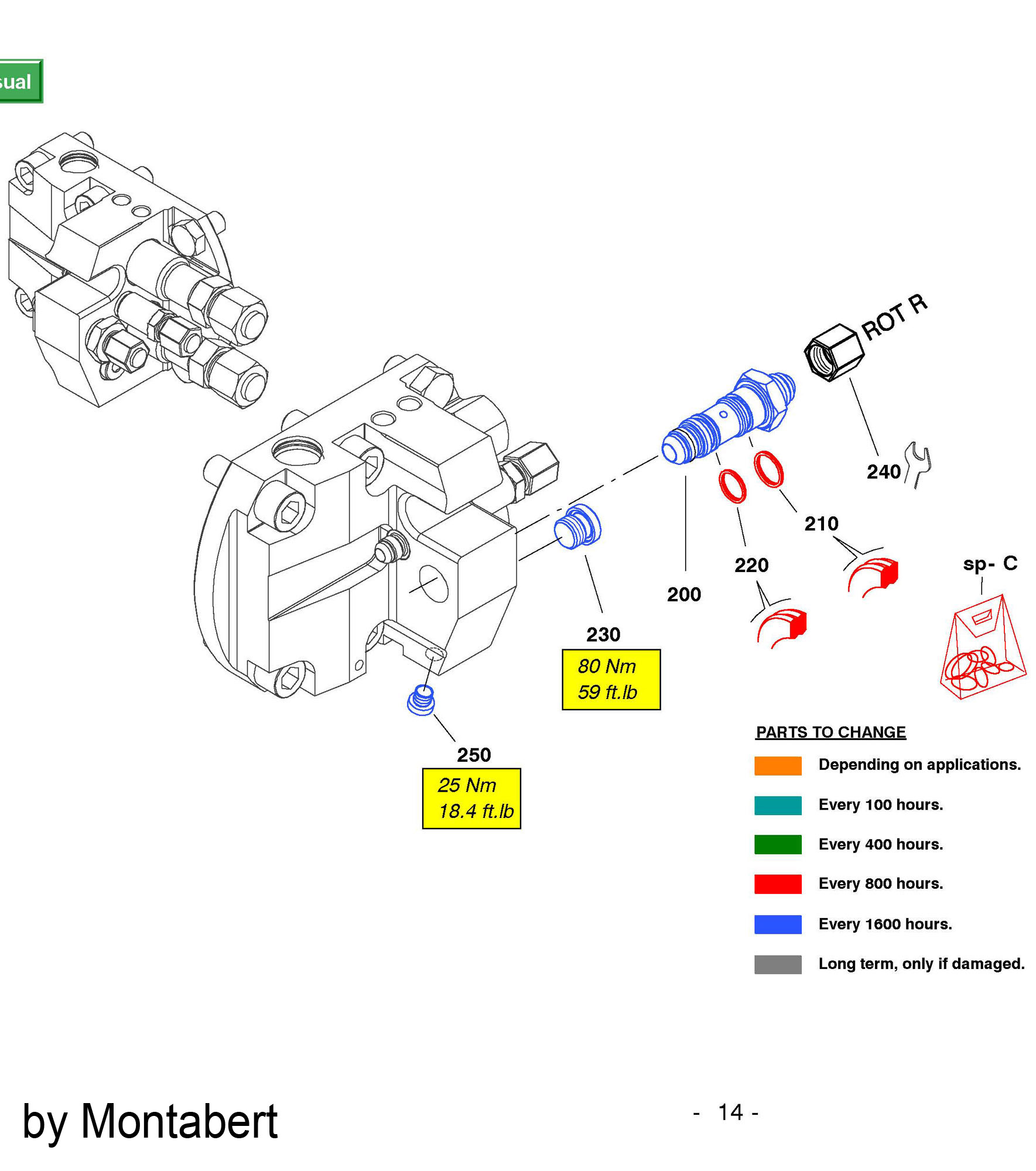

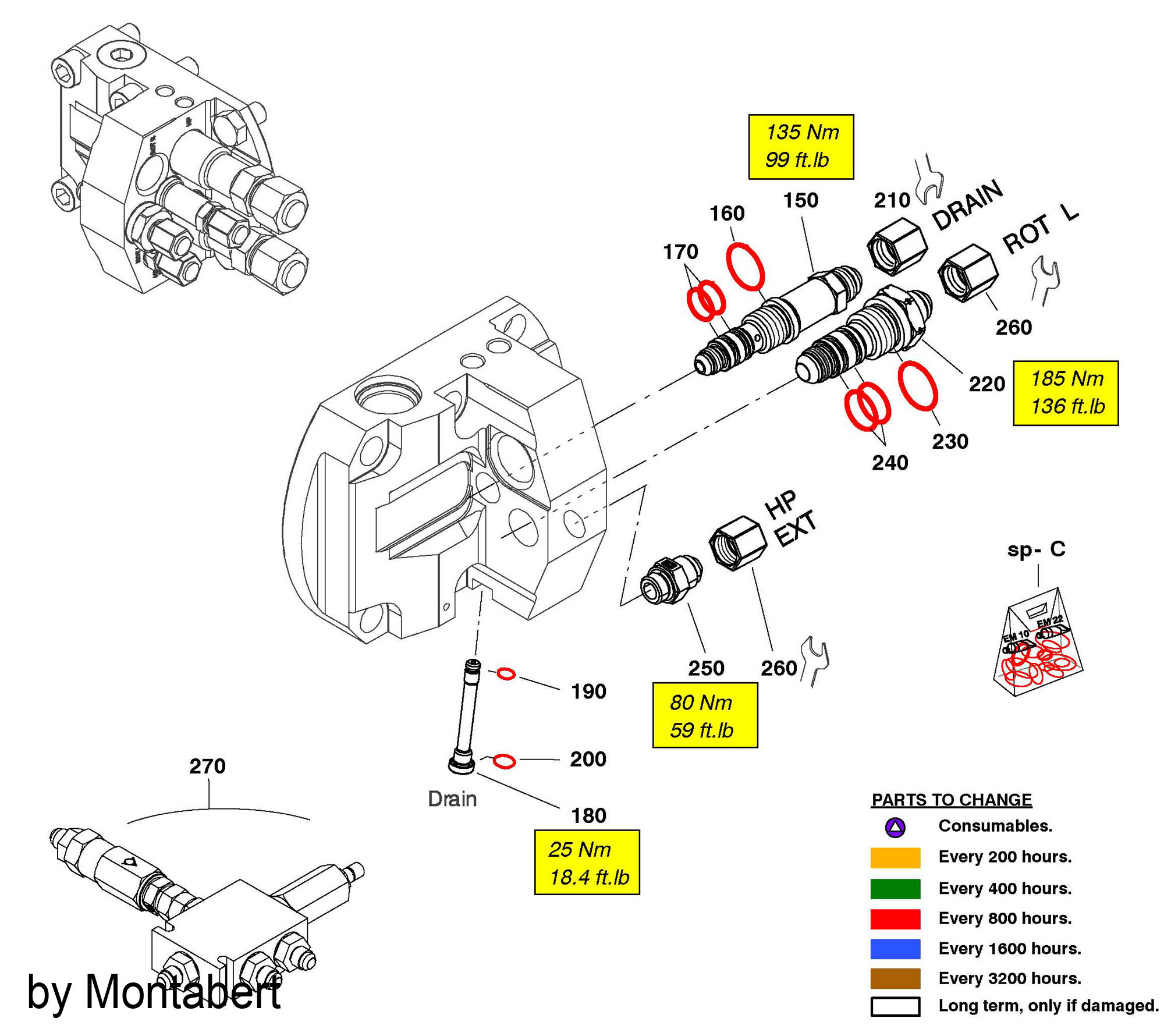

HC 95 SEALS PACKAGE #17232
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86790383
SEALS PACKAGE
150
86788114
ADAPTER DRAIN
160
86584141
O.RING
170
86788270
O.RING
180
86749025
DRAIN SP PLUG
190
86356953
ORING
200
86221884
ORING
210
86247723
PLUG
220
86788122
SP ADAPTER
230
86261187
ORING
240
86262250
O.RING
250
86270600
ADAPTOR
270
86759560
SEQUENCE VALVE KIT

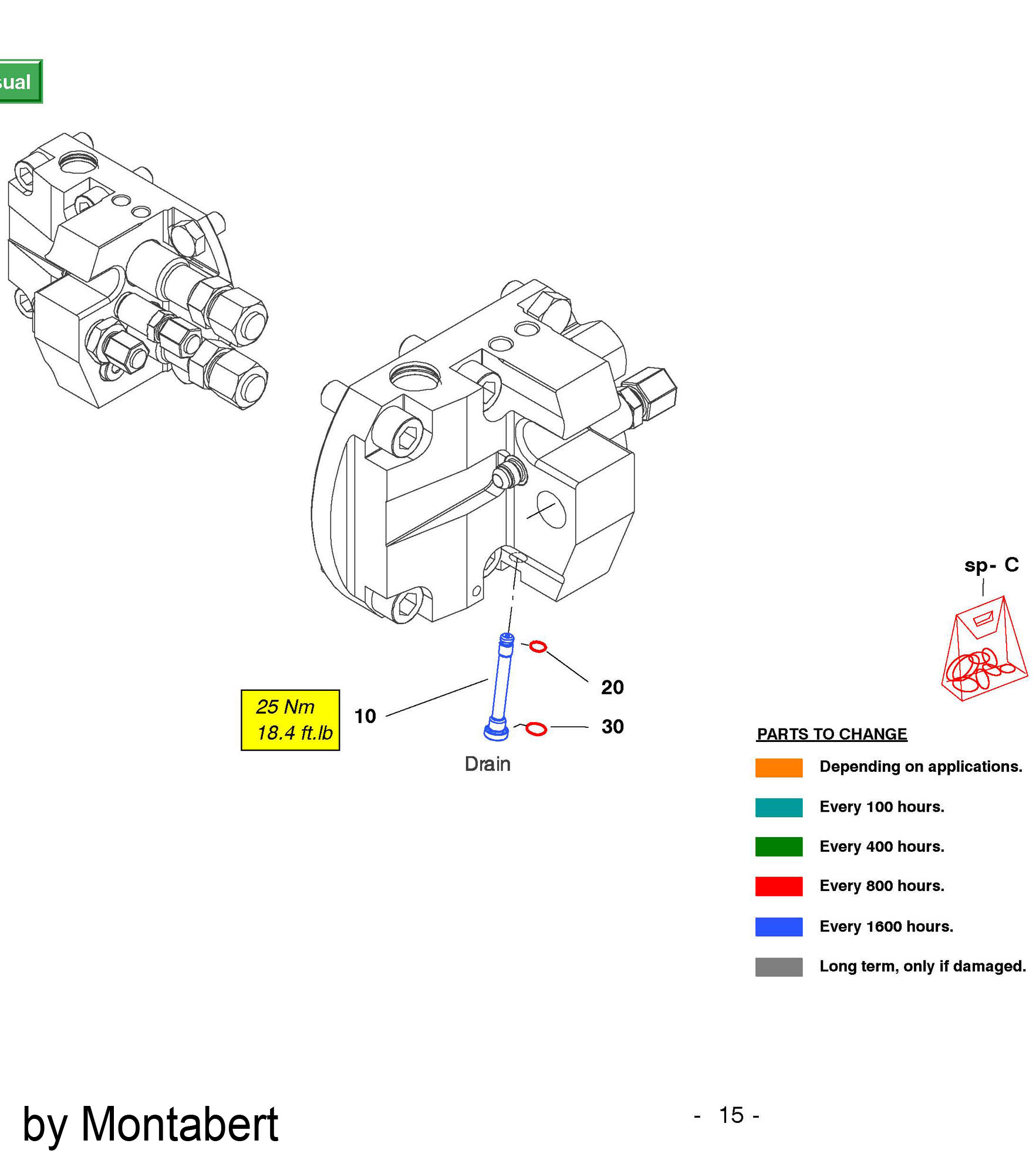

HC 95 SEALS PACKAGE #17243
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86752912
SEALS PACKAGE
10
86749025
DRAIN SP PLUG
20
86356953
ORING
30
86221884
ORING
HC 95 SEALS PACKAGE #17244
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86795739
SEALS PACKAGE
130
86746484
COVER
140
86668993
ORING
150
86746559
NEEDLE BEARING
160
86746468
HUB MOTOR GEAR
170
86746476
GEAR
180
86746567
NEEDLE BEARING
190
86386505
PLUG
200
86746518
PIN ADAPTER
210
86746500
RING
220
86222858
ORING
230
86309424
ORING
240
86613437
ADAPTER
250
86247723
PLUG
260
86748753
SOCKET HEAD SCREW
270
86758208
HOSE
280
86758398
PLUG
290
86748720
RING

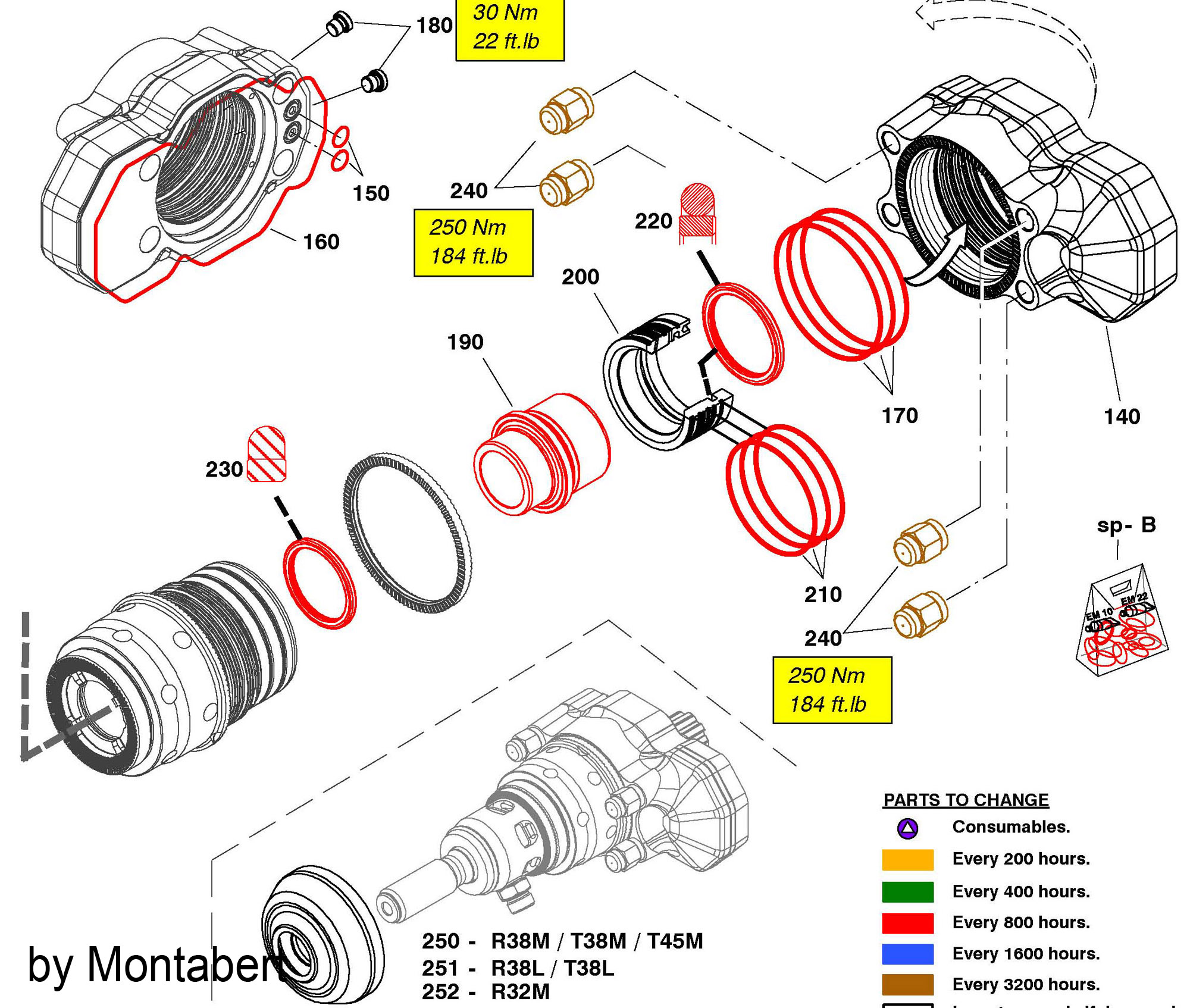

HC 95 SEALS PACKAGE #17247
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86795259
SEALS PACKAGE
140
86747995
FRONT GUIDE
150
86754611
O RING
160
86752466
O RING
170
86754900
ORING
180
86386885
PLUG
190
86774643
RP RETAINER SOCKET
200
86748019
RP LINER
210
86754918
O RING
220
86752284
SEAL
230
86795168
SEAL
240
86688785
NUT
250
86759677
SHANK PROTECTION
251
86778057
SHANK PROTECTION
252
86777141
SHANK PROTECTION

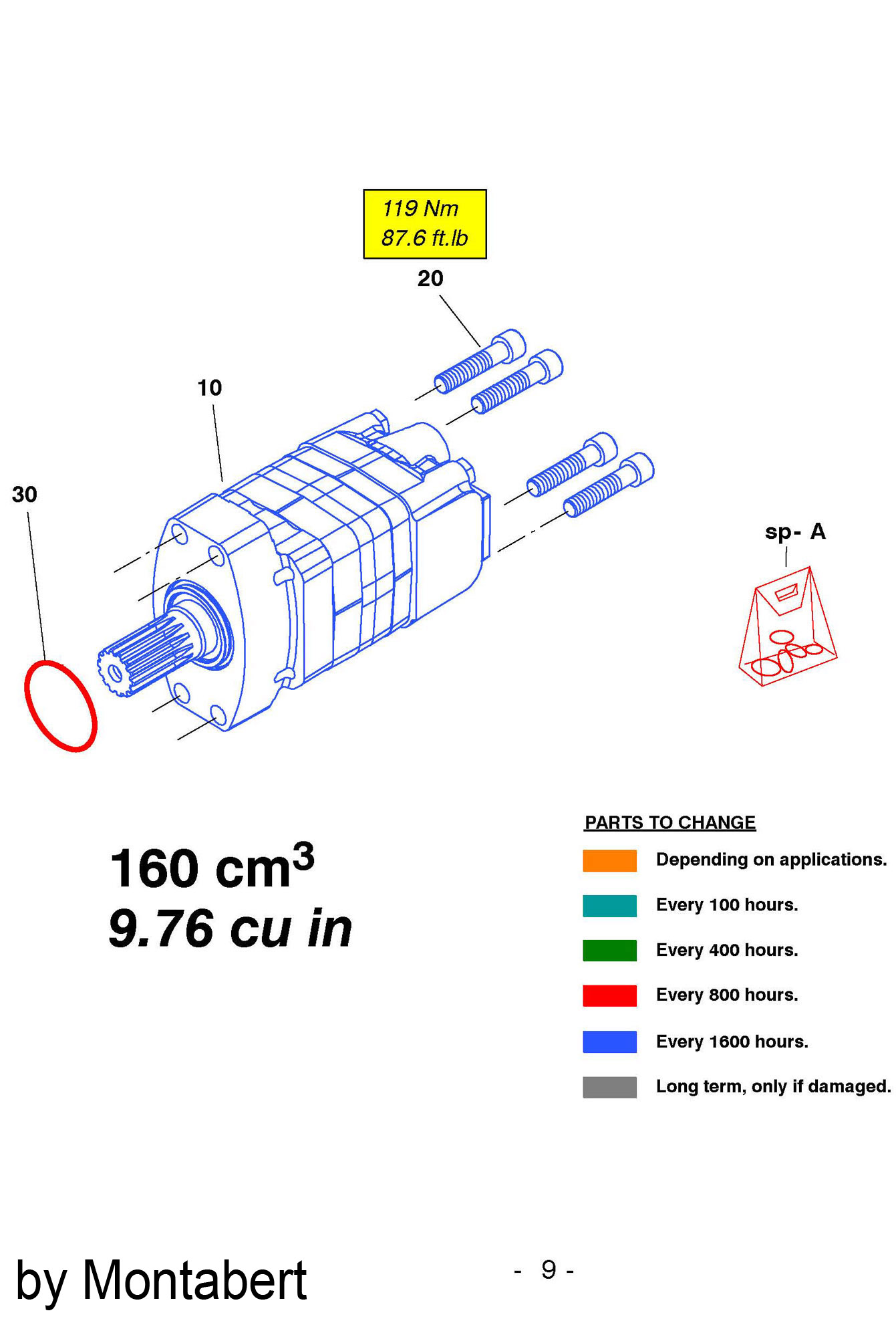

HC 95 SEALS PACKAGE #17254
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86752904
SEALS PACKAGE
10
86748589
HYD. MOTOR
20
96716949
SOCKET HEAD. SCREW
30
86235454
ORING
HC 95 SEALS PACKAGE #17257
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86752912
SEALS PACKAGE
200
86747268
SP ADAPTER
210
86752417
SEAL
220
86752425
SEAL
230
86386505
PLUG
240
86247723
PLUG
250
86386497
THREADED PLUG

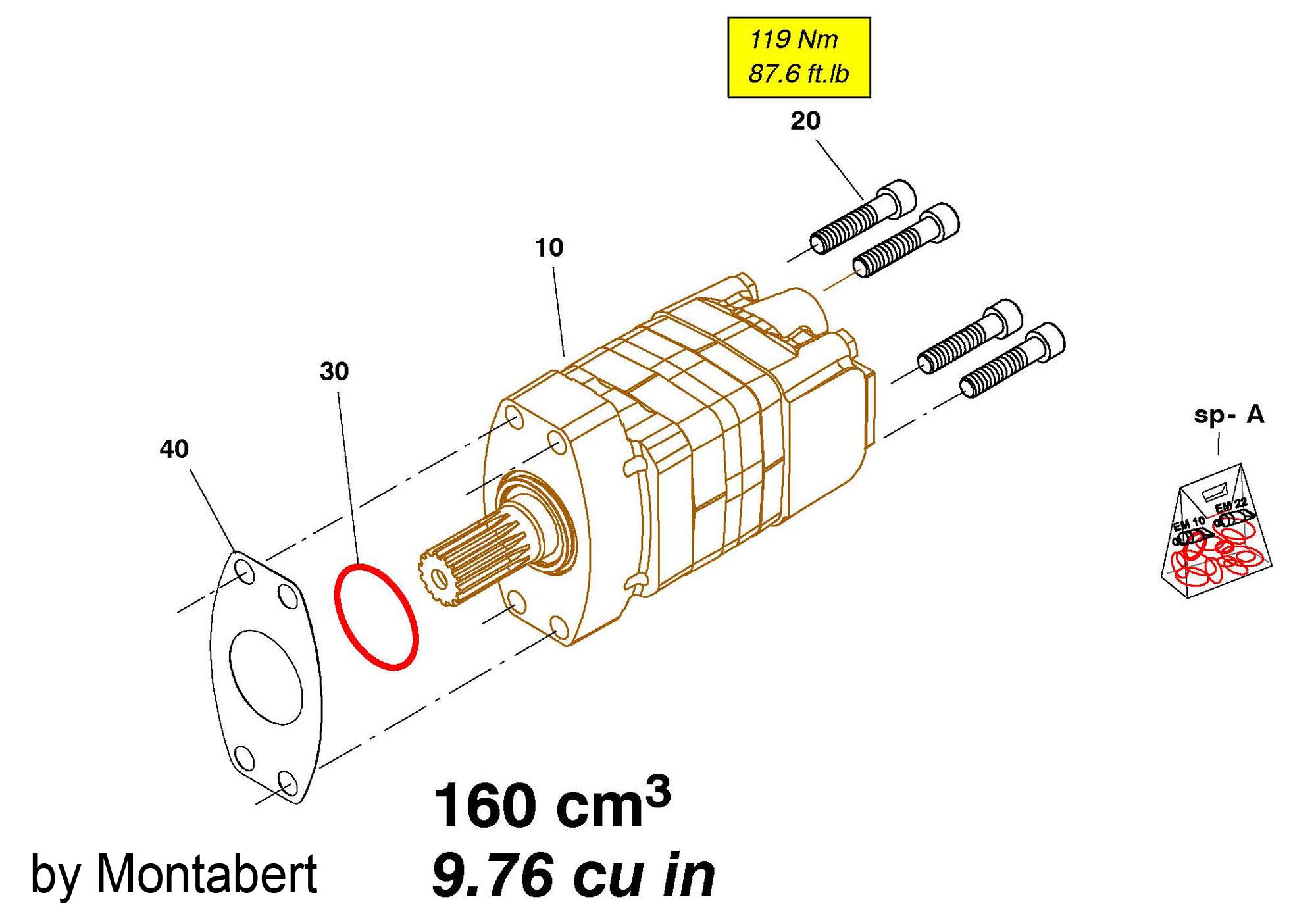

HC 95 SEALS PACKAGE #17258
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86795739
SEALS PACKAGE
10
86748589
HYD. MOTOR
20
96716949
SOCKET HEAD. SCREW
30
86235454
ORING
40
86790912
SEAL

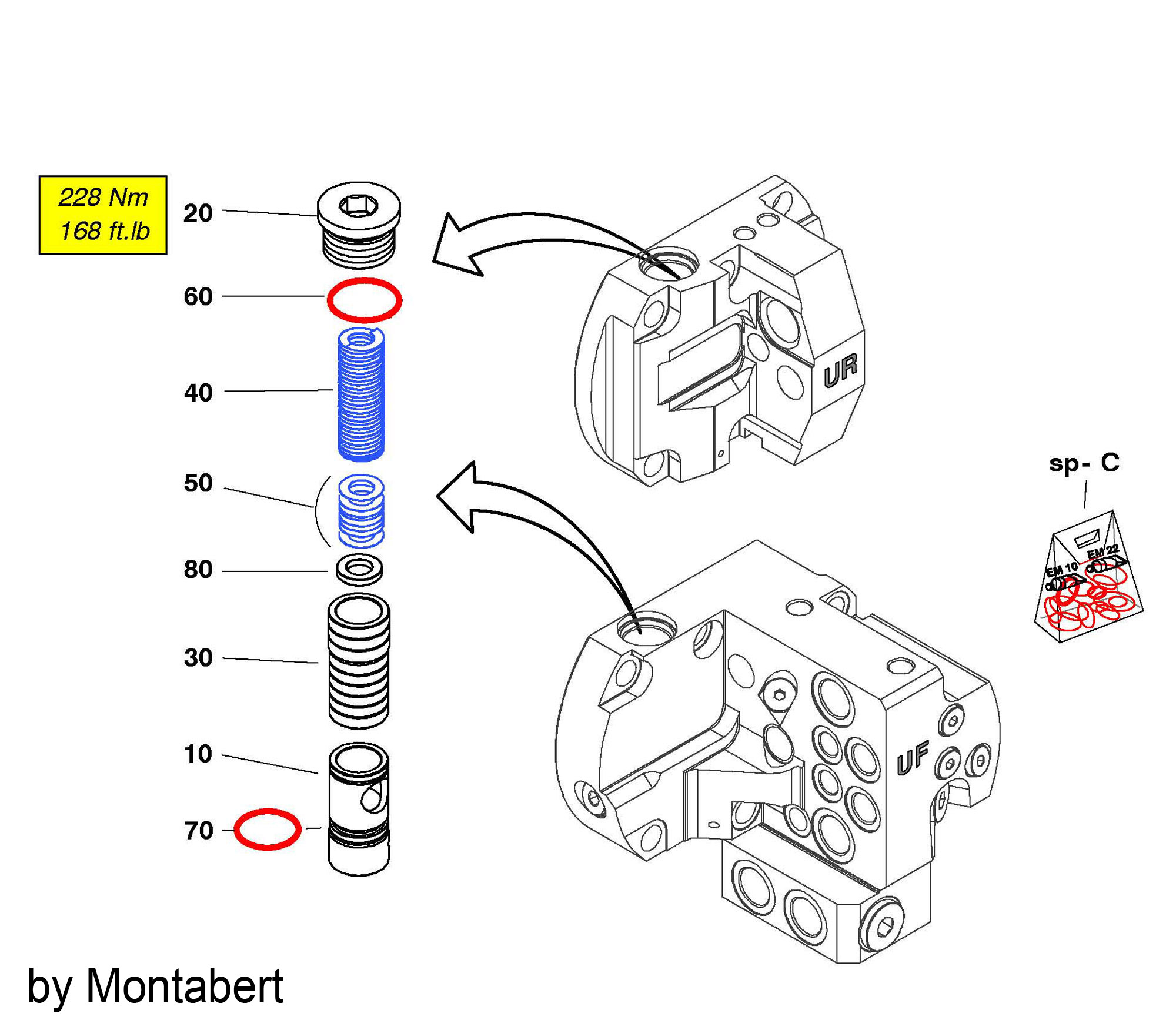

HC 95 SEALS PACKAGE #17259
HC 95 SEALS PACKAGE
ads
Ref
Parts Num
Name
0
86790383
SEALS PACKAGE
10
86789260
SLIDE SEAT
20
86788023
PLUG
30
86788015
SLIDE
40
86251519
SPRING
50
86312196
ADJUSTING SHIM
60
86281938
ORING
70
86325602
ORING
80
86793924
RING
