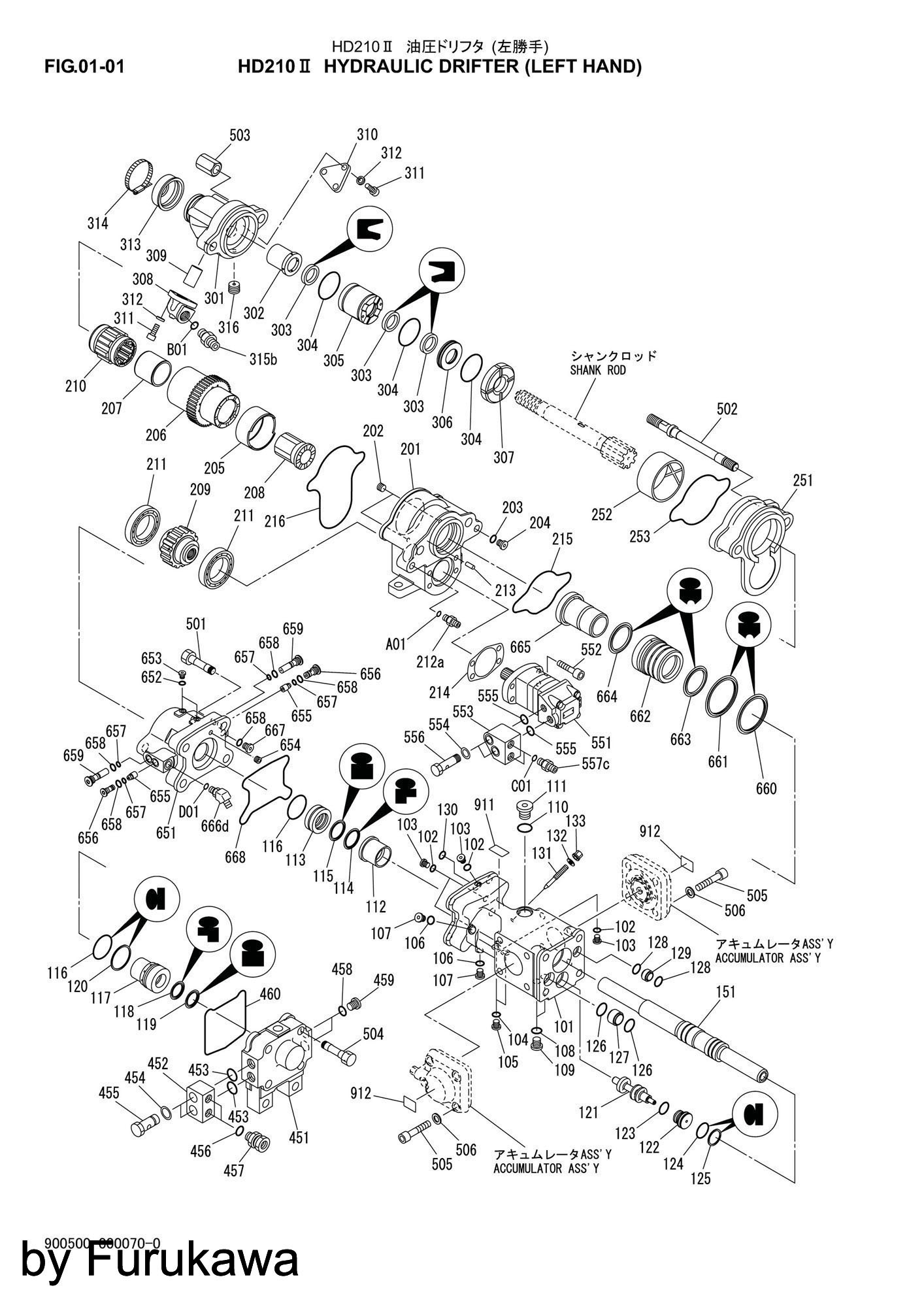

HD 210 CYLINDER #8649
HD 210 CYLINDER
ads
Ref
Parts Num
Name
101
000500-100150
CYLINDER
102
160011-00008
O-RING
103
084891-01000
PLUG. GPF
104
160011-00011
O-RING
105
084891-02000
PLUG.GPF
106
160011-00014
O-RING R1 R3
107
084891-03000
PLUG. GPF
108
160011-00018
O-RING R1
109
084891-04000
PLUG. GPF
110
160011-00029
O-RING
111
084891-10000
PLUG. GPF
112
000500-100041
BUSH F
113
000500-100050
RETAINER.SEAL F
114
000500-100060
SEAL.STEP
115
000500-100071
RING.GRIDE
116
160021-00065
O-RING
117
000500-100080
RETAINER.SEAL R
118
000500-100090
SEAL.STEP
119
000500-100101
RING.GRIDE
120
262022-00065
RING. BACK-UP
121
000500-100111
VALVE
122
000500-100122
PLUG
123
160011-00036
O-RING
124
160011-00046
O-RING
125
262021-00046
RING. BACK-UP
126
160011-00032
O-RING
127
hb30g-10121
BUSH F
128
160011-00024
O-RING
129
hb10g-10121
BUSH F
130
160011-00020
O-RING R1
131
hd150-01003
STROKE ADJUSTER
132
050300-02034
WASHER. SEAL (A)
133
008110-10004
NUT
151
000500-110010
PISTON
201
000500-200100
HEAD.FRONT
202
082005-01045
PLUG.HOLLOW
205
000500-200020
BEARING.PLAIN
206
000500-200030
DRAIVER.CHUCK
207
000500-200040
BEARING.PLAIN
208
000500-200050
BUSH.CHUCK DRIVER
209
000500-200060
GEAR DRIVER
666D
hd190-01513
ELBOW.REDUCING
212A
084861-03004
MALE.CONNECTOR
557C
084861-04000
CONNECTOR.MALE
315B
084861-06000
CONNECTOR.MALE
210
000500-200070
CHUCK
C01
161011-00018
O-RING
A01
161011-00014
O-RING R1 R3
211
280040-06014
BEARING.BALL
213
007210-30002
PIN.KNOCK
214
000500-200500
SHEET.JOINT
215
160050-00165
O-RING
216
160050-00235
O-RING
251
000500-210100
COVER.FRONT
253
160050-00180
O-RING
301
000500-220150
CAP.FRONT
302
000500-220120
BUSH.FRONT
303
085610-40559
U-PACKING
304
160021-00075
O-RING
305
000500-220031
BODY.SWIVEL
306
000500-220041
RETAINER.SEAL
307
000500-220050
WASHER.THRUST
308
000500-220060
ADAPTER FLLANGE
309
000500-220102
JOINT.RUBBER
310
hd190-02207
COVER
311
102033-14030
BOLT.SOCKET
312
000500-220110
SPRING.WASHER
313
hia175-02315
RUBBER.PROTECT
314
089202-01102
CLIP.JUBILEE
316
hd190-01008
REDUCER
451
000500-300100
HEAD.BACK
452
hd150-03004
ADAPTER.FLANGE
453
160011-00031
O-RING
454
022004-02016
SEAL.BONDET
455
hd150-03003
BOLT
456
161011-00024
O-RING R1 R5
457
007520-10007
ADAPTER. MALE FEMALE UNION
459
084891-06000
PLUG. GPF
501
hd190-03601
BOLT
502
000500-360011
BOLT THROUGH
503
hd190-03603
NUT
504
000500-360020
BOLT
505
hd150-07007
BOLT.SET(B)
506
007010-10019
WASHER
551
000500-600010
MOTOR.ORBIT
552
102033-14040
BOLT.SOCKET
553
000500-600021
ADAPTER.FLANGE
554
007010-60004
SEAL.BONDET
555
160021-00025
O-RING
556
000500-600030
BOLT
651
000500-150100
CYLINDER.FRONT
654
hd715-01502
REDUCER
655
hd615-01507
POPPET 1
656
hd615-01514
PLUG
657
161011-00010
O-RING R1 R3
659
000500-150020
PLUG
660
000500-150031
RING.GRIDE
661
000500-150041
RING. GRIDE
662
000500-150051
PISTON.DAMPING
663
000500-150061
RING.GRIDE
664
000500-150071
RING. GRIDE
665
000500-150082
PISTON.PUSHING
668
160050-00215
O-RING
911
090200-04856
STICKER
912
090200-04869
STICKER. CAUTION
912
090200-04870
STICKER. CAUTION
912
090200-04912
STICKER. CAUTION
912
090200-04913
STICKER. CAUTION
912
090200-04942
STICKER. CAUTION
912
090200-04943
STICKER. CAUTION
912
090200-04944
STICKER. CAUTION
912
090200-04858
STICKER. CAUTION
912
090200-04946
STICKER. CAUTION
912
090200-04947
STICKER. CAUTION
912
090200-06390
STICKER. CAUTION
912
090200-04860
STICKER. CAUTION
912
090200-04865
STICKER. CAUTION
912
090200-04866
STICKER. CAUTION
912
090200-04867
STICKER. CAUTION
912
090200-04864
STICKER. CAUTION
912
090200-04868
STICKER. CAUTION
912
090200-04945
STICKER. CAUTION

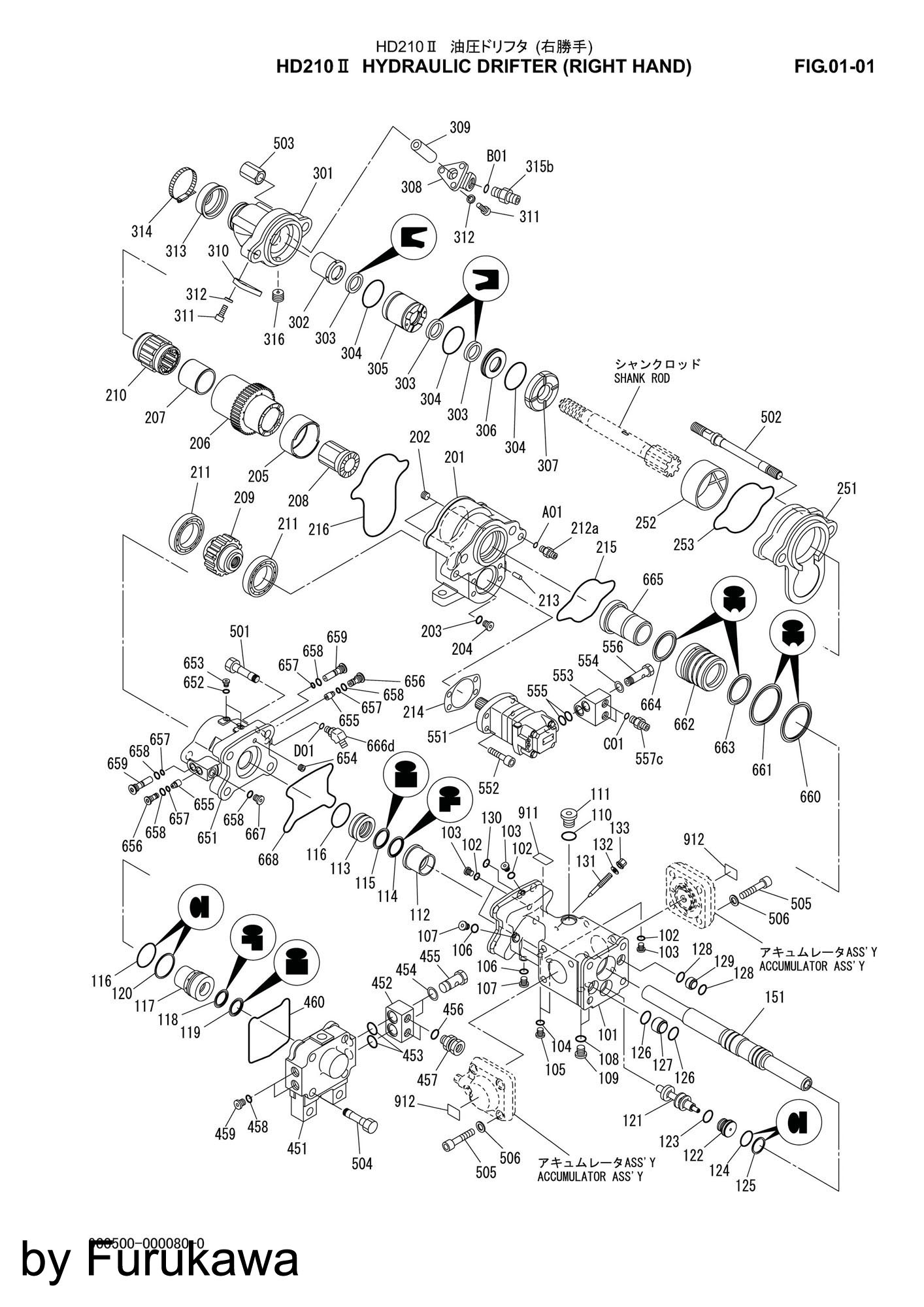

HD 210 CYLINDER #8664
HD 210 CYLINDER
ads
Ref
Parts Num
Name
101
000500-100150
CYLINDER
102
160011-00008
O-RING
103
084891-01000
PLUG. GPF
104
160011-00011
O-RING
105
084891-02000
PLUG.GPF
106
160011-00014
O-RING R1 R3
107
084891-03000
PLUG. GPF
108
160011-00018
O-RING R1
109
084891-04000
PLUG. GPF
110
160011-00029
O-RING
111
084891-10000
PLUG. GPF
112
000500-100041
BUSH F
113
000500-100050
RETAINER.SEAL F
114
000500-100060
SEAL.STEP
115
000500-100071
RING.GRIDE
116
160021-00065
O-RING
117
000500-100080
RETAINER.SEAL R
118
000500-100090
SEAL.STEP
119
000500-100101
RING.GRIDE
120
262022-00065
RING. BACK-UP
121
000500-100111
VALVE
122
000500-100122
PLUG
123
160011-00036
O-RING
124
160011-00046
O-RING
125
262021-00046
RING. BACK-UP
126
160011-00032
O-RING
127
hb30g-10121
BUSH F
128
160011-00024
O-RING
129
hb10g-10121
BUSH F
130
160011-00020
O-RING R1
131
hd150-01003
STROKE ADJUSTER
132
050300-02034
WASHER. SEAL (A)
133
008110-10004
NUT
151
000500-110010
PISTON
201
000500-200100
HEAD.FRONT
202
082005-01045
PLUG.HOLLOW
205
000500-200020
BEARING.PLAIN
206
000500-200030
DRAIVER.CHUCK
207
000500-200040
BEARING.PLAIN
208
000500-200050
BUSH.CHUCK DRIVER
209
000500-200060
GEAR DRIVER
666D
hd190-01513
ELBOW.REDUCING
212A
084861-03004
MALE.CONNECTOR
557C
084861-04000
CONNECTOR.MALE
315B
084861-06000
CONNECTOR.MALE
210
000500-200070
CHUCK
C01
161011-00018
O-RING
A01
161011-00014
O-RING R1 R3
211
280040-06014
BEARING.BALL
213
007210-30002
PIN.KNOCK
214
000500-200500
SHEET.JOINT
215
160050-00165
O-RING
216
160050-00235
O-RING
251
000500-210100
COVER.FRONT
253
160050-00180
O-RING
301
000500-220150
CAP.FRONT
302
000500-220120
BUSH.FRONT
303
085610-40559
U-PACKING
304
160021-00075
O-RING
305
000500-220031
BODY.SWIVEL
306
000500-220041
RETAINER.SEAL
307
000500-220050
WASHER.THRUST
308
000500-220060
ADAPTER FLLANGE
309
000500-220102
JOINT.RUBBER
310
hd190-02207
COVER
311
102033-14030
BOLT.SOCKET
312
000500-220110
SPRING.WASHER
313
hia175-02315
RUBBER.PROTECT
314
089202-01102
CLIP.JUBILEE
316
hd190-01008
REDUCER
451
000500-300100
HEAD.BACK
452
hd150-03004
ADAPTER.FLANGE
453
160011-00031
O-RING
454
022004-02016
SEAL.BONDET
455
hd150-03003
BOLT
456
161011-00024
O-RING R1 R5
457
007520-10007
ADAPTER. MALE FEMALE UNION
459
084891-06000
PLUG. GPF
501
hd190-03601
BOLT
502
000500-360011
BOLT THROUGH
503
hd190-03603
NUT
504
000500-360020
BOLT
505
hd150-07007
BOLT.SET(B)
506
007010-10019
WASHER
551
000500-600010
MOTOR.ORBIT
552
102033-14040
BOLT.SOCKET
553
000500-600021
ADAPTER.FLANGE
554
007010-60004
SEAL.BONDET
555
160021-00025
O-RING
556
000500-600030
BOLT
651
000500-150100
CYLINDER.FRONT
654
hd715-01502
REDUCER
655
hd615-01507
POPPET 1
656
hd615-01514
PLUG
657
161011-00010
O-RING R1 R3
659
000500-150020
PLUG
660
000500-150031
RING.GRIDE
661
000500-150041
RING. GRIDE
662
000500-150051
PISTON.DAMPING
663
000500-150061
RING.GRIDE
664
000500-150071
RING. GRIDE
665
000500-150082
PISTON.PUSHING
668
160050-00215
O-RING
911
090200-04856
STICKER
912
090200-04869
STICKER. CAUTION
912
090200-04870
STICKER. CAUTION
912
090200-04912
STICKER. CAUTION
912
090200-04913
STICKER. CAUTION
912
090200-04942
STICKER. CAUTION
912
090200-04943
STICKER. CAUTION
912
090200-04944
STICKER. CAUTION
912
090200-04858
STICKER. CAUTION
912
090200-04946
STICKER. CAUTION
912
090200-04947
STICKER. CAUTION
912
090200-06390
STICKER. CAUTION
912
090200-04860
STICKER. CAUTION
912
090200-04865
STICKER. CAUTION
912
090200-04866
STICKER. CAUTION
912
090200-04867
STICKER. CAUTION
912
090200-04864
STICKER. CAUTION
912
090200-04868
STICKER. CAUTION
912
090200-04945
STICKER. CAUTION
