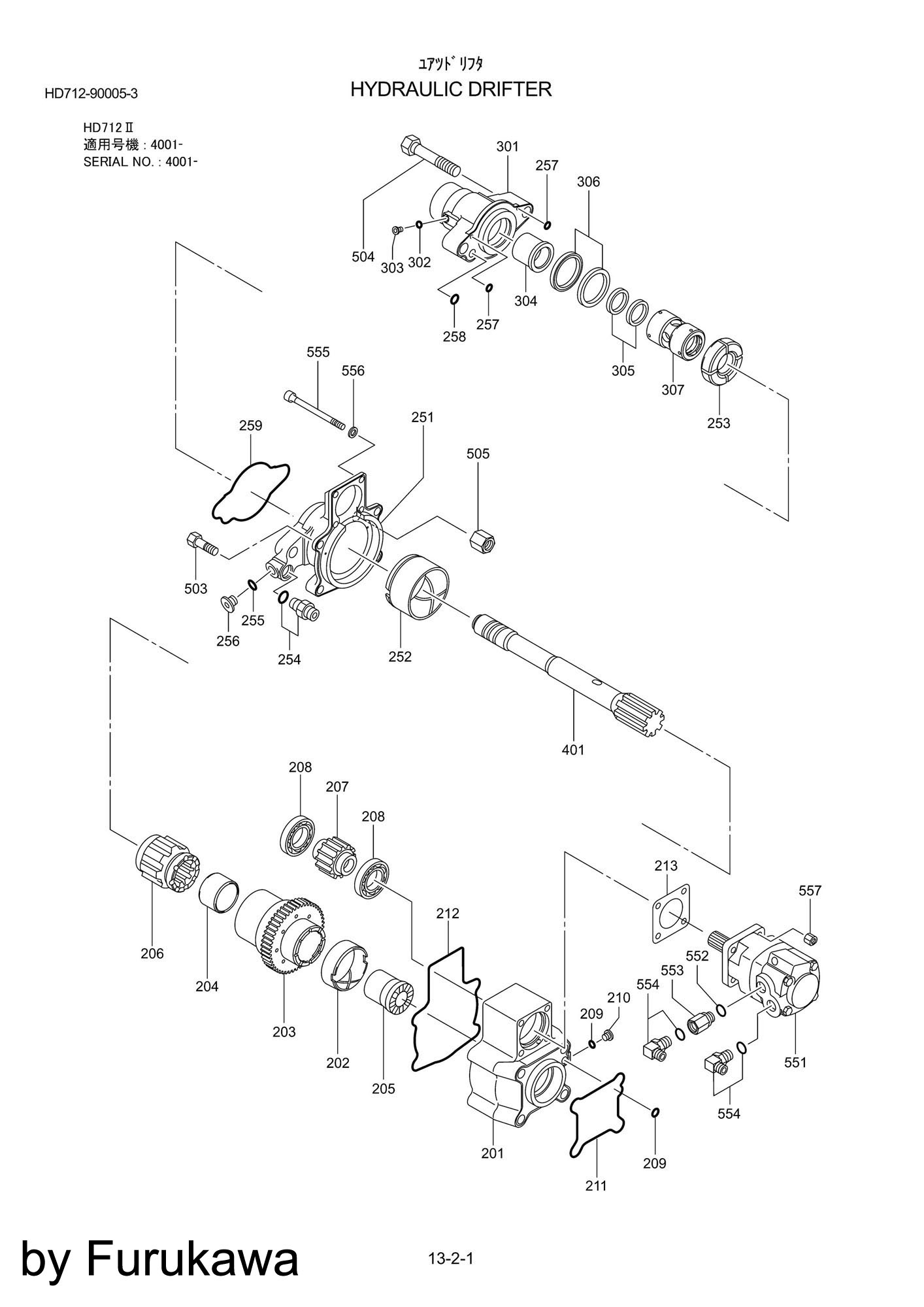

HD 712 CYLINDER #8639
HD 712 CYLINDER
ads
Ref
Parts Num
Name
101
hd712-01026
CYLINDER
102
160011-00008
O-RING
103
084891-01000
PLUG. GPF
105
084891-03000
PLUG. GPF
106
160011-00018
O-RING R1
107
084891-04000
PLUG. GPF
108
160011-00024
O-RING
109
084891-06000
PLUG. GPF
110
hd712-01012
BUSH (F)
111
hd712-01041
SEAL. STEP
111
hd712-01047
SEAL. STEP
112
hd712-01042
RING. GRIDE
113
160021-00070
O-RING R1 R2
114
262022-00070
RING BACK-UP R1 R2
115
hd712-01040
RETAINER. SEAL (F)
116
hd712-01048
SEAL. STEP
116
hd712-01044
SEAL. STEP
117
hd712-01045
RING. GRIDE
118
160021-00060
O-RING R1 R2
119
262022-00060
RING BACK-UP R1 R2
120
hd712-01046
RETAINER SEAL (R) 3117 -
120
hd712-01043
RETAINER SEAL (R) - 3116
122
hd712-01068
VALVE
123
160011-00046
O-RING
124
262021-00046
RING. BACK-UP
125
hd715-01068
PLUG
126
hd715-01012
ADJUSTER. STROKE
127
050300-02034
WASHER. SEAL (A)
128
hd715-01013
NUT
129
160011-00020
O-RING R1
130
161011-00024
O-RING R1 R5
131
007520-10007
ADAPTER. MALE FEMALE UNION
132
160011-00036
O-RING
133
160050-00165
O-RING
151
hd712-01101
PISTON
201
hd712-02024
HEAD. FRONT
202
hd712-02023
BEARING. PLAIN (RC)
203
hd712-02003
DRIVER. CHUCK
204
hd712-02004
BEARING. PLAIN (RB)
205
hd712-02025
BUSH. CHUCK DRIVER
206
hd712-02006
CHUCK
207
hd715-02007
GEAR. DRIVE
208
280100-06211
BEARING. BALL
211
160050-00215
O-RING
212
160050-00310
O-RING
213
hd715-02029
SHEET. JOINT
251
hd712-02105
COVER. FRONT
252
hd712-02104
BEARING. PLAIN (F)
253
hd712-02103
WASHER. THRUST
254
084861-10000
CONNECTOR. MALE
257
160011-00009
O-RING R1
258
160021-00030
O-RING
259
160050-00195
O-RING
301
hd712-02223
CAP. FRONT
304
hd712-02202
BUSH. FRONT
305
hd500-04009
U PACKING R1 R4
306
hd500-04010
U PACKING R1 R4
307
hd712-02203
BODY. SWIVEL
401
hd712-02505
ROD. SHANK
401
hd712-02504
ROD. SHANK
401
hd712-02506
ROD. SHANK
451
hd712-03003
HEAD. BACK
501
hd712-03601
BOLT
502
hd712-03602
22 NUT
503
hd612-03612
BOLT. SET
504
hd612-03601
THROUGH BOLT (A)
505
hd715-03605
NUT
506
hd715-03606
BOLT
551
hd715-06001
MOTOR. ROTATION
552
089800-90012
O-RING R1
553
hd715-06011
ADAPTER. MALE FEMALE
554
084886-67006
CONNECTOR. ELBOW
555
hd715-06013
BOLT. SOCKET
556
hd715-06014
WASHER
558
hd715-06016
NUT
651
hd712-01524
CYLINDER. FRONT
654
hd715-01502
REDUCER
654
hd715-01538
REDUCER
655
hd712-01530
RING. GRIDE
656
000500-150041
RING. GRIDE
657
hd712-01527
PISTON DAMPING 3188
658
hd712-01531
RING. GRIDE
659
000500-150071
RING. GRIDE
660
hd712-01528
PISTON PUSHING 3188 -
661
hd615-01507
POPPET 1
663
hd615-01514
PLUG
664
161011-00014
O-RING R1 R3
665
hd715-01509
CONNECTOR. MALE
665
hd715-01510
CONNECTOR. MALE
666
084861-03000
CONNECTOR. MALE
900
hd712-97004
ACCUMULATOR ASS
911
090200-04856
STICKER
912
090200-04942
STICKER. CAUTION
912
090200-04866
STICKER. CAUTION
912
090200-04867
STICKER. CAUTION
912
090200-04865
STICKER. CAUTION
912
090200-04864
STICKER. CAUTION
912
090200-04860
STICKER. CAUTION
912
090200-04858
STICKER. CAUTION
912
090200-04913
STICKER. CAUTION
912
090200-04912
STICKER. CAUTION
912
090200-04869
STICKER. CAUTION
912
090200-04946
STICKER. CAUTION
912
090200-04870
STICKER. CAUTION
912
090200-04947
STICKER. CAUTION
912
090200-06390
STICKER. CAUTION
912
090200-04945
STICKER. CAUTION
912
090200-04944
STICKER. CAUTION
912
090200-04943
STICKER. CAUTION
912
090200-04868
STICKER. CAUTION

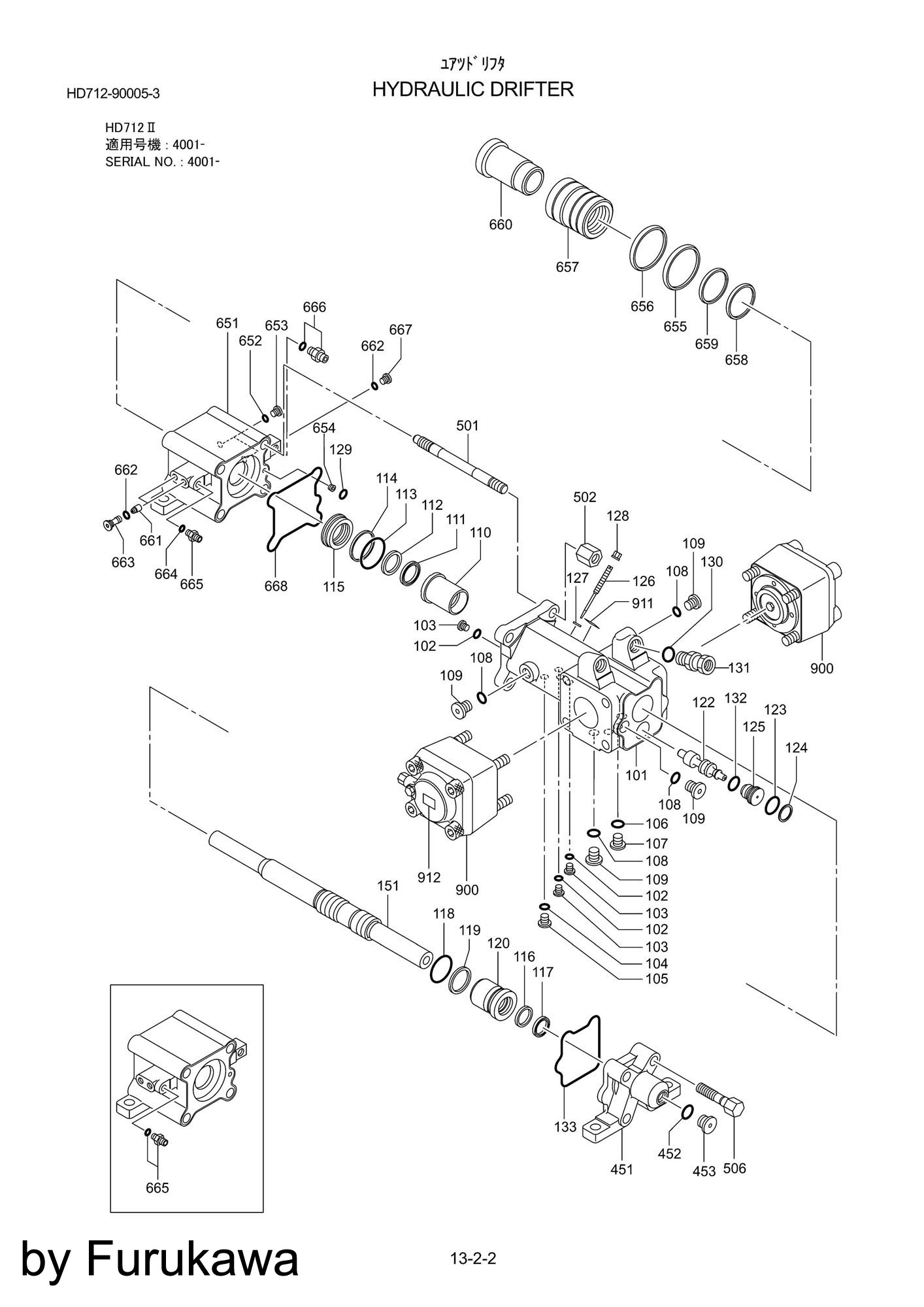

HD 712 CYLINDER #8661
HD 712 CYLINDER
ads
Ref
Parts Num
Name
101
hd712-01026
CYLINDER
102
160011-00008
O-RING
103
084891-01000
PLUG. GPF
104
160011-00014
O-RING R1 R3
105
084891-03000
PLUG. GPF
106
160011-00018
O-RING R1
107
084891-04000
PLUG. GPF
108
160011-00024
O-RING
109
084891-06000
PLUG. GPF
110
hd712-01012
BUSH (F)
111
hd712-01047
SEAL. STEP
111
hd712-01041
SEAL. STEP
112
hd712-01042
RING. GRIDE
113
160021-00070
O-RING R1 R2
114
262022-00070
RING BACK-UP R1 R2
115
hd712-01040
RETAINER. SEAL (F)
116
hd712-01048
SEAL. STEP
116
hd712-01044
SEAL. STEP
117
hd712-01045
RING. GRIDE
118
160021-00060
O-RING R1 R2
119
262022-00060
RING BACK-UP R1 R2
120
hd712-01043
RETAINER SEAL (R) - 3116
120
hd712-01046
RETAINER SEAL (R) 3117 -
122
hd712-01068
VALVE
123
160011-00046
O-RING
124
262021-00046
RING. BACK-UP
125
hd715-01068
PLUG
126
hd715-01012
ADJUSTER. STROKE
127
050300-02034
WASHER. SEAL (A)
128
hd715-01013
NUT
129
160011-00020
O-RING R1
130
161011-00024
O-RING R1 R5
131
007520-10007
ADAPTER. MALE FEMALE UNION
132
160011-00036
O-RING
133
160050-00165
O-RING
151
hd712-01101
PISTON
201
hd712-02024
HEAD. FRONT
202
hd712-02023
BEARING. PLAIN (RC)
203
hd712-02003
DRIVER. CHUCK
204
hd712-02004
BEARING. PLAIN (RB)
205
hd712-02025
BUSH. CHUCK DRIVER
206
hd712-02006
CHUCK
207
hd715-02007
GEAR. DRIVE
208
280100-06211
BEARING. BALL
211
160050-00215
O-RING
212
160050-00310
O-RING
213
hd715-02029
SHEET. JOINT
251
hd712-02105
COVER. FRONT
252
hd712-02104
BEARING. PLAIN (F)
253
hd712-02103
WASHER. THRUST
254
084861-10000
CONNECTOR. MALE
257
160011-00009
O-RING R1
258
160021-00030
O-RING
259
160050-00195
O-RING
301
hd712-02223
CAP. FRONT
304
hd712-02202
BUSH. FRONT
305
hd500-04009
U PACKING R1 R4
306
hd500-04010
U PACKING R1 R4
307
hd712-02203
BODY. SWIVEL
401
hd712-02504
ROD. SHANK
401
hd712-02505
ROD. SHANK
401
hd712-02506
ROD. SHANK
451
hd712-03003
HEAD. BACK
501
hd712-03601
BOLT
502
hd712-03602
22 NUT
503
hd612-03612
BOLT. SET
504
hd612-03601
THROUGH BOLT (A)
505
hd715-03605
NUT
506
hd715-03606
BOLT
551
hd715-06001
MOTOR. ROTATION
552
089800-90012
O-RING R1
553
hd715-06011
ADAPTER. MALE FEMALE
554
084886-67006
CONNECTOR. ELBOW
555
hd715-06013
BOLT. SOCKET
556
hd715-06014
WASHER
558
hd715-06016
NUT
651
hd712-01524
CYLINDER. FRONT
654
hd715-01538
REDUCER
654
hd715-01502
REDUCER
655
hd712-01530
RING. GRIDE
656
000500-150041
RING. GRIDE
657
hd712-01527
PISTON DAMPING 3188
658
hd712-01531
RING. GRIDE
659
000500-150071
RING. GRIDE
660
hd712-01528
PISTON PUSHING 3188 -
661
hd615-01507
POPPET 1
663
hd615-01514
PLUG
664
161011-00014
O-RING R1 R3
665
hd715-01509
CONNECTOR. MALE
665
hd715-01510
CONNECTOR. MALE
666
084861-03000
CONNECTOR. MALE
900
hd712-97004
ACCUMULATOR ASS
911
090200-04856
STICKER
912
090200-04866
STICKER. CAUTION
912
090200-04942
STICKER. CAUTION
912
090200-04913
STICKER. CAUTION
912
090200-04945
STICKER. CAUTION
912
090200-04870
STICKER. CAUTION
912
090200-04869
STICKER. CAUTION
912
090200-04868
STICKER. CAUTION
912
090200-04867
STICKER. CAUTION
912
090200-04943
STICKER. CAUTION
912
090200-04865
STICKER. CAUTION
912
090200-04946
STICKER. CAUTION
912
090200-04864
STICKER. CAUTION
912
090200-04860
STICKER. CAUTION
912
090200-04858
STICKER. CAUTION
912
090200-04944
STICKER. CAUTION
912
090200-04947
STICKER. CAUTION
912
090200-06390
STICKER. CAUTION
912
090200-04912
STICKER. CAUTION
