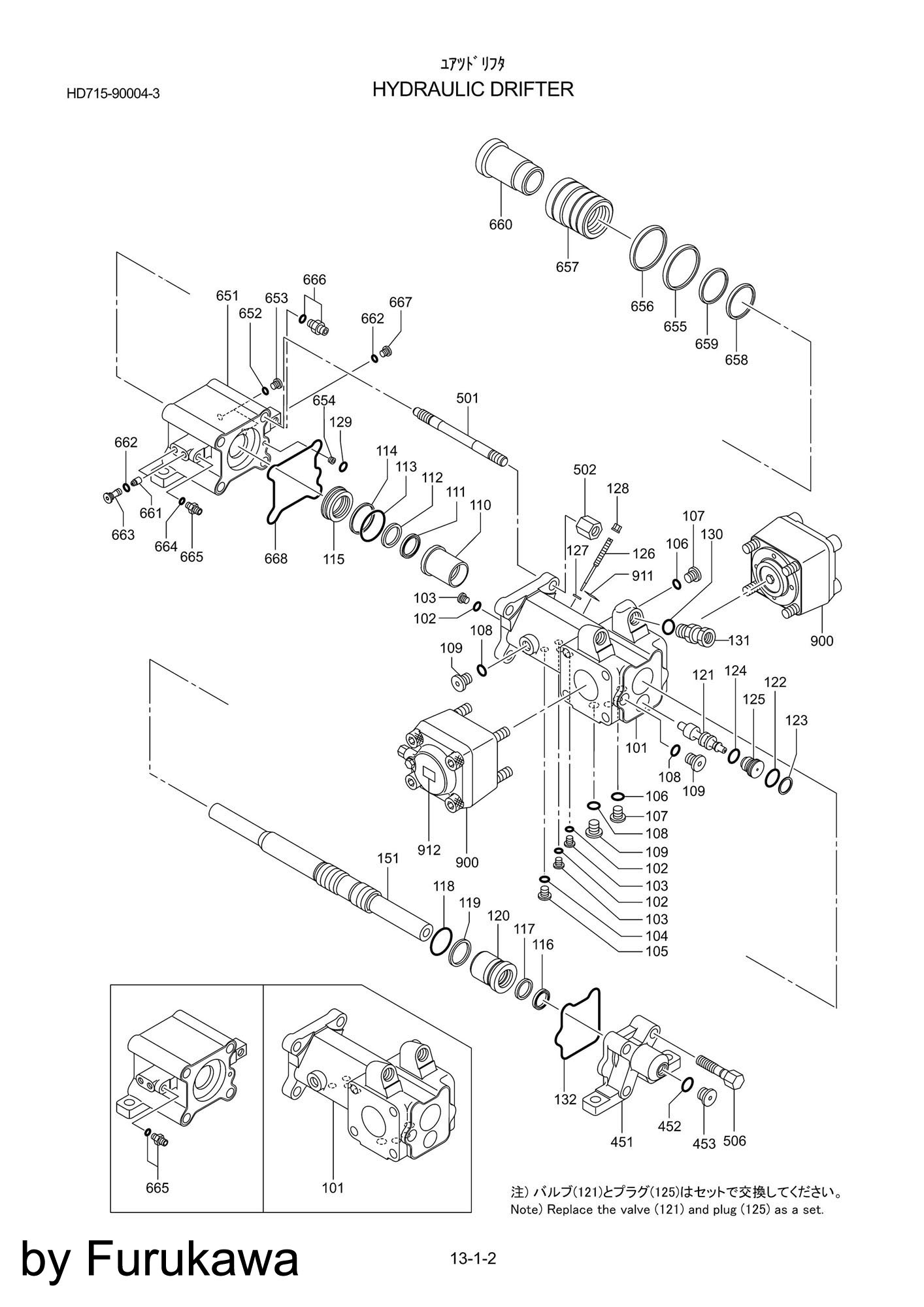

HD 715 VALVE PLUG SET #8644
HD 715 VALVE PLUG SET
ads
Ref
Parts Num
Name
0
hd715-01071
VALVE PLUG SET
101
hd715-01035
CYLINDER
101
hd715-01052
CYLINDER
103
084891-01000
PLUG. GPF
104
160011-00018
O-RING R1
105
084891-04000
PLUG. GPF
107
084891-06000
PLUG. GPF
108
160011-00029
O-RING
109
084891-10000
PLUG. GPF
110
hd715-01014
BUSH
111
hd715-01047
SEAL. STEP
111
hd715-01041
52 3 SEAL STEP
112
hd715-01042
52 3 RING GRIDE
113
160021-00075
O-RING
114
262022-00075
RING. BACK-UP
115
hd715-01040
RETAINER.SEAL
116
hd715-01045
43 7 RING GRIDE
117
hd715-01048
SEAL. STEP
117
hd715-01044
43 7 SEAL STEP
118
160021-00065
O-RING
119
262022-00065
RING. BACK-UP
120
hd715-01043
RETAINER. SEAL
120
hd715-01046
RETAINER SEAL (R)
121
hd715-01067
VALVE
122
160011-00046
O-RING
123
262021-00046
RING. BACK-UP
124
160011-00036
O-RING
125
hd715-01068
PLUG
126
hd715-01012
ADJUSTER. STROKE
127
050300-02034
WASHER. SEAL (A)
128
hd715-01013
NUT
129
160011-00020
O-RING R1
130
161011-00029
O-RING R1
131
hd615-03002
ADAPTER.MALE FEMALE UNION
132
160050-00185
O-RING
151
hd715-01101
PISTON
201
hd715-02026
HEAD.FRONT
202
hd715-02023
BEARING.PLAIN
203
hd715-02003
DRIVER. CHUCK
204
hd715-02004
BEARING PLAIN (RB)
205
hd715-02025
BUSH. CHUCK DRIVER
206
hd715-02006
CHUCK
207
hd715-02007
GEAR. DRIVE
208
280100-06211
BEARING. BALL
210
084891-03000
PLUG. GPF
211
160050-00235
O-RING
212
160050-00320
O-RING
213
hd715-02029
SHEET. JOINT
251
hd715-02106
COVER.FRONT
252
hd715-02105
BEARING.PLAIN
253
hd715-02103
WASHER.THRUST
254
084861-10000
CONNECTOR. MALE
257
hd609-02016
REDUCER
258
160021-00030
O-RING
259
160011-00009
O-RING R1
260
160050-00205
O-RING
301
hd715-02223
CAP. FRONT
304
hd715-02202
BUSH. FRONT
305
hd615-02205
58 PACKING
306
hd615-02203
90 PACKING
307
hd715-02203
BODY. SWIVEL
401
hd715-02503
ROD.SHANK
401
hd715-02504
ROD.SHANK
451
hd715-03004
HEAD. BACK
501
hd715-03601
BOLT
502
hd615-03605
NUT.HELISERT
503
hd612-03612
BOLT. SET
504
hd612-03601
THROUGH BOLT (A)
505
hd715-03605
NUT
506
hd715-03606
BOLT
551
hd715-06001
MOTOR. ROTATION
552
089800-90012
O-RING R1
553
hd715-06011
ADAPTER. MALE FEMALE
554
084886-67006
CONNECTOR. ELBOW
555
hd715-06013
BOLT. SOCKET
556
hd715-06014
WASHER
557
hd715-06016
NUT
651
hd715-01531
CYLINDER.FRONT
654
hd715-01538
REDUCER
654
hd715-01502
REDUCER
655
hd715-01533
105 RING GRIDE
656
hd715-01534
110 RING GRIDE
657
hd715-01529
PISTON.DAMPING
658
hd715-01535
75 RING GRIDE
659
hd715-01536
78 RING GRIDE
660
hd715-01530
PISTON. PUSHING
661
hd615-01507
POPPET 1
663
hd615-01514
PLUG
664
161011-00014
O-RING R1 R3
665
hd715-01509
CONNECTOR. MALE
665
hd715-01510
CONNECTOR. MALE
666
084861-03000
CONNECTOR. MALE
668
160050-00240
O-RING
900
hd715-97002
ACCUMULATOR ASSY
911
090200-04856
STICKER
912
090200-04858
STICKER. CAUTION
912
090200-04860
STICKER. CAUTION
912
090200-04864
STICKER. CAUTION
912
090200-04865
STICKER. CAUTION
912
090200-04866
STICKER. CAUTION
912
090200-04867
STICKER. CAUTION
912
090200-04946
STICKER. CAUTION
912
090200-04869
STICKER. CAUTION
912
090200-04945
STICKER. CAUTION
912
090200-04870
STICKER. CAUTION
912
090200-04912
STICKER. CAUTION
912
090200-04913
STICKER. CAUTION
912
090200-04947
STICKER. CAUTION
912
090200-04942
STICKER. CAUTION
912
090200-06390
STICKER. CAUTION
912
090200-04943
STICKER. CAUTION
912
090200-04944
STICKER. CAUTION
912
090200-04868
STICKER. CAUTION
HD 715 VALVE PLUG SET #8653
HD 715 VALVE PLUG SET
ads
Ref
Parts Num
Name
0
hd715-01071
VALVE PLUG SET
101
hd715-01035
CYLINDER
101
hd715-01052
CYLINDER
103
084891-01000
PLUG. GPF
104
160011-00018
O-RING R1
105
084891-04000
PLUG. GPF
107
084891-06000
PLUG. GPF
108
160011-00029
O-RING
109
084891-10000
PLUG. GPF
110
hd715-01014
BUSH
111
hd715-01047
SEAL. STEP
111
hd715-01041
52 3 SEAL STEP
112
hd715-01042
52 3 RING GRIDE
113
160021-00075
O-RING
114
262022-00075
RING. BACK-UP
115
hd715-01040
RETAINER.SEAL
116
hd715-01045
43 7 RING GRIDE
117
hd715-01048
SEAL. STEP
117
hd715-01044
43 7 SEAL STEP
118
160021-00065
O-RING
119
262022-00065
RING. BACK-UP
120
hd715-01043
RETAINER. SEAL
120
hd715-01046
RETAINER SEAL (R)
121
hd715-01067
VALVE
122
160011-00046
O-RING
123
262021-00046
RING. BACK-UP
124
160011-00036
O-RING
125
hd715-01068
PLUG
126
hd715-01012
ADJUSTER. STROKE
127
050300-02034
WASHER. SEAL (A)
128
hd715-01013
NUT
129
160011-00020
O-RING R1
130
161011-00029
O-RING R1
131
hd615-03002
ADAPTER.MALE FEMALE UNION
132
160050-00185
O-RING
151
hd715-01101
PISTON
201
hd715-02026
HEAD.FRONT
202
hd715-02023
BEARING.PLAIN
203
hd715-02003
DRIVER. CHUCK
204
hd715-02004
BEARING PLAIN (RB)
205
hd715-02025
BUSH. CHUCK DRIVER
206
hd715-02006
CHUCK
207
hd715-02007
GEAR. DRIVE
208
280100-06211
BEARING. BALL
210
084891-03000
PLUG. GPF
211
160050-00235
O-RING
212
160050-00320
O-RING
213
hd715-02029
SHEET. JOINT
251
hd715-02106
COVER.FRONT
252
hd715-02105
BEARING.PLAIN
253
hd715-02103
WASHER.THRUST
254
084861-10000
CONNECTOR. MALE
257
hd609-02016
REDUCER
258
160021-00030
O-RING
259
160011-00009
O-RING R1
260
160050-00205
O-RING
301
hd715-02223
CAP. FRONT
304
hd715-02202
BUSH. FRONT
305
hd615-02205
58 PACKING
306
hd615-02203
90 PACKING
307
hd715-02203
BODY. SWIVEL
401
hd715-02503
ROD.SHANK
401
hd715-02504
ROD.SHANK
451
hd715-03004
HEAD. BACK
501
hd715-03601
BOLT
502
hd615-03605
NUT.HELISERT
503
hd612-03612
BOLT. SET
504
hd612-03601
THROUGH BOLT (A)
505
hd715-03605
NUT
506
hd715-03606
BOLT
551
hd715-06001
MOTOR. ROTATION
552
089800-90012
O-RING R1
553
hd715-06011
ADAPTER. MALE FEMALE
554
084886-67006
CONNECTOR. ELBOW
555
hd715-06013
BOLT. SOCKET
556
hd715-06014
WASHER
557
hd715-06016
NUT
651
hd715-01531
CYLINDER.FRONT
654
hd715-01538
REDUCER
654
hd715-01502
REDUCER
655
hd715-01533
105 RING GRIDE
656
hd715-01534
110 RING GRIDE
657
hd715-01529
PISTON.DAMPING
658
hd715-01535
75 RING GRIDE
659
hd715-01536
78 RING GRIDE
660
hd715-01530
PISTON. PUSHING
661
hd615-01507
POPPET 1
663
hd615-01514
PLUG
664
161011-00014
O-RING R1 R3
665
hd715-01509
CONNECTOR. MALE
665
hd715-01510
CONNECTOR. MALE
666
084861-03000
CONNECTOR. MALE
668
160050-00240
O-RING
900
hd715-97002
ACCUMULATOR ASSY
911
090200-04856
STICKER
912
090200-04858
STICKER. CAUTION
912
090200-04860
STICKER. CAUTION
912
090200-04864
STICKER. CAUTION
912
090200-04865
STICKER. CAUTION
912
090200-04866
STICKER. CAUTION
912
090200-04867
STICKER. CAUTION
912
090200-04946
STICKER. CAUTION
912
090200-04869
STICKER. CAUTION
912
090200-04945
STICKER. CAUTION
912
090200-04870
STICKER. CAUTION
912
090200-04912
STICKER. CAUTION
912
090200-04913
STICKER. CAUTION
912
090200-04947
STICKER. CAUTION
912
090200-04942
STICKER. CAUTION
912
090200-06390
STICKER. CAUTION
912
090200-04943
STICKER. CAUTION
912
090200-04944
STICKER. CAUTION
912
090200-04868
STICKER. CAUTION
