ROC D45 EPIROC New catalogs

ROC D45 Pages

1. EPIROC - ROC D45 AIR FILTER #14934

2. EPIROC - ROC D45 AIR FILTER #15086

3. EPIROC - ROC D45 AIR FILTER #15232

4. EPIROC - ROC D45 AIR FILTER #15419

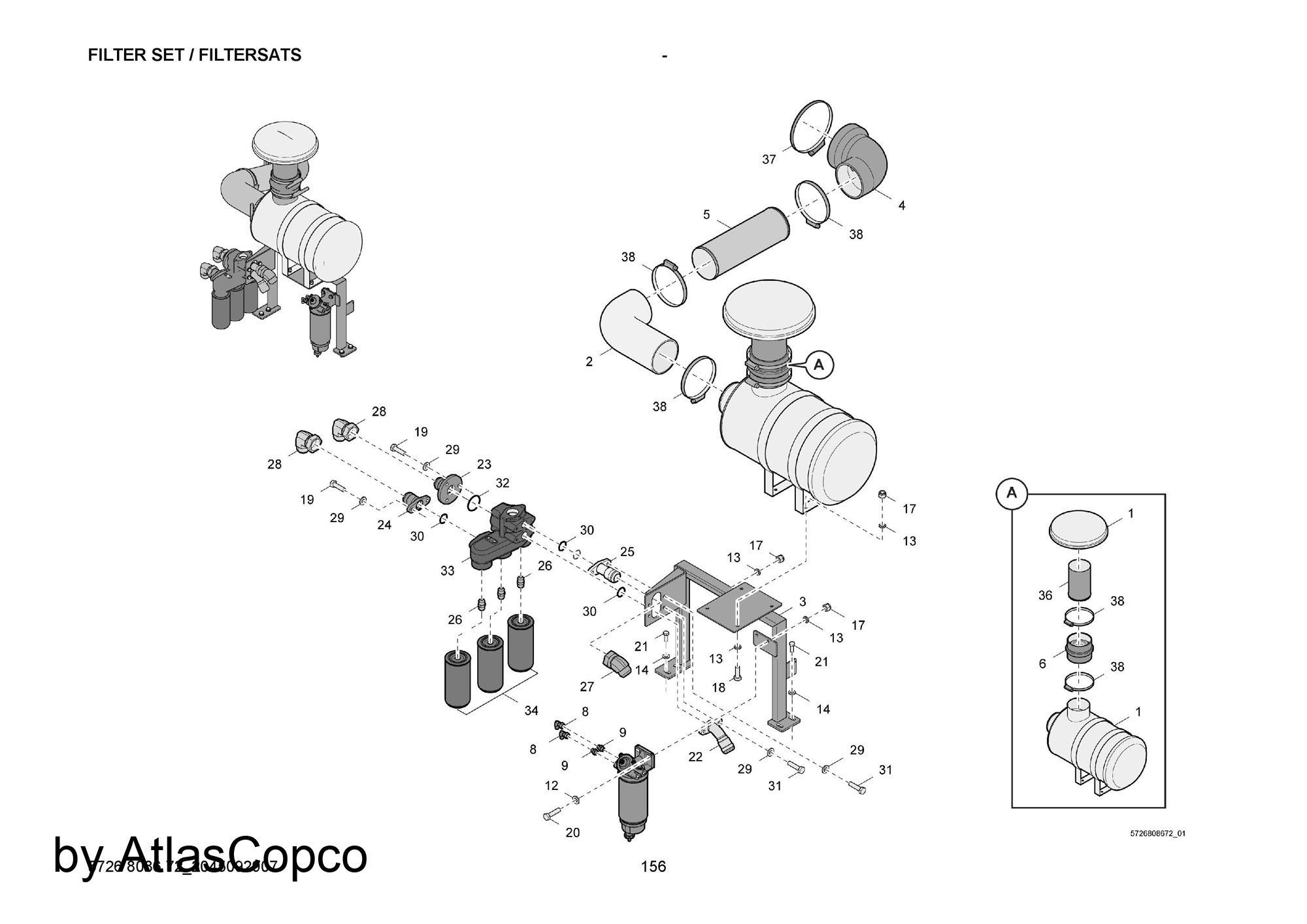

ROC D45 AIR FILTER #14934

ROC D45 AIR FILTER

ads

Ref

Parts Num

Name

1

AIR FILTER

2

ELBOW

4

REDUCER

5

PIPE

6

CONNECTOR

8

NIPPLE

9

NIPPLE

10

STRAIGHT NIPPLE

12

LOCK WASHER

13

LOCK WASHER

14

LOCK WASHER

15

HOSE CLIP

16

HOSE CLIP

17

LOCK NUT

18

SCREW. HEX HEAD

19

SCREW. HEX HEAD

20

SCREW. HEX HEAD

21

SCREW. HEX HEAD

22

NIPPLE

23

FLANGE CONNECT.

24

FLANGE CONNECT.

25

FLANGE CONNECT.

26

NIPPLE

27

NIPPLE

28

NIPPLE

29

LOCK WASHER

30

O RING

31

SCREW

32

O RING

33

HOUSING

34

OIL FILTER

ROC D45 AIR FILTER #15086

ROC D45 AIR FILTER

ads

Ref

Parts Num

Name

1

AIR FILTER

2

ELBOW

4

REDUCER

5

PIPE

6

CONNECTOR

7

WATER SEPARATOR

10

NIPPLE

11

ELBOW NIPPLE

12

LOCK WASHER

13

LOCK WASHER

14

LOCK WASHER

17

LOCK NUT

18

SCREW. HEX HEAD

19

SCREW. HEX HEAD

20

SCREW. HEX HEAD

21

SCREW. HEX HEAD

22

NIPPLE

23

FLANGE CONNECT.

24

FLANGE CONNECT.

25

FLANGE CONNECT.

26

NIPPLE

27

NIPPLE

28

NIPPLE

29

LOCK WASHER

30

O RING

31

SCREW

32

O RING

33

HOUSING

34

OIL FILLER

36

PIPE

37

CLAMP

38

HOSE CLIP

ROC D45 AIR FILTER #15232

ROC D45 AIR FILTER

ads

Ref

Parts Num

Name

1

AIR FILTER

2

ELBOW

4

REDUCER

5

PIPE

6

CONNECTOR

8

NIPPLE

9

NIPPLE

12

LOCK WASHER

13

LOCK WASHER

14

LOCK WASHER

17

LOCK NUT

18

SCREW. HEX HEAD

19

SCREW. HEX HEAD

20

SCREW. HEX HEAD

21

SCREW. HEX HEAD

22

NIPPLE

23

FLANGE CONNECT.

24

FLANGE CONNECT.

25

FLANGE CONNECT.

26

NIPPLE

27

NIPPLE

28

NIPPLE

29

LOCK WASHER

30

O RING

31

SCREW

32

O RING

33

HOUSING

34

OIL FILLER

36

PIPE

37

CLAMP

38

HOSE CLIP

ROC D45 AIR FILTER #15419

ROC D45 AIR FILTER

ads

Ref

Parts Num

Name

0

AIR FILTER

1

FILTER SET

2

FILTER ELEMENT

3

RING

4

HOUSING

6

RAIN PROT. CAP

7

SIGN

8

RUBBER PLATE

9

BRACKET

10

PLATE

11

RUBBER RING

12

BRACKET

13

NUT

14

RUBBER RING

15

PLATE

16

BRACKET

17

NUT

18

BOLT

19

SPRING WASHER

20

INDICATOR
