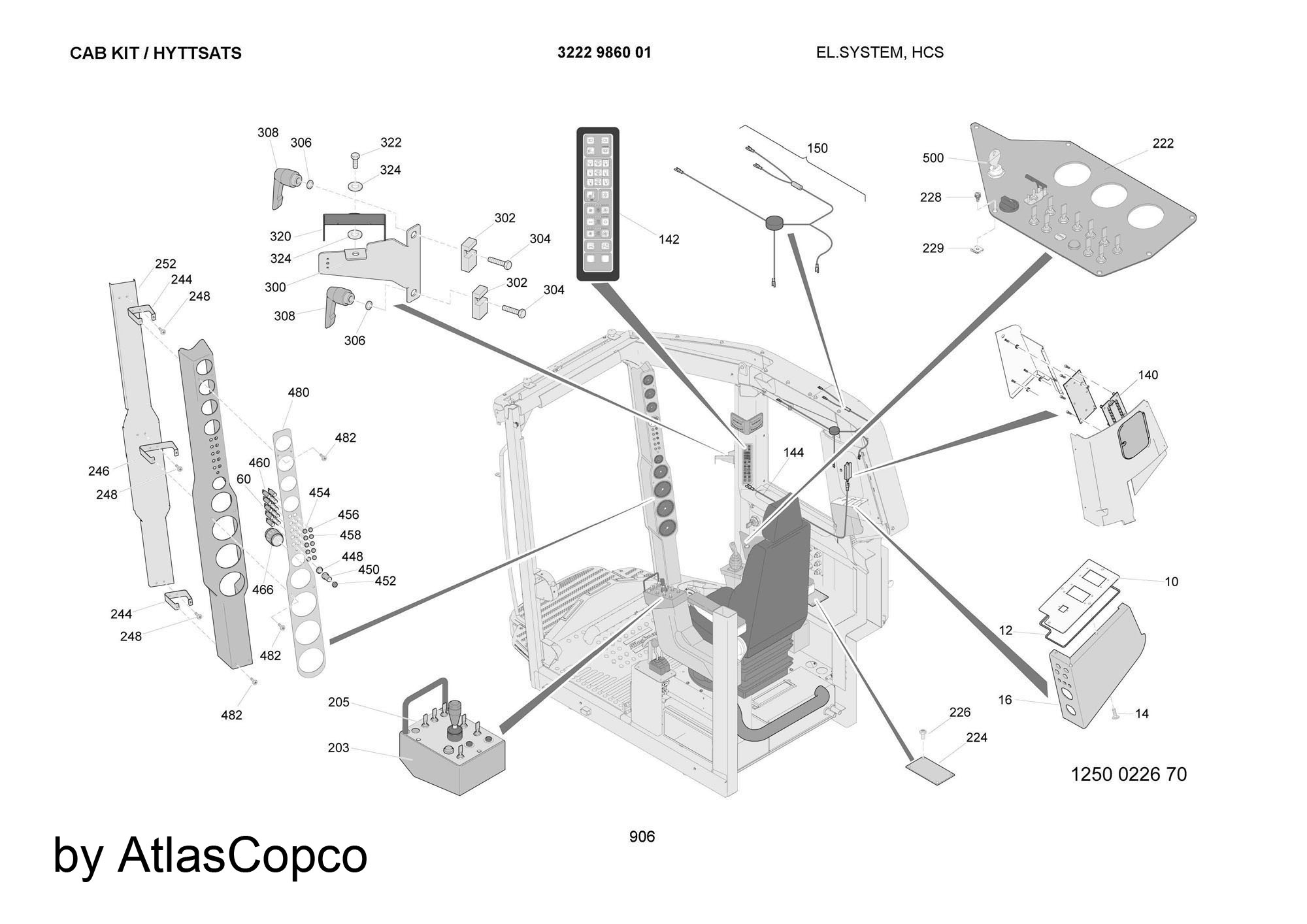

ROC D7 CIRCUIT DIAGRAM #10218
ROC D7 CIRCUIT DIAGRAM
ads
Ref
Parts Num
Name
0
9840042387
CIRCUIT DIAGRAM
0
3222986001
ELECTR. SYSTEM
10
3222986043
PLATE
12
3222989304
TAPE
14
3222989218
SCREW
16
3222989370
LABEL
30
3222986044
WIRING
60
3222986047
WIRING
80
3222986048
WIRING
90
3222986049
WIRING
100
3222986050
WIRING
110
3222986051
WIRING
120
3222986052
GROUND BRAID
130
3222986053
GROUND BRAID
132
3222986054
WIRING
140
3222331292
ELECTRONIC CARD
142
3222331293
TOUCHPANEL
144
3222989281
CABLE COMPLETE
150
3222989282
ANTENNA
203
3222986055
CONTROL PANEL
205
3222989367
SCREW
210
3222986096
HOSE
222
3222986056
CONTROL PANEL
224
3222326631
SYMBOL PLATE
226
3222989167
POPNIT
229
3222989368
NUT
242
3222986059
CIRCUIT BOARD
244
3222986060
ATTACHMENT
245
3222986061
LAMP
246
3222986062
ATTACHMENT
248
3222986063
SCREW
250
3222986064
SCREW
252
3222989369
PLATE
300
3222986065
ATTACHMENT
302
3222986066
ATTACHMENT
304
3222986067
SCREW
306
3222986068
WASHER
308
3222986069
LOCK LEVER
320
3222986070
ATTACHMENT
322
3222986071
SCREW
324
3222989162
WASHER
326
3222986072
NUT(BACK NUT)
400
3222329064
HOLDER
402
3222329065
HOLDER SET
404
3222986073
CONTACT
406
3222989155
SCREW
408
3222989174
WASHER
410
3222989158
NUT(BACK NUT)
412
3222989170
SCREW
448
3176000343
NUT
450
3222986077
KNOB
452
3222986078
COVER
454
3222989188
LAMP LENS
456
3222989189
LAMP LENS
458
3222989190
LAMP LENS
460
3222989191
LAMP SOCKET
466
3176000561
FUEL GAUGE
468
3222328050
DISPLAY KIT
468
3222328051
DISPLAY KIT
470
3176000562
CABLE
480
3222989371
PLATE
482
3222989153
SCREW
500
3222986167
IGNITION LOCK
ROC D7 CIRCUIT DIAGRAM #10248
ROC D7 CIRCUIT DIAGRAM
ads
Ref
Parts Num
Name
0
9840042387
CIRCUIT DIAGRAM
0
3222986001
ELECTR. SYSTEM
10
3222986043
PLATE
12
3222989304
TAPE
14
3222989218
SCREW
16
3222989370
LABEL
30
3222986044
WIRING
60
3222986047
WIRING
80
3222986048
WIRING
90
3222986049
WIRING
100
3222986050
WIRING
110
3222986051
WIRING
120
3222986052
GROUND BRAID
130
3222986053
GROUND BRAID
132
3222986054
WIRING
140
3222331292
ELECTRONIC CARD
142
3222331293
TOUCHPANEL
144
3222989281
CABLE COMPLETE
150
3222989282
ANTENNA
203
3222986055
CONTROL PANEL
205
3222989367
SCREW
210
3222986096
HOSE
222
3222986056
CONTROL PANEL
224
3222326631
SYMBOL PLATE
226
3222989167
POPNIT
229
3222989368
NUT
242
3222986059
CIRCUIT BOARD
244
3222986060
ATTACHMENT
245
3222986061
LAMP
246
3222986062
ATTACHMENT
248
3222986063
SCREW
250
3222986064
SCREW
252
3222989369
PLATE
300
3222986065
ATTACHMENT
302
3222986066
ATTACHMENT
304
3222986067
SCREW
306
3222986068
WASHER
308
3222986069
LOCK LEVER
320
3222986070
ATTACHMENT
322
3222986071
SCREW
324
3222989162
WASHER
326
3222986072
NUT(BACK NUT)
400
3222329064
HOLDER
402
3222329065
HOLDER SET
404
3222986073
CONTACT
406
3222989155
SCREW
408
3222989174
WASHER
410
3222989158
NUT(BACK NUT)
412
3222989170
SCREW
448
3176000343
NUT
450
3222986077
KNOB
452
3222986078
COVER
454
3222989188
LAMP LENS
456
3222989189
LAMP LENS
458
3222989190
LAMP LENS
460
3222989191
LAMP SOCKET
466
3176000561
FUEL GAUGE
468
3222328050
DISPLAY KIT
468
3222328051
DISPLAY KIT
470
3176000562
CABLE
480
3222989371
PLATE
482
3222989153
SCREW
500
3222986167
IGNITION LOCK
