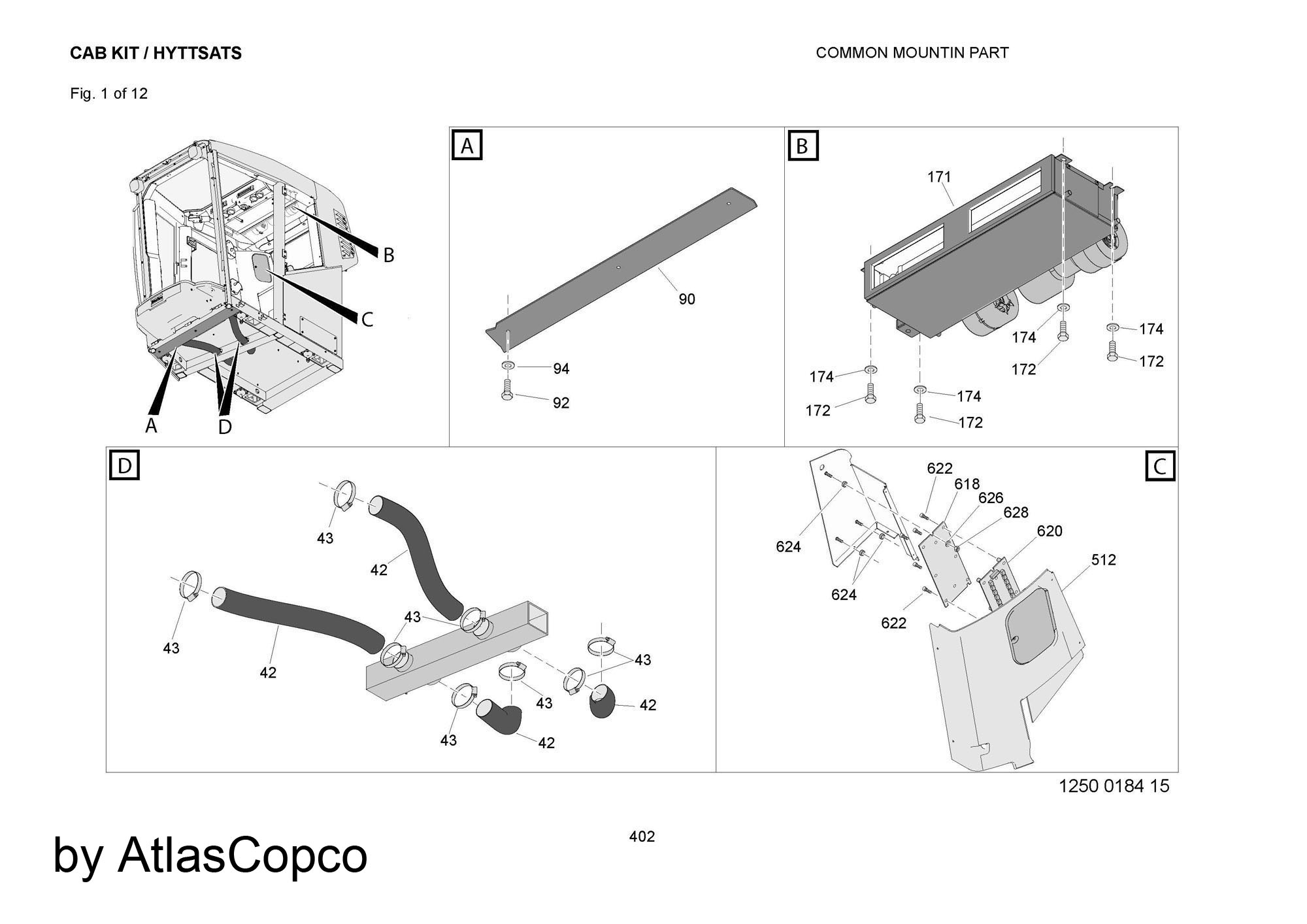

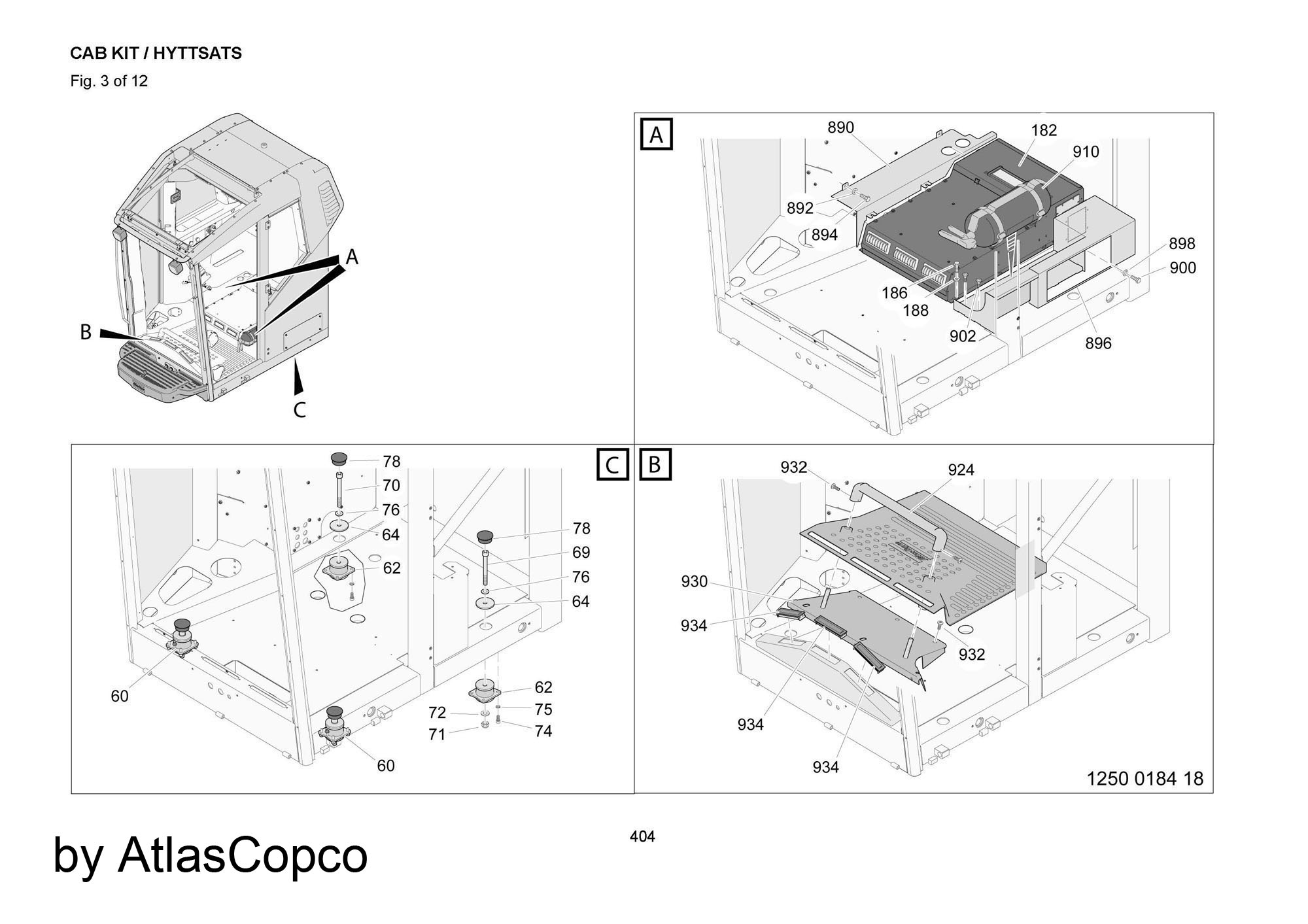

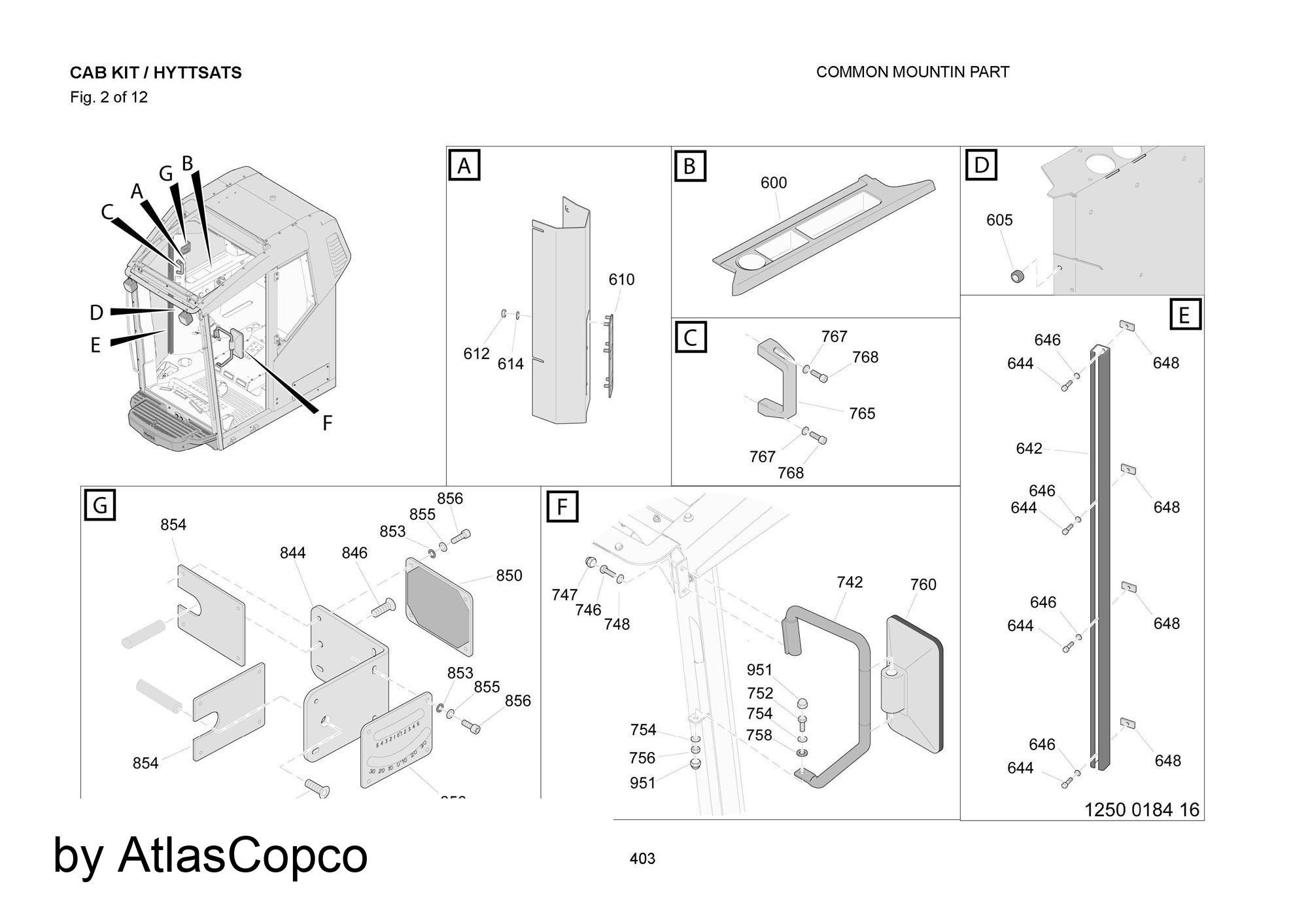

ROC D7 HOSE CLIP #9953
ROC D7 HOSE CLIP
ads
Ref
Parts Num
Name
43
3222986097
HOSE CLIP
60
3222318187
VIBR. DAMPER
62
3222300180
VIBR. DAMPER
64
3222986098
WASHER
69
0211149500
SCREW
70
0211196342
SCREW
71
3222986099
LOCK NUT
72
3222986100
WASHER
75
3222986102
SPRING WASHER
76
3222986103
SPRING WASHER
78
3222989201
PLUG
90
3222986248
PLATE
92
3222989152
SCREW
100
3222986104
SOUND SUPPRESS.
102
3222986105
SOUND SUPPRESS.
104
3222986108
SOUND SUPPRESS.
106
3222986109
SOUND SUPPRESS.
108
3222986110
SOUND SUPPRESS.
110
3222986111
SOUND SUPPRESS.
112
3222986112
SOUND SUPPRESS.
116
3222986115
SOUND SUPPRESS.
118
3222986116
SOUND SUPPRESS.
120
3222989348
INSULATION
122
3222989349
INSULATION
124
3222989350
INSULATION
126
3222989351
INSULATION
128
3222989347
INSULATION
146
3222986113
SOUND SUPPRESS.
147
3222989196
SOUND SUPPRESS.
154
3222989197
SOUND SUPPRESS.
156
3222989198
SOUND SUPPRESS.
158
3222989199
SOUND SUPPRESS.
169
3222989234
GROMMET
170
3222989235
GROMMET
172
3222986118
SCREW
174
3222986119
WASHER
176
3222986039
CLAMP
178
3222989195
CLAMP
184
3222986121
BUSHING
192
3222989213
SCREW
211
3222986124
T-NIPPLE
212
3222989356
PIN
213
3222989353
PLUG
214
3222986126
SPRAY NOZZLE
215
3222989354
GROMMET
216
3222986127
FLUSHING ADAPT.
217
3222989355
GROMMET
218
3222989352
CHECK VALVE
224
3222986128
FLUSHING HOSE
226
3222986129
SPRAY NOZZLE
227
3222986131
FLUSHWATER TANK
228
3222986130
ATTACHMENT
242
3222989202
LABEL
302
3222986132
ROOF
304
3222986133
ROOF
310
3222986134
ROOF
312
3222986135
ROOF
314
3222986136
WASHER
315
3222986139
SCREW
316
3222986137
ATTACHMENT
317
3222986138
WASHER
318
3222989216
SCREW
320
3222986140
SEALING
322
3222986141
SEALING
328
3222989222
NUT
330
3222986144
WASHER
340
3222986145
AIR INLET
342
3222986146
AIR FILTER
344
0300027464
PLAIN WASHER
361
3222986037
BOTTOM PLATE
364
3222986038
NUT
365
3222989340
PLATE
366
3222989463
PLATE
367
3222989359
SPRING WASHER
371
3222989344
INSULATION
373
3222989200
SOUND SUPPRESS.
374
3222989343
INSULATION
375
3222989345
INSULATION
376
3222989293
INSULATION
402
3222989233
ROOF ASSEMBLY
404
3222986147
LOUD SPEAKER
406
3222986148
AIR FILTER
412
3222986149
AIR INLET
430
3222986150
PLATE
432
3222989205
TAPE
434
3222989206
HATCH
440
3222986151
AIR NOZZLE
442
3222986152
AIR NOZZLE
450
3222986153
GLARE SHIELD
500
3222989203
COVER
512
3222989204
COVER
600
3222986163
SHELF
605
3222989283
GROMMET
610
3222331293
TOUCHPANEL
612
3222989158
NUT(BACK NUT)
614
3222989174
WASHER
616
3222989281
CABLE COMPLETE
618
3222989207
PLATE
620
3222331292
ELECTRONIC CARD
622
3222989221
SCREW
624
3222989228
WASHER
626
3222989225
WASHER
632
3222989401
EMERG.PUSHBUTT.
634
3222989421
SYMBOL PLATE
636
3222989400
EMER.SHUTDOWN
642
3222986168
SLIDE BAR
644
3222986169
SCREW
648
3222986170
BUSHING
700
3222986171
SIDE HATCH
701
3222986106
SOUND SUPPRESS.
702
3222986172
FILTER COVER
704
3222986173
SEALING LIST
706
3222989172
ATTACHMENT CLIP
708
3222989177
SCREW
710
3222989175
SPRING
712
3222989163
WASHER
714
3222989161
WASHER
730
3222986174
HATCH
731
3222986175
HANDLE
735
3222986176
WEATHERSTRIP
736
3222986177
COVER
738
3222986178
KEY
739
3222986107
SOUND SUPPRESS.
742
3222989208
ARM
756
3222989159
NUT(BACK NUT)
758
3222989226
WASHER
760
3222986184
DRIVING MIRROR
765
3222989209
HANDLE
772
3222986188
FOPS-PROTECTION
774
3222986189
THREADED PIN
778
3222986191
WASHER
780
0147125103
SCREW. HEX HEAD
784
3222986194
GAS SPRING
786
3222986195
HANDLE
788
3222986196
SEAL PROFILE
790
3222986197
SEAL PROFILE
802
3222989229
PLUG
812
3222986198
DRYER
814
3222986199
WIPER MOTOR
816
3222986200
DRYER
818
3222986201
WIPER BLADE
830
3222986202
WIPER MOTOR
832
3222986203
DRYER
834
3222986204
WIPER BLADE
836
3222989210
PLUG
844
3222986205
ATTACHMENT
846
3222986206
SCREW
852
3222986207
SCREW
853
3222989224
O RING
854
3222986208
ATTACHMENT
862
3222986209
STUD
864
3222986210
SCREW
870
3222986211
PLATE
872
3222986212
PLATE
874
5541083300
SCREW. HEX HEAD
881
3222986213
COVER PLATE
882
3222986214
SCREW
884
3222986215
WASHER
890
3222986216
COVER PLATE
892
3222986217
WASHER
894
3222986218
SCREW
896
3222986219
ATTACHMENT
900
3222986220
SCREW
912
3222325376
FILTER
914
3222986223
AIR CHANNEL
916
3222986224
CONNECTION
922
3222986225
FLOOR CARPET
924
3222986226
FOOT STEP
930
3222986227
FLOOR PANEL
934
3222986229
AIR NOZZLE
944
3222986232
BUSHING
946
3222986233
SEALING LIST
948
3222986234
SEALING LIST
949
3222989220
SCREW
950
3222989227
WASHER
952
3222986235
GAS SPRING
954
3222989246
HINGE
955
3222989247
HINGE
956
3222989253
HINGE ROD
957
3222989280
WASHER
958
3222989254
ATTACHMENT CLIP
959
3222989279
WASHER
960
3222986236
LOCK NEEDLE
962
3222986237
COVER
964
3222986238
PLATE
967
3222989211
HOLDER
968
3222989218
SCREW
969
3222989217
SCREW
970
3222989212
CONTACT BREAKER
972
3222986239
TOOL BOX
974
3222986240
COVER
976
3222986241
HINGE
982
3222989215
SCREW
983
3222986243
LOCK
986
3222986244
REINFORCEMENT
988
3222986245
REINFORCEMENT
994
3222989447
FLANGE SCREW
1000
3222989397
DOOR
1000
3222989399
DOOR
1000
3222989398
DOOR
1000
3222989396
DOOR
ROC D7 HOSE CLIP #10517
ROC D7 HOSE CLIP
ads
Ref
Parts Num
Name
43
3222986097
HOSE CLIP
60
3222318187
VIBR. DAMPER
62
3222300180
VIBR. DAMPER
64
3222986098
WASHER
69
0211149500
SCREW
70
0211196342
SCREW
71
3222986099
LOCK NUT
72
3222986100
WASHER
75
3222986102
SPRING WASHER
76
3222986103
SPRING WASHER
78
3222989201
PLUG
90
3222986248
PLATE
92
3222989152
SCREW
100
3222986104
SOUND SUPPRESS.
102
3222986105
SOUND SUPPRESS.
104
3222986108
SOUND SUPPRESS.
106
3222986109
SOUND SUPPRESS.
108
3222986110
SOUND SUPPRESS.
110
3222986111
SOUND SUPPRESS.
112
3222986112
SOUND SUPPRESS.
116
3222986115
SOUND SUPPRESS.
118
3222986116
SOUND SUPPRESS.
120
3222989348
INSULATION
122
3222989349
INSULATION
124
3222989350
INSULATION
126
3222989351
INSULATION
128
3222989347
INSULATION
146
3222986113
SOUND SUPPRESS.
147
3222989196
SOUND SUPPRESS.
156
3222989198
SOUND SUPPRESS.
158
3222989199
SOUND SUPPRESS.
169
3222989234
GROMMET
170
3222989235
GROMMET
172
3222986118
SCREW
174
3222986119
WASHER
176
3222986039
CLAMP
178
3222989195
CLAMP
184
3222986121
BUSHING
192
3222989213
SCREW
211
3222986124
T-NIPPLE
212
3222989356
PIN
213
3222989353
PLUG
214
3222986126
SPRAY NOZZLE
215
3222989354
GROMMET
216
3222986127
FLUSHING ADAPT.
217
3222989355
GROMMET
218
3222989352
CHECK VALVE
224
3222986128
FLUSHING HOSE
226
3222986129
SPRAY NOZZLE
227
3222986131
FLUSHWATER TANK
228
3222986130
ATTACHMENT
242
3222989202
LABEL
302
3222986132
ROOF
304
3222986133
ROOF
310
3222986134
ROOF
312
3222986135
ROOF
314
3222986136
WASHER
315
3222986139
SCREW
316
3222986137
ATTACHMENT
317
3222986138
WASHER
318
3222989216
SCREW
320
3222986140
SEALING
322
3222986141
SEALING
328
3222989222
NUT
330
3222986144
WASHER
340
3222986145
AIR INLET
342
3222986146
AIR FILTER
344
0300027464
PLAIN WASHER
361
3222986037
BOTTOM PLATE
364
3222986038
NUT
365
3222989340
PLATE
366
3222989463
PLATE
367
3222989359
SPRING WASHER
371
3222989344
INSULATION
372
3222989197
SOUND SUPPRESS.
373
3222989200
SOUND SUPPRESS.
374
3222989343
INSULATION
375
3222989345
INSULATION
376
3222989293
INSULATION
402
3222989233
ROOF ASSEMBLY
404
3222986147
LOUD SPEAKER
406
3222986148
AIR FILTER
412
3222986149
AIR INLET
430
3222986150
PLATE
432
3222989205
TAPE
434
3222989206
HATCH
440
3222986151
AIR NOZZLE
442
3222986152
AIR NOZZLE
450
3222986153
GLARE SHIELD
500
3222989203
COVER
512
3222989204
COVER
600
3222986163
SHELF
605
3222989283
GROMMET
610
3222331293
TOUCHPANEL
612
3222989158
NUT(BACK NUT)
614
3222989174
WASHER
616
3222989281
CABLE COMPLETE
618
3222989207
PLATE
620
3222331292
ELECTRONIC CARD
622
3222989221
SCREW
624
3222989228
WASHER
626
3222989225
WASHER
632
3222989401
EMERG.PUSHBUTT.
634
3222989421
SYMBOL PLATE
636
3222989400
EMER.SHUTDOWN
642
3222986168
SLIDE BAR
644
3222986169
SCREW
648
3222986170
BUSHING
700
3222986171
SIDE HATCH
701
3222986106
SOUND SUPPRESS.
702
3222986172
FILTER COVER
704
3222986173
SEALING LIST
706
3222989172
ATTACHMENT CLIP
708
3222989177
SCREW
710
3222989175
SPRING
712
3222989163
WASHER
714
3222989161
WASHER
730
3222986174
HATCH
731
3222986175
HANDLE
735
3222986176
WEATHERSTRIP
736
3222986177
COVER
738
3222986178
KEY
739
3222986107
SOUND SUPPRESS.
742
3222989208
ARM
756
3222989159
NUT(BACK NUT)
758
3222989226
WASHER
760
3222986184
DRIVING MIRROR
765
3222989209
HANDLE
772
3222986188
FOPS-PROTECTION
774
3222986189
THREADED PIN
778
3222986191
WASHER
780
0147125103
SCREW. HEX HEAD
784
3222986194
GAS SPRING
786
3222986195
HANDLE
788
3222986196
SEAL PROFILE
790
3222986197
SEAL PROFILE
802
3222989229
PLUG
812
3222986198
DRYER
814
3222986199
WIPER MOTOR
816
3222986200
DRYER
818
3222986201
WIPER BLADE
830
3222986202
WIPER MOTOR
832
3222986203
DRYER
834
3222986204
WIPER BLADE
836
3222989210
PLUG
844
3222986205
ATTACHMENT
846
3222986206
SCREW
852
3222986207
SCREW
853
3222989224
O RING
854
3222986208
ATTACHMENT
862
3222986209
STUD
864
3222986210
SCREW
870
3222986211
PLATE
872
3222986212
PLATE
874
5541083300
SCREW. HEX HEAD
881
3222986213
COVER PLATE
882
3222986214
SCREW
884
3222986215
WASHER
890
3222986216
COVER PLATE
892
3222986217
WASHER
894
3222986218
SCREW
896
3222986219
ATTACHMENT
900
3222986220
SCREW
912
3222325376
FILTER
914
3222986223
AIR CHANNEL
916
3222986224
CONNECTION
922
3222986225
FLOOR CARPET
924
3222986226
FOOT STEP
930
3222986227
FLOOR PANEL
934
3222986229
AIR NOZZLE
944
3222986232
BUSHING
946
3222986233
SEALING LIST
948
3222986234
SEALING LIST
949
3222989220
SCREW
950
3222989227
WASHER
952
3222986235
GAS SPRING
954
3222989246
HINGE
955
3222989247
HINGE
956
3222989253
HINGE ROD
957
3222989280
WASHER
958
3222989254
ATTACHMENT CLIP
959
3222989279
WASHER
960
3222986236
LOCK NEEDLE
962
3222986237
COVER
964
3222986238
PLATE
967
3222989211
HOLDER
968
3222989218
SCREW
969
3222989217
SCREW
970
3222989212
CONTACT BREAKER
972
3222986239
TOOL BOX
974
3222986240
COVER
976
3222986241
HINGE
982
3222989215
SCREW
983
3222986243
LOCK
986
3222986244
REINFORCEMENT
988
3222986245
REINFORCEMENT
994
3222989447
FLANGE SCREW
1000
3222989397
DOOR
1000
3222989399
DOOR
1000
3222989398
DOOR
1000
3222989396
DOOR
ROC D7 HOSE CLIP #10657
ROC D7 HOSE CLIP
ads
Ref
Parts Num
Name
43
3222986097
HOSE CLIP
60
3222318187
VIBR. DAMPER
62
3222300180
VIBR. DAMPER
64
3222986098
WASHER
69
0211149500
SCREW
70
0211196342
SCREW
71
3222986099
LOCK NUT
72
3222986100
WASHER
75
3222986102
SPRING WASHER
76
3222986103
SPRING WASHER
78
3222989201
PLUG
90
3222986248
PLATE
92
3222989152
SCREW
100
3222986104
SOUND SUPPRESS.
102
3222986105
SOUND SUPPRESS.
104
3222986108
SOUND SUPPRESS.
106
3222986109
SOUND SUPPRESS.
108
3222986110
SOUND SUPPRESS.
110
3222986111
SOUND SUPPRESS.
112
3222986112
SOUND SUPPRESS.
116
3222986115
SOUND SUPPRESS.
118
3222986116
SOUND SUPPRESS.
120
3222989348
INSULATION
122
3222989349
INSULATION
124
3222989350
INSULATION
126
3222989351
INSULATION
128
3222989347
INSULATION
146
3222986113
SOUND SUPPRESS.
147
3222989196
SOUND SUPPRESS.
156
3222989198
SOUND SUPPRESS.
158
3222989199
SOUND SUPPRESS.
169
3222989234
GROMMET
170
3222989235
GROMMET
172
3222986118
SCREW
174
3222986119
WASHER
176
3222986039
CLAMP
178
3222989195
CLAMP
184
3222986121
BUSHING
192
3222989213
SCREW
211
3222986124
T-NIPPLE
212
3222989356
PIN
213
3222989353
PLUG
214
3222986126
SPRAY NOZZLE
215
3222989354
GROMMET
216
3222986127
FLUSHING ADAPT.
217
3222989355
GROMMET
218
3222989352
CHECK VALVE
224
3222986128
FLUSHING HOSE
226
3222986129
SPRAY NOZZLE
227
3222986131
FLUSHWATER TANK
228
3222986130
ATTACHMENT
242
3222989202
LABEL
302
3222986132
ROOF
304
3222986133
ROOF
310
3222986134
ROOF
312
3222986135
ROOF
314
3222986136
WASHER
315
3222986139
SCREW
316
3222986137
ATTACHMENT
317
3222986138
WASHER
318
3222989216
SCREW
320
3222986140
SEALING
322
3222986141
SEALING
328
3222989222
NUT
330
3222986144
WASHER
340
3222986145
AIR INLET
342
3222986146
AIR FILTER
344
0300027464
PLAIN WASHER
361
3222986037
BOTTOM PLATE
364
3222986038
NUT
365
3222989340
PLATE
366
3222989463
PLATE
367
3222989359
SPRING WASHER
371
3222989344
INSULATION
373
3222989200
SOUND SUPPRESS.
374
3222989343
INSULATION
375
3222989345
INSULATION
376
3222989293
INSULATION
402
3222989233
ROOF ASSEMBLY
404
3222986147
LOUD SPEAKER
406
3222986148
AIR FILTER
412
3222986149
AIR INLET
430
3222986150
PLATE
432
3222989205
TAPE
434
3222989206
HATCH
440
3222986151
AIR NOZZLE
442
3222986152
AIR NOZZLE
450
3222986153
GLARE SHIELD
500
3222989203
COVER
512
3222989204
COVER
600
3222986163
SHELF
605
3222989283
GROMMET
610
3222331293
TOUCHPANEL
612
3222989158
NUT(BACK NUT)
614
3222989174
WASHER
616
3222989281
CABLE COMPLETE
618
3222989207
PLATE
620
3222331292
ELECTRONIC CARD
622
3222989221
SCREW
624
3222989228
WASHER
626
3222989225
WASHER
632
3222989401
EMERG.PUSHBUTT.
634
3222989421
SYMBOL PLATE
636
3222989400
EMER.SHUTDOWN
642
3222986168
SLIDE BAR
644
3222986169
SCREW
648
3222986170
BUSHING
700
3222986171
SIDE HATCH
701
3222986106
SOUND SUPPRESS.
702
3222986172
FILTER COVER
704
3222986173
SEALING LIST
706
3222989172
ATTACHMENT CLIP
708
3222989177
SCREW
710
3222989175
SPRING
712
3222989163
WASHER
714
3222989161
WASHER
730
3222986174
HATCH
731
3222986175
HANDLE
735
3222986176
WEATHERSTRIP
736
3222986177
COVER
738
3222986178
KEY
739
3222986107
SOUND SUPPRESS.
742
3222989208
ARM
758
3222989226
WASHER
760
3222986184
DRIVING MIRROR
765
3222989209
HANDLE
772
3222986188
FOPS-PROTECTION
774
3222986189
THREADED PIN
778
3222986191
WASHER
780
0147125103
SCREW. HEX HEAD
784
3222986194
GAS SPRING
786
3222986195
HANDLE
788
3222986196
SEAL PROFILE
790
3222986197
SEAL PROFILE
802
3222989229
PLUG
812
3222986198
DRYER
814
3222986199
WIPER MOTOR
816
3222986200
DRYER
818
3222986201
WIPER BLADE
830
3222986202
WIPER MOTOR
832
3222986203
DRYER
834
3222986204
WIPER BLADE
836
3222989210
PLUG
844
3222986205
ATTACHMENT
846
3222986206
SCREW
852
3222986207
SCREW
853
3222989224
O RING
854
3222986208
ATTACHMENT
862
3222986209
STUD
864
3222986210
SCREW
870
3222986211
PLATE
872
3222986212
PLATE
881
3222986213
COVER PLATE
882
3222986214
SCREW
884
3222986215
WASHER
890
3222986216
COVER PLATE
892
3222986217
WASHER
894
3222986218
SCREW
896
3222986219
ATTACHMENT
900
3222986220
SCREW
912
3222325376
FILTER
914
3222986223
AIR CHANNEL
916
3222986224
CONNECTION
922
3222986225
FLOOR CARPET
924
3222986226
FOOT STEP
930
3222986227
FLOOR PANEL
934
3222986229
AIR NOZZLE
944
3222986232
BUSHING
946
3222986233
SEALING LIST
948
3222986234
SEALING LIST
949
3222989220
SCREW
950
3222989227
WASHER
952
3222986235
GAS SPRING
954
3222989246
HINGE
955
3222989247
HINGE
956
3222989253
HINGE ROD
957
3222989280
WASHER
958
3222989254
ATTACHMENT CLIP
959
3222989279
WASHER
960
3222986236
LOCK NEEDLE
962
3222986237
COVER
964
3222986238
PLATE
967
3222989211
HOLDER
968
3222989218
SCREW
969
3222989217
SCREW
970
3222989212
CONTACT BREAKER
972
3222986239
TOOL BOX
974
3222986240
COVER
976
3222986241
HINGE
982
3222989215
SCREW
983
3222986243
LOCK
986
3222986244
REINFORCEMENT
988
3222986245
REINFORCEMENT
990
5541083300
SCREW. HEX HEAD
994
3222989447
FLANGE SCREW
1000
3222989398
DOOR
1000
3222989396
DOOR
1000
3222989397
DOOR
1000
3222989399
DOOR

Search by your machine to find part numbers with illustrations. New Parts Catalog. Hyundai parts catalog
New Holland parts catalog
Part Number Information parts manager pro is the electronic parts catalog (EPC) and parts manuals. The original directory on the selection of spare parts for machinery . Find great deals for Genuine OEM Replacement Spacer EPC
Contacts My Privacy Policy
The names Komatsu, Cat, Deere or any other original equipment manufacturers are registered trademarks of the respective original equipment manufacturers. All names, descriptions, numbers and symbols are used for reference purposes only.
777parts tpe-parts.com is in no way associated with Komatsu any of the manufacturers we have listed. All manufacturer's names and descriptions are for reference only.
Back to top
