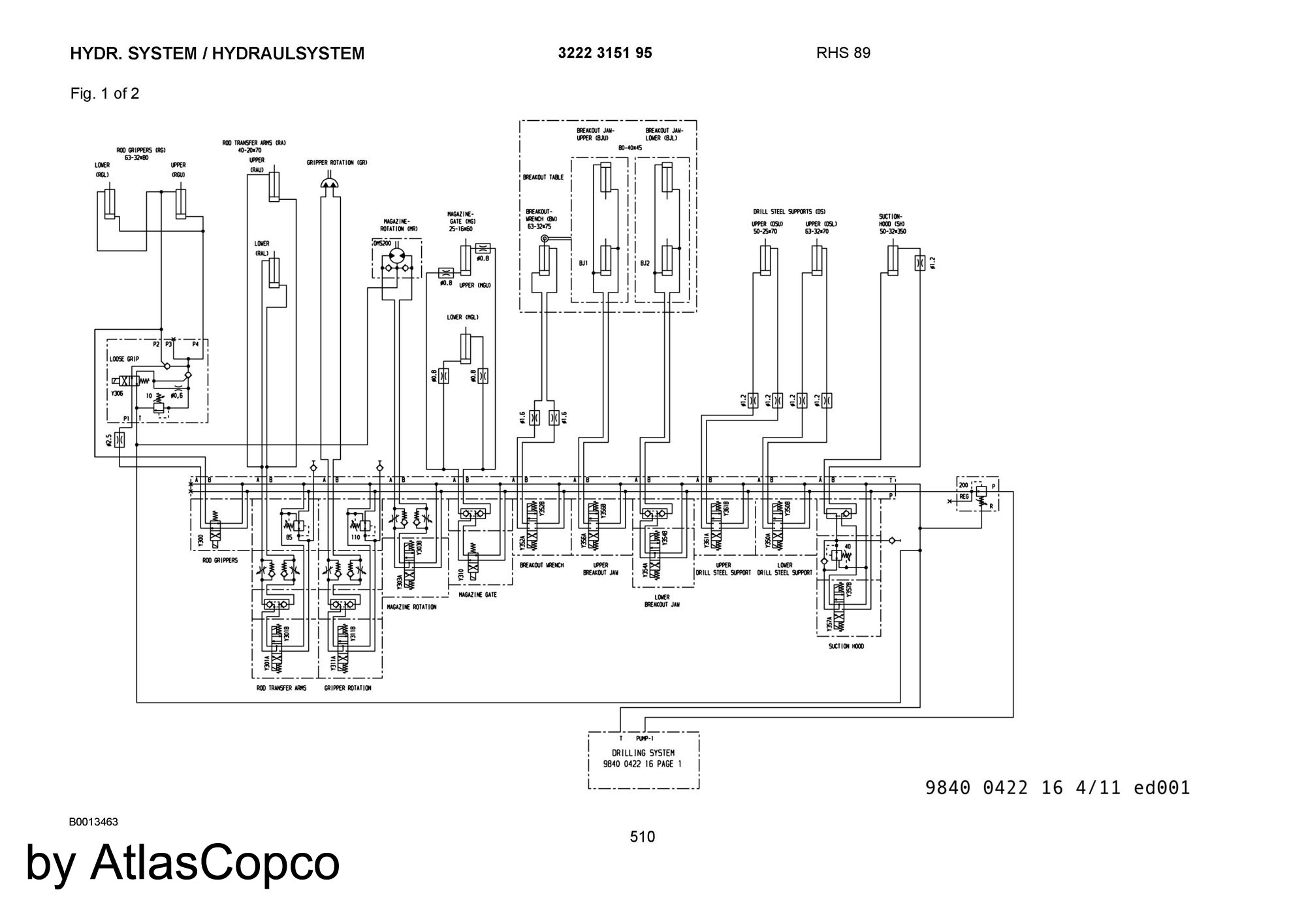

ROC F6 HYDR. SYSTEM #16487
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315195
HYDR. SYSTEM
1
3222319788
VALVE BLOCK
2
3177309288
DIRECTION VALVE
3
3222307568
VALVE BLOCK
4
3214901280
PRESS.RED.VALVE
5
3176850500
RESTRICTION
6
3217651303
RESTRICTION
7
3217651302
RESTRICTION
8
3125279702
RESTRICTION
13
3176227900
NIPPLE
14
3176649800
NIPPLE
15
3715058500
NIPPLE
26
3128022500
PROTECTION COIL

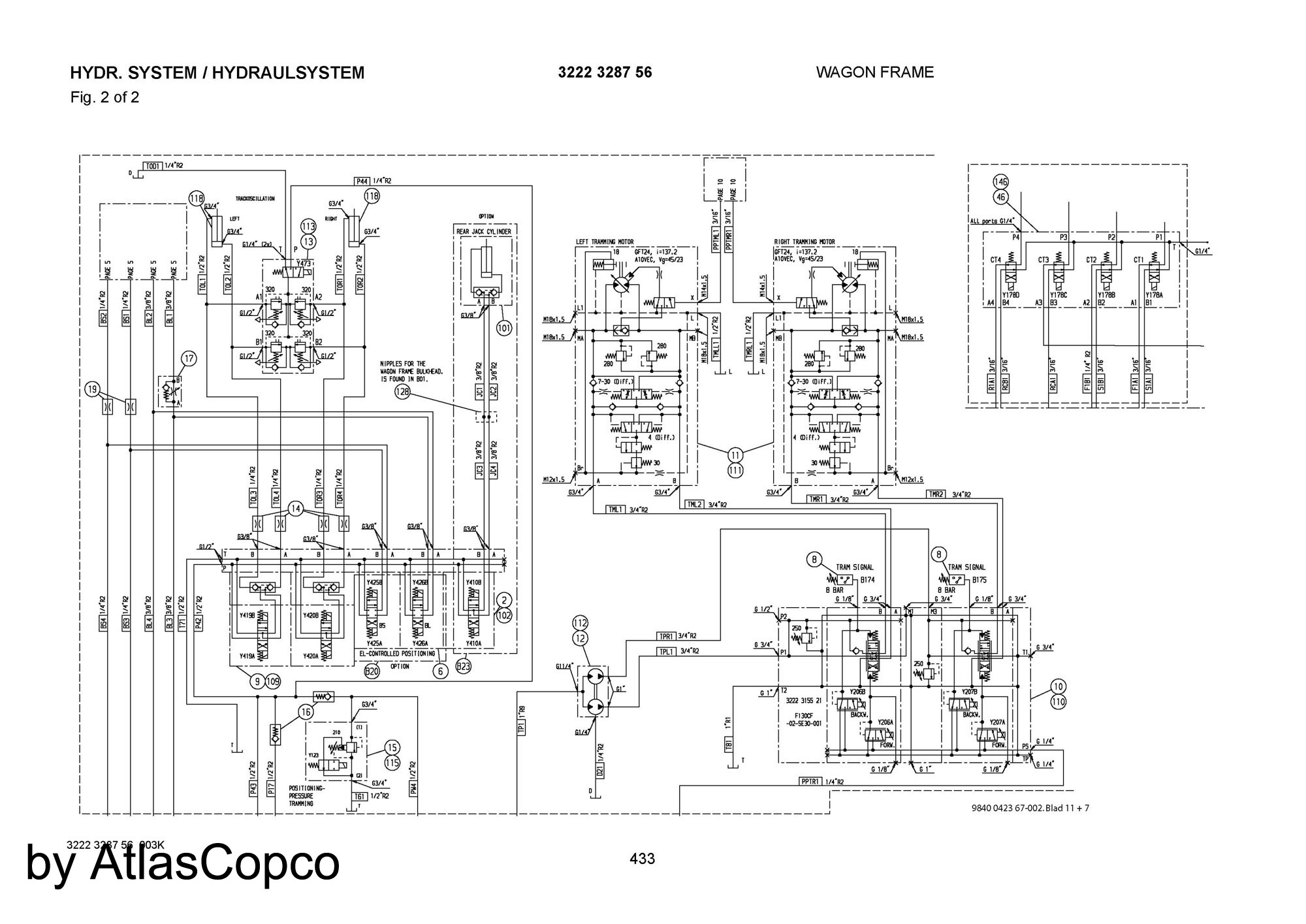

ROC F6 HYDR. SYSTEM #16536
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222328756
HYDR. SYSTEM
1
9121740200
VALVE BLOCK
2
9121740300
VALVE BLOCK
3
9121740800
VALVE BLOCK
4
3222309058
VALVE BLOCK
5
3222304013
VALVE BLOCK
6
3222318276
FLOW CONT.VALVE
8
3222305314
PRESSURE SWITCH
9
3222300022
VALVE BLOCK
10
3222315521
VALVE BLOCK
11
3222314238
DRIVE UNIT
12
3222213380
FLOW DIVIDER
13
3222312390
VALVE BLOCK
14
3217651304
RESTRICTION
15
3222313718
PRESS.REL.VALVE
16
0823005019
CHECK VALVE
19
3217651305
RESTRICTION
25
3176837700
SHUTTLE VALVE
27
0823005017
CHECK VALVE
40
0147132303
SCREW. HEX HEAD
41
0301233500
PLAIN WASHER
46
3222314955
VALVE BLOCK
47
3177301600
COUPLING
48
3176602300
PRESSURE GAUGE
ROC F6 HYDR. SYSTEM #16647
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315194
HYDR. SYSTEM
1
3222325305
PRESS.REL.VALVE
2
3222195480
HYDRAULIC MOTOR
ROC F6 HYDR. SYSTEM #16651
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315196
HYDR. SYSTEM
1
3214927800
HYDRAULIC PUMP
2
3222326563
GEAR PUMP
3
3222315071
GEAR PUMP
4
3222094001
SUCTION PIPE
5
0663920301
O-RING
6
0347610034
HOSE CLIP
7
3176630100
NIPPLE
8
3222285400
SUCTION PIPE
9
0663919101
ORING
11
3216830900
SUCTION PIPE
12
0638052700
FLANGE HALF
13
0347610030
HOSE CLIP
14
0211136403
SCREW
15
0638054700
FLANGE HALF
16
0211536500
SCREW
17
0211536800
SCREW
18
3222300100
FLANGE CONNECT.
19
0211196082
SCREW
20
3217651301
RESTRICTION
21
3177307301
SAEFLANGE
22
0663918201
ORING
30
3222318665
RESERVOIR
ROC F6 HYDR. SYSTEM #16654
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315200
HYDR. SYSTEM
1
3177307200
HYDRAULIC MOTOR
2
3222310355
VALVE BLOCK
3
3215929400
RESTRICTION
ROC F6 HYDR. SYSTEM #16681
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315195
HYDR. SYSTEM
1
3222319788
VALVE BLOCK
2
3177309288
DIRECTION VALVE
3
3222307568
VALVE BLOCK
4
3214901280
PRESS.RED.VALVE
5
3176850500
RESTRICTION
6
3217651303
RESTRICTION
7
3217651302
RESTRICTION
8
3125279702
RESTRICTION
13
3176227900
NIPPLE
14
3176649800
NIPPLE
15
3715058500
NIPPLE
26
3128022500
PROTECTION COIL

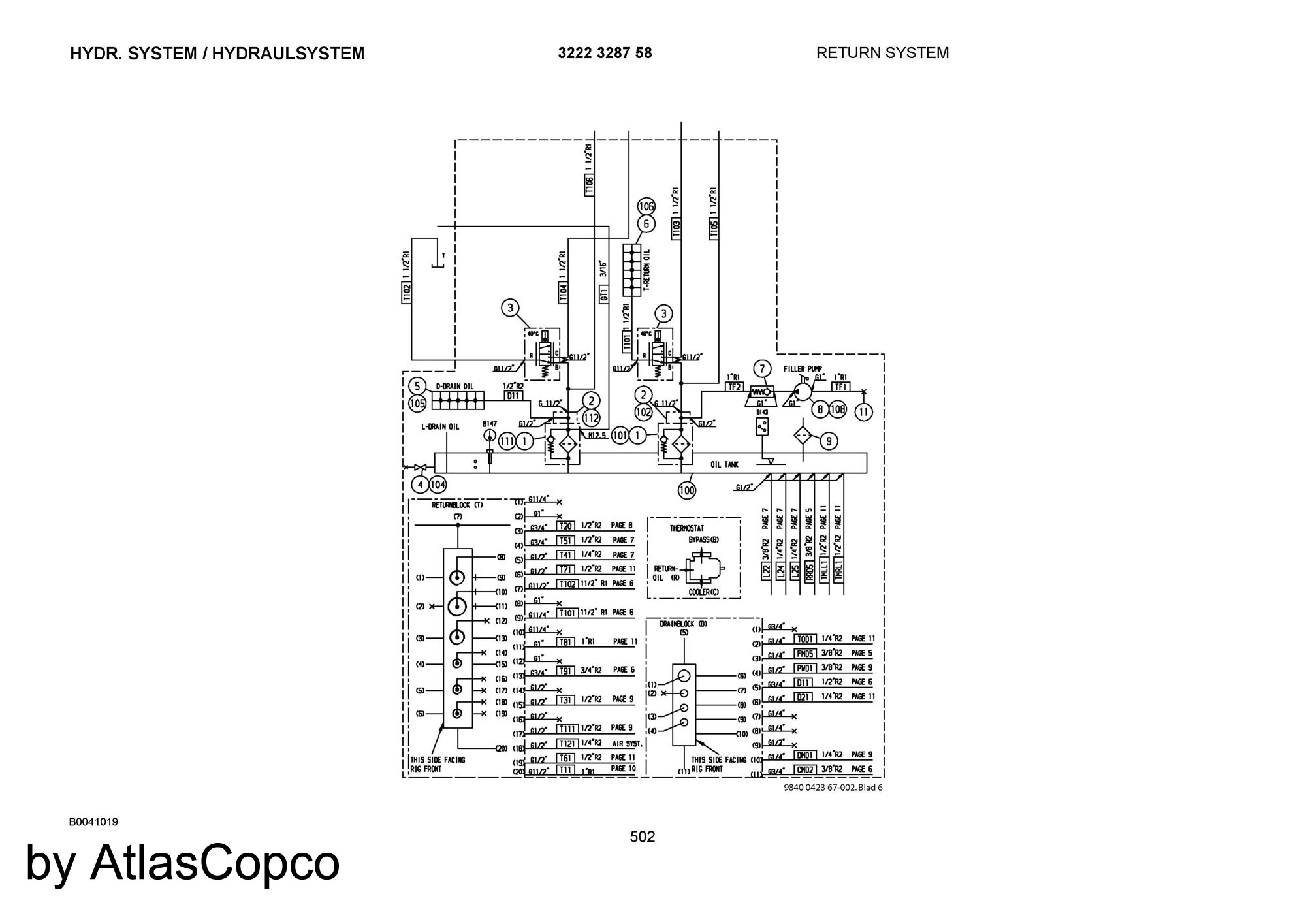

ROC F6 HYDR. SYSTEM #16708
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222328758
HYDR. SYSTEM
1
3214346980
RETURN FILTER
2
3214324300
FLANGE CONNECT.
3
3176879100
THERMOSTAT
4
8202030402
BALL VALVE
5
3216151000
DRAINAGE BLOCK
6
3216862400
RETURN BLOCK
7
0823009006
CHECK VALVE
8
3176746701
PUMP
9
3222318729
BREATHER FILTER
11
3715082100
PLUG
ROC F6 HYDR. SYSTEM #16750
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315192
HYDR. SYSTEM
7
3222182481
FEED MOTOR
8
3222310488
VALVE BLOCK
27
3176814993
RESTRICTION SET
28
3176814994
RESTRICTION SET
ROC F6 HYDR. SYSTEM #16787
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222328757
HYDR. SYSTEM
1
3222329045
DIRECTION VALVE
2
3222327809
VALVE BLOCK
7
3222323036
PR.CONTR.VALVE
10
3222308479
COVER
11
3216000014
MANOMETER
13
3216000013
MANOMETER
14
3216000009
MANOMETER
15
3222308477
COVER
16
3216000011
MANOMETER
18
0872100024
MANOMETER
ROC F6 HYDR. SYSTEM #16796
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222328756
HYDR. SYSTEM
1
9121740200
VALVE BLOCK
2
9121740300
VALVE BLOCK
3
9121740800
VALVE BLOCK
4
3222309058
VALVE BLOCK
5
3222304013
VALVE BLOCK
6
3222318276
FLOW CONT.VALVE
8
3222305314
PRESSURE SWITCH
9
3222300022
VALVE BLOCK
10
3222315521
VALVE BLOCK
11
3222314238
DRIVE UNIT
12
3222213380
FLOW DIVIDER
13
3222312390
VALVE BLOCK
14
3217651304
RESTRICTION
15
3222313718
PRESS.REL.VALVE
16
0823005019
CHECK VALVE
19
3217651305
RESTRICTION
25
3176837700
SHUTTLE VALVE
27
0823005017
CHECK VALVE
40
0147132303
SCREW. HEX HEAD
41
0301233500
PLAIN WASHER
46
3222314955
VALVE BLOCK
47
3177301600
COUPLING
48
3176602300
PRESSURE GAUGE

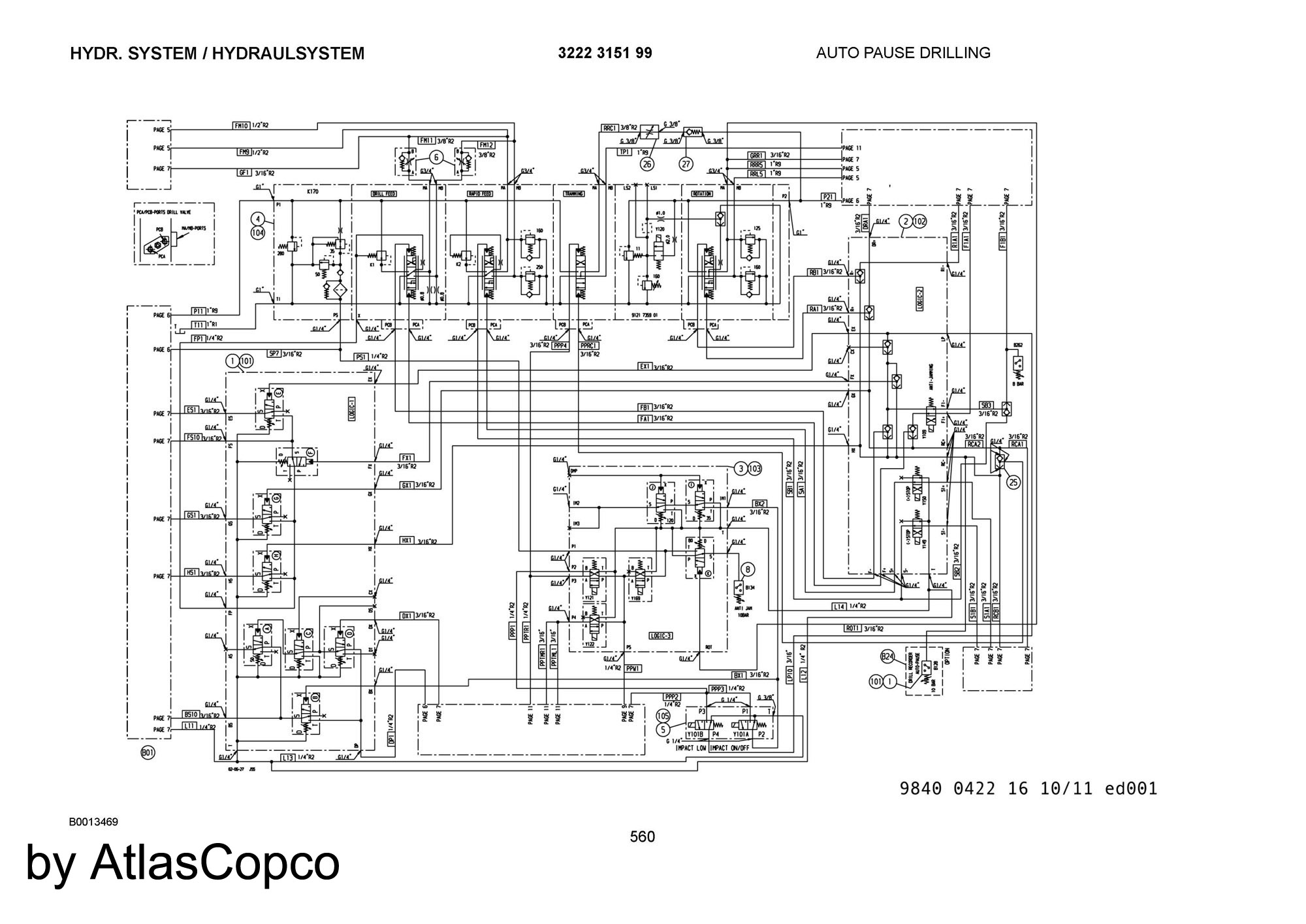

ROC F6 HYDR. SYSTEM #20032
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315199
HYDR. SYSTEM
1
3222316254
PRESSURE SWITCH

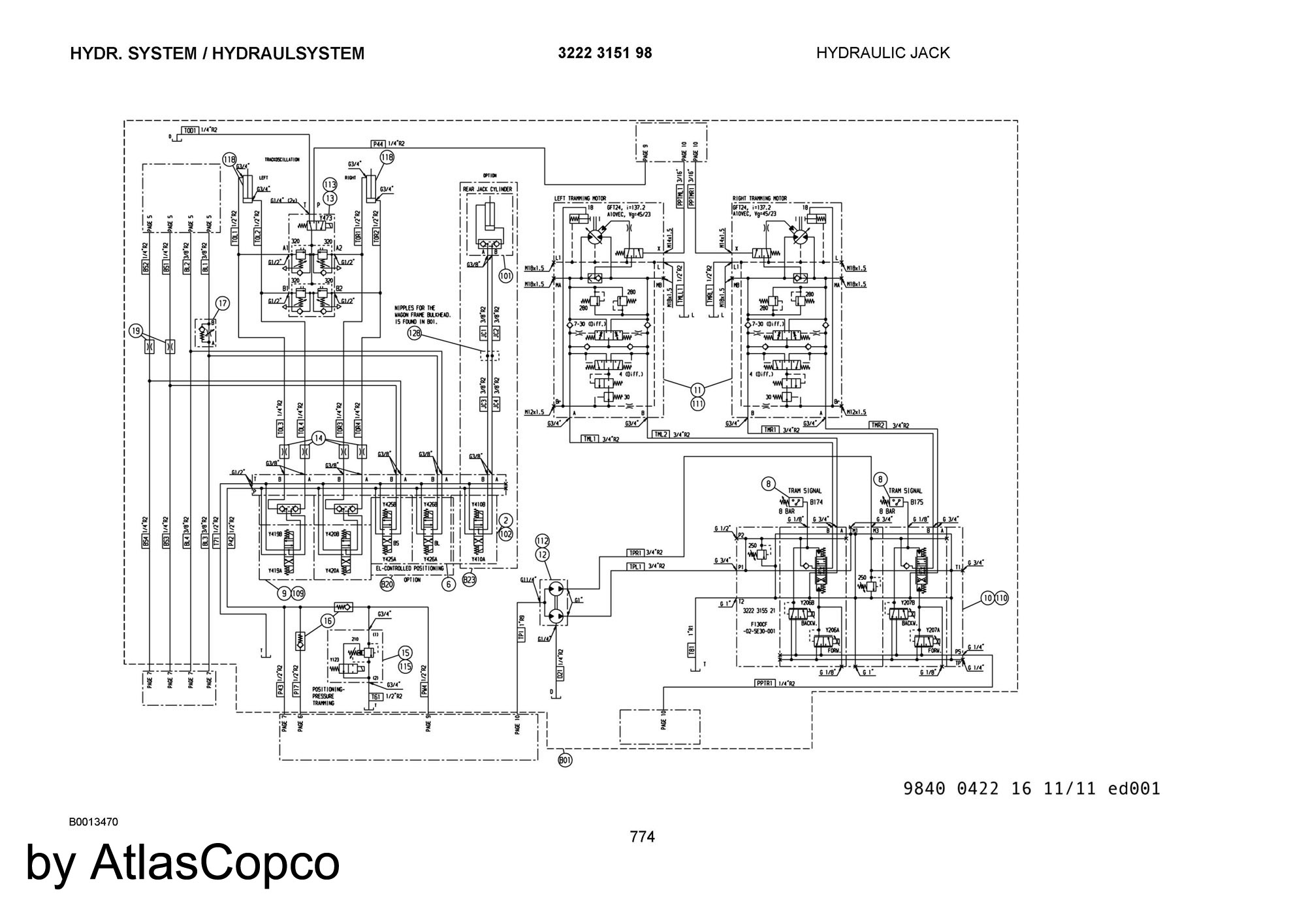

ROC F6 HYDR. SYSTEM #21584
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315198
HYDR. SYSTEM
2
3177309283
DIRECTION VALVE
ROC F6 HYDR. SYSTEM #21589
ROC F6 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3222315198
HYDR. SYSTEM
2
3177309283
DIRECTION VALVE
