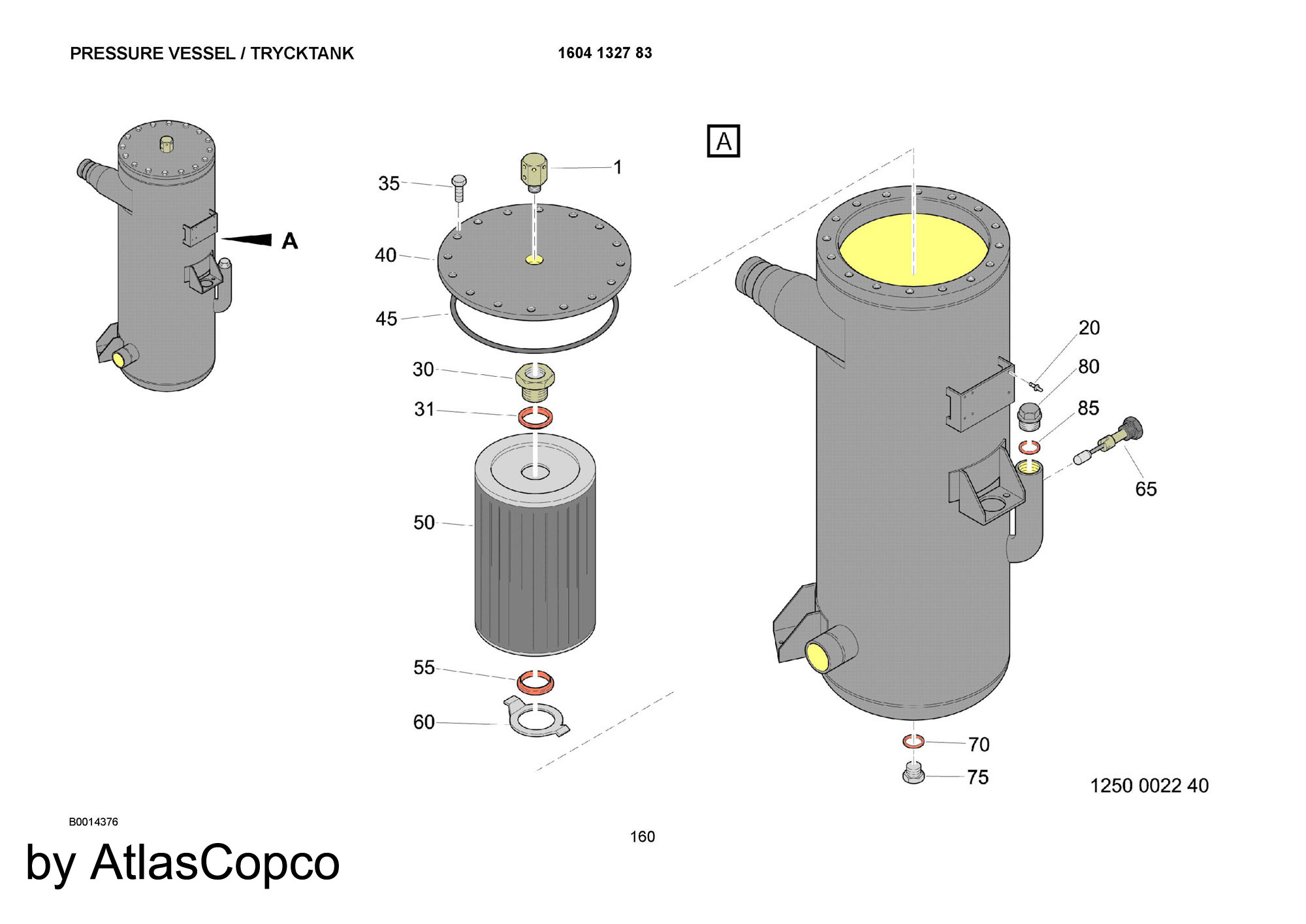

ROC F6 PRESSURE VESSEL #16538
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
1604132783
PRESSURE VESSEL
0
2911011200
SERVICE KIT
1
3222315179
DRAINAGE BLOCK
20
0129311500
BLIND RIVET
30
1604139901
CONNECTION
35
0147148003
SCREW. HEX HEAD
40
1604132701
COVER
45
0663210979
O-RING
60
1604133001
RETAINER
65
1616510800
LEVEL METER
70
0661103300
SEAL WASHER
75
0686371602
PLUG
80
2250252800
PLUG
85
0653122700
GASKET

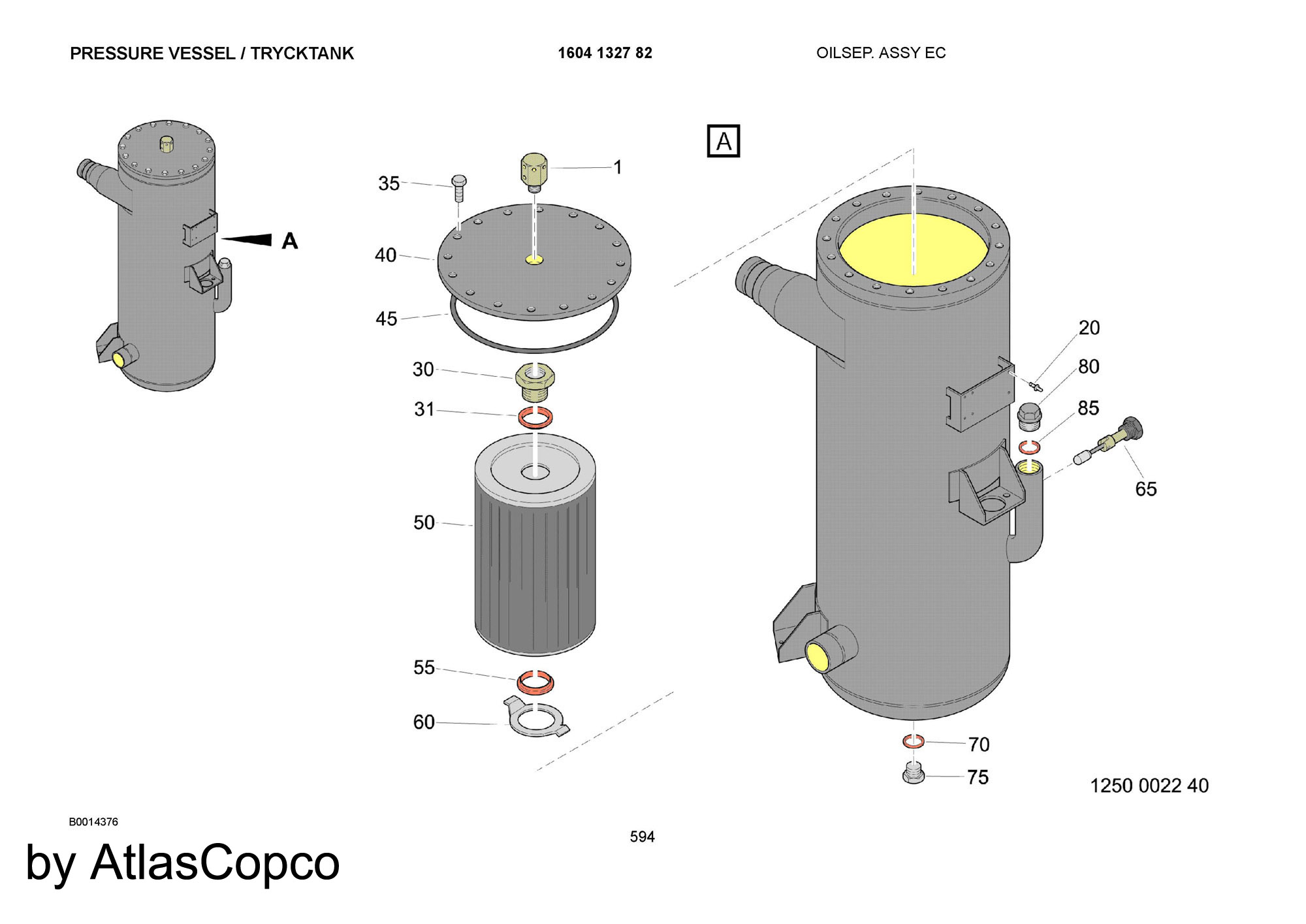

ROC F6 PRESSURE VESSEL #16693
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
1604132782
PRESSURE VESSEL
0
2911011200
SERVICE KIT
1
3222315179
DRAINAGE BLOCK
20
0129311500
BLIND RIVET
30
1604139901
CONNECTION
35
0147148003
SCREW. HEX HEAD
40
1604132701
COVER
45
0663210979
O-RING
60
1604133001
RETAINER
65
1616510800
LEVEL METER
70
0661103300
SEAL WASHER
75
0686371602
PLUG
80
2250252800
PLUG
85
0653122700
GASKET
ROC F6 PRESSURE VESSEL #16709
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
1604132783
PRESSURE VESSEL
0
2911011200
SERVICE KIT
1
3222315179
DRAINAGE BLOCK
20
0129311500
BLIND RIVET
30
1604139901
CONNECTION
35
0147148003
SCREW. HEX HEAD
40
1604132701
COVER
45
0663210979
O-RING
60
1604133001
RETAINER
65
1616510800
LEVEL METER
70
0661103300
SEAL WASHER
75
0686371602
PLUG
80
2250252800
PLUG
85
0653122700
GASKET
ROC F6 PRESSURE VESSEL #16798
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
1604132782
PRESSURE VESSEL
0
2911011200
SERVICE KIT
1
3222315179
DRAINAGE BLOCK
20
0129311500
BLIND RIVET
30
1604139901
CONNECTION
35
0147148003
SCREW. HEX HEAD
40
1604132701
COVER
45
0663210979
O-RING
60
1604133001
RETAINER
65
1616510800
LEVEL METER
70
0661103300
SEAL WASHER
75
0686371602
PLUG
80
2250252800
PLUG
85
0653122700
GASKET
ROC F6 PRESSURE VESSEL #20028
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
3222185577
PRESSURE VESSEL
1
8092250540
PRESSURE VESSEL
2
3222314842
HOSE
3
0663713800
O-RING
4
1604179100
CLAMPING PIECE
5
0301235800
WASHER
6
0147140203
SCREW. HEX HEAD
7
3222315394
WASHER
8
0147147703
SCREW. HEX HEAD
9
9030080000
AIR HOSE
10
0347610030
HOSE CLIP

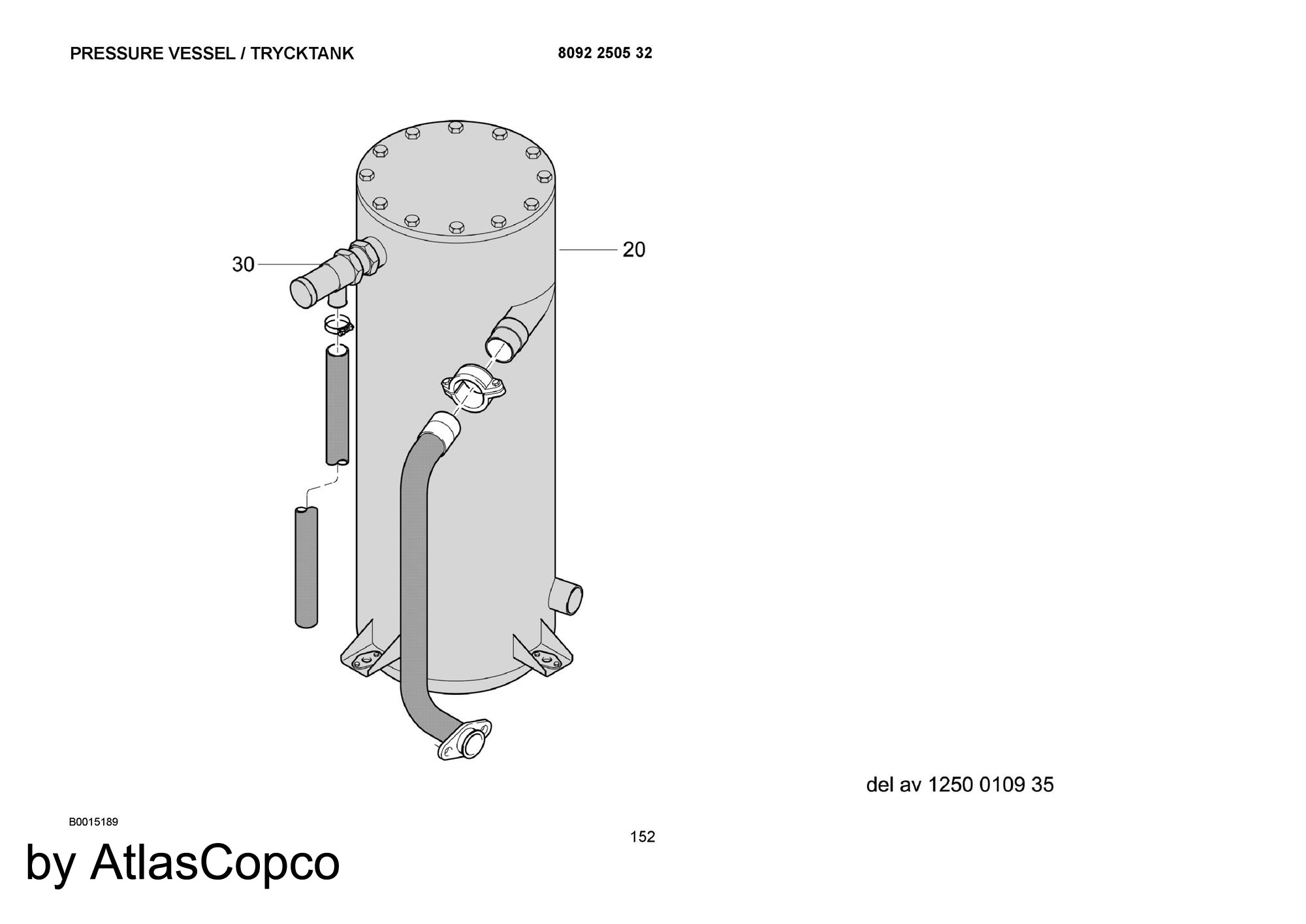

ROC F6 PRESSURE VESSEL #20064
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
8092250532
PRESSURE VESSEL
20
1604132782
PRESSURE VESSEL
30
0832100053
SAFETY VALVE
ROC F6 PRESSURE VESSEL #20074
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
8092250532
PRESSURE VESSEL
20
1604132782
PRESSURE VESSEL
30
0832100053
SAFETY VALVE
ROC F6 PRESSURE VESSEL #20090
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
3222185576
PRESSURE VESSEL
1
8092250532
PRESSURE VESSEL
2
3222314842
HOSE
3
0663713800
O-RING
4
1604179100
CLAMPING PIECE
5
0301235800
WASHER
6
0147140203
SCREW. HEX HEAD
7
3222315394
WASHER
8
0147147703
SCREW. HEX HEAD
9
9030080000
AIR HOSE
10
0347610030
HOSE CLIP
ROC F6 PRESSURE VESSEL #20131
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
8092250540
PRESSURE VESSEL
20
1604132783
PRESSURE VESSEL
30
0832100128
SAFETY VALVE
ROC F6 PRESSURE VESSEL #20134
ROC F6 PRESSURE VESSEL
ads
Ref
Parts Num
Name
0
8092250540
PRESSURE VESSEL
20
1604132783
PRESSURE VESSEL
30
0832100128
SAFETY VALVE
