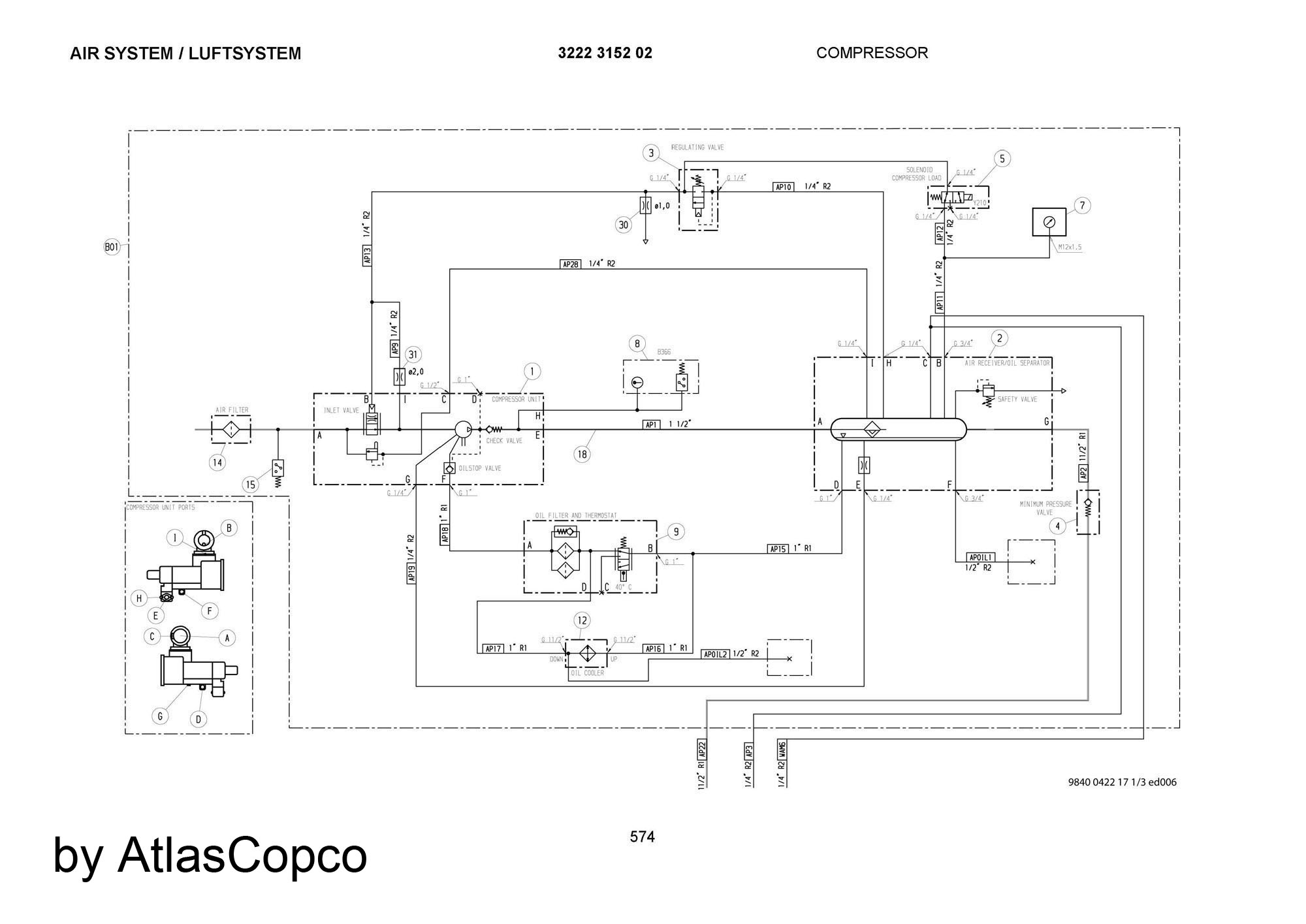

ROC F9 AIR SYSTEM #9304
ROC F9 AIR SYSTEM
ads
Ref
Parts Num
Name
0
3222315202
AIR SYSTEM
1
8162044260
COMPRESSOR SET
2
8092250532
PRESSURE VESSEL
2
8092250540
PRESSURE VESSEL
3
1604217080
CONTROL VALVE
4
1604133901
MIN.PR.VALVE
5
1089035161
VALVE
7
3177502900
PRESSURE GAUGE
8
9106177518
TEMP. SENSOR
9
1202804002
OIL FILTER
12
3222315223
RADIATOR
14
3222188115
AIR FILTER SET
15
3222137500
FILT.INDICATOR
18
3222314842
HOSE
30
3217651308
RESTRICTION
31
3217651304
RESTRICTION
ROC F9 AIR SYSTEM #10042
ROC F9 AIR SYSTEM
ads
Ref
Parts Num
Name
0
3222315965
AIR SYSTEM
1
3217958160
VALVE BLOCK
4
3222328942
FLOW GUARD
5
3214839900
VENTURI PIPE
7
3214749402
NIPPLE
8
3217740300
RESERVOIR
9
3217651307
RESTRICTION
12
0823009013
CHECK VALVE
14
3222311630
NEEDLE VALVE
15
0852001038
BALL VALVE
16
3222311770
DIRT FILTER
17
3217999600
SOLENOID VALVE
18
8204094034
CHECK VALVE
21
3176185602
PRESS.REGULATOR
22
3222319689
MANOMETER
23
8202030501
BALL VALVE
24
3216322300
SAFETY VALVE

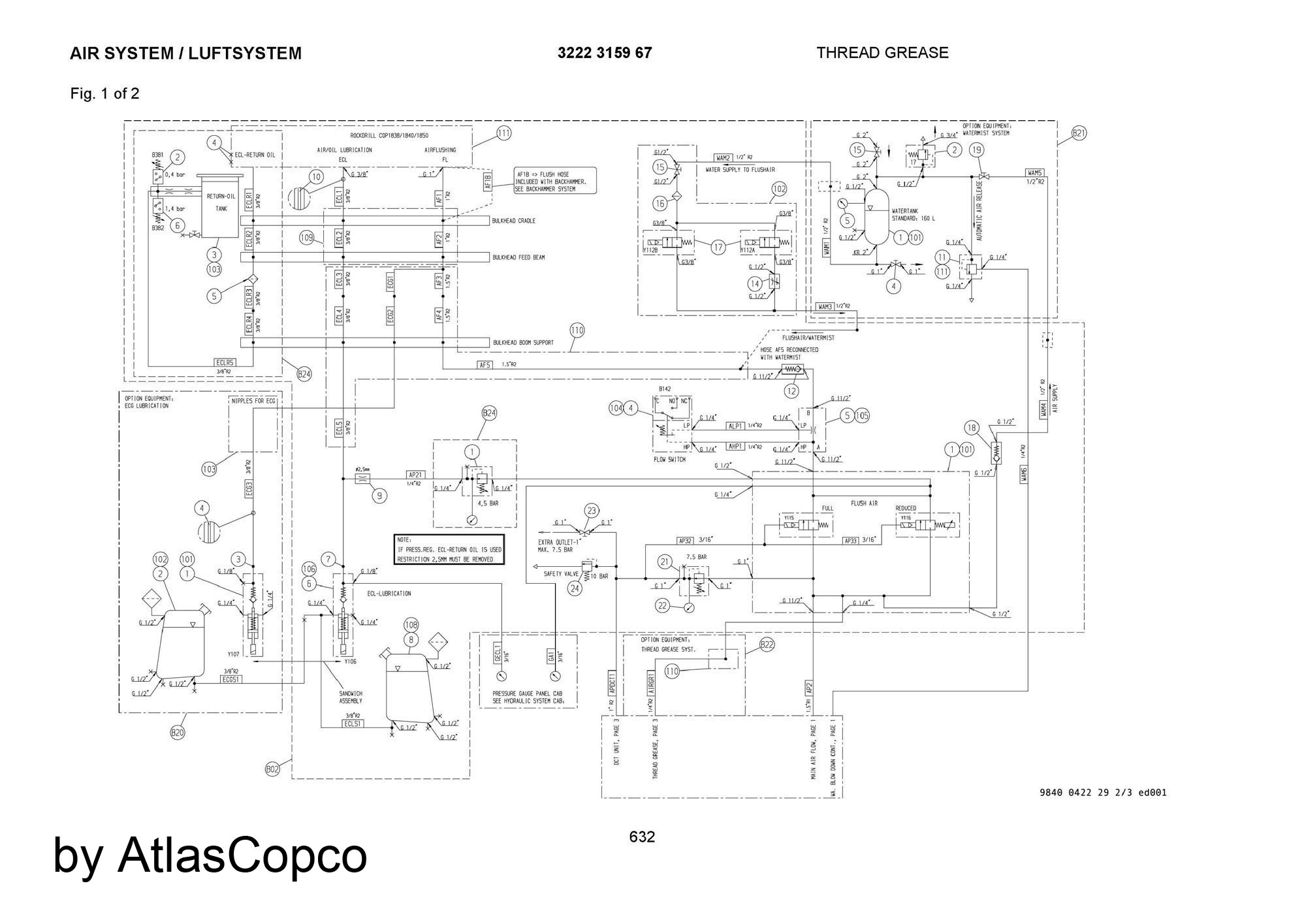

ROC F9 AIR SYSTEM #10187
ROC F9 AIR SYSTEM
ads
Ref
Parts Num
Name
0
3222315967
AIR SYSTEM
1
3214749900
GREASE PUMP
2
8204094216
THROTTLE VALVE
3
8204049897
SOLENOID VALVE
4
9124808100
CONNECT. PLATE
5
8202520670
OIL-FOG LUBRIC.
6
9090117200
PRESSURE GAUGE
7
9093003391
PRESS.RED.VALVE
8
8202030105
BALL VALVE
9
3216675500
COLLECT. BLOCK
ROC F9 AIR SYSTEM #10282
ROC F9 AIR SYSTEM
ads
Ref
Parts Num
Name
0
3222315966
AIR SYSTEM
2
3217740300
RESERVOIR
3
3214749402
NIPPLE
5
3222300142
HOLDER

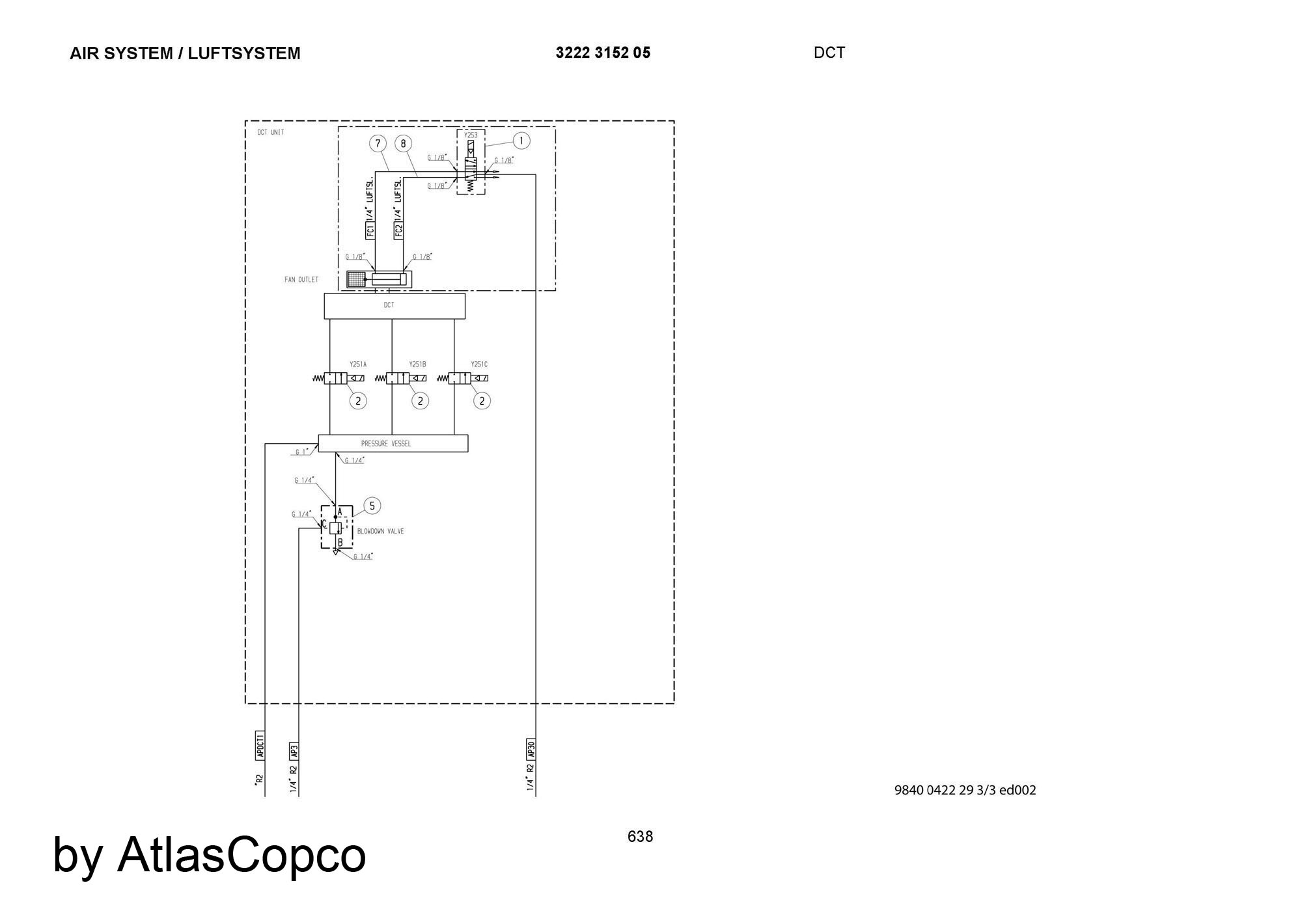

ROC F9 AIR SYSTEM #10337
ROC F9 AIR SYSTEM
ads
Ref
Parts Num
Name
0
3222315205
AIR SYSTEM
1
3222330088
AIR VALVE
2
3222129300
SOLENOID VALVE
5
9128130801
VALVE
7
9030010000
AIR HOSE

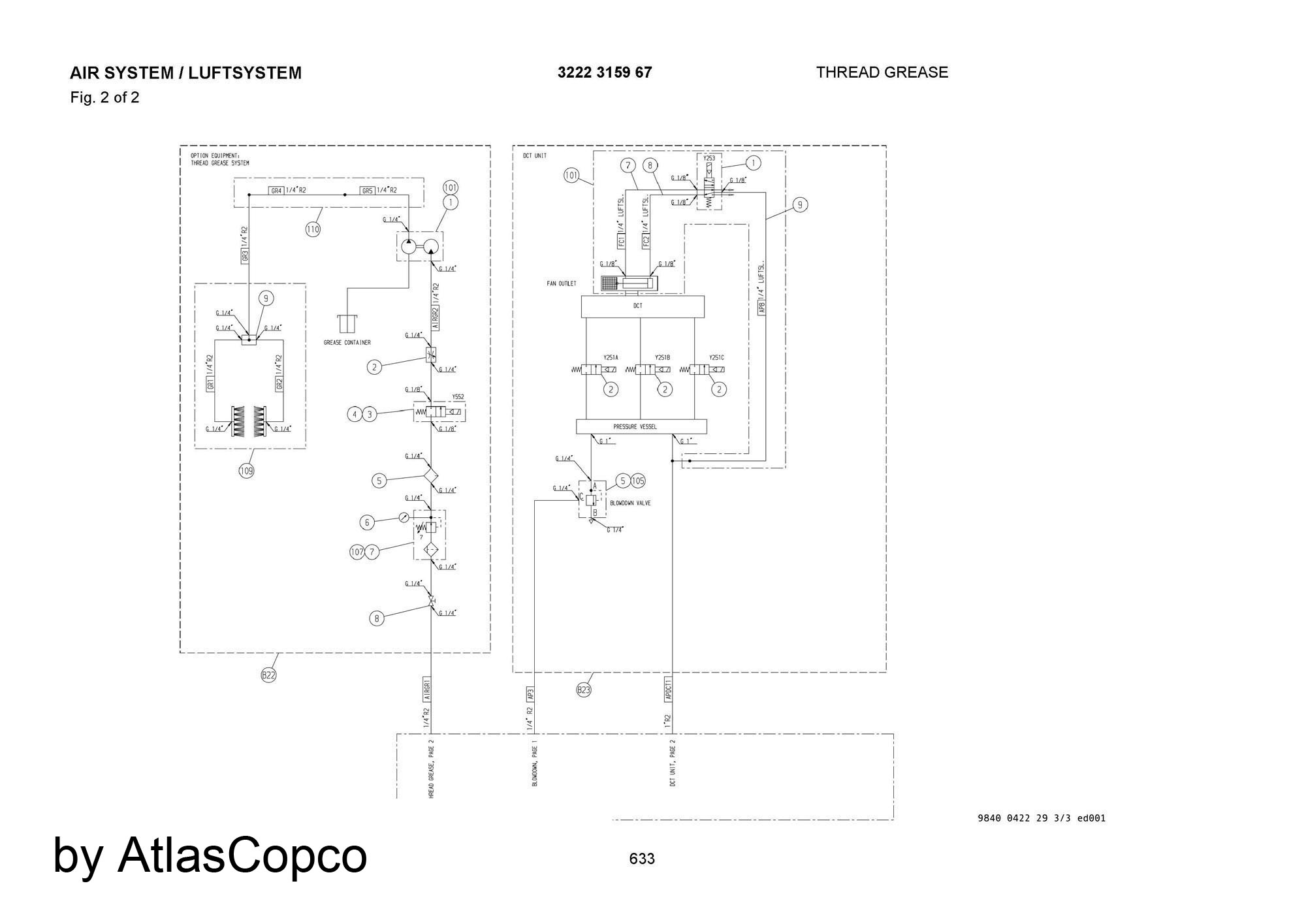

ROC F9 AIR SYSTEM #11278
ROC F9 AIR SYSTEM
ads
Ref
Parts Num
Name
0
3222315967
AIR SYSTEM
1
3214749900
GREASE PUMP
2
8204094216
THROTTLE VALVE
3
8204049897
SOLENOID VALVE
4
9124808100
CONNECT. PLATE
5
8202520670
OIL-FOG LUBRIC.
6
9090117200
PRESSURE GAUGE
7
9093003391
PRESS.RED.VALVE
8
8202030105
BALL VALVE
9
3216675500
COLLECT. BLOCK

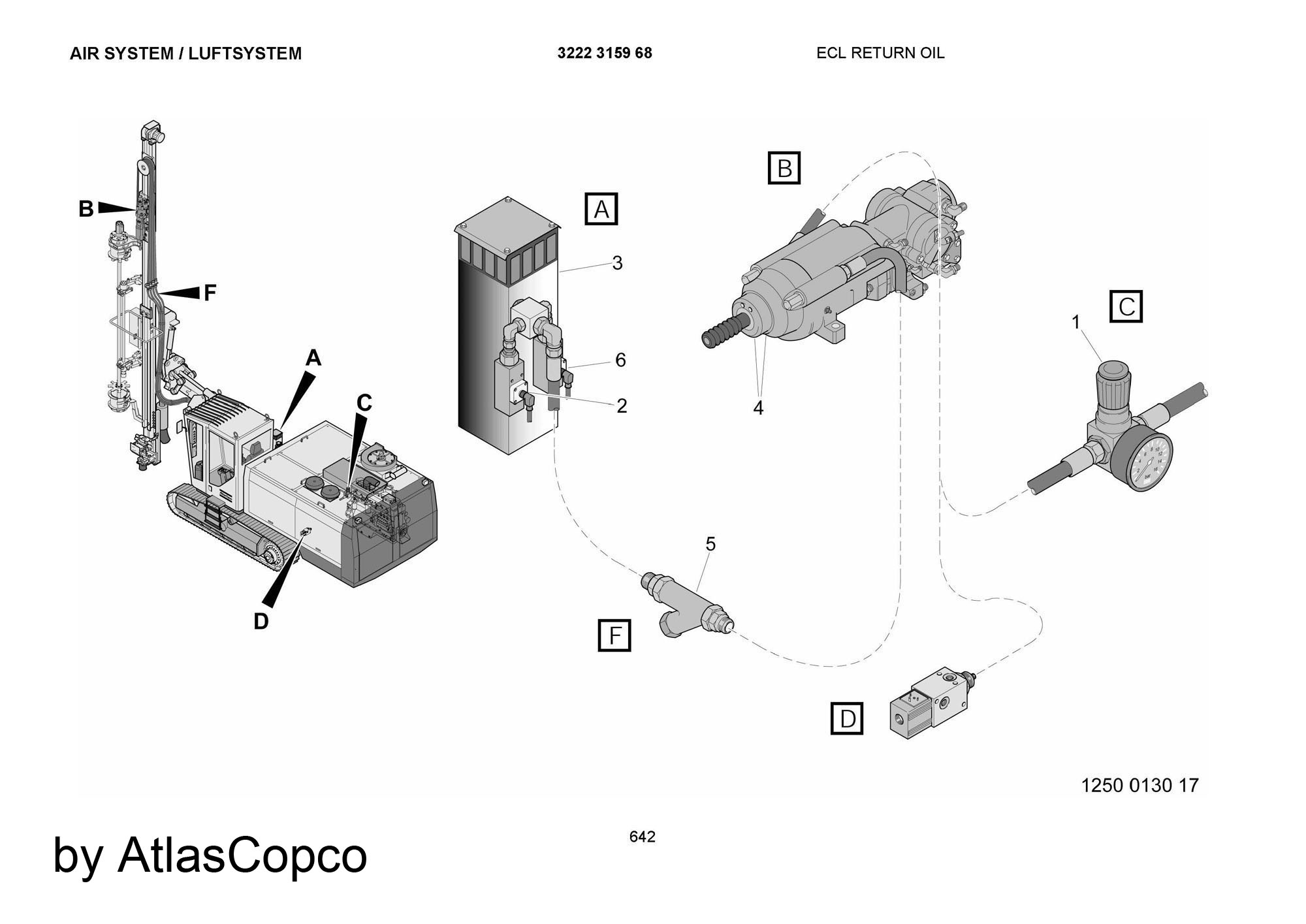

ROC F9 AIR SYSTEM #11464
ROC F9 AIR SYSTEM
ads
Ref
Parts Num
Name
0
3222315968
AIR SYSTEM
1
3215959500
PRESS.RED.VALVE
2
3222316252
PRESSURE SWITCH
3
3222314022
OIL RESERVOIR
5
3222311770
DIRT FILTER
6
3222316253
PRESSURE SWITCH
7
9090117200
PRESSURE GAUGE
