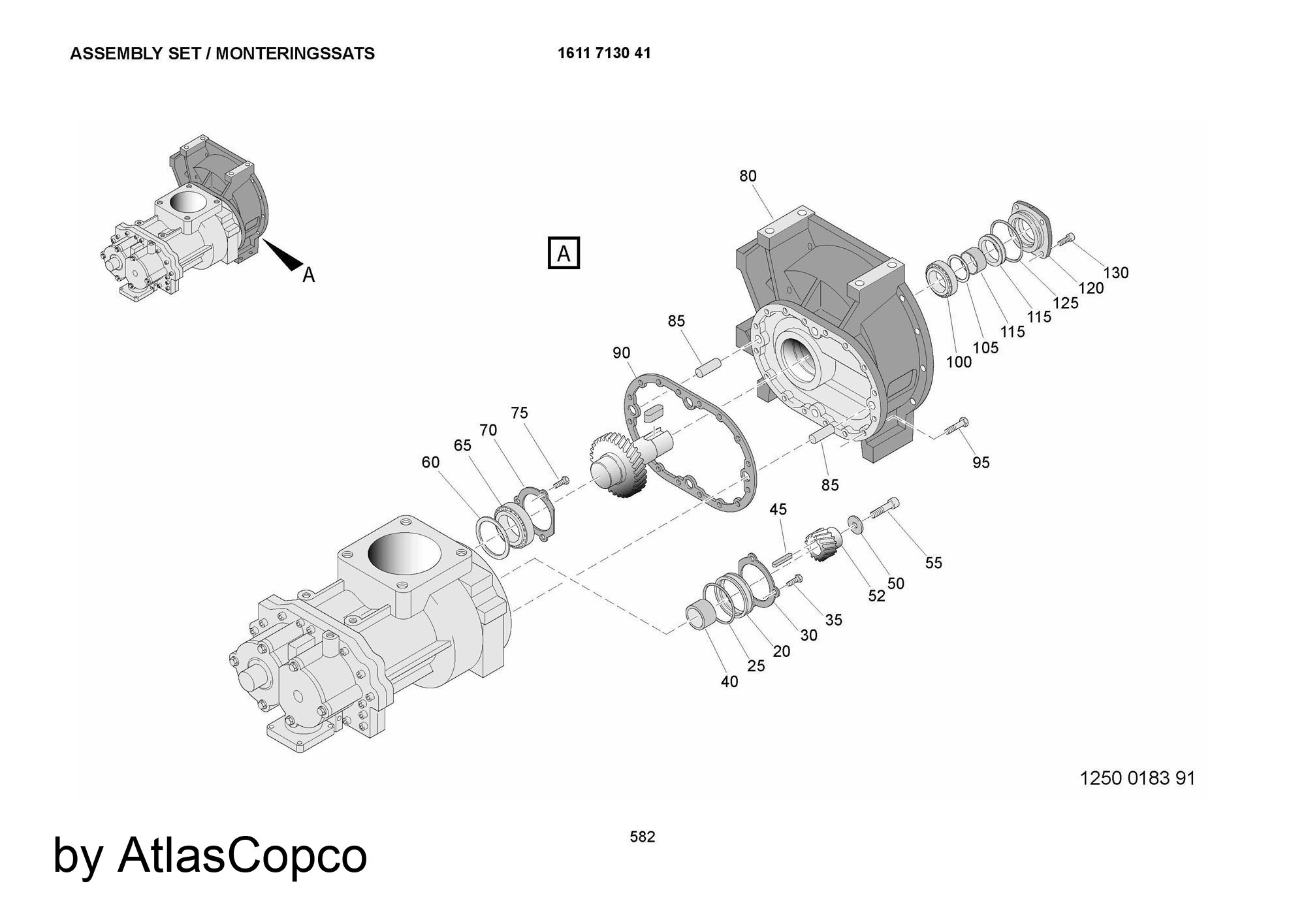

ROC F9 ASSEMBLY SET #9453
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
1611713041
ASSEMBLY SET
20
1616493300
BUSHING
25
0663714700
O-RING
30
1616493900
COVER
35
0147136215
SCREW. HEX HEAD
40
1616493200
BUSHING
45
0337229323
FLAT KEY
50
1616493600
SPACER
52
1604175900
BUSHING
55
0147140815
HEX. HEAD SCREW
60
1616493400
RING
65
0508110085
ROLLER BEARING
80
1604130000
GEAR HOUSING
85
1616518700
PIN
90
1604176300
GASKET
95
0211136503
SCREW
100
0506010009
BEARING
105
1616494900
SPACER
110
1616494400
BUSHING
115
1616601200
SEAL
120
1616494600
COVER
130
0211136003
SCREW
135
0211196415
HEX SOCK. SCREW

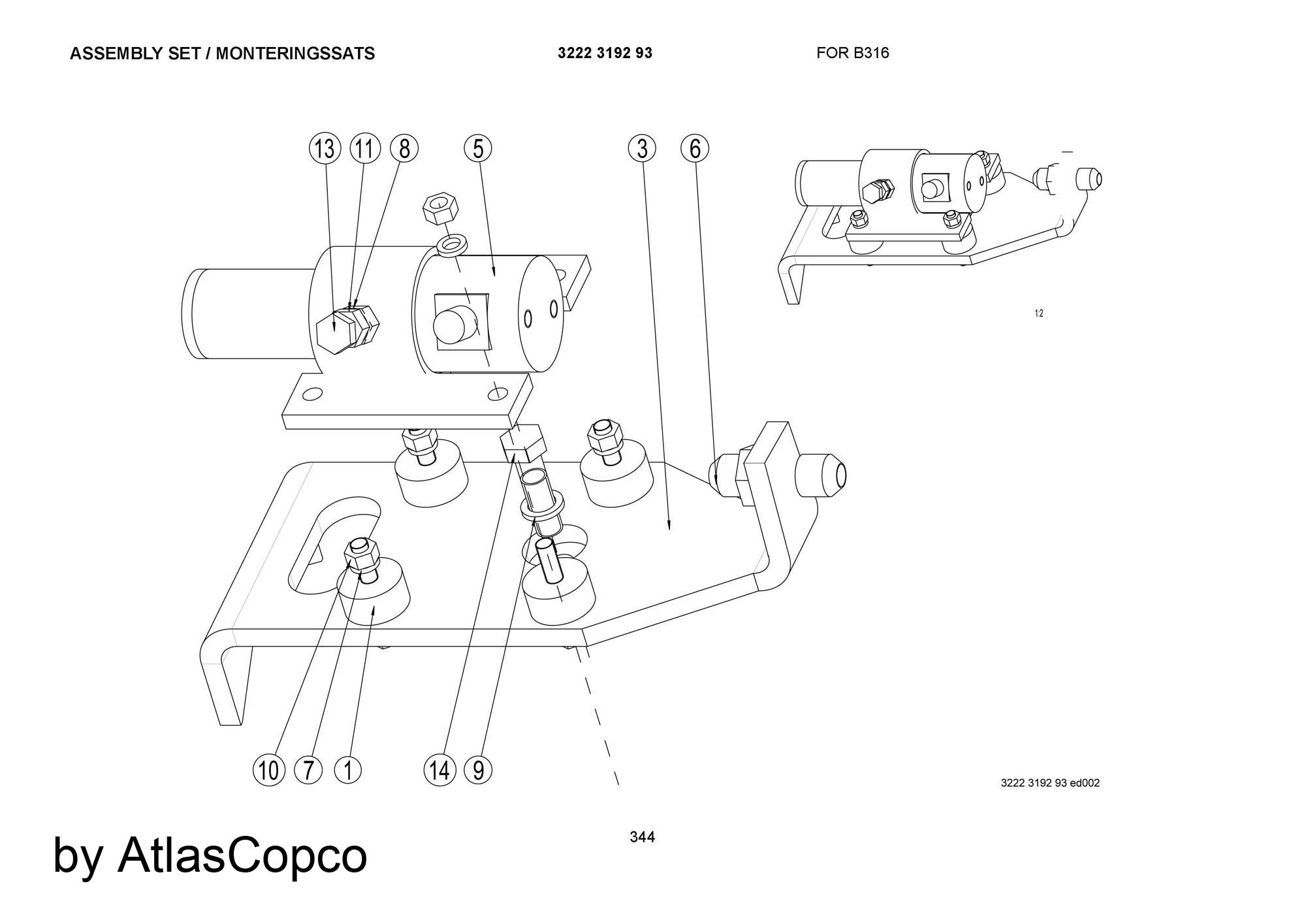

ROC F9 ASSEMBLY SET #10147
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
3222319293
ASSEMBLY SET
1
3216695900
DAMPER
2
3222312900
ATTACHMENT
3
3222318999
HOLDER
4
3222318781
CONE
5
3222314101
LASER RECEIVER
16
3222318708
NIPPLE
ROC F9 ASSEMBLY SET #10589
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
1611713041
ASSEMBLY SET
20
1616493300
BUSHING
25
0663714700
O-RING
30
1616493900
COVER
35
0147136215
SCREW. HEX HEAD
40
1616493200
BUSHING
45
0337229323
FLAT KEY
50
1616493600
SPACER
52
1604175900
BUSHING
55
0147140815
HEX. HEAD SCREW
60
1616493400
RING
65
0508110085
ROLLER BEARING
80
1604130000
GEAR HOUSING
85
1616518700
PIN
90
1604176300
GASKET
95
0211136503
SCREW
100
0506010009
BEARING
105
1616494900
SPACER
110
1616494400
BUSHING
115
1616601200
SEAL
120
1616494600
COVER
130
0211136003
SCREW
135
0211196415
HEX SOCK. SCREW

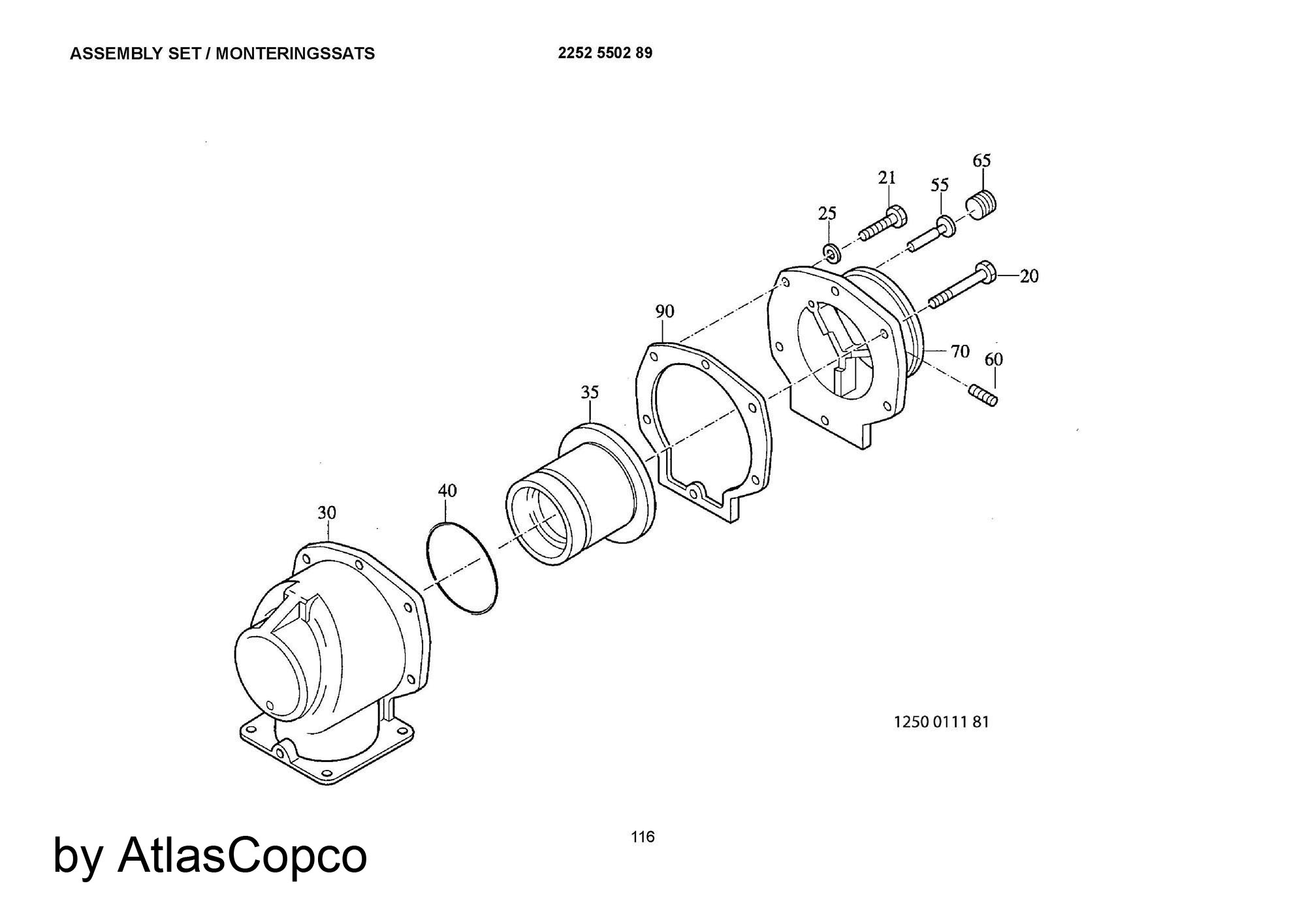

ROC F9 ASSEMBLY SET #10627
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
2252550289
ASSEMBLY SET
21
1619276601
BOLT
30
2252550200
HOUSE
35
2252550301
PISTON
40
1619602400
SEAL
55
1604620500
VALVE
60
0686260600
PLUG
65
1613291300
PLUG
70
1616505100
CONNECTION
90
1616533600
GASKET
ROC F9 ASSEMBLY SET #10639
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
3222319293
ASSEMBLY SET
1
3216695900
DAMPER
2
3222312900
ATTACHMENT
3
3222318999
HOLDER
4
3222318781
CONE
5
3222314101
LASER RECEIVER
16
3222318708
NIPPLE
ROC F9 ASSEMBLY SET #10796
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
2252550289
ASSEMBLY SET
21
1619276601
BOLT
30
2252550200
HOUSE
35
2252550301
PISTON
40
1619602400
SEAL
55
1604620500
VALVE
60
0686260600
PLUG
65
1613291300
PLUG
70
1616505100
CONNECTION
90
1616533600
GASKET
ROC F9 ASSEMBLY SET #11419
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
111
3222306593
ASSEMBLY SET
A30
3222325372
FUSE BOX
0
3222328902
ELECTR. SYSTEM
A20
3222328978
JUNCTION BOX
B366
9106177518
TEMP. SENSOR
K5A
3176000038
RELAY
B360
3222137500
FILT.INDICATOR
H315
3222306549
LAMP
M1
3222317935
STARTER
G2
3222324298
GENERATOR
ROC F9 ASSEMBLY SET #17526
ROC F9 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
1261100030
ASSEMBLY SET
0
9106131600
TIE ROD KIT
0
3177000047
SEAL KIT
