ROC F9 Pages
1. EPIROC - ROC F9 COMPRESSOR SET #9508
2. EPIROC - ROC F9 COMPRESSOR SET #9624
3. EPIROC - ROC F9 COMPRESSOR SET #11018
4. EPIROC - ROC F9 COMPRESSOR SET #11163

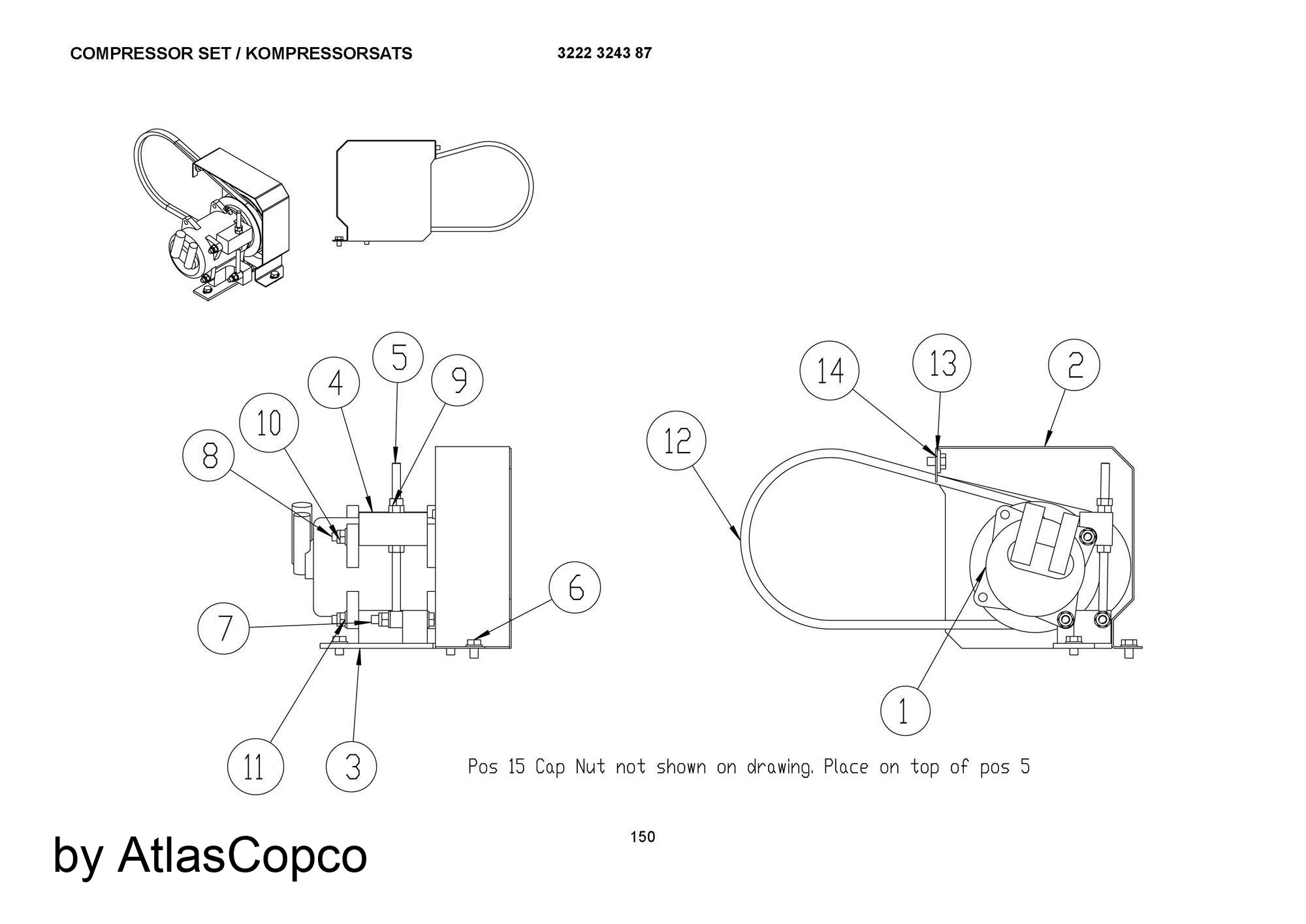

ROC F9 COMPRESSOR SET #9508
ROC F9 COMPRESSOR SET
ads
Ref
Parts Num
Name
0
3222324387
COMPRESSOR SET
1
3222324583
COMPRESSOR
2
3222325236
BELT PROTECTION
3
3222312657
HOLDER
4
3222312658
ADAPTER
5
3222312659
THREADED ROD
7
0147137103
SCREW. HEX HEAD
8
0147138103
SCREW. HEX HEAD
12
0367100011
V-BELT
15
0277131100
CAP NUT

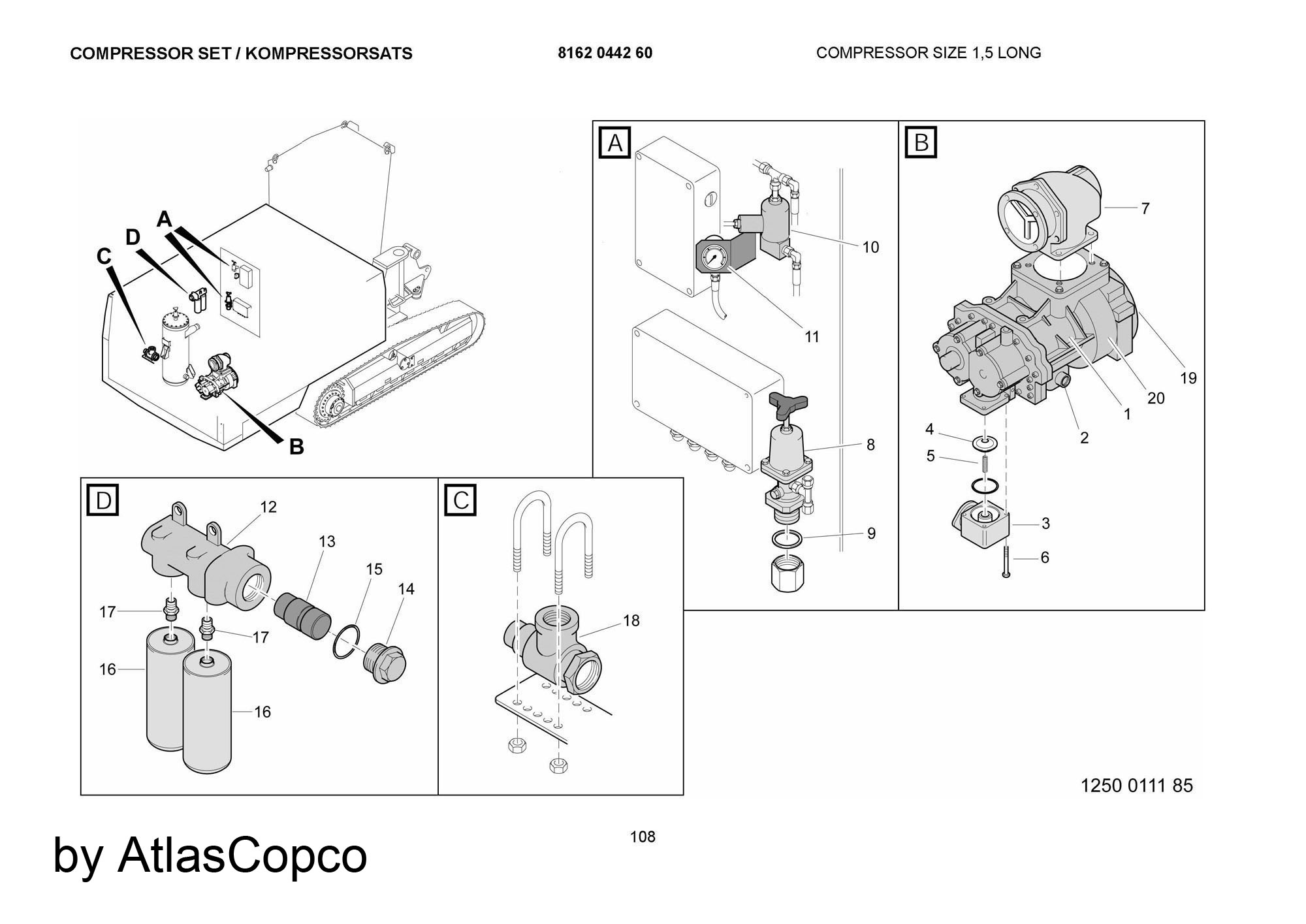

ROC F9 COMPRESSOR SET #9624
ROC F9 COMPRESSOR SET
ads
Ref
Parts Num
Name
0
8162044260
COMPRESSOR SET
1
2989016300
SERVICE STAGE
2
2255280980
OIL STOP VALVE
3
1202677100
VALVE HOUSING
4
1202613900
VALVE
5
1613516500
SPRING
6
0147137603
SCREW. HEX HEAD
7
2252550289
ASSEMBLY SET
8
1604217080
CONTROL VALVE
10
1089035161
VALVE
11
3177502900
PRESSURE GAUGE
12
1613804300
VALVE HOUSING
13
1619756000
THERMOSTAT
14
0686371629
PLUG
15
0661107000
SEAL WASHER
16
1202804002
OIL FILTER
17
2254725700
NIPPLE
18
1604133901
MIN.PR.VALVE
19
1611713041
ASSEMBLY SET
20
1611710696
ASSEMBLY SET
20
1611813241
GEAR
30
1089951502
SOLENOID VALVE
40
1089057407
TEMP. SENSOR
60
0663210643
O-RING
70
1604708900
GASKET
80
1604130900
ADAPTER
140
1604211600
RUBBER DAMPER
150
1604179101
CLAMP
160
1604179201
CLAMPING PIECE
ROC F9 COMPRESSOR SET #11018
ROC F9 COMPRESSOR SET
ads
Ref
Parts Num
Name
0
8162044260
COMPRESSOR SET
1
2989016300
SERVICE STAGE
2
2255280980
OIL STOP VALVE
3
1202677100
VALVE HOUSING
4
1202613900
VALVE
5
1613516500
SPRING
6
0147137603
SCREW. HEX HEAD
7
2252550289
ASSEMBLY SET
8
1604217080
CONTROL VALVE
10
1089035161
VALVE
11
3177502900
PRESSURE GAUGE
12
1613804300
VALVE HOUSING
13
1619756000
THERMOSTAT
14
0686371629
PLUG
15
0661107000
SEAL WASHER
16
1202804002
OIL FILTER
17
2254725700
NIPPLE
18
1604133901
MIN.PR.VALVE
19
1611713041
ASSEMBLY SET
20
1611710696
ASSEMBLY SET
20
1611813241
GEAR
30
1089951502
SOLENOID VALVE
40
1089057407
TEMP. SENSOR
60
0663210643
O-RING
70
1604708900
GASKET
80
1604130900
ADAPTER
140
1604211600
RUBBER DAMPER
150
1604179101
CLAMP
160
1604179201
CLAMPING PIECE
ROC F9 COMPRESSOR SET #11163
ROC F9 COMPRESSOR SET
ads
Ref
Parts Num
Name
0
3222324387
COMPRESSOR SET
1
3222324583
COMPRESSOR
2
3222325236
BELT PROTECTION
3
3222312657
HOLDER
4
3222312658
ADAPTER
5
3222312659
THREADED ROD
7
0147137103
SCREW. HEX HEAD
8
0147138103
SCREW. HEX HEAD
12
0367100011
V-BELT
15
0277131100
CAP NUT
