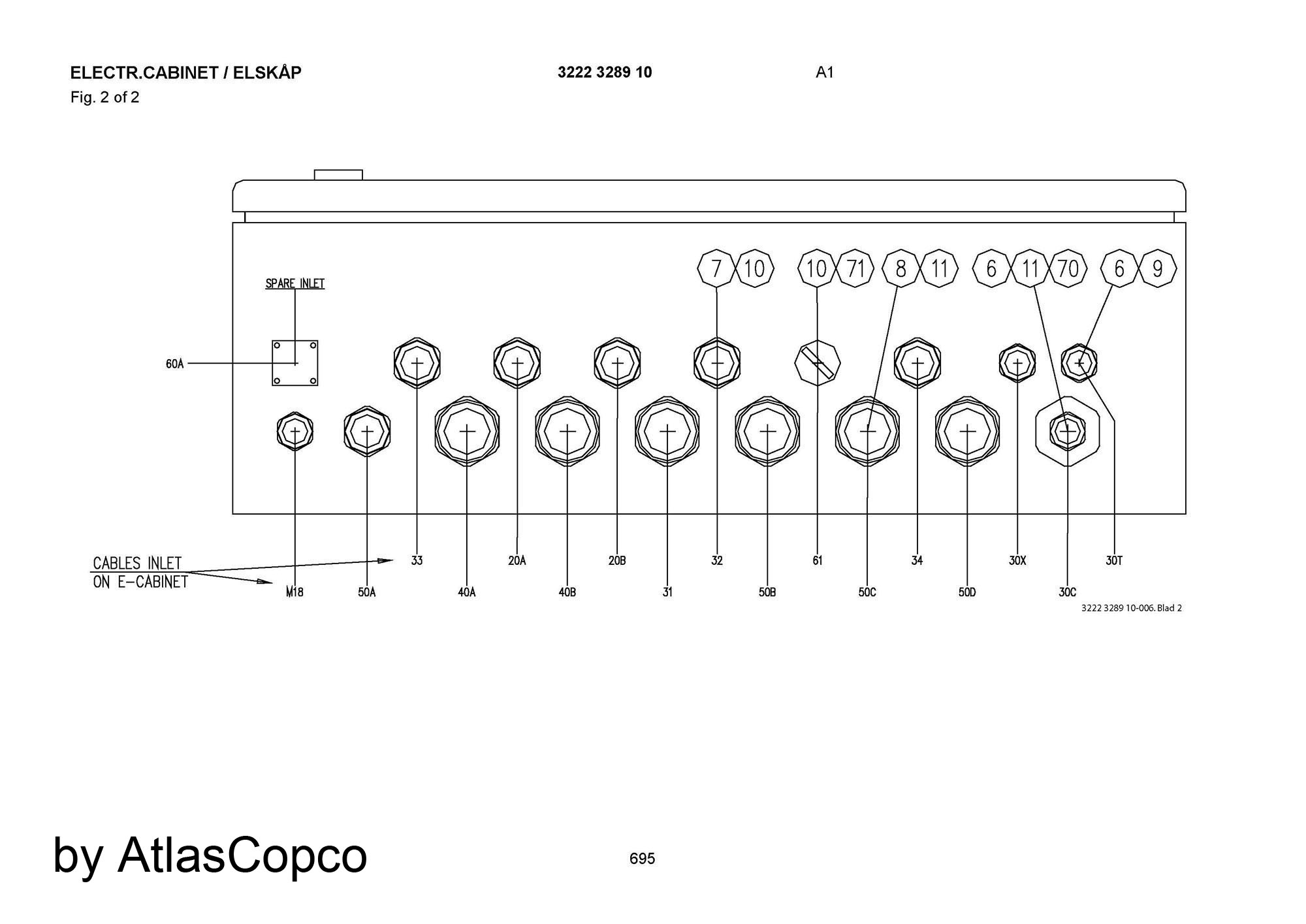

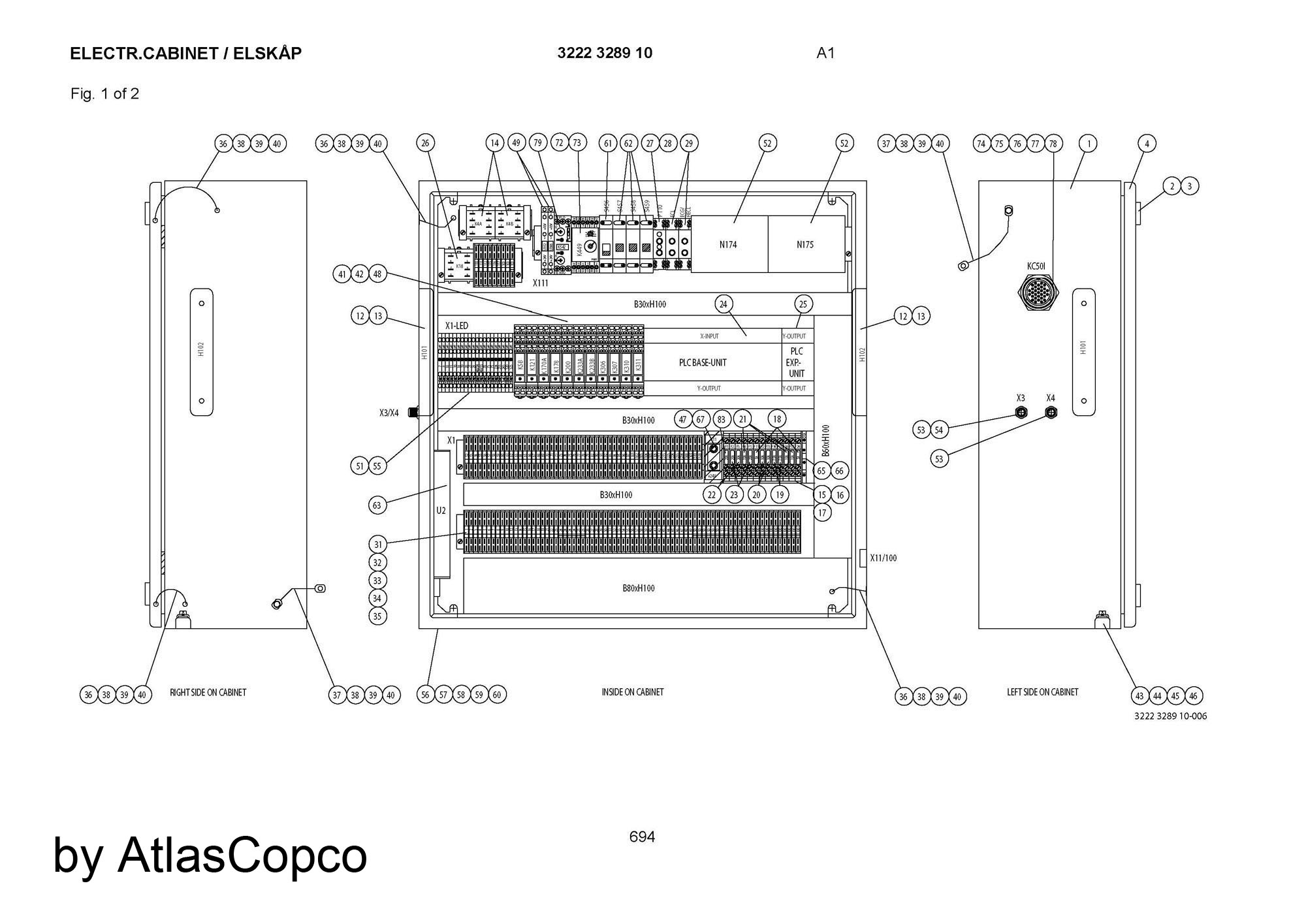

ROC F9 ELECTR.CABINET #9421
ROC F9 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
3222328910
ELECTR.CABINET
1
3222301884
CABINET
2
3222301885
LOCK
3
3222301886
WRENCH
4
3222301887
DOOR
5
3222305829
DRAWING POCKET
6
0698514008
CABLE GLAND
7
0698514010
CABLE GLAND
8
0698514012
CABLE GLAND
9
0697980500
LOCK NUT
10
0697980600
LOCK NUT
11
0697980700
LOCK NUT
12
3222041100
BULB
13
3217982301
INNER LIGHT
14
3222300848
RELAY
15
5112304310
FUSE CON. TERM.
16
5112304312
MARKING PLATE
17
5112304313
BRIDGE CONN.
18
5112304314
FUSE
19
5112304349
FUSE
22
5112304317
FUSE
23
5112304318
FUSE
24
3222315712
PLC
25
3222305838
PLC
27
3222176800
TEST UNIT
28
3222176801
CABLE
29
3222301799
PULSE GENER.
30
3222316485
CONTROL MODULE
32
9111376702
END SUPPORT
34
9111376704
BRIDGE CONN.
41
3176000310
RELAY SOCKET
42
3222327702
RELAY
43
3222305163
PE-GUIDE RAIL
44
3176436404
CLAMP
45
3176436405
SCREW
46
3176436406
BUSBAR SUPPORT
47
9111376744
PLINTH
48
3176000311
TURN-OFF DIODE
49
3222323672
REGULATOR
51
3176000750
END PLATE
52
3222314997
AMPL. MODULE
53
3222325803
CONTACT
54
9106132438
TERMINATION
55
3176000751
TERMINAL BLOCK
56
3222312281
CONTACT HOOD
57
3222312775
GASKET
58
0162410600
SCREW. SLOTTED
61
3222313660
SWITCH
62
3222313661
PUSH BUTTON
63
3222314120
VOLTAGE CONVERT
64
3222329783
PLATE
65
3222312342
DIODE PLINTH
66
3176436401
END PLATE
67
3222309153
TOUCH GUARD
68
3222144812
RELAY
69
3217977611
RELAY SOCKET
70
0697974519
REDUCER
71
1088052426
END PLUG
72
3176000107
RELAY SOCKET
73
3176000106
TIMING RELAY
74
3222314501
CONTACT HOUSING
75
3222307735
CONTACT SLEEVE
76
3222307736
SEALING PLUG
77
3222314546
LOCK NUT
78
3222314519
GASKET
79
3222326729
TIMING RELAY
80
3222330595
CONTROL MODULE
81
3222327602
PLATE
82
3222328996
CABLE
83
5112316000
MIN CIRC BREAK
84
3222326746
SPARE PARTS SET
ROC F9 ELECTR.CABINET #9743
ROC F9 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
3222328910
ELECTR.CABINET
1
3222301884
CABINET
2
3222301885
LOCK
3
3222301886
WRENCH
4
3222301887
DOOR
5
3222305829
DRAWING POCKET
6
0698514008
CABLE GLAND
7
0698514010
CABLE GLAND
8
0698514012
CABLE GLAND
9
0697980500
LOCK NUT
10
0697980600
LOCK NUT
11
0697980700
LOCK NUT
12
3222041100
BULB
13
3217982301
INNER LIGHT
14
3222300848
RELAY
15
5112304310
FUSE CON. TERM.
16
5112304312
MARKING PLATE
17
5112304313
BRIDGE CONN.
18
5112304314
FUSE
19
5112304349
FUSE
22
5112304317
FUSE
23
5112304318
FUSE
24
3222315712
PLC
25
3222305838
PLC
27
3222176800
TEST UNIT
28
3222176801
CABLE
29
3222301799
PULSE GENER.
30
3222316485
CONTROL MODULE
31
9111376701
TERMINAL BLOCK
32
9111376702
END SUPPORT
34
9111376704
BRIDGE CONN.
35
9111376705
SCREW
41
3176000310
RELAY SOCKET
42
3222327702
RELAY
43
3222305163
PE-GUIDE RAIL
44
3176436404
CLAMP
45
3176436405
SCREW
46
3176436406
BUSBAR SUPPORT
47
9111376744
PLINTH
48
3176000311
TURN-OFF DIODE
49
3222323672
REGULATOR
51
3176000750
END PLATE
52
3222314997
AMPL. MODULE
53
3222325803
CONTACT
54
9106132438
TERMINATION
55
3176000751
TERMINAL BLOCK
56
3222312281
CONTACT HOOD
57
3222312775
GASKET
58
0162410600
SCREW. SLOTTED
61
3222313660
SWITCH
62
3222313661
PUSH BUTTON
63
3222314120
VOLTAGE CONVERT
64
3222329783
PLATE
65
3222312342
DIODE PLINTH
66
3176436401
END PLATE
67
3222309153
TOUCH GUARD
68
3222144812
RELAY
69
3217977611
RELAY SOCKET
70
0697974519
REDUCER
71
1088052426
END PLUG
72
3176000107
RELAY SOCKET
73
3176000106
TIMING RELAY
74
3222314501
CONTACT HOUSING
75
3222307735
CONTACT SLEEVE
76
3222307736
SEALING PLUG
77
3222314546
LOCK NUT
78
3222314519
GASKET
79
3222326729
TIMING RELAY
80
3222330595
CONTROL MODULE
81
3222327602
PLATE
82
3222328996
CABLE
83
5112316000
MIN CIRC BREAK
84
3222326746
SPARE PARTS SET
