ROC F9 Pages
1. EPIROC - ROC F9 TRACK FRAME #9612
2. EPIROC - ROC F9 TRACK FRAME #9869
3. EPIROC - ROC F9 TRACK FRAME #10191
4. EPIROC - ROC F9 TRACK FRAME #11055
5. EPIROC - ROC F9 TRACK FRAME #20582
6. EPIROC - ROC F9 TRACK FRAME #20599

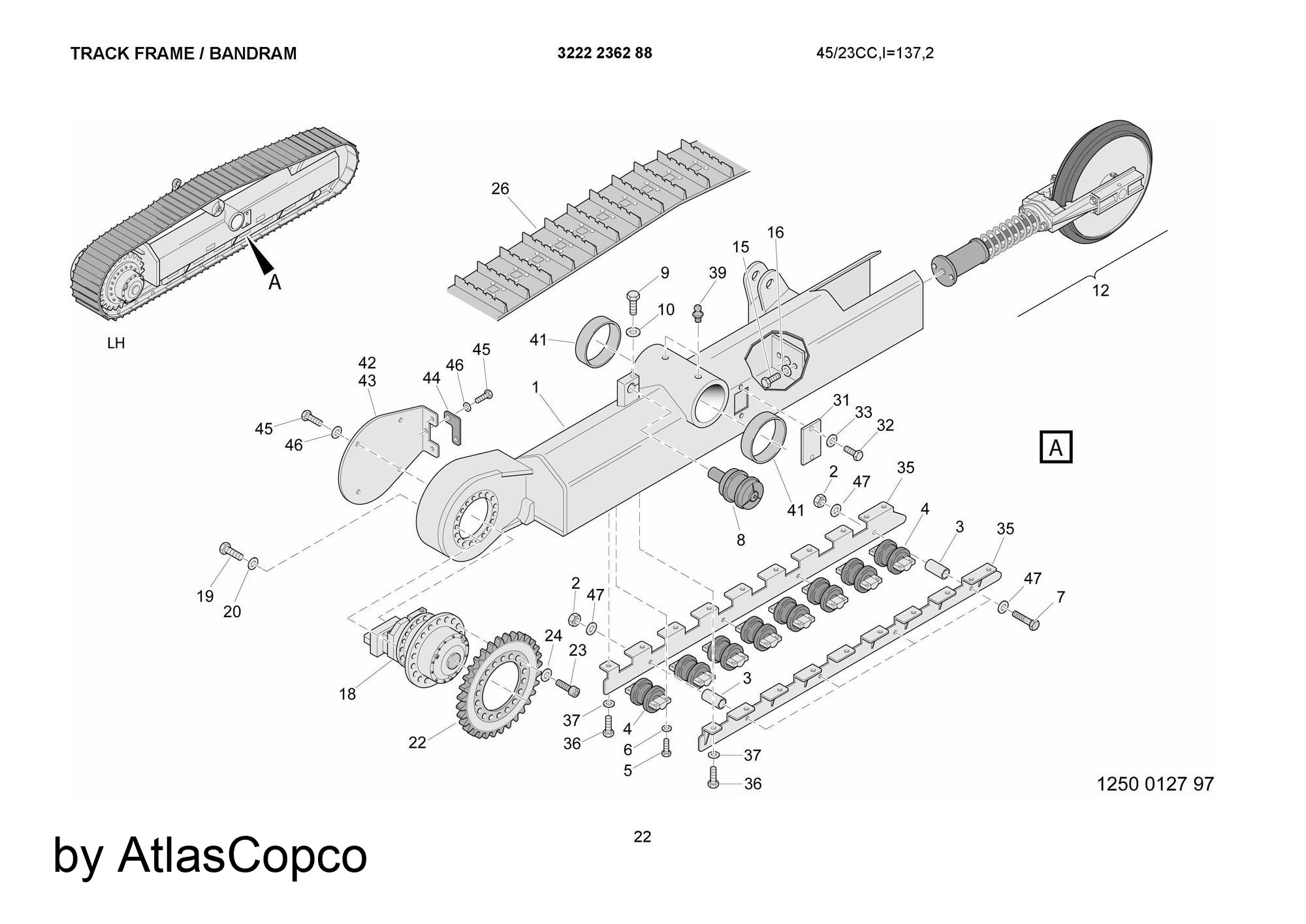

ROC F9 TRACK FRAME #9612
ROC F9 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222236288
TRACK FRAME
1
3222011404
TRACK FRAME
3
0070902860
PIPE
4
3216719980
TRACK ROLLER
5
0147196170
SCREW. HEX HEAD
7
0147150103
SCREW. HEX HEAD
8
3222237980
LIMBEROLLER
12
3216720181
FRONT WHEEL
16
0333213600
SPRING WASHER
18
3222314238
DRIVE UNIT
19
0147148007
SCREW. HEX HEAD
22
3222226001
DRIVE WHEEL
23
0211148000
SCREW
26
3222237880
TRACK CHAIN
31
3222271300
COVER
35
3222271200
CHAIN GUARD
39
3216730600
GREASE NIPPLE
41
3216746600
FLANGE BEARING
42
3222272300
COVER
44
3222272400
PLATE
ROC F9 TRACK FRAME #9869
ROC F9 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222236289
TRACK FRAME
1
3222011405
TRACK FRAME
3
0070902860
PIPE
4
3216719980
TRACK ROLLER
5
0147196170
SCREW. HEX HEAD
7
0147150103
SCREW. HEX HEAD
8
3222237980
LIMBEROLLER
12
3216720181
FRONT WHEEL
16
0333213600
SPRING WASHER
18
3222314238
DRIVE UNIT
19
0147148007
SCREW. HEX HEAD
22
3222226001
DRIVE WHEEL
23
0211148000
SCREW
26
3222237880
TRACK CHAIN
31
3222271300
COVER
35
3222271200
CHAIN GUARD
39
3216730600
GREASE NIPPLE
41
3216746600
FLANGE BEARING
42
3222272200
COVER
44
3222272400
PLATE

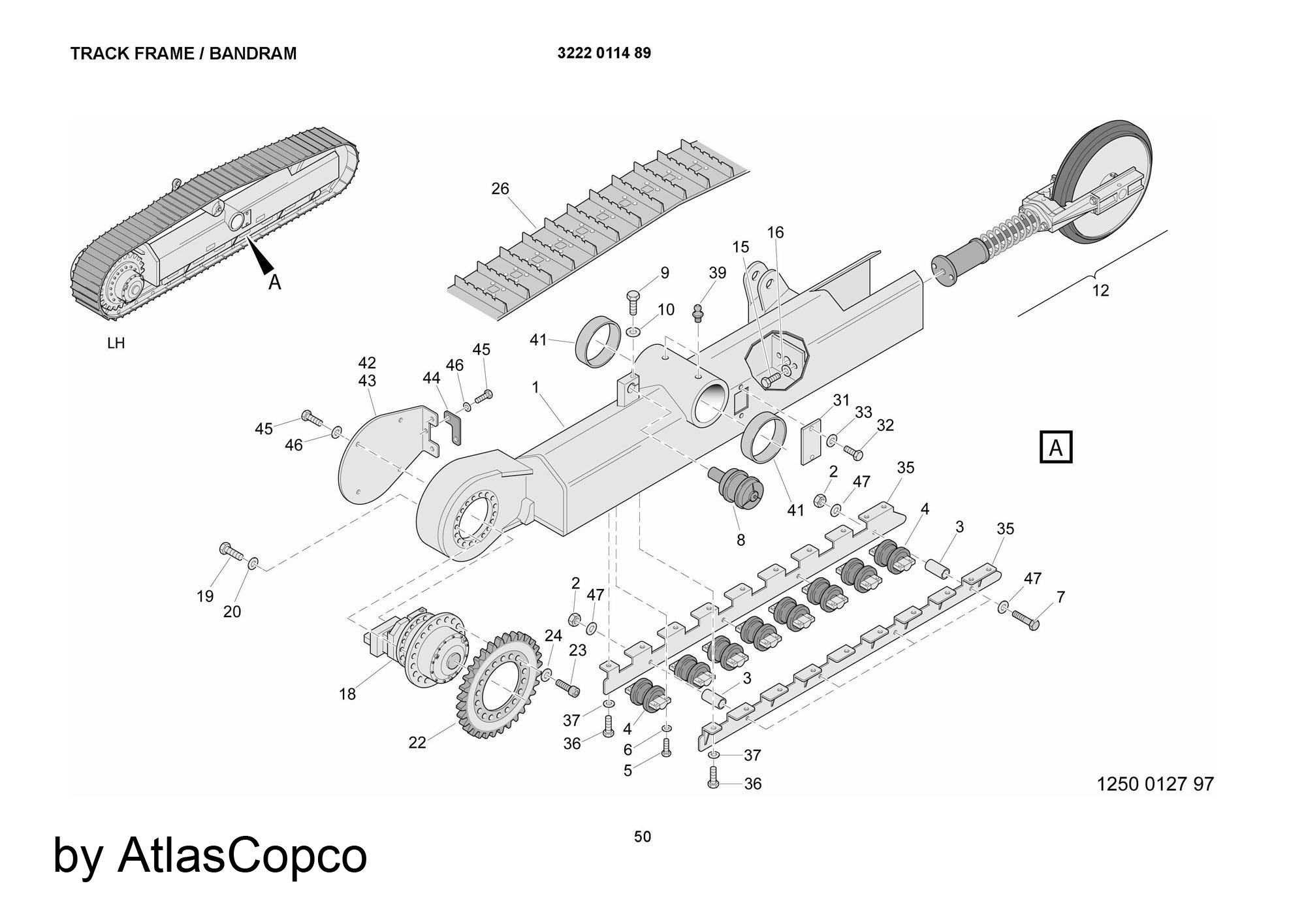

ROC F9 TRACK FRAME #10191
ROC F9 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222011489
TRACK FRAME
1
3222011405
TRACK FRAME
3
0070902860
PIPE
4
3216719980
TRACK ROLLER
5
0147196170
SCREW. HEX HEAD
7
0147150103
SCREW. HEX HEAD
8
3222237980
LIMBEROLLER
12
3216720181
FRONT WHEEL
16
0333213600
SPRING WASHER
18
3222314238
DRIVE UNIT
19
0147148007
SCREW. HEX HEAD
22
3222226001
DRIVE WHEEL
23
0211148000
SCREW
26
3216719780
TRACK CHAIN
31
3222271300
COVER
35
3222271200
CHAIN GUARD
39
3216730600
GREASE NIPPLE
41
3216746600
FLANGE BEARING
42
3222272200
COVER
44
3222272400
PLATE
ROC F9 TRACK FRAME #11055
ROC F9 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222011488
TRACK FRAME
1
3222011404
TRACK FRAME
3
0070902860
PIPE
4
3216719980
TRACK ROLLER
5
0147196170
SCREW. HEX HEAD
7
0147150103
SCREW. HEX HEAD
8
3222237980
LIMBEROLLER
12
3216720181
FRONT WHEEL
16
0333213600
SPRING WASHER
18
3222314238
DRIVE UNIT
19
0147148007
SCREW. HEX HEAD
22
3222226001
DRIVE WHEEL
23
0211148000
SCREW
26
3216719780
TRACK CHAIN
31
3222271300
COVER
35
3222271200
CHAIN GUARD
39
3216730600
GREASE NIPPLE
41
3216746600
FLANGE BEARING
42
3222272300
COVER
44
3222272400
PLATE
ROC F9 TRACK FRAME #20582
ROC F9 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222236266
TRACK FRAME
1
3222236288
TRACK FRAME
2
3222236289
TRACK FRAME

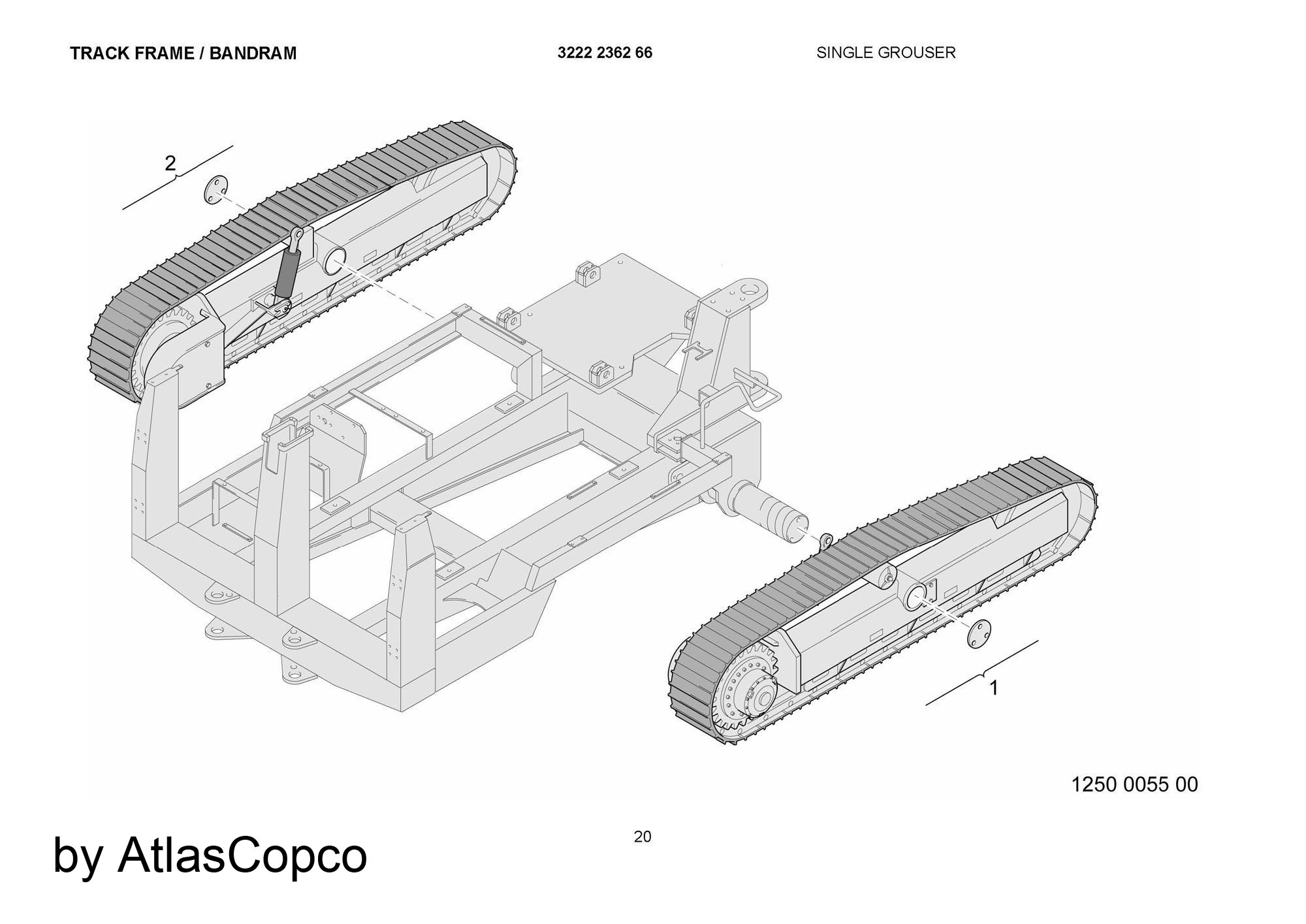

ROC F9 TRACK FRAME #20599
ROC F9 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222236267
TRACK FRAME
1
3222011488
TRACK FRAME
2
3222011489
TRACK FRAME
