ROC L6 ELECTR.CABINET #13432
ROC L6 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
3222329915
ELECTR.CABINET
1
3222301884
CABINET
2
3222331647
LOCK
4
3222301887
DOOR
5
3222305829
DRAWING POCKET
6
3222331429
PLATE
8
3222326746
SPARE PARTS SET
13
0160602200
SCREW. SLOTTED
14
5541085300
PLAIN WASHER
19
3222329937
CABLE SET
23
3217001034
PALM GRIP
24
3222325281
CONTACT BLOCK
25
5112290900
COVER
26
3222324010
SIGN
28
3222304878
GROUND BRAID
32
0147124303
SCREW. HEX HEAD
33
3222323060
CIRCUIT BOARD
39
0697981019
END PLUG
40
0697980914
LOCK NUT
41
3222323535
PLATE
42
0147135903
SCREW. HEX HEAD
45
3222325793
PLUG
50
3222176801
CABLE
51
0160602600
SCREW. SLOTTED
55
3035330641
DIODE
61
3222325671
PLINTH
62
3222325673
BRIDGE CONN.
65
3176404951
END SUPPORT
66
3176404915
TERMINAL BLOCK
67
3176404916
END PLATE
75
3176000270
FUSE CON. TERM.
76
3176000271
END PLATE
77
3176000444
BRIDGE CONN.
79
3176000311
TURN-OFF DIODE
80
3176000309
RELAY
81
3176000310
RELAY SOCKET
85
3176404900
TERMINAL BLOCK
86
3176404901
END PLATE
K5
3176000038
RELAY
H0102
3217982301
INNER LIGHT
F33
5112319873
FUSE
F11
5112304316
FUSE
F100
3176449211
MIN CIRC BREAK
K11
3176000272
CONTACTOR
F2
5112316000
MIN CIRC BREAK
P110
3222176800
TEST UNIT
W30C
3222331819
CABLE COMPLETE
F15
5112304349
FUSE
CPU3
3176000155
PLC
F10
5112304318
FUSE
F13
5112304315
FUSE
F02
5112304314
FUSE
87
3176404902
BRIDGE CONN.
CPU12
3176000150
PLC
89
3222041100
BULB
92
0698514063
CABLE GLAND
93
0697980916
LOCK NUT
94
0698514061
CABLE GLAND
96
0698514059
CABLE GLAND
97
0697980912
LOCK NUT
103
0160099617
SCREW. SLOTTED
105
0661101300
SEAL WASHER
106
0277130700
CAP NUT
107
0301231800
PLAIN WASHER
220
3176000170
MOUNTING RAIL
231
0291112814
LOCK NUT
232
3222304877
GROUND BRAID
234
3315019504
LOCK WASHER
240
3176001291
TERMINAL BLOCK
241
3176001292
END PLATE
242
3222332184
CABLE COMPLETE
43479
9106159669
FUSE

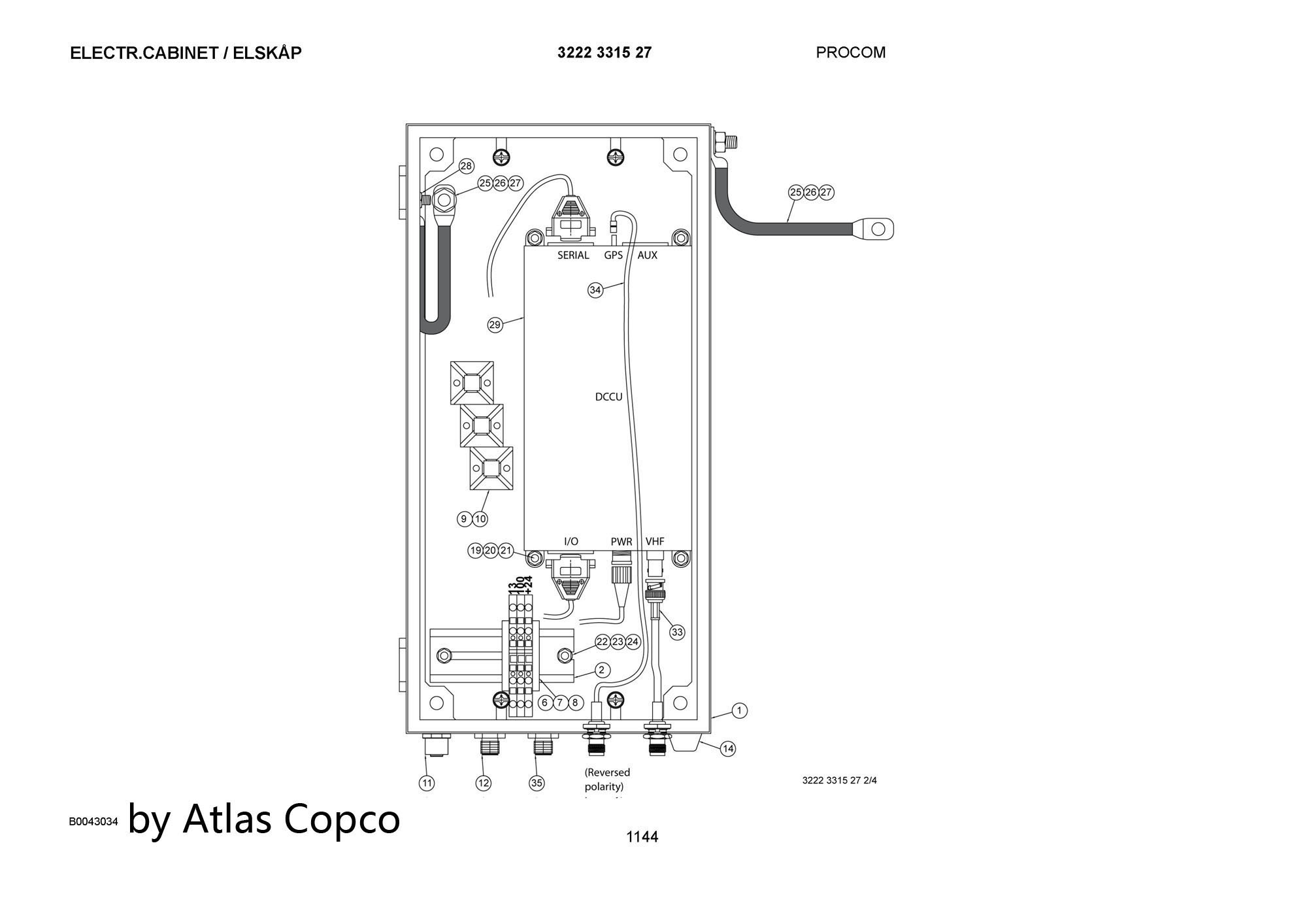

ROC L6 ELECTR.CABINET #18543
ROC L6 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
3222331527
ELECTR.CABINET
14
3222325793
PLUG
25
3222304877
GROUND BRAID
27
0266211000
NUT
28
0266210800
NUT
29
3222332066
ELECTRONIC UNIT
33
3222331610
CABLE COMPLETE
34
3222331609
CABLE COMPLETE
ROC L6 ELECTR.CABINET #18923
ROC L6 ELECTR.CABINET
ads
Ref
Parts Num
Name
0
3222331527
ELECTR.CABINET
2
3176436308
MOUNTING RAIL
6
3176404900
TERMINAL BLOCK
7
3176404951
END SUPPORT
8
3176404901
END PLATE
9
1088130502
CABLETIE ANCHOR
10
3176547504
CABLE TIES
11
3176001569
CONNECTOR
12
3176001568
CONNECTOR
14
3222325793
PLUG
19
0211121200
SCREW
20
0266210700
NUT
21
0333321500
LOCK WASHER
22
0147120403
SCREW. HEX HEAD
24
0301231800
PLAIN WASHER
25
3222304877
GROUND BRAID
27
0266211000
NUT
28
0266210800
NUT
29
9106181987
ELECTRONIC UNIT
33
3222331610
CABLE COMPLETE
34
3222331609
CABLE COMPLETE
39
9106179711
GREASE
ROC L6 ELECTR.CABINET #20867
ROC L6 ELECTR.CABINET
ads
Ref
Parts Num
Name
A1
3222329915
ELECTR.CABINET
