ROC L6 Pages
1. EPIROC - ROC L6 HYDRAULIC PUMP #11605
2. EPIROC - ROC L6 HYDRAULIC PUMP #11865
3. EPIROC - ROC L6 HYDRAULIC PUMP #11893
4. EPIROC - ROC L6 HYDRAULIC PUMP #12082
5. EPIROC - ROC L6 HYDRAULIC PUMP #13386
6. EPIROC - ROC L6 HYDRAULIC PUMP #13449
7. EPIROC - ROC L6 HYDRAULIC PUMP #13544

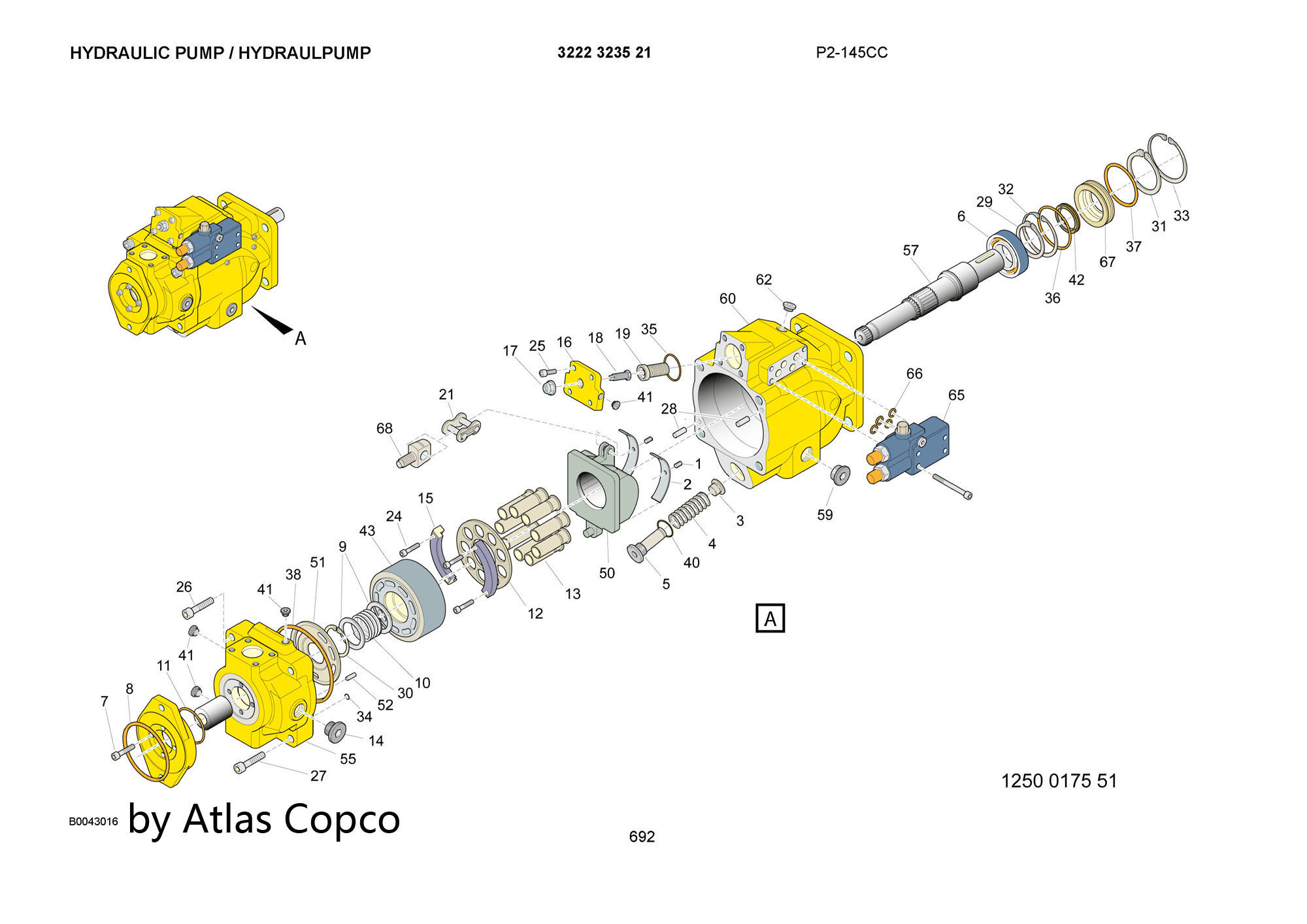

ROC L6 HYDRAULIC PUMP #11605
ROC L6 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323521
HYDRAULIC PUMP
1
3222331478
GUIDE PIN
2
3222331479
SUPPORT BEARING
3
3222331483
SPRING GUIDE
4
3222331484
SPRING
5
3222331485
PLUG
9
3222331486
WASHER
10
3222331487
SPRING
12
3222331488
PRESS. PLATE
13
3222331489
PISTON SET
15
3222331490
HOLDER
19
3222331491
PISTON
21
3222331492
CHAIN LINK
24
3222331493
SCREW
25
3222331494
SCREW
26
3222331495
SCREW
27
3222331496
SCREW
28
3222331497
GUIDE PIN
30
3222331498
LOCK RING
32
3222331499
LOCK RING
33
3222331502
LOCK RING
34
3222331503
O-RING
35
3222331504
O-RING
38
3222331505
O-RING
40
3222331506
O-RING
43
3222331507
CYLINDER
50
3222331508
CRADLE
51
3222331509
DISTRIBUT. PLATE
52
3222331510
GUIDE PIN
55
3222331511
COVER
59
3222331512
PLUG
60
3222331513
PUMP HOUSING
61
3222331514
ADJUSTING SCREW
62
3222331515
PLUG
66
3222331516
O-RING
67
3222331517
SEALING
68
3222331518
MOUNT
72
3222331528
KIT
73
3222331529
SEAL KIT
74
3222331530
KIT

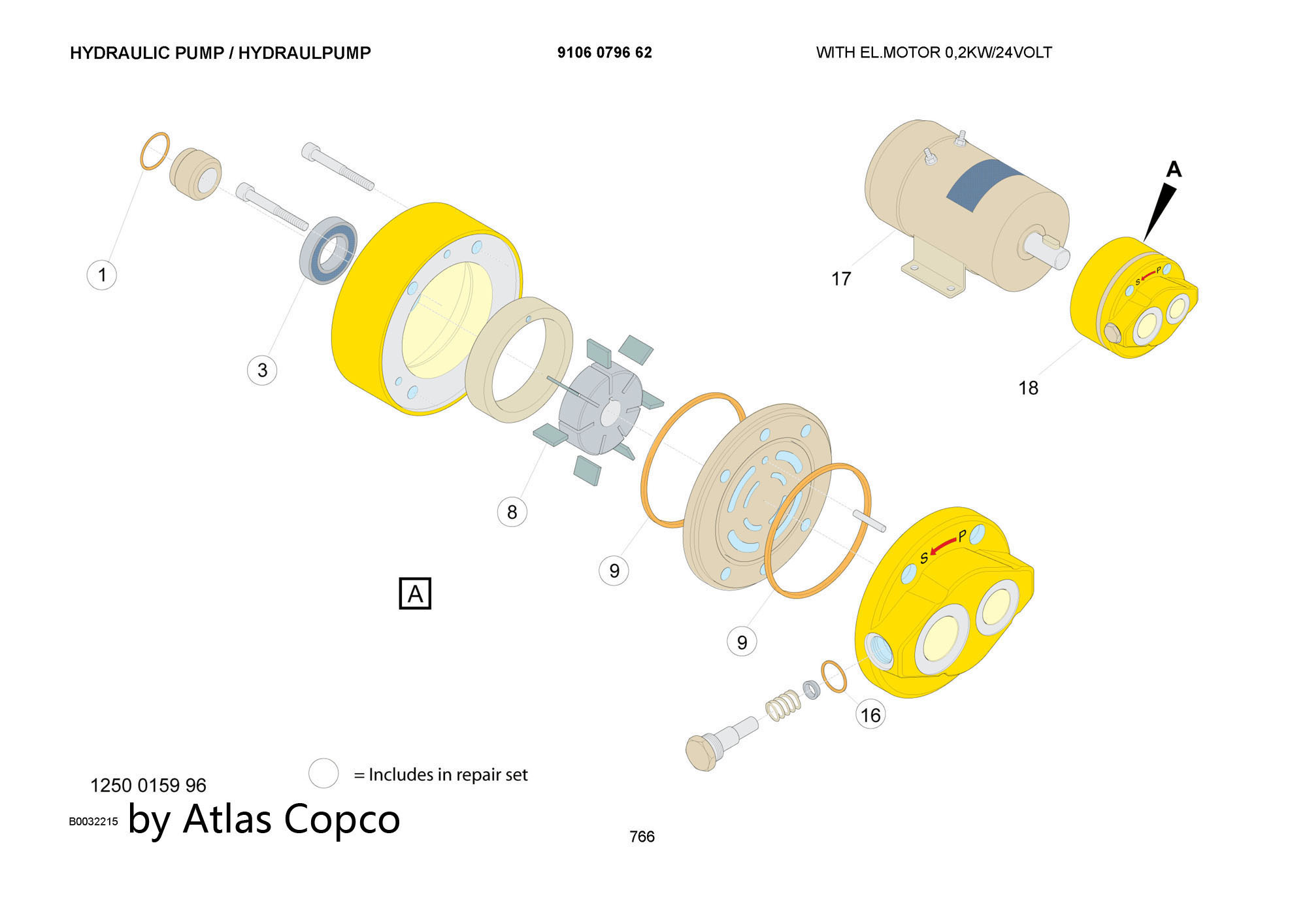

ROC L6 HYDRAULIC PUMP #11865
ROC L6 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
9106079662
HYDRAULIC PUMP
2
3222325141
CHECK VALVE

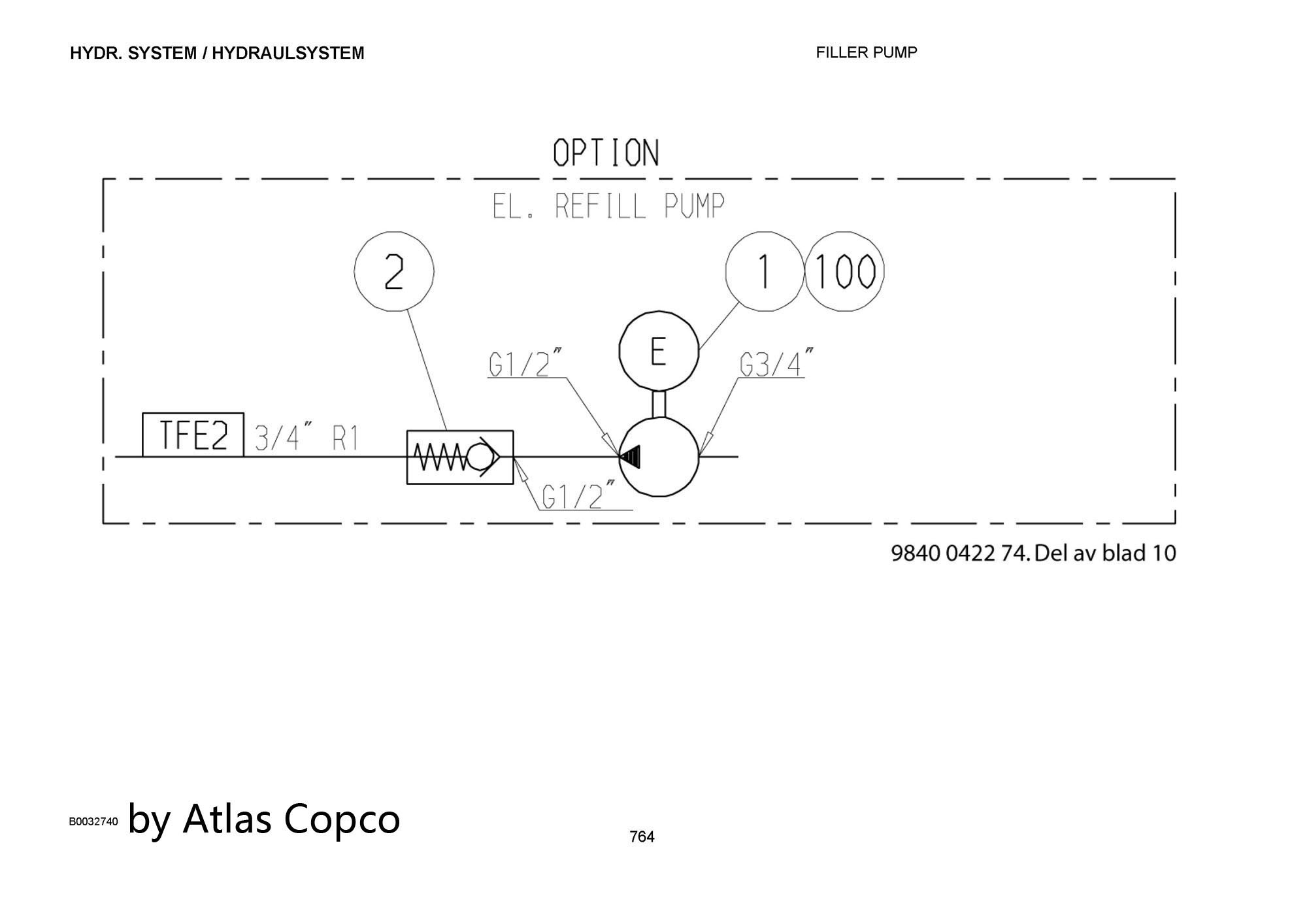

ROC L6 HYDRAULIC PUMP #11893
ROC L6 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
9106079662
HYDRAULIC PUMP
0
9106108007
REPAIR SET
17
9106108005
MOTOR
18
9106108006
PUMP

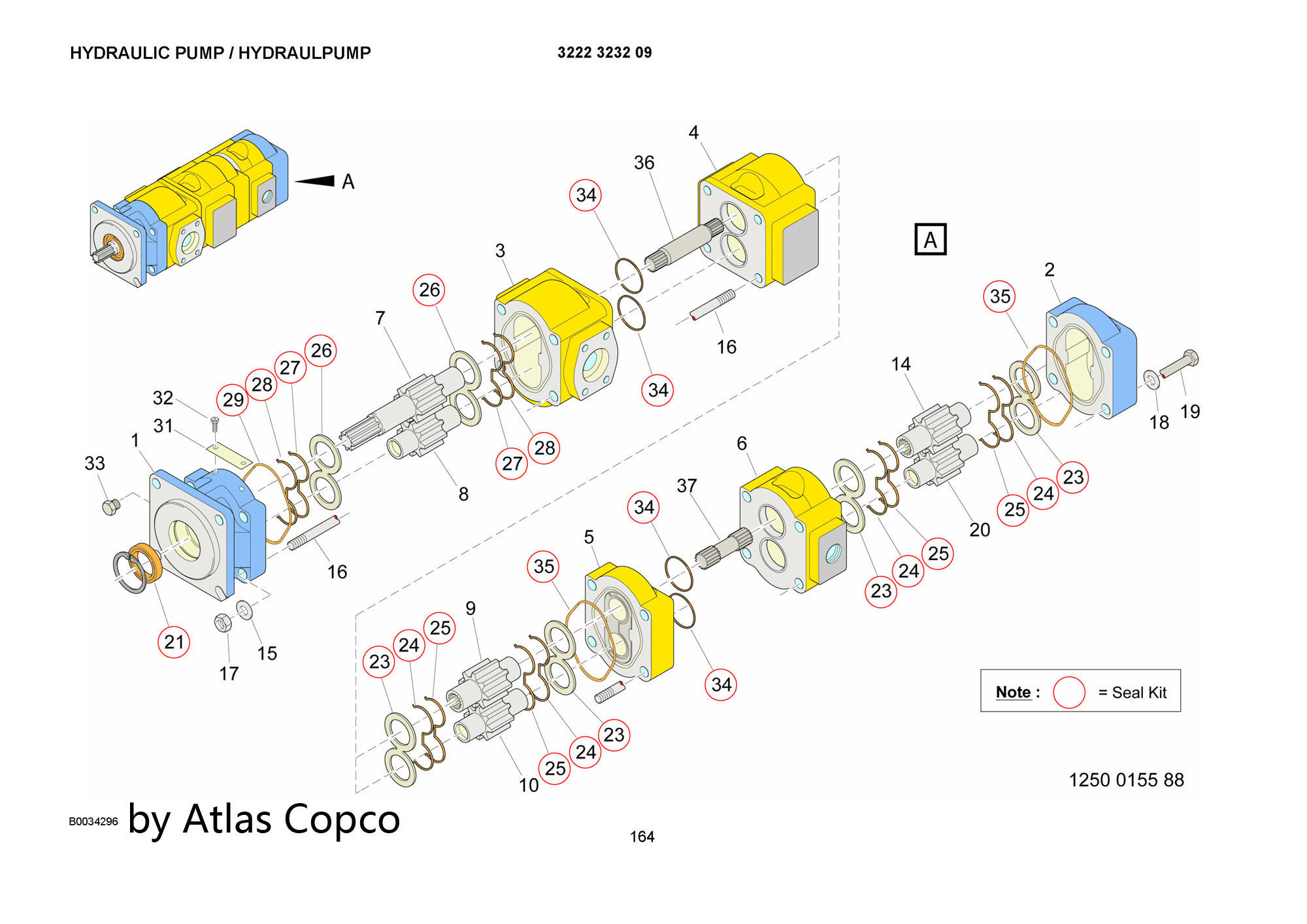

ROC L6 HYDRAULIC PUMP #12082
ROC L6 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323209
HYDRAULIC PUMP
0
3222328485
SEAL KIT
ROC L6 HYDRAULIC PUMP #13386
ROC L6 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323521
HYDRAULIC PUMP
1
3222331478
GUIDE PIN
2
3222331479
SUPPORT BEARING
3
3222331483
SPRING GUIDE
4
3222331484
SPRING
5
3222331485
PLUG
9
3222331486
WASHER
10
3222331487
SPRING
12
3222331488
PRESS. PLATE
13
3222331489
PISTON SET
15
3222331490
HOLDER
19
3222331491
PISTON
21
3222331492
CHAIN LINK
24
3222331493
SCREW
25
3222331494
SCREW
26
3222331495
SCREW
27
3222331496
SCREW
28
3222331497
GUIDE PIN
30
3222331498
LOCK RING
32
3222331499
LOCK RING
33
3222331502
LOCK RING
34
3222331503
O-RING
35
3222331504
O-RING
38
3222331505
O-RING
40
3222331506
O-RING
43
3222331507
CYLINDER
50
3222331508
CRADLE
51
3222331509
DISTRIBUT. PLATE
52
3222331510
GUIDE PIN
55
3222331511
COVER
59
3222331512
PLUG
60
3222331513
PUMP HOUSING
61
3222331514
ADJUSTING SCREW
62
3222331515
PLUG
66
3222331516
O-RING
67
3222331517
SEALING
68
3222331518
MOUNT
72
3222331528
KIT
73
3222331529
SEAL KIT
74
3222331530
KIT
ROC L6 HYDRAULIC PUMP #13449
ROC L6 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
3222323521
HYDRAULIC PUMP
2
3222323209
HYDRAULIC PUMP
3
3222320974
GEAR PUMP
3
3222323210
GEAR PUMP
4
3222323928
FLANGE CONNECT.
5
3176602300
PRESSURE GAUGE
ROC L6 HYDRAULIC PUMP #13544
ROC L6 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323209
HYDRAULIC PUMP
0
3222328485
SEAL KIT
