ROC L8 EPIROC New catalogs

ROC L8 Pages

1. EPIROC - ROC L8 ARM #9451

2. EPIROC - ROC L8 ARM #9545

3. EPIROC - ROC L8 ARM #9557

4. EPIROC - ROC L8 ARM #10257

5. EPIROC - ROC L8 ARM #10341

6. EPIROC - ROC L8 ARM #17749

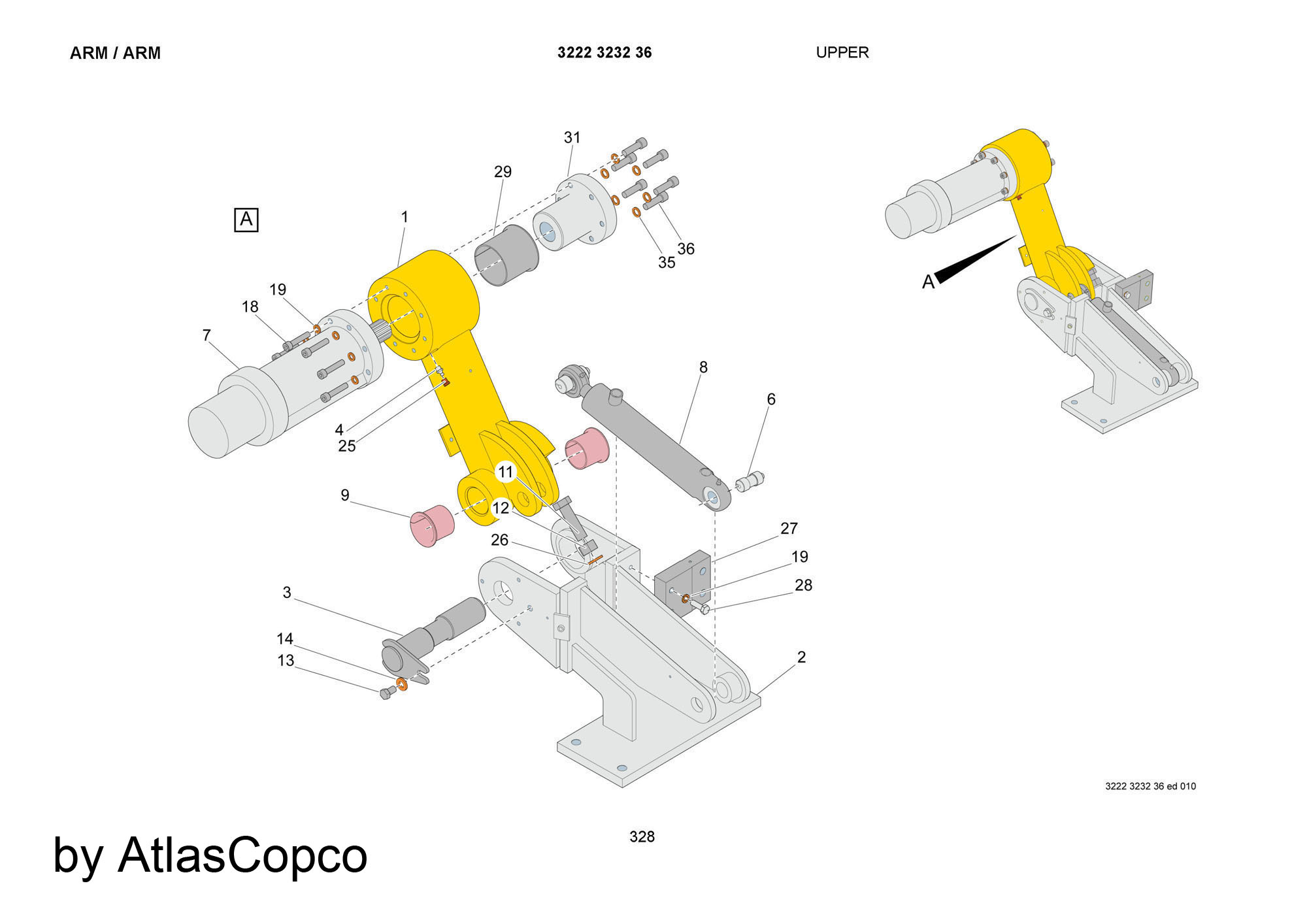

ROC L8 ARM #9451

ROC L8 ARM

ads

Ref

Parts Num

Name

0

ARM

1

ARM

2

ATTACHMENT

3

SHAFT

5

SCREW. HEX HEAD

6

EXPANDING SHAFT

7

TURNING CYLIND.

8

HYDR. CYLINDER

9

FLANGE BUSHING

11

HEX. HEAD SCREW

12

NUT

18

SCREW

27

PLATE

29

FLANGE BEARING

31

CARRIER

36

SCREW

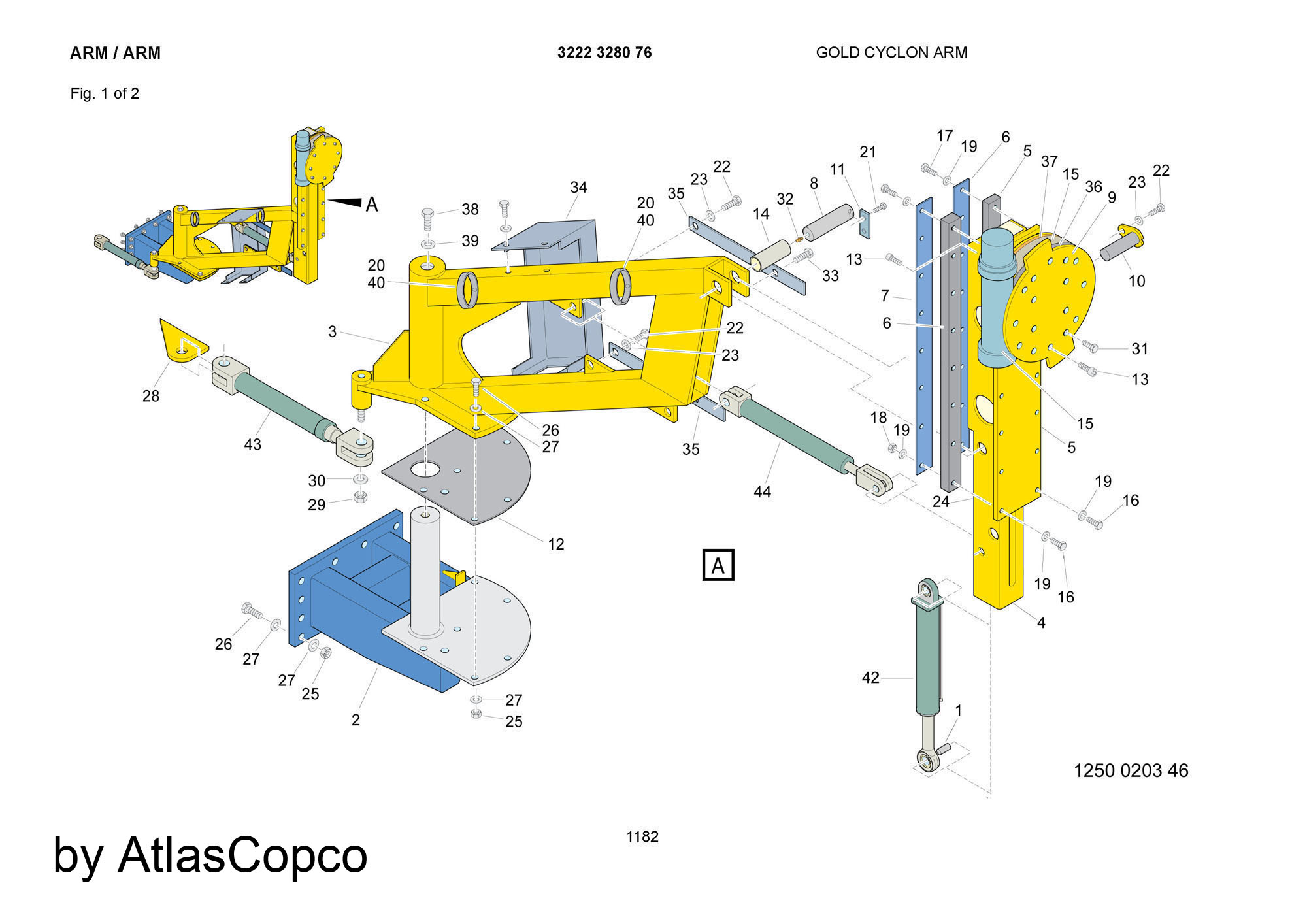

ROC L8 ARM #9545

ROC L8 ARM

ads

Ref

Parts Num

Name

0

ARM

1

SHAFT

2

SUPPORT

3

ARM

4

BEAM

5

SLIDING PIECE

6

SLIDING BLOCK

7

SUPPORT PLATE

8

SHAFT

9

CONNECT. PLATE

10

SHAFT

11

LOCK SHEET

12

SLITPLATTA

13

SCREW

14

BUSH

15

TURNING DEVICE

24

CLAMP

28

ASSEMBLY PLATE

33

HEX SOCK. SCREW

34

VALVE COVER

35

BAR

36

SPACER RING

37

DISTANCE PLATE

38

SCREW. HEX HEAD

39

PLAIN WASHER

40

HOSE HOLDER

42

CYLINDER

43

CYLINDER

44

CYLINDER

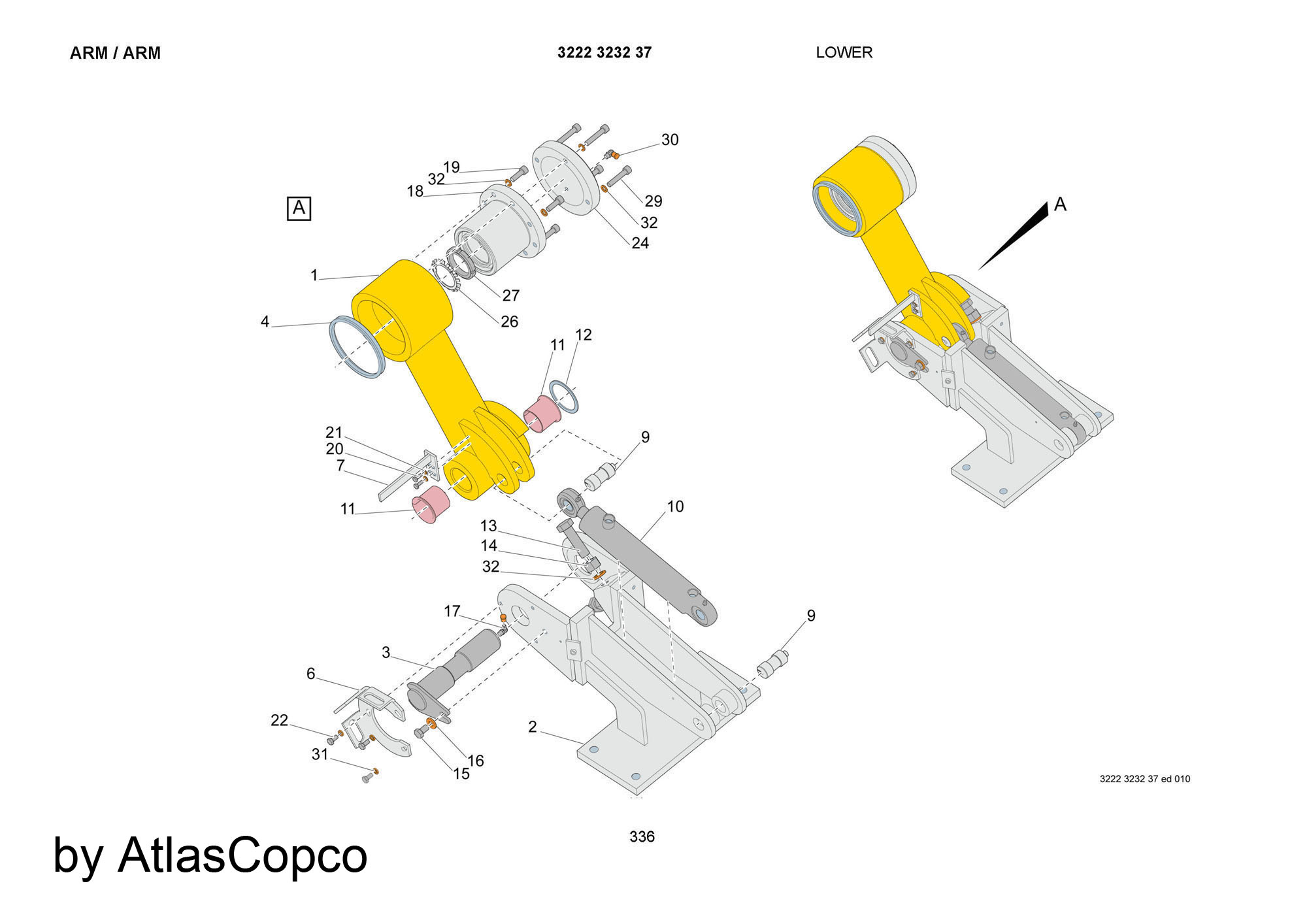

ROC L8 ARM #9557

ROC L8 ARM

ads

Ref

Parts Num

Name

0

ARM

1

ARM

2

ATTACHMENT

3

SHAFT

4

AXIAL SEAL

5

SEAL WASHER

6

SENSOR PLATE

7

SENSOR CAM

8

SCREW. HEX HEAD

9

EXPANDING SHAFT

10

HYDR. CYLINDER

11

FLANGE BUSHING

12

SLIDE WASHER

13

HEX. HEAD SCREW

14

NUT

18

CARRIER UNIT

19

SCREW

24

BEARING COVER

25

SCREW. HEX HEAD

26

LOCK WASHER

27

LOCK NUT

29

SCREW

31

LOCK WASHER

33

LOCK WASHER

ROC L8 ARM #10257

ROC L8 ARM

ads

Ref

Parts Num

Name

0

ARM

1

SHAFT

2

SUPPORT

3

ARM

4

BEAM

5

SLIDING PIECE

6

SLIDING BLOCK

7

SUPPORT PLATE

8

SHAFT

9

CONNECT. PLATE

10

SHAFT

11

LOCK SHEET

12

SLITPLATTA

13

SCREW

14

BUSH

15

TURNING DEVICE

24

CLAMP

28

ASSEMBLY PLATE

30

PLAIN WASHER

33

HEX SOCK. SCREW

34

VALVE COVER

35

BAR

36

SPACER RING

37

DISTANCE PLATE

38

SCREW. HEX HEAD

39

PLAIN WASHER

40

HOSE HOLDER

42

CYLINDER

43

CYLINDER

44

CYLINDER

ROC L8 ARM #10341

ROC L8 ARM

ads

Ref

Parts Num

Name

0

ARM

1

ARM

2

PIN

3

PIN

4

PIN

5

BRACKET

7

BEARING HOUSING

8

HYDR. CYLINDER

9

SCREW

14

SCREW. HEX HEAD

15

SCREW. HEX HEAD

16

NUT

17

HOLDER

19

SCREW

21

RIVET WASHER

22

SENSOR BRACKET

23

FLANGE BEARING

27

BELLOW

28

HOSE CLIP

ROC L8 ARM #17749

ROC L8 ARM

ads

Ref

Parts Num

Name

0

ARM

1

ARM

2

PIN

3

PIN

4

PIN

5

BRACKET

6

CARRIER

7

TURNING CYLIND.

8

HYDR. CYLINDER

9

SCREW

10

WASHER

11

SCREW

12

WASHER

14

SCREW

19

HOLDER

20

SCREW. HEX HEAD

21

SCREW. HEX HEAD

22

NUT

23

CLAMP

24

FLANGE BEARING

25

SCREW. HEX HEAD
