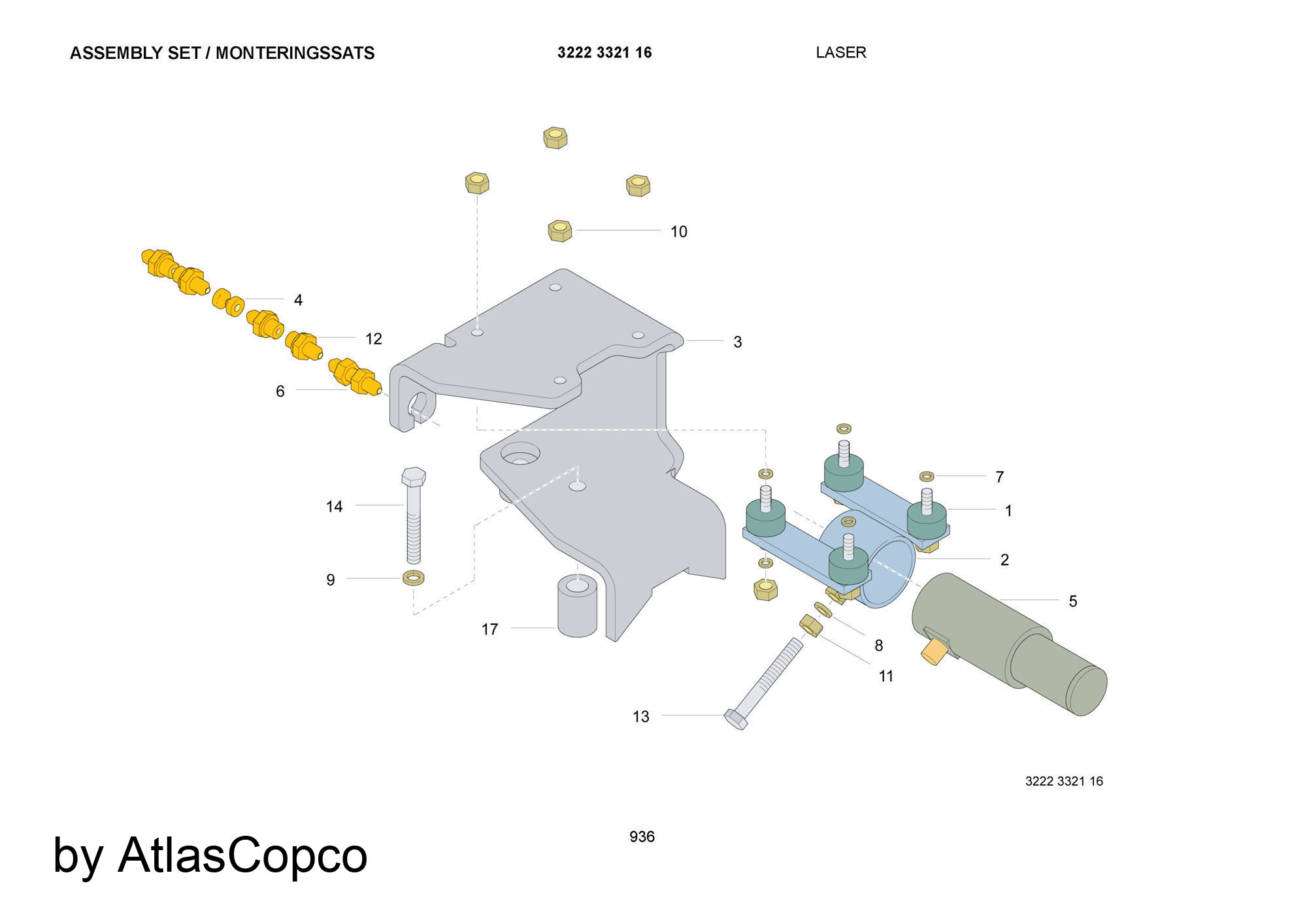

ROC L8 ASSEMBLY SET #9364
ROC L8 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
3222332116
ASSEMBLY SET
1
3216695900
DAMPER
2
3222312900
ATTACHMENT
3
3222327272
HOLDER
4
3222318781
CONE
5
3176001521
LASER RECEIVER
15
3222319292
HOSE SET
16
3222318708
NIPPLE
17
3222331960
SPACER
ROC L8 ASSEMBLY SET #9474
ROC L8 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
2251440861
ASSEMBLY SET
20
2252547700
WASHER
25
2252547800
BUSHING
30
1619517700
SEAL RING
35
2252547900
RETAINER
40
0663715400
O-RING
50
2254760400
RING
55
1615844700
NOZZLE
60
0663311700
ORING
70
2252549200
DRAIN PIPE
80
2252548700
COVER
85
1202701100
GASKET
95
2252845000
CONNECTION
105
2252844900
HOUSE
120
2252981400
CONNECTING PIPE
140
2252893409
NOZZLE
155
2252550288
INLET VALVE
175
2252845501
VALVE HOUSING
177
0653106200
GASKET
178
0686371601
PLUG
180
0686371602
PLUG
190
2253967100
VALVE
195
1615968700
SPRING
196
2254807500
COMPRESS.SPRING
197
0686371630
PLUG
198
0653110000
GASKET
200
1616609300
VALVE SEAT
205
0663210615
O-RING
207
0663210709
O-RING
208
0663210637
O-RING
210
0211124400
SCREW
215
0147138103
SCREW. HEX HEAD
220
2255280980
OIL STOP VALVE
235
0147137503
SCREW. HEX HEAD
265
0686613000
PLUG
275
0653104600
GASKET
ROC L8 ASSEMBLY SET #9503
ROC L8 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
3222332116
ASSEMBLY SET
1
3216695900
DAMPER
2
3222312900
ATTACHMENT
3
3222327272
HOLDER
4
3222318781
CONE
5
3176001521
LASER RECEIVER
15
3222319292
HOSE SET
16
3222318708
NIPPLE
17
3222331960
SPACER
ROC L8 ASSEMBLY SET #10472
ROC L8 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
2251440861
ASSEMBLY SET
20
2252547700
WASHER
25
2252547800
BUSHING
30
1619517700
SEAL RING
35
2252547900
RETAINER
40
0663715400
O-RING
50
2254760400
RING
55
1615844700
NOZZLE
60
0663311700
ORING
70
2252549200
DRAIN PIPE
80
2252548700
COVER
85
1202701100
GASKET
95
2252845000
CONNECTION
105
2252844900
HOUSE
120
2252981400
CONNECTING PIPE
140
2252893409
NOZZLE
155
2252550288
INLET VALVE
175
2252845501
VALVE HOUSING
178
0686371601
PLUG
180
0686371602
PLUG
190
2253967100
VALVE
195
1615968700
SPRING
196
2254807500
COMPRESS.SPRING
197
0686371630
PLUG
198
0653110000
GASKET
200
1616609300
VALVE SEAT
205
0663210615
O-RING
207
0663210709
O-RING
208
0663210637
O-RING
210
0211124400
SCREW
215
0147138103
SCREW. HEX HEAD
220
2255280980
OIL STOP VALVE
265
0686613000
PLUG
275
0653104600
GASKET
ROC L8 ASSEMBLY SET #11149
ROC L8 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
3222300126
ASSEMBLY SET
1
3222219104
HOLDER
7
0291112823
LOCK NUT
13
3222305612
PROTECTION HOSE
14
3222305812
HOSE HOLDER
ROC L8 ASSEMBLY SET #17350
ROC L8 ASSEMBLY SET
ads
Ref
Parts Num
Name
0
3222324121
ASSEMBLY SET
1
3222318883
SENSOR BRACKET
2
0333317415
LOCK WASHER
