ROC L8 FEED #9947
ROC L8 FEED
ads
Ref
Parts Num
Name
0
3222320873
FEED
1
3222320872
FEED
2
3222064321
ROD HANDLING
3
3222323317
HOSE ATTACHMENT
4
3222320841
DRILL CARRIAGE
6
3222320736
BREAK-OUT TABLE
7
3222328240
HOLDER
9
3222325074
SUPPORT LEG
10
3222323266
WASHER
12
3222330528
PROTECTION ARCH
13
3222329154
PROTECTION ARCH
15
3222323704
ROPE
16
0346100217
PIPE CLAMP
20
3315019514
LOCK WASHER
21
0266211800
NUT
29
3222324760
PLATE
31
3222324759
SEAL DISC
33
3222325690
HOSE ATTACHMENT
41
0147147403
SCREW. HEX HEAD
ROC L8 FEED #10547
ROC L8 FEED
ads
Ref
Parts Num
Name
0
3222120081
FEED
1
3222120020
FEED BEAM
2
3222182483
FEED MOTOR
3
3222306546
HOLDER
7
3222306563
ATTACHMENT
8
3222315720
TENSION. SCREW
10
3125021300
INNER RING
11
3214827800
BOLT
12
0111145300
SPLIT PIN
13
3214880600
CHAIN HOLDER
14
3214880500
CHAIN LOCK
16
3214880400
CHAIN TENSIONER
17
3222306574
GUIDE
18
3222306561
SPACER
19
0147149403
SCREW. HEX HEAD
22
3222228500
BRACKET
23
3222316226
SHAFT COMPL.
24
3216538200
CYL.ROLLER BEAR
25
0335116000
CIRCLIP
26
3222305697
PULLEY WHEEL
30
0291112826
LOCK NUT
31
3222239700
COVER
32
3222236300
BOLT
40
3214883905
ROLLER CHAIN
42
3216711804
PIPE
43
3222309834
HOSE CLIP
45
0147137103
SCREW. HEX HEAD
46
3216802900
BRACKET
48
3222312344
SHIM
49
3222309731
CYLIND.BRACKET
50
3216865400
HOSE CLIP
51
3216711806
SPACER TUBE
52
3222312776
HOLDER
56
3222300108
DATA PLATE
57
3222316852
SIGN
58
0300801100
PLAIN WASHER
60
0346300059
PIPE CLAMP
61
0147133203
SCREW. HEX HEAD

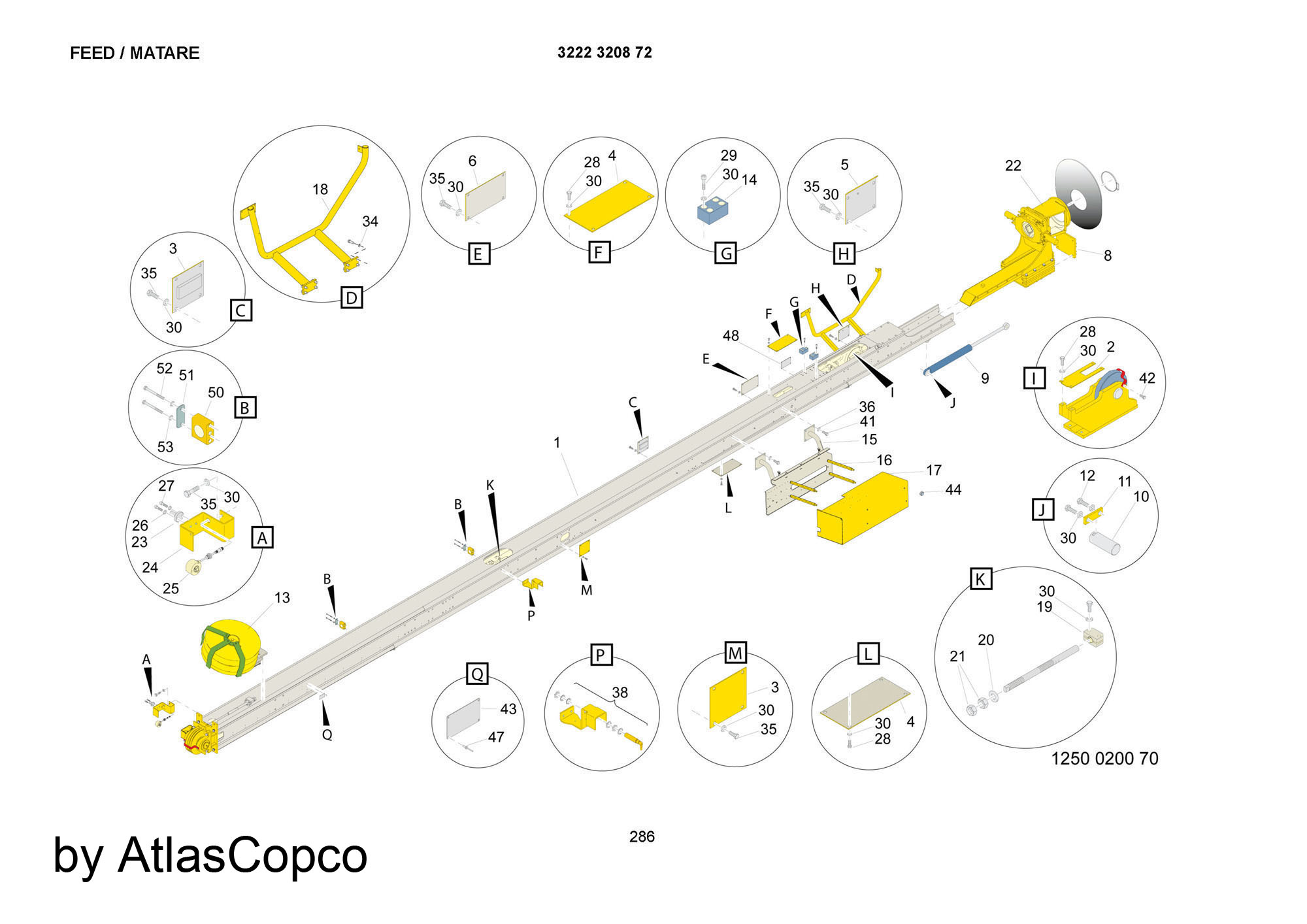

ROC L8 FEED #10937
ROC L8 FEED
ads
Ref
Parts Num
Name
0
3222320872
FEED
1
3222323649
DETAIL SET
2
3222324765
COVER
3
3222329572
COVER
4
3222324779
COVER
5
3222326330
COVER
6
3222324778
COVER
8
3222323127
DOWEL
9
3222319922
HYDR. CYLINDER
10
3128305639
SHAFT
11
3128305206
STOP
13
3222323263
HOSE DRUM
14
3222323541
STOP
15
3222323379
BRACKET
16
3222236300
BOLT
17
3222323414
COVER
18
3222325773
HOLDER
19
3222328240
HOLDER
20
3315019514
LOCK WASHER
21
0266211800
NUT
21
3222324121
ASSEMBLY SET
22
3222323118
DRILL STEEL SUP
23
3222323796
DISK
24
3222320888
PLATE
25
3176000288
PULSE SENSOR
27
0211132603
SCREW
29
0211136503
SCREW
43
3128078273
DATA PLATE
46
0147196030
SCREW. HEX HEAD
48
3222316852
SIGN
50
3222311128
CLAMP
51
3222309788
PLATE
52
0147125803
SCREW. HEX HEAD
53
3315019502
LOCK WASHER
ROC L8 FEED #11284
ROC L8 FEED
ads
Ref
Parts Num
Name
0
3222311612
FEED
1
3222120081
FEED
2
3222307280
STAND
3
3222309928
DRILL STEEL SUP
4
3214887980
DRILL STEEL SUP
5
3222312640
CRADLE COMPL
6
3222311578
HOSE ATTACHMENT
11
3222311577
PLATE
12
3222319247
STOP LUG
16
3222310662
SUPPORT LEG
18
0346300234
CLAMP HALVES
19
3222192310
PROTECTION ARCH
20
0346300225
COVER PLATE
21
3222192410
PROTECTION ARCH
22
0147141703
SCREW. HEX HEAD
24
3214883907
ROLLER CHAIN
25
3222317545
HOSE DRUM
