ROC L8 Pages
1. EPIROC - ROC L8 HYDRAULIC PUMP #9261
2. EPIROC - ROC L8 HYDRAULIC PUMP #9551
3. EPIROC - ROC L8 HYDRAULIC PUMP #9771
4. EPIROC - ROC L8 HYDRAULIC PUMP #9957
5. EPIROC - ROC L8 HYDRAULIC PUMP #10156
6. EPIROC - ROC L8 HYDRAULIC PUMP #10296
7. EPIROC - ROC L8 HYDRAULIC PUMP #10813
8. EPIROC - ROC L8 HYDRAULIC PUMP #11219
9. EPIROC - ROC L8 HYDRAULIC PUMP #11328
10. EPIROC - ROC L8 HYDRAULIC PUMP #11478

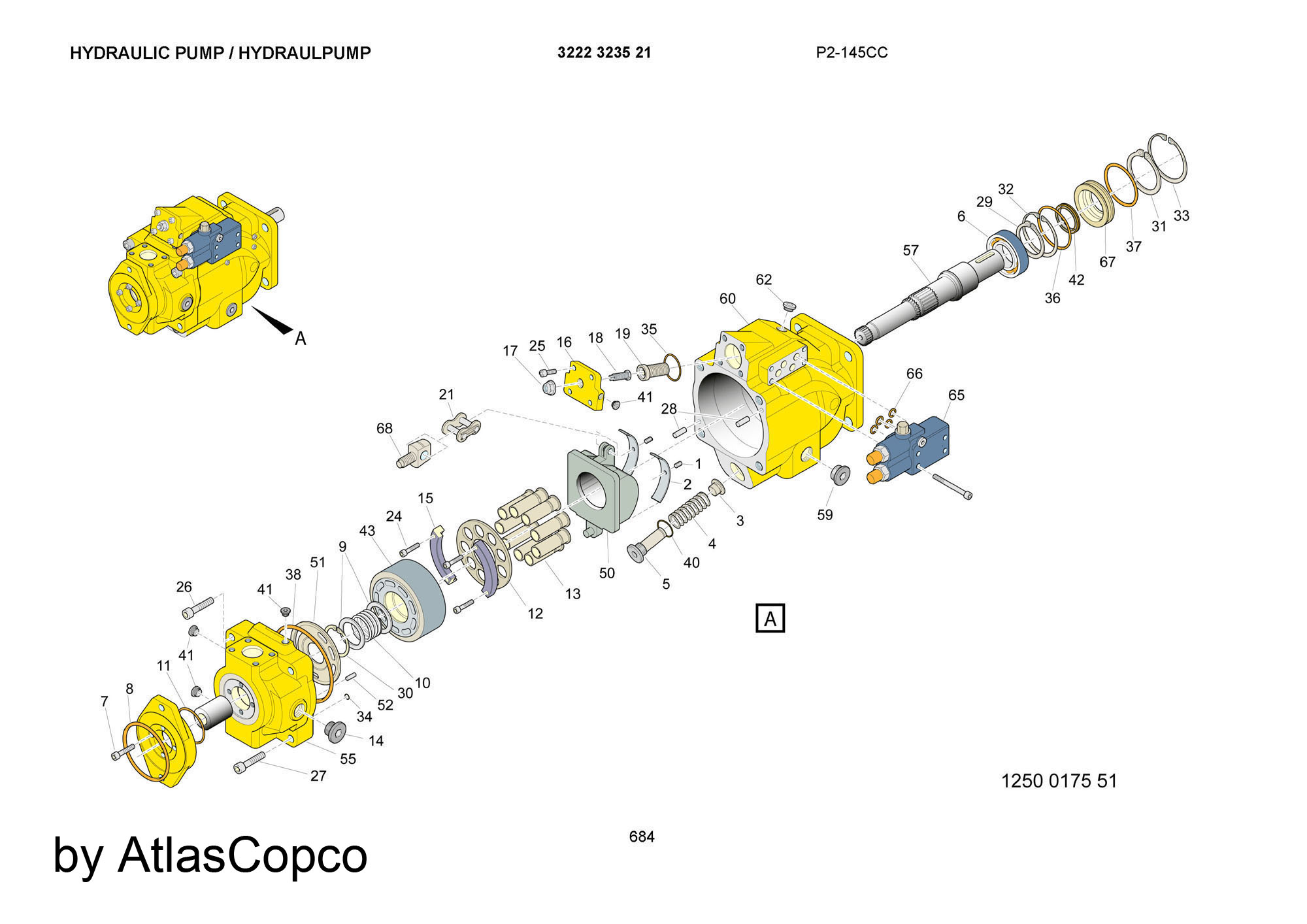

ROC L8 HYDRAULIC PUMP #9261
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323521
HYDRAULIC PUMP
1
3222331478
GUIDE PIN
2
3222331479
SUPPORT BEARING
3
3222331483
SPRING GUIDE
4
3222331484
SPRING
5
3222331485
PLUG
9
3222331486
WASHER
10
3222331487
SPRING
12
3222331488
PRESS. PLATE
13
3222331489
PISTON SET
15
3222331490
HOLDER
19
3222331491
PISTON
21
3222331492
CHAIN LINK
24
3222331493
SCREW
25
3222331494
SCREW
26
3222331495
SCREW
27
3222331496
SCREW
28
3222331497
GUIDE PIN
30
3222331498
LOCK RING
32
3222331499
LOCK RING
33
3222331502
LOCK RING
34
3222331503
O-RING
35
3222331504
O-RING
38
3222331505
O-RING
40
3222331506
O-RING
43
3222331507
CYLINDER
50
3222331508
CRADLE
51
3222331509
DISTRIBUT. PLATE
52
3222331510
GUIDE PIN
55
3222331511
COVER
59
3222331512
PLUG
60
3222331513
PUMP HOUSING
61
3222331514
ADJUSTING SCREW
62
3222331515
PLUG
66
3222331516
O-RING
67
3222331517
SEALING
68
3222331518
MOUNT
72
3222331528
KIT
73
3222331529
SEAL KIT
74
3222331530
KIT

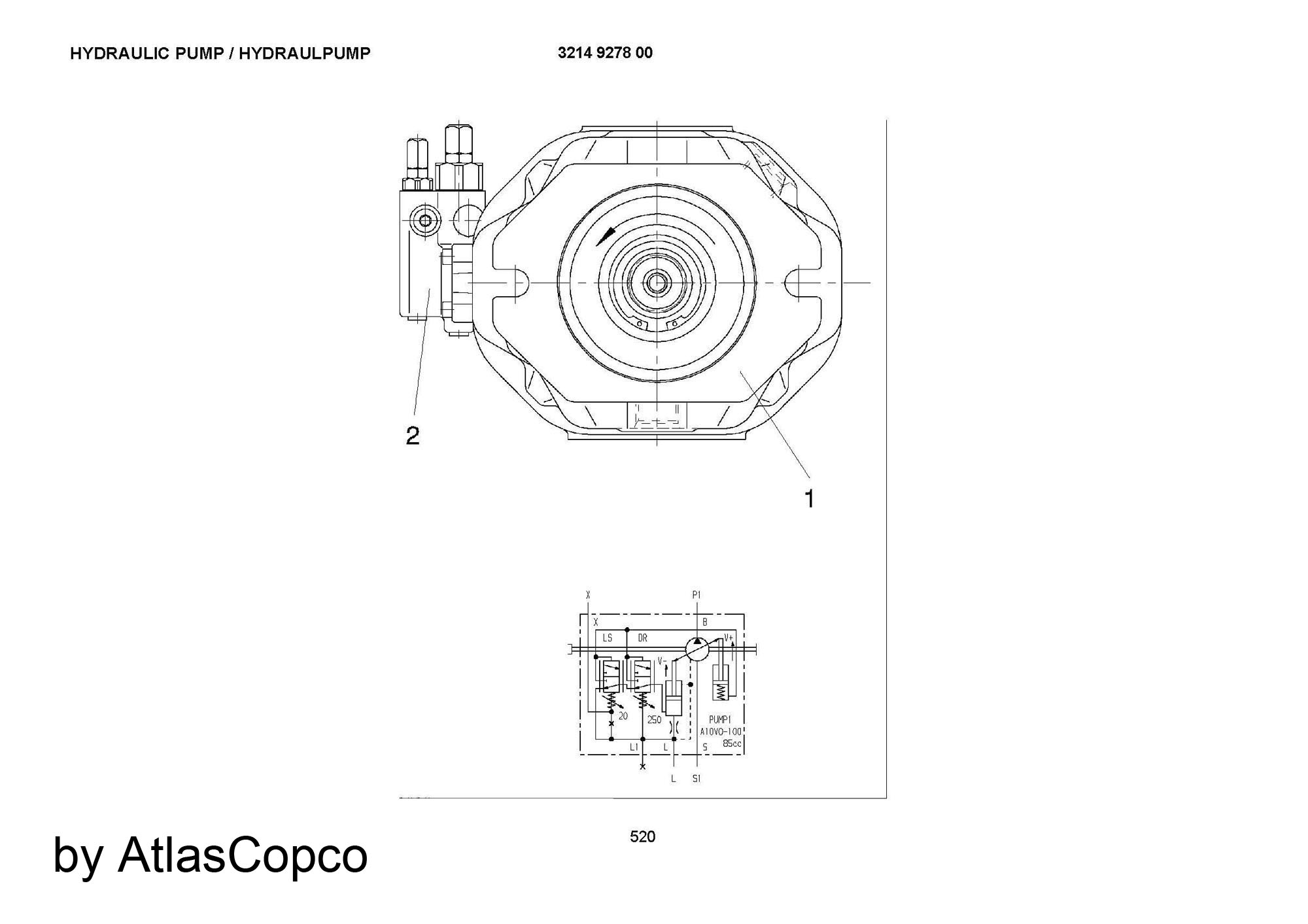

ROC L8 HYDRAULIC PUMP #9551
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
3214927800
HYDRAULIC PUMP
2
3222075980
GEAR PUMP
3
3222317532
GEAR PUMP
4
3222094001
SUCTION PIPE
5
0663920301
O-RING
6
0347610034
HOSE CLIP
7
3176630100
NIPPLE
8
3222285400
SUCTION PIPE
10
0347610016
HOSE CLIP
11
3216830900
SUCTION PIPE
12
0638052700
FLANGE HALF
13
0347610030
HOSE CLIP
14
0211136403
SCREW
15
0638054700
FLANGE HALF
16
0211536500
SCREW
17
0211536800
SCREW
18
3222300100
FLANGE CONNECT.
19
0211196082
SCREW
21
3177307301
SAEFLANGE
22
0663918201
ORING
24
3176602300
PRESSURE GAUGE
26
3217863804
HYDRAULIC HOSE
27
3222301118
SYMBOL PLATE
30
3222318665
RESERVOIR

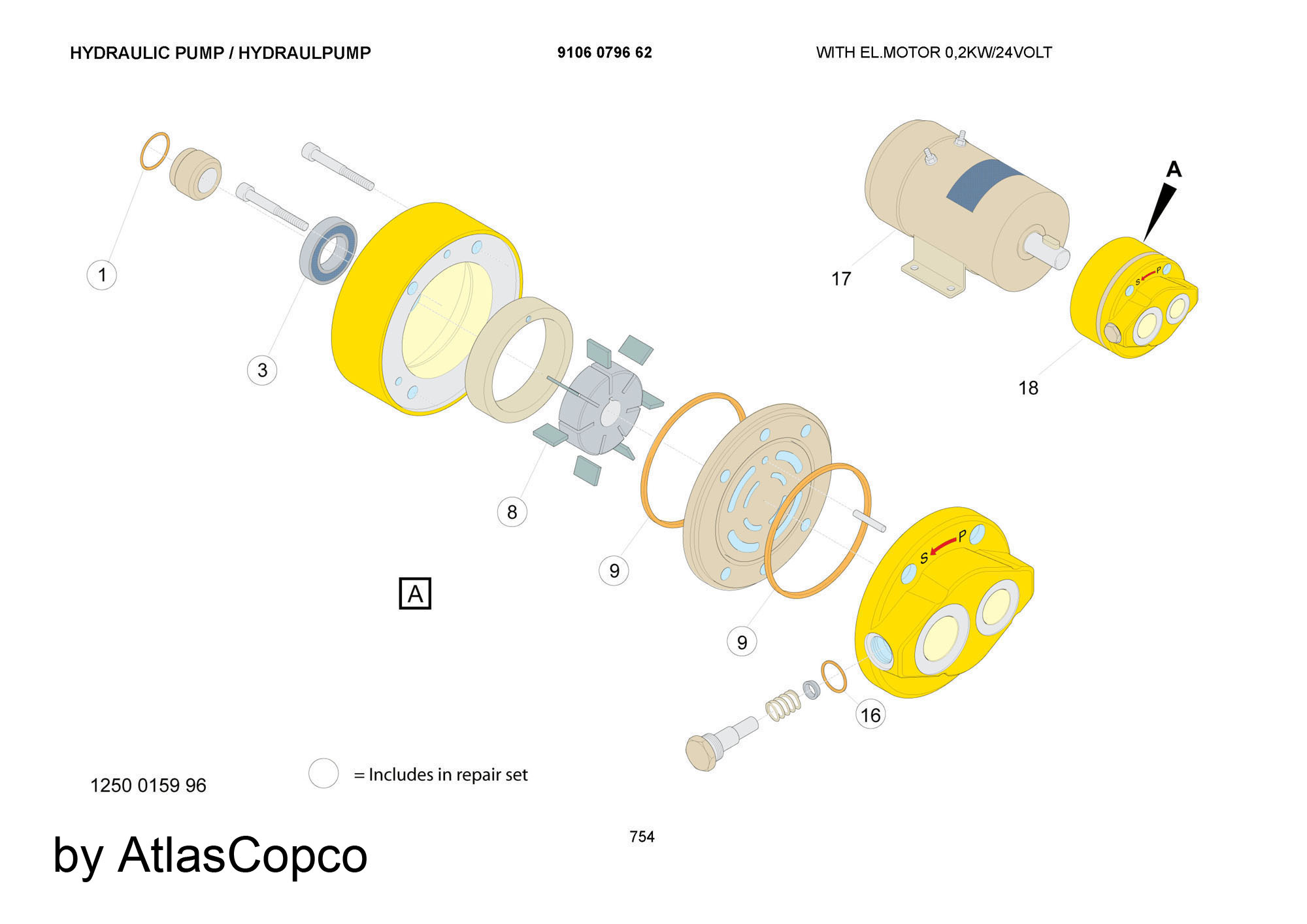

ROC L8 HYDRAULIC PUMP #9771
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
9106079662
HYDRAULIC PUMP
0
9106108007
REPAIR SET
17
9106108005
MOTOR
18
9106108006
PUMP

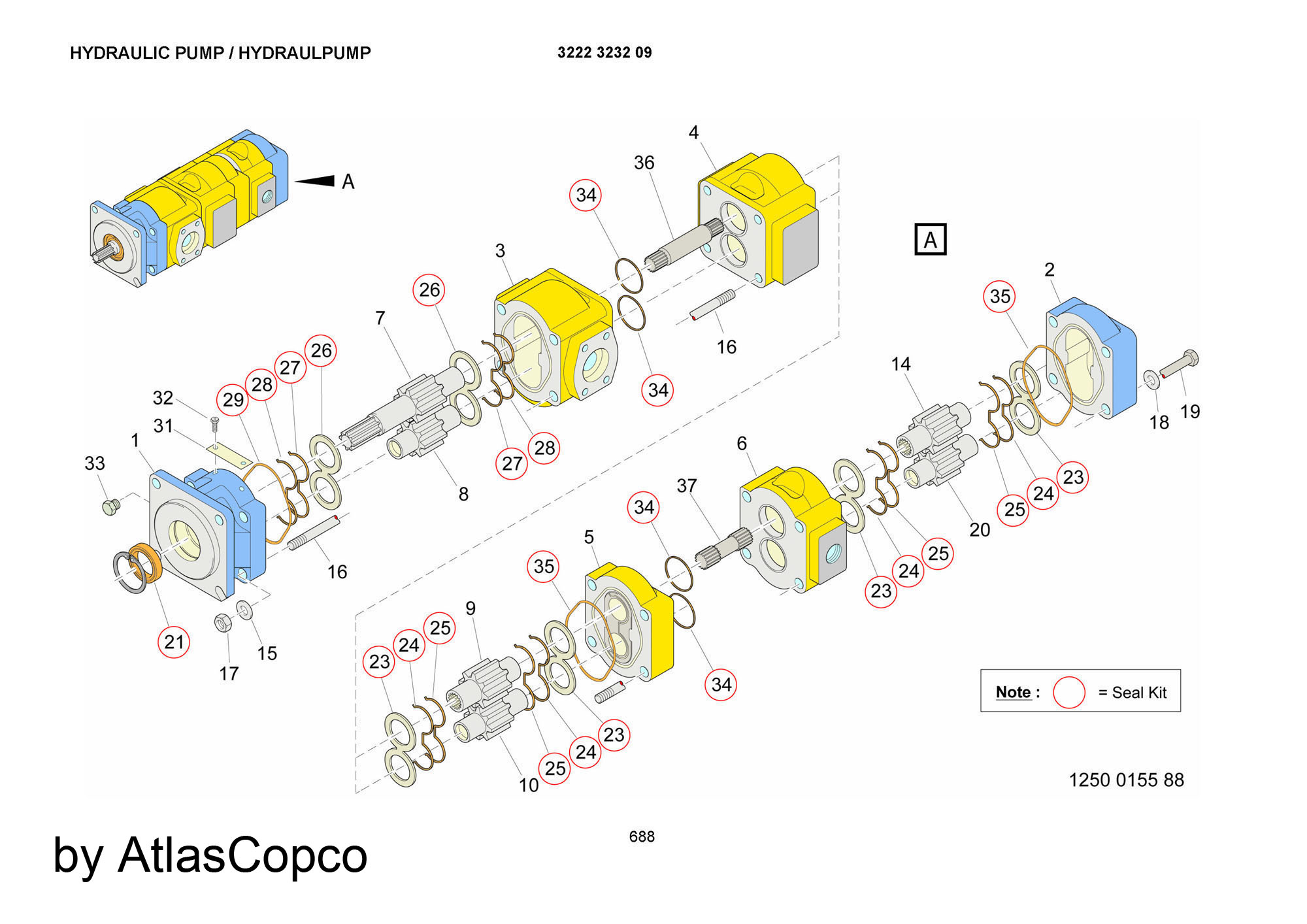

ROC L8 HYDRAULIC PUMP #9957
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323209
HYDRAULIC PUMP
0
3222328485
SEAL KIT
ROC L8 HYDRAULIC PUMP #10156
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
9106079662
HYDRAULIC PUMP
2
3222325141
CHECK VALVE
ROC L8 HYDRAULIC PUMP #10296
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3214927800
HYDRAULIC PUMP
1
3217920605
PUMP
ROC L8 HYDRAULIC PUMP #10813
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3214927800
HYDRAULIC PUMP
1
3217920605
PUMP
ROC L8 HYDRAULIC PUMP #11219
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
1
3222323521
HYDRAULIC PUMP
2
3222323209
HYDRAULIC PUMP
3
3222323213
GEAR PUMP
3
3222323686
GEAR PUMP
4
3222323928
FLANGE CONNECT.
5
3176602300
PRESSURE GAUGE
ROC L8 HYDRAULIC PUMP #11328
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323521
HYDRAULIC PUMP
1
3222331478
GUIDE PIN
2
3222331479
SUPPORT BEARING
3
3222331483
SPRING GUIDE
4
3222331484
SPRING
5
3222331485
PLUG
9
3222331486
WASHER
10
3222331487
SPRING
12
3222331488
PRESS. PLATE
13
3222331489
PISTON SET
15
3222331490
HOLDER
19
3222331491
PISTON
21
3222331492
CHAIN LINK
24
3222331493
SCREW
25
3222331494
SCREW
26
3222331495
SCREW
27
3222331496
SCREW
28
3222331497
GUIDE PIN
30
3222331498
LOCK RING
32
3222331499
LOCK RING
33
3222331502
LOCK RING
34
3222331503
O-RING
35
3222331504
O-RING
38
3222331505
O-RING
40
3222331506
O-RING
43
3222331507
CYLINDER
50
3222331508
CRADLE
51
3222331509
DISTRIBUT. PLATE
52
3222331510
GUIDE PIN
55
3222331511
COVER
59
3222331512
PLUG
60
3222331513
PUMP HOUSING
61
3222331514
ADJUSTING SCREW
62
3222331515
PLUG
66
3222331516
O-RING
67
3222331517
SEALING
68
3222331518
MOUNT
72
3222331528
KIT
73
3222331529
SEAL KIT
74
3222331530
KIT
ROC L8 HYDRAULIC PUMP #11478
ROC L8 HYDRAULIC PUMP
ads
Ref
Parts Num
Name
0
3222323209
HYDRAULIC PUMP
0
3222328485
SEAL KIT
