ROC L8 TRACK FRAME #9617
ROC L8 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222011488
TRACK FRAME
1
3222011404
TRACK FRAME
3
0070902860
PIPE
4
3216719980
TRACK ROLLER
5
0147196170
SCREW. HEX HEAD
7
0147150103
SCREW. HEX HEAD
8
3222237980
LIMBEROLLER
12
3216720181
FRONT WHEEL
16
0333213600
SPRING WASHER
19
0147148007
SCREW. HEX HEAD
22
3222226001
DRIVE WHEEL
23
0211148000
SCREW
26
3216719780
TRACK CHAIN
31
3222271300
COVER
35
3222271200
CHAIN GUARD
39
3216730600
GREASE NIPPLE
41
3216746600
FLANGE BEARING
42
3222272300
COVER
44
3222272400
PLATE

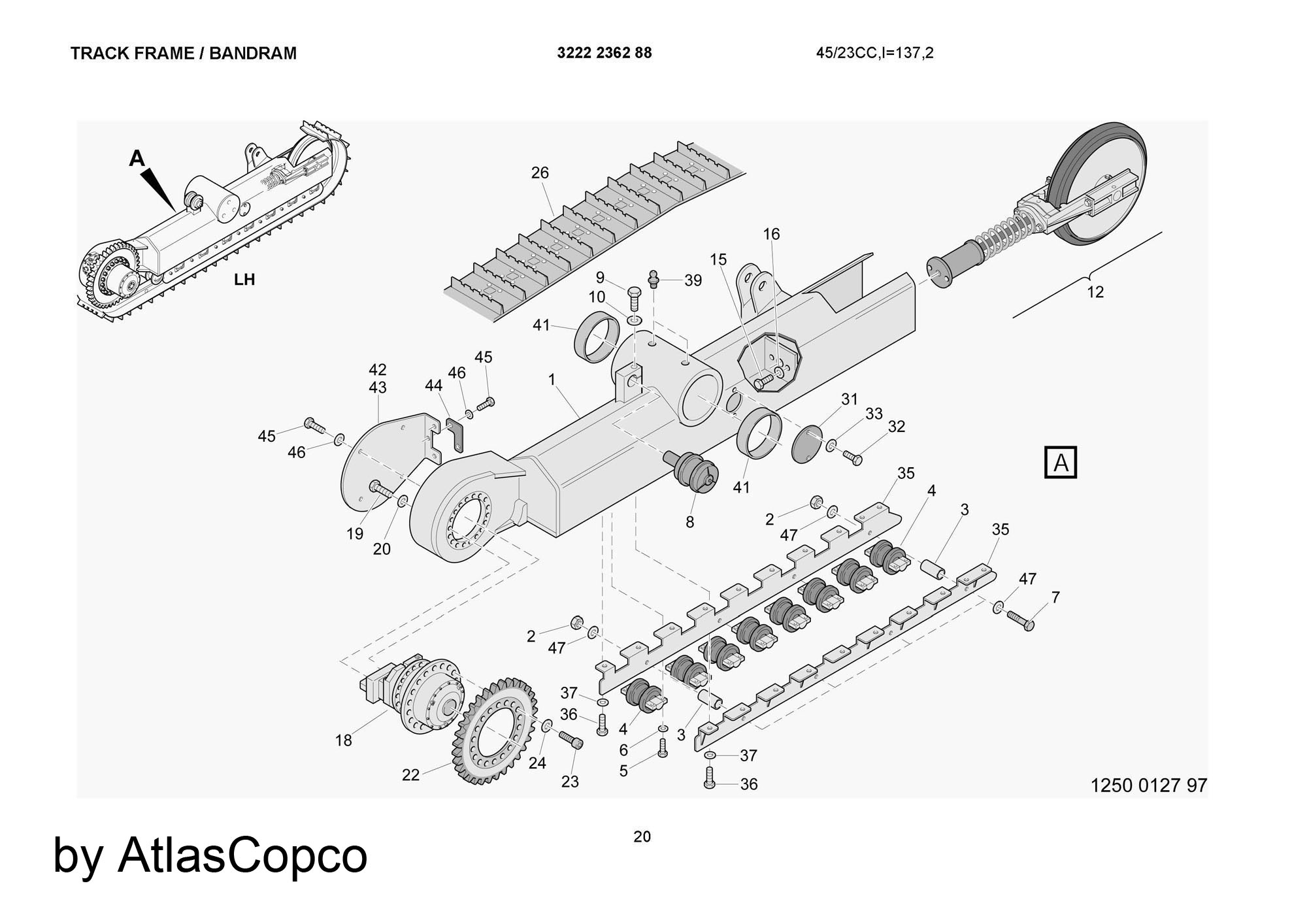

ROC L8 TRACK FRAME #9685
ROC L8 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222236288
TRACK FRAME
1
3222011404
TRACK FRAME
3
0070902860
PIPE
4
3216719980
TRACK ROLLER
5
0147196170
SCREW. HEX HEAD
7
0147150103
SCREW. HEX HEAD
8
3222237980
LIMBEROLLER
12
3216720181
FRONT WHEEL
16
0333213600
SPRING WASHER
19
0147148007
SCREW. HEX HEAD
22
3222226001
DRIVE WHEEL
23
0211148000
SCREW
26
3222237880
TRACK CHAIN
31
3222271300
COVER
35
3222271200
CHAIN GUARD
39
3216730600
GREASE NIPPLE
41
3216746600
FLANGE BEARING
42
3222272300
COVER
44
3222272400
PLATE
ROC L8 TRACK FRAME #10471
ROC L8 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222327118
TRACK FRAME
4
3216719980
TRACK ROLLER
5
0147196489
HEX. HEAD SCREW
8
3222328321
LIMBEROLLER
9
5540204700
SCREW. HEX HEAD
10
0333214300
SPRING WASHER
12
3222328330
FRONT WHEEL
21
3222327724
DRIVE UNIT
22
5540127900
SCREW. HEX HEAD
25
3222328339
DRIVE WHEEL
26
0211195712
SCREW
28
3222328320
TRACK CHAIN
39
0147196474
HEX. HEAD SCREW
45
3222329039
PLAIN BEARING
50
0216136000
SCREW
ROC L8 TRACK FRAME #10836
ROC L8 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222327117
TRACK FRAME
4
3216719980
TRACK ROLLER
5
0147196489
HEX. HEAD SCREW
8
3222328321
LIMBEROLLER
9
5540204700
SCREW. HEX HEAD
10
0333214300
SPRING WASHER
12
3222328330
FRONT WHEEL
21
3222327724
DRIVE UNIT
22
5540127900
SCREW. HEX HEAD
25
3222328339
DRIVE WHEEL
26
0211195712
SCREW
28
3222328320
TRACK CHAIN
39
0147196474
HEX. HEAD SCREW
45
3222329039
PLAIN BEARING
50
0216136000
SCREW
ROC L8 TRACK FRAME #20300
ROC L8 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222327116
TRACK FRAME
1
3222327117
TRACK FRAME
2
3222327118
TRACK FRAME
ROC L8 TRACK FRAME #20416
ROC L8 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222236266
TRACK FRAME
1
3222236288
TRACK FRAME
2
3222236289
TRACK FRAME

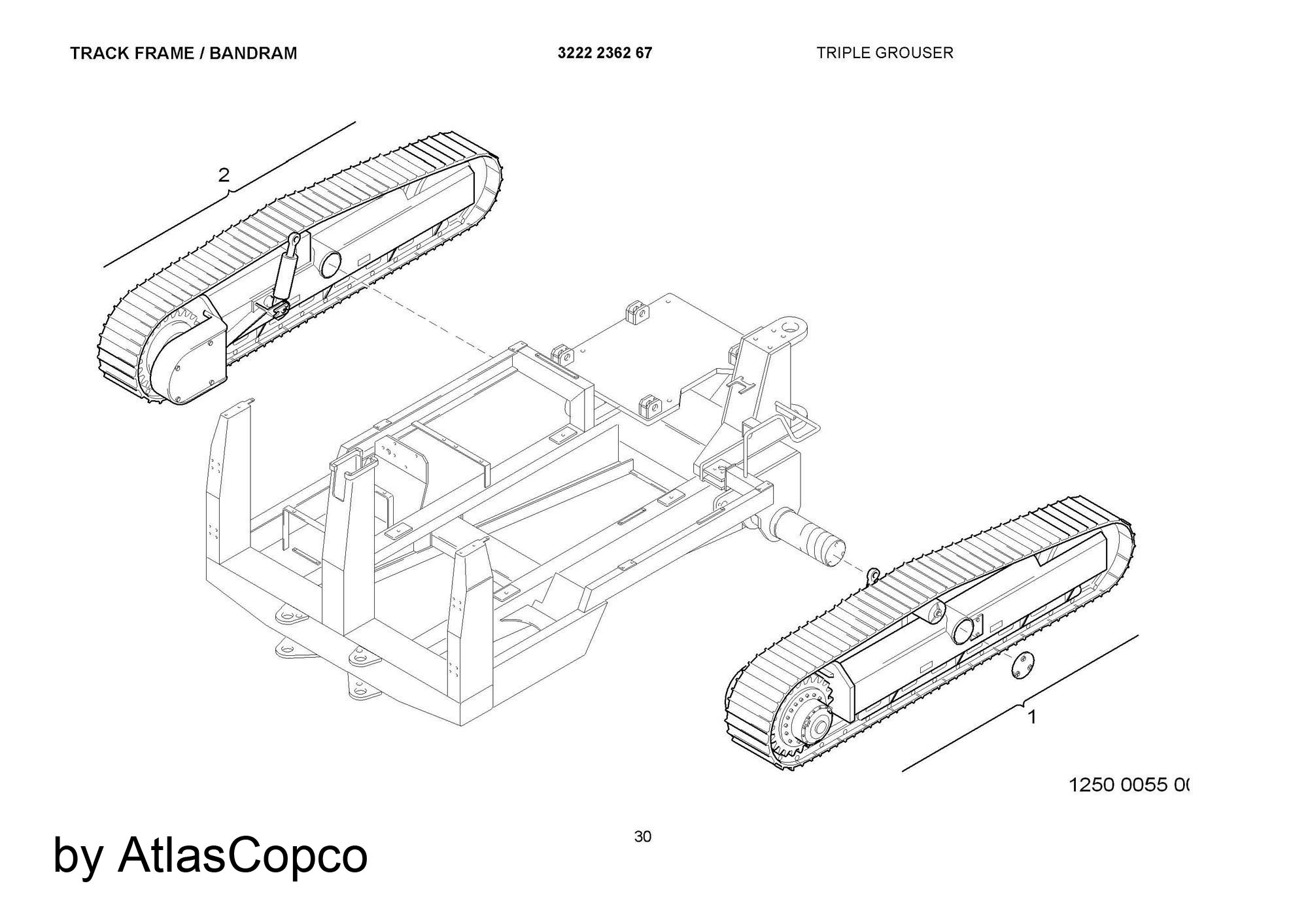

ROC L8 TRACK FRAME #20534
ROC L8 TRACK FRAME
ads
Ref
Parts Num
Name
0
3222236267
TRACK FRAME
1
3222011488
TRACK FRAME
2
3222011489
TRACK FRAME
