SIMAB H1252 Pages
1. EPIROC - SIMAB H1252 DIRECTION VALVE #14295
2. EPIROC - SIMAB H1252 DIRECTION VALVE #14803
3. EPIROC - SIMAB H1252 DIRECTION VALVE #14893
4. EPIROC - SIMAB H1252 DIRECTION VALVE #15008
5. EPIROC - SIMAB H1252 DIRECTION VALVE #15562
6. EPIROC - SIMAB H1252 DIRECTION VALVE #21175
7. EPIROC - SIMAB H1252 DIRECTION VALVE #21404
8. EPIROC - SIMAB H1252 DIRECTION VALVE #21435
9. EPIROC - SIMAB H1252 DIRECTION VALVE #21477
SIMAB H1252 DIRECTION VALVE #14295
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217786401
DIRECTION VALVE
0
3217786422
SEAL KIT
1
3217786411
HOUSE
7
3217786412
COVER
19
3217786413
PISTON
60
3217786414
WASHER
63
3217786415
SPRING HOLDER
68
3217786416
PIN
71
3217786417
SPRING
104
3217786418
BACK UP RING
113
0663210060
O RING
148
3217786420
CIRCLIP
149
3217786421
CIRCLIP
152
3176188202
MAGNET
169
3176203700
ELECTR.PLUG
170
3176203800
ELECTR.PLUG
182
3217786424
PLUG

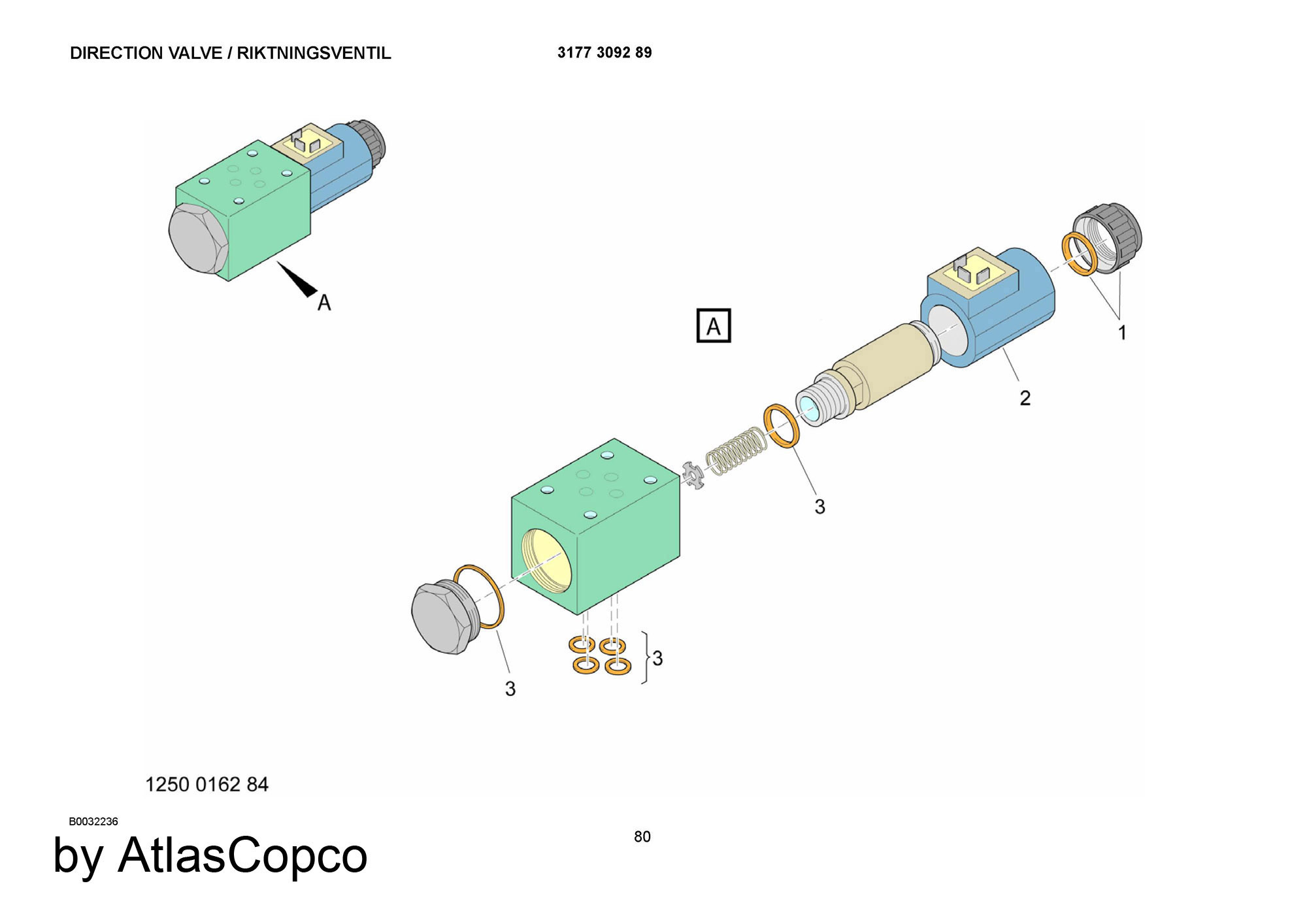

SIMAB H1252 DIRECTION VALVE #14803
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309289
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT

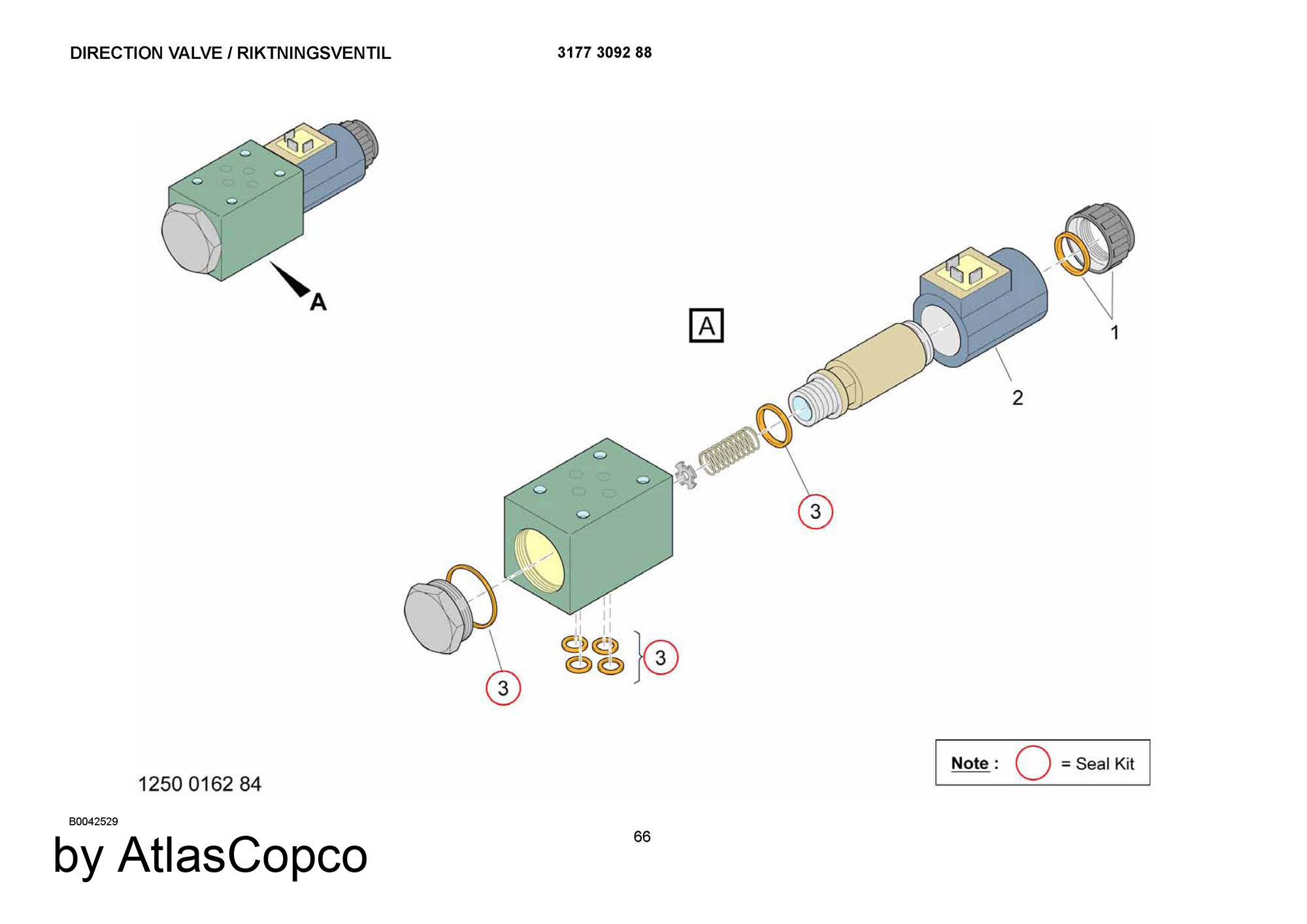

SIMAB H1252 DIRECTION VALVE #14893
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT
SIMAB H1252 DIRECTION VALVE #15008
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT
SIMAB H1252 DIRECTION VALVE #15562
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309288
DIRECTION VALVE
1
3177309257
NUT SET
2
3177309255
COIL
3
3177309256
SEAL KIT

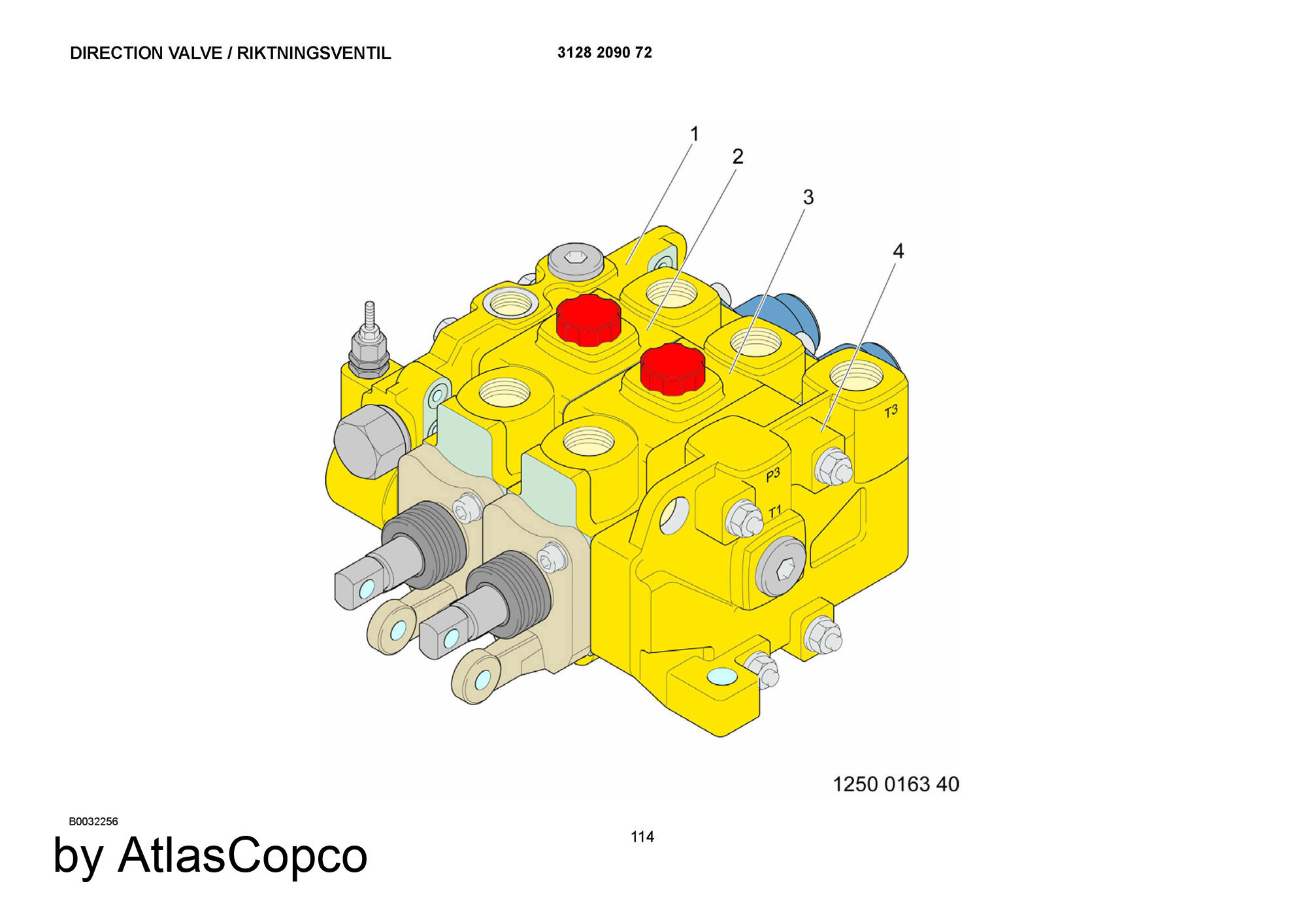

SIMAB H1252 DIRECTION VALVE #21175
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209072
DIRECTION VALVE
1
3128209122
INLET SECTION
2
3128209102
VALVE SECTION
3
3128209124
OUTLET SECTION
SIMAB H1252 DIRECTION VALVE #21404
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217996603
DIRECTION VALVE

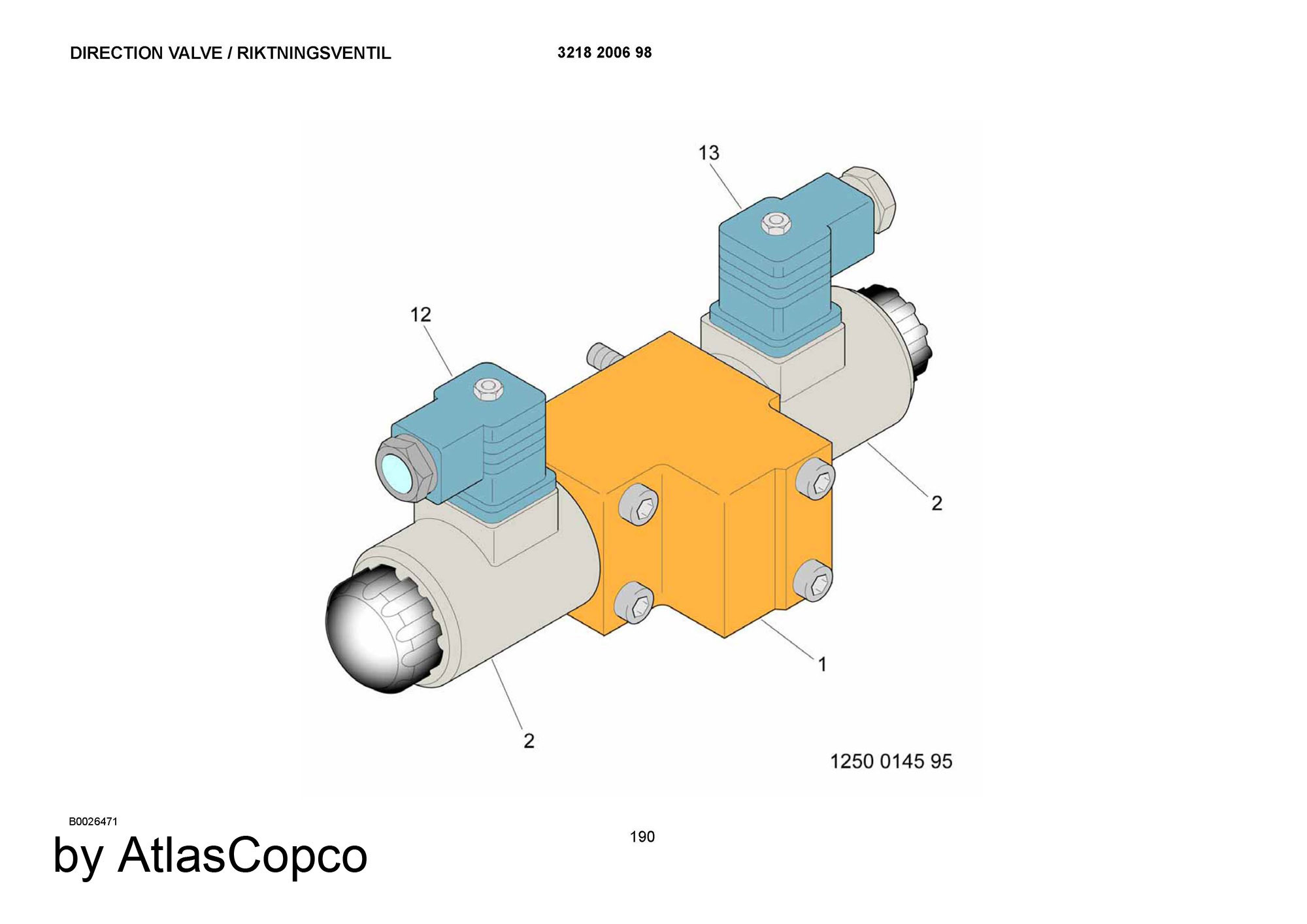

SIMAB H1252 DIRECTION VALVE #21435
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3218200698
DIRECTION VALVE
2
3218200719
SOLENOID CARTR.
12
3218200720
CONTACT
13
3218200721
CONTACT
SIMAB H1252 DIRECTION VALVE #21477
SIMAB H1252 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217996602
DIRECTION VALVE
