SIMAB H1252 FILLER SET #14085
SIMAB H1252 FILLER SET
ads
Ref
Parts Num
Name
D1
9110909602
FILLER SET
0

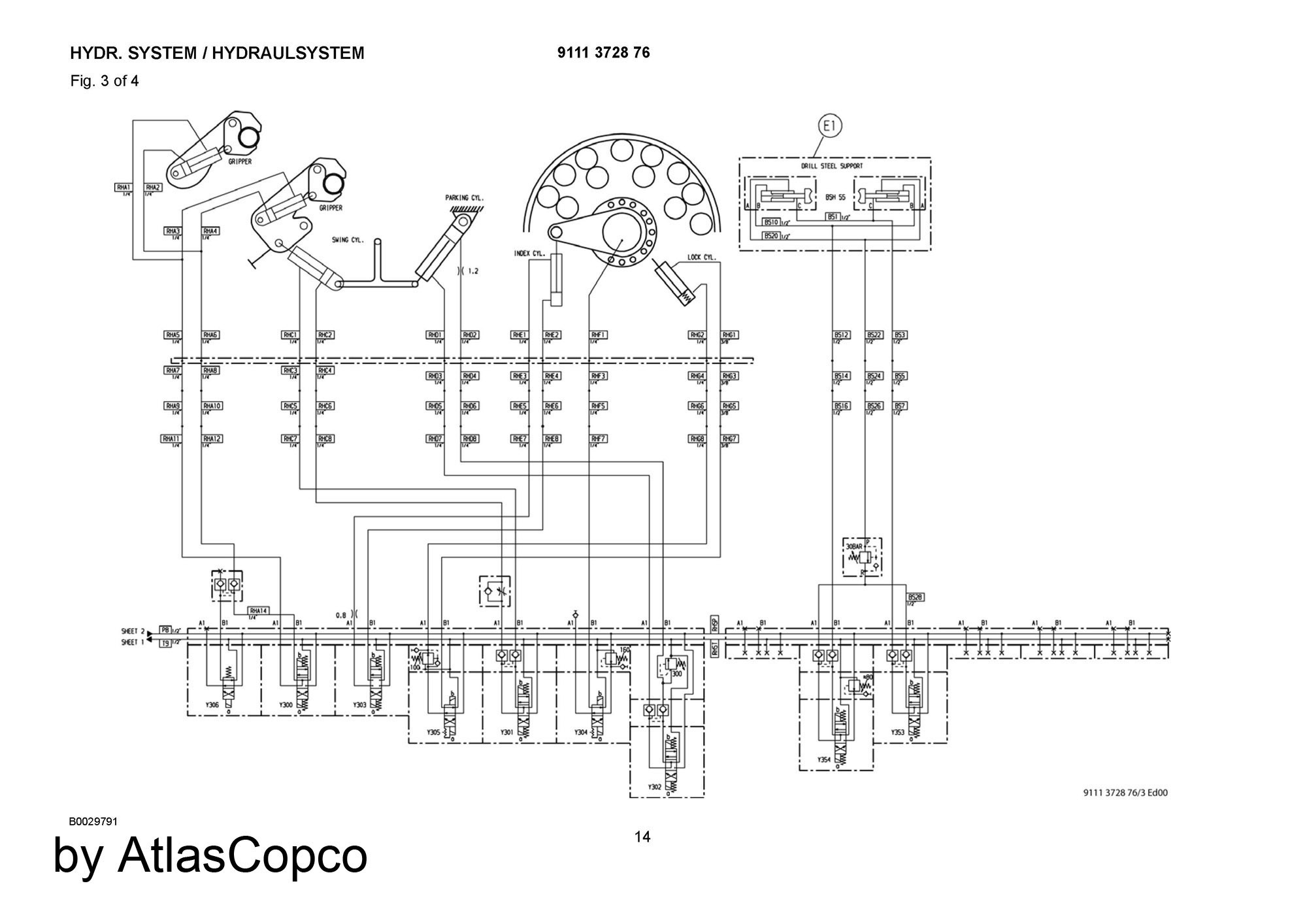

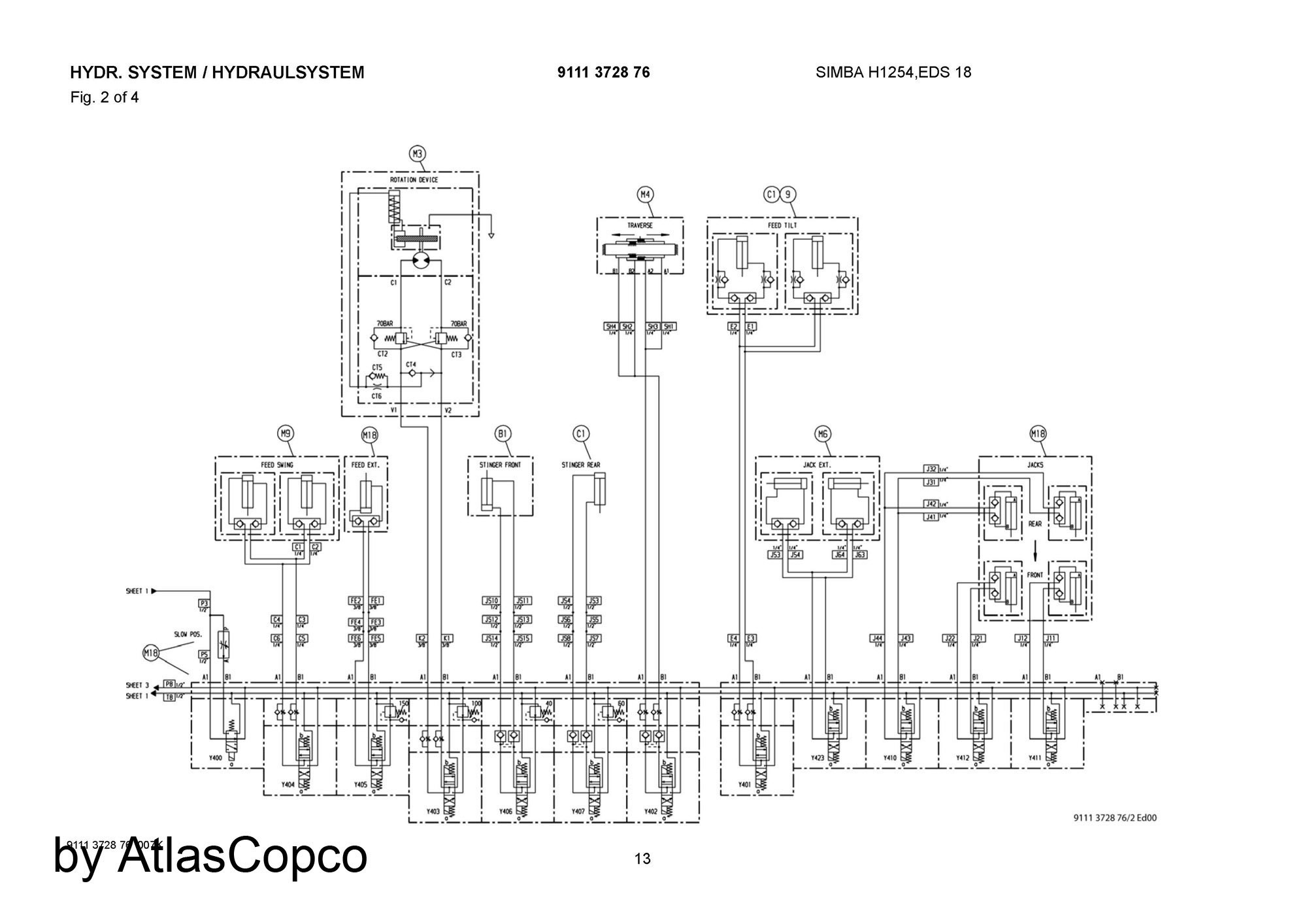

9111372876
HYDR. SYSTEM
1
9106160861
OIL COOLER
2
3177301600
COUPLING
3
3216888300
THROTTLE VALVE
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
M3
9111401717
HYDRAULIC SET
4
3217994600
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M6
9111333700
HYDR. SET
L10
9106065873
SUCT.CONNECTION
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
5
3217651302
RESTRICTION
6
0823005021
CHECK VALVE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
80
3176735300
BUSHING
E1
9111351602
HYDRAULIC SET
SIMAB H1252 FILLER SET #14743
SIMAB H1252 FILLER SET
ads
Ref
Parts Num
Name
D1
9110909602
FILLER SET
0
9111372876
HYDR. SYSTEM
1
9106160861
OIL COOLER
2
3177301600
COUPLING
3
3216888300
THROTTLE VALVE
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
M3
9111401717
HYDRAULIC SET
4
3217994600
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M6
9111333700
HYDR. SET
L10
9106065873
SUCT.CONNECTION
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
5
3217651302
RESTRICTION
6
0823005021
CHECK VALVE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
80
3176735300
BUSHING
E1
9111351602
HYDRAULIC SET
SIMAB H1252 FILLER SET #15217
SIMAB H1252 FILLER SET
ads
Ref
Parts Num
Name

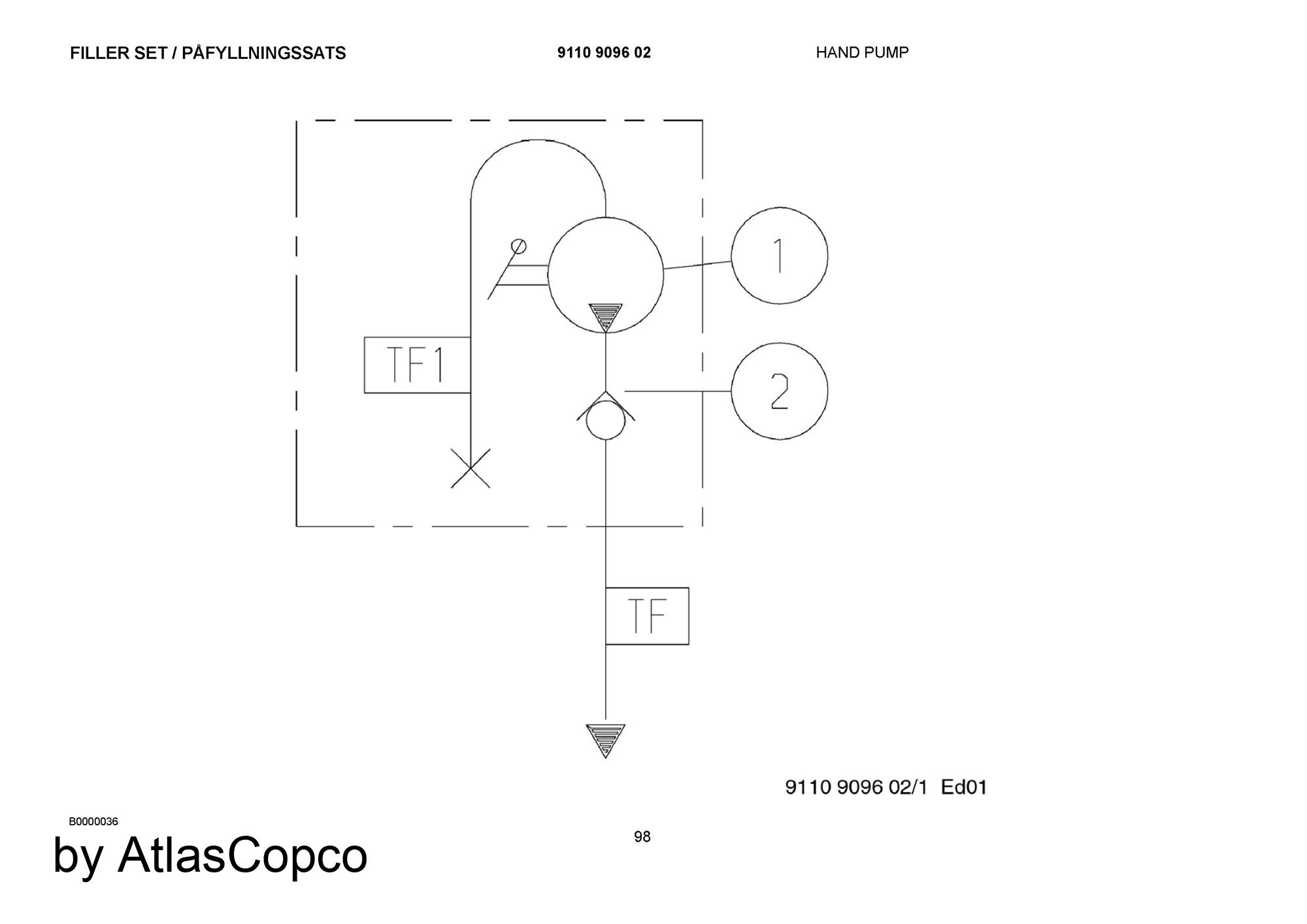

0
9110909602
FILLER SET
1
3176746701
PUMP
2
9106083301
CHECK VALVE
SIMAB H1252 FILLER SET #15667
SIMAB H1252 FILLER SET
ads
Ref
Parts Num
Name
D1
9110909602
FILLER SET
0
9111372876
HYDR. SYSTEM
1
9106160861
OIL COOLER
2
3177301600
COUPLING
3
3216888300
THROTTLE VALVE
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
M3
9111401717
HYDRAULIC SET
4
3217994600
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M6
9111333700
HYDR. SET
L10
9106065873
SUCT.CONNECTION
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
5
3217651302
RESTRICTION
6
0823005021
CHECK VALVE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
80
3176735300
BUSHING
E1
9111351602
HYDRAULIC SET
SIMAB H1252 FILLER SET #16047
SIMAB H1252 FILLER SET
ads
Ref
Parts Num
Name
D1
9110909602
FILLER SET
0
9111372876
HYDR. SYSTEM
1
9106160861
OIL COOLER
2
3177301600
COUPLING
3
3216888300
THROTTLE VALVE
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
M3
9111401717
HYDRAULIC SET
4
3217994600
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M6
9111333700
HYDR. SET
L10
9106065873
SUCT.CONNECTION
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
5
3217651302
RESTRICTION
6
0823005021
CHECK VALVE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
80
3176735300
BUSHING
E1
9111351602
HYDRAULIC SET
