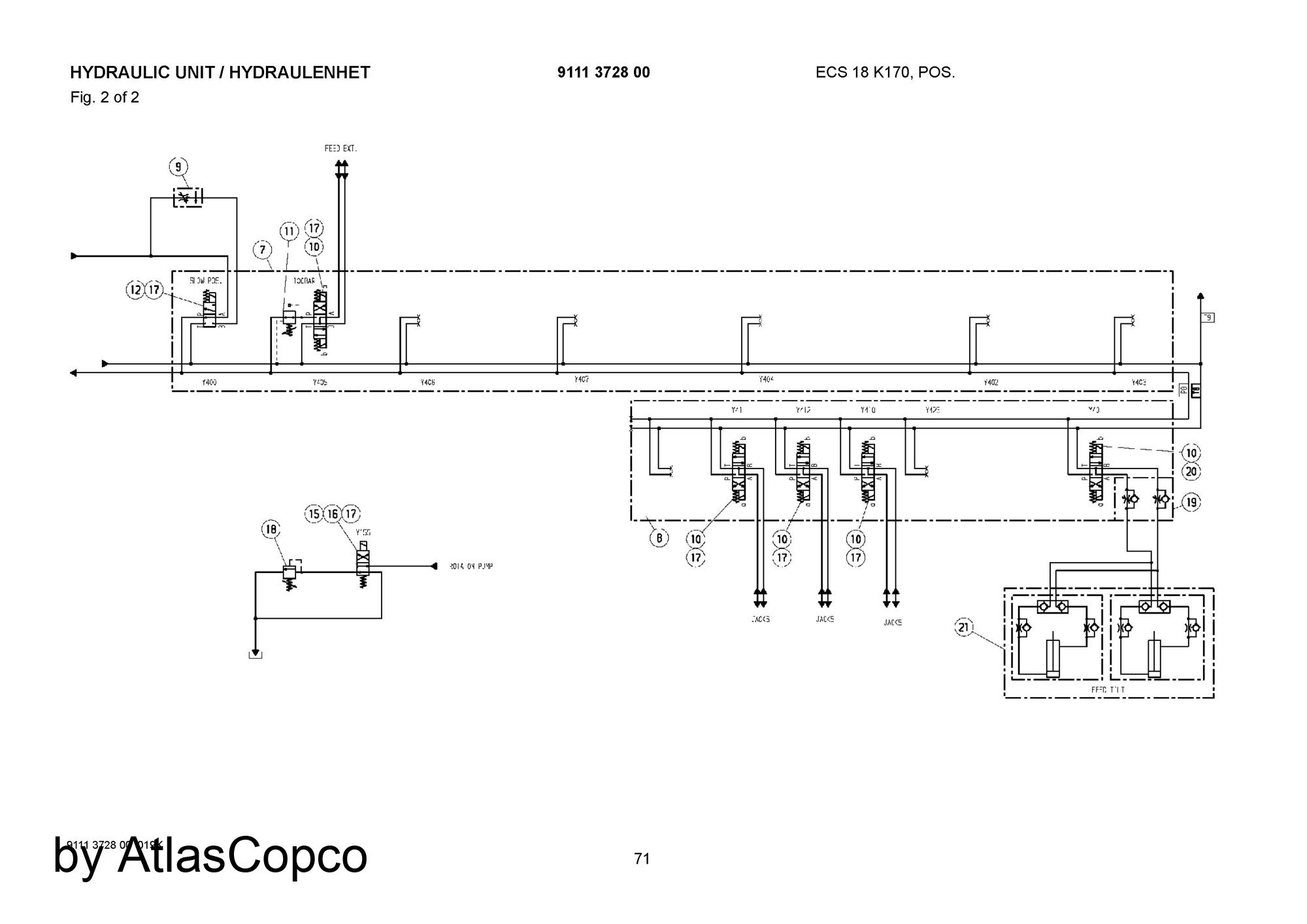

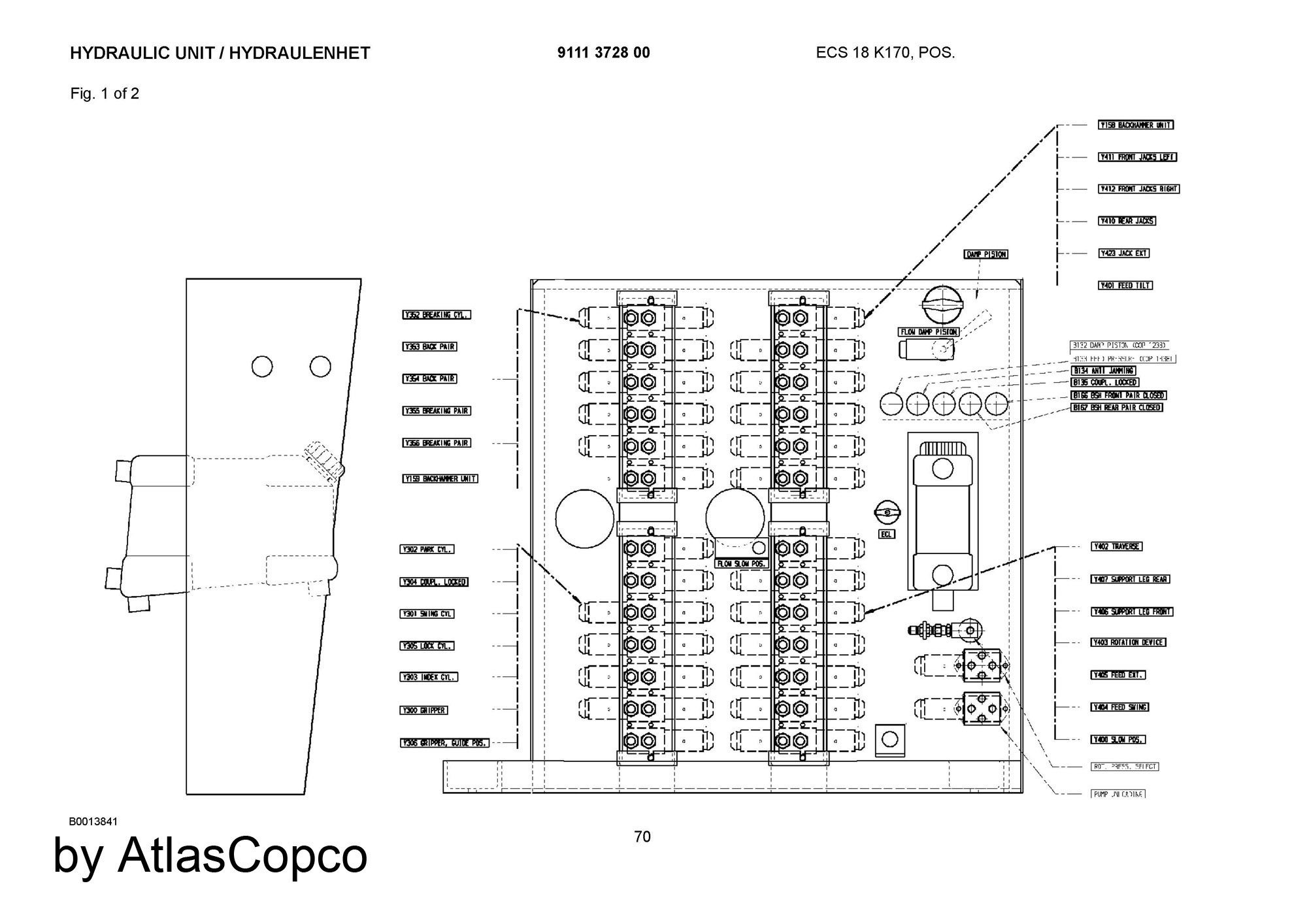

SIMAB H1252 HYDRAULIC UNIT #15683
SIMAB H1252 HYDRAULIC UNIT
ads
Ref
Parts Num
Name
0
9111372800
HYDRAULIC UNIT
5
0147132303
SCREW. HEX HEAD
6
0291112818
LOCK NUT
7
3217906007
CONNECT. PLATE
8
3217906006
CONNECT. PLATE
9
3217919301
REGULATOR
10
3177309283
DIRECTION VALVE
11
3214871280
PRESS.RED.VALVE
12
3177309289
DIRECTION VALVE
15
3177309288
DIRECTION VALVE
16
3176205300
CONNECT. PLATE
17
0211121503
SCREW
18
3217996421
PRESS.REL.VALVE
19
3217977300
FLOW CONT.VALVE
20
4090063000
HEX SOCK. SCREW
21
3176814993
RESTRICTION SET
SIMAB H1252 HYDRAULIC UNIT #15815
SIMAB H1252 HYDRAULIC UNIT
ads
Ref
Parts Num
Name
0
9111373100
HYDRAULIC UNIT
2
9111372903
PANEL
3
9111372901
SLIDE
4
9111372902
RUBBER CLOTH
5
0147132303
SCREW. HEX HEAD
6
0291112818
LOCK NUT
7
9111377000
VALVE BLOCK
10
3177307700
CONNECT. PLATE
11
0211121503
SCREW
16
3177303200
PRESSURE GAUGE
17
3217996602
DIRECTION VALVE
18
3177314700
PRESSURE GAUGE
19
3217651301
RESTRICTION
20
0823005024
CHECK VALVE
21
3216888300
THROTTLE VALVE
22
3217996603
DIRECTION VALVE
23
3176837700
SHUTTLE VALVE
24
3177503100
PRESSURE GAUGE
27
3177309288
DIRECTION VALVE
28
3217933730
PRESS.REL.VALVE
29
3176205300
CONNECT. PLATE
30
0211121103
SCREW
SIMAB H1252 HYDRAULIC UNIT #16086
SIMAB H1252 HYDRAULIC UNIT
ads
Ref
Parts Num
Name
0
9111373100
HYDRAULIC UNIT
2
9111372903
PANEL
3
9111372901
SLIDE
4
9111372902
RUBBER CLOTH
5
0147132303
SCREW. HEX HEAD
6
0291112818
LOCK NUT
7
9111377000
VALVE BLOCK
10
3177307700
CONNECT. PLATE
11
0211121503
SCREW
16
3177303200
PRESSURE GAUGE
17
3217996602
DIRECTION VALVE
18
3177314700
PRESSURE GAUGE
19
3217651301
RESTRICTION
20
0823005024
CHECK VALVE
21
3216888300
THROTTLE VALVE
22
3217996603
DIRECTION VALVE
23
3176837700
SHUTTLE VALVE
24
3177503100
PRESSURE GAUGE
27
3177309288
DIRECTION VALVE
28
3217933730
PRESS.REL.VALVE
29
3176205300
CONNECT. PLATE
30
0211121103
SCREW
SIMAB H1252 HYDRAULIC UNIT #16163
SIMAB H1252 HYDRAULIC UNIT
ads
Ref
Parts Num
Name
0
9111372800
HYDRAULIC UNIT
5
0147132303
SCREW. HEX HEAD
6
0291112818
LOCK NUT
7
3217906007
CONNECT. PLATE
8
3217906006
CONNECT. PLATE
9
3217919301
REGULATOR
10
3177309283
DIRECTION VALVE
11
3214871280
PRESS.RED.VALVE
12
3177309289
DIRECTION VALVE
15
3177309288
DIRECTION VALVE
16
3176205300
CONNECT. PLATE
17
0211121503
SCREW
18
3217996421
PRESS.REL.VALVE
19
3217977300
FLOW CONT.VALVE
20
4090063000
HEX SOCK. SCREW
21
3176814993
RESTRICTION SET

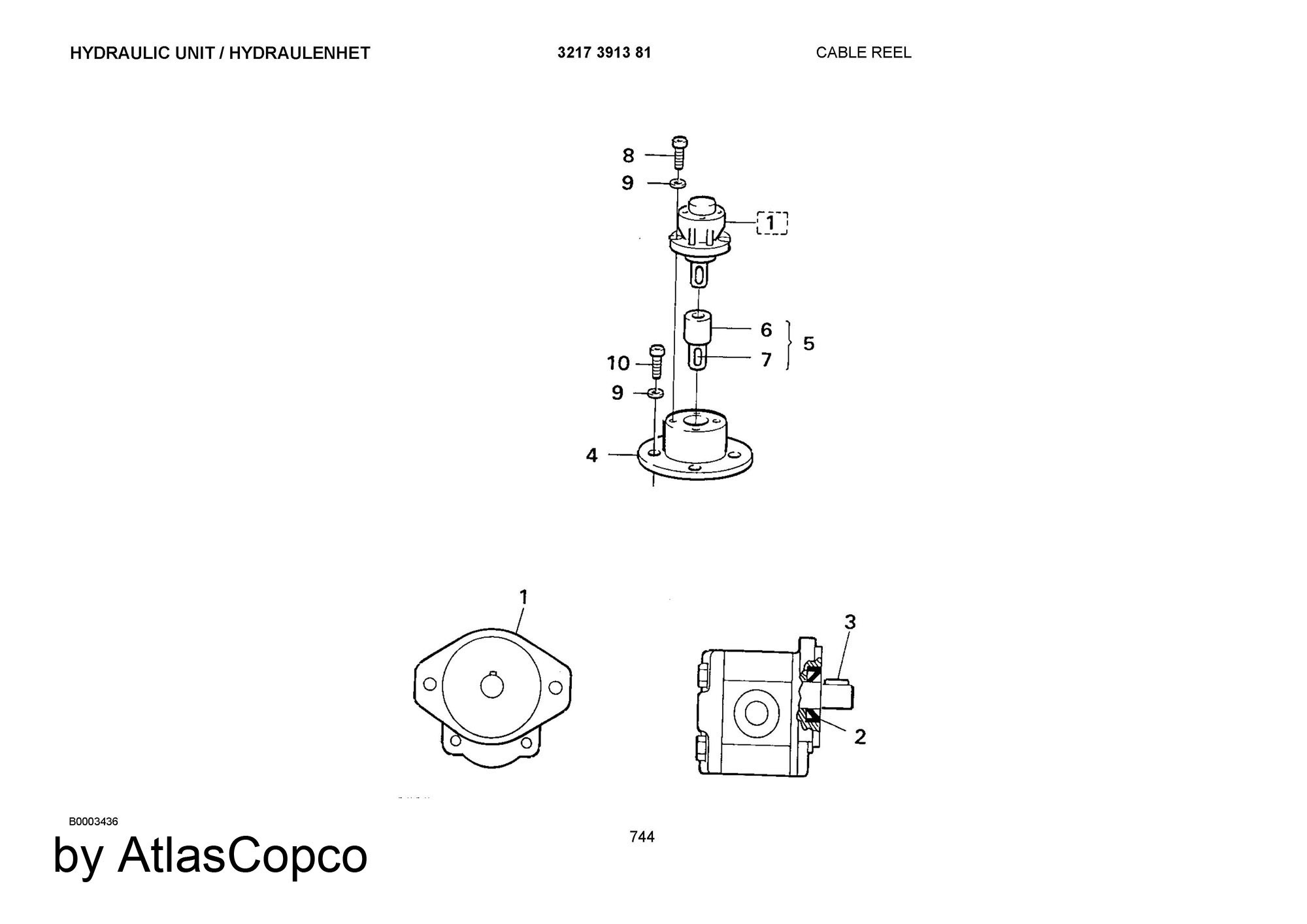

SIMAB H1252 HYDRAULIC UNIT #16402
SIMAB H1252 HYDRAULIC UNIT
ads
Ref
Parts Num
Name
0
3217391381
HYDRAULIC UNIT
1
3217903420
HYDRAULIC MOTOR
2
0666600039
RADIAL LIP SEAL
3
3128306124
KEY
4
3217559901
INTERMED.FLANGE
5
9106143880
SET
6
3217391701
BUSHING
7
3217391702
KEY
8
0147136203
SCREW. HEX HEAD
9
0301234400
PLAIN WASHER
10
0147136003
SCREW. HEX HEAD
