SIMAB H1252 Pages
1. EPIROC - SIMAB H1252 JUNCTION BOX #14214
2. EPIROC - SIMAB H1252 JUNCTION BOX #14279
3. EPIROC - SIMAB H1252 JUNCTION BOX #14345
4. EPIROC - SIMAB H1252 JUNCTION BOX #15421
5. EPIROC - SIMAB H1252 JUNCTION BOX #15691
6. EPIROC - SIMAB H1252 JUNCTION BOX #16346
7. EPIROC - SIMAB H1252 JUNCTION BOX #16350
8. EPIROC - SIMAB H1252 JUNCTION BOX #16371
9. EPIROC - SIMAB H1252 JUNCTION BOX #19908

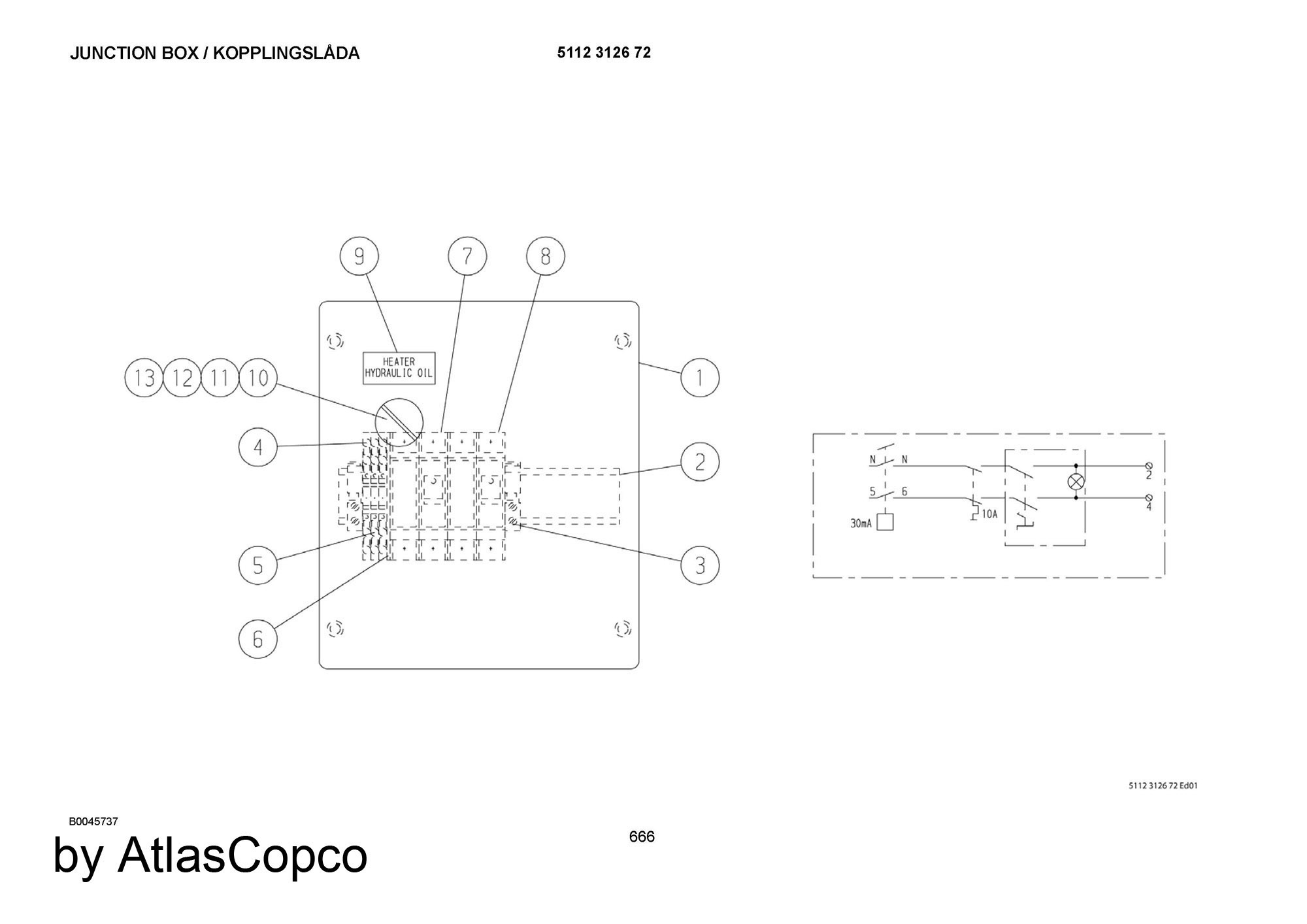

SIMAB H1252 JUNCTION BOX #14214
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112312672
JUNCTION BOX
1
5112312663
JUNCTION BOX
2
3176436308
MOUNTING RAIL
3
3176404951
END SUPPORT
4
3176404900
TERMINAL BLOCK
5
3176404903
TERMINAL BLOCK
6
3176404901
END PLATE
7
3176425802
MIN CIRC BREAK
8
3217987302
EARTHFAULTRELAY
9
5112312845
PLATE
10
3217001031
PALM GRIP
11
3217001072
INTERMED. PART
12
3217001068
LAMP INSERT
13
3217001073
CONTACT BLOCK
SIMAB H1252 JUNCTION BOX #14279
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
9111367610
JUNCTION BOX
1
9111367600
BOX
2
0698514060
CABLE GLAND
5
3214018100
MOUNTING RAIL
6
3176436308
MOUNTING RAIL
8
3176404921
END PLATE
9
3176404952
END SUPPORT
10
3176404925
BRIDGE CONN.
11
3176404951
END SUPPORT
13
3128307403
HOUSING
14
3217840200
FRAME
15
3217840300
SLEEVE
16
3217839900
PIN INSERT
19
3177702413
HOUSING
20
3217826700
SLEEVE INSERT
21
3217827800
SLEEVE
22
3217827710
GUIDE SLEEVE
23
3217827711
GUIDE PIN
30
3217826500
FUSE HOLDER
31
3176415600
FUSE
32
1089903710
FUSE
33
0694498001
WIRE MARKER
34
9138500084
WIRE MARKER
35
9138500141
WIRE MARKER
36
9138500142
WIRE MARKER
37
9138500143
WIRE MARKER
38
9138500085
WIRE MARKER
39
9138500086
WIRE MARKER
40
9138500087
WIRE MARKER
41
0697981018
END PLUG
44
0698514061
CABLE GLAND
45
0697981019
END PLUG
46
3176404907
TERMINAL BLOCK
47
3176404901
END PLATE
48
3176404990
MARKING PLATE
49
3176404994
MARKING PLATE
50
3176404995
MARKING PLATE
51
3176449102
MARKING PLATE
51
3176449101
MARKING PLATE
52
3176449104
MARKING PLATE
52
3176449103
MARKING PLATE
54
3176404920
TERMINAL BLOCK
55
3176404900
TERMINAL BLOCK
56
0129310100
BLIND RIVET
57
0147120803
SCREW. HEX HEAD
58
0291112814
LOCK NUT
SIMAB H1252 JUNCTION BOX #14345
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112316914
JUNCTION BOX
1
5112316916
DRILLED BOX
2
3176436308
MOUNTING RAIL
3
0160124400
SCREW. SLOTTED
5
0147132203
SCREW. HEX HEAD
6
0301233500
PLAIN WASHER
7
3176404951
END SUPPORT
8
3176404900
TERMINAL BLOCK
9
3176404901
END PLATE
10
3176404911
TERMINAL BLOCK
11
3176404912
END PLATE
12
3176404913
BRIDGE CONN.
13
3176449102
MARKING PLATE
13
3176449101
MARKING PLATE
14
3176404961
MARKING PLATE
15
5112304310
FUSE CON. TERM.
16
5112304312
MARKING PLATE
17
5112304316
FUSE
18
0017206070
CABLE. 1CORE
19
0017206040
CABLE. 1CORE
20
5112221604
EARTH TERMINAL
21
0226035107
TAPPING SCREW
23
0129320700
BLIND RIVET

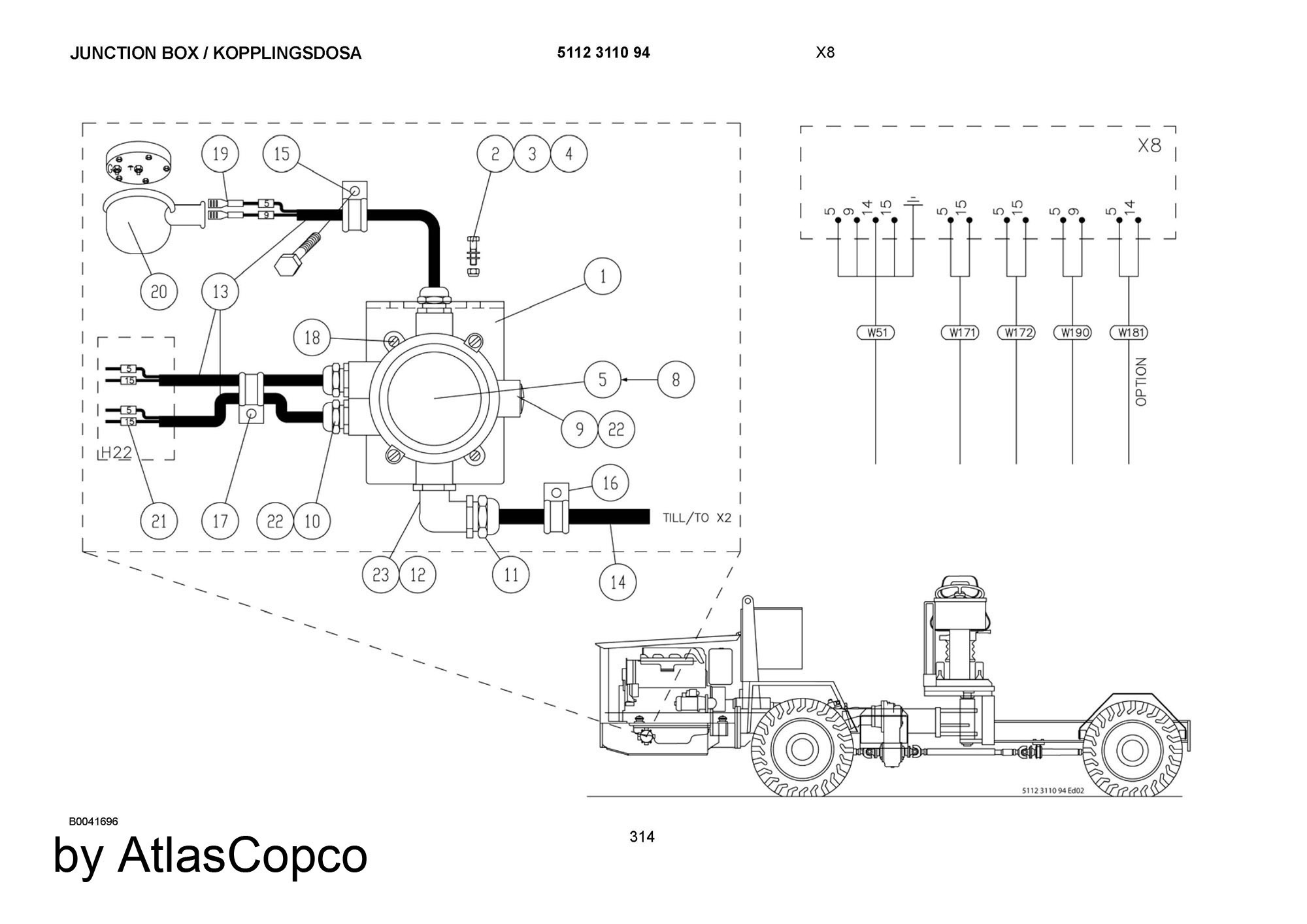

SIMAB H1252 JUNCTION BOX #15421
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112311094
JUNCTION BOX
1
5112241100
BRACKET
2
0147132603
SCREW. HEX HEAD
3
0301233500
PLAIN WASHER
4
0291112818
LOCK NUT
5
1089022701
JUNCTION BOX
6
0663613900
ORING
7
0160603900
SCREW. SLOTTED
8
5118092900
COUPLING LIST
9
0697981018
END PLUG
10
0698514060
CABLE GLAND
11
0698514061
CABLE GLAND
12
0697974531
ADAPTER
13
9111389144
CABLE. 2CORE
14
9111389110
CABLE. 5CORE
15
0346100202
PIPE CLAMP
16
0346100204
PIPE CLAMP
17
0346100209
PIPE CLAMP
18
0226032600
TAPPING SCREW
19
1088000301
FLAT PIN SLEEVE
20
5118090500
RUBBER PROTEC
21
0699100900
MARKING SLEEVE
21
0699100500
MARKING SLEEVE
21
0699100400
MARKING SLEEVE
21
0699100100
MARKING SLEEVE
22
0697974566
ADAPTER
24
0697980914
LOCK NUT
25
5104088700
CABLE TIES

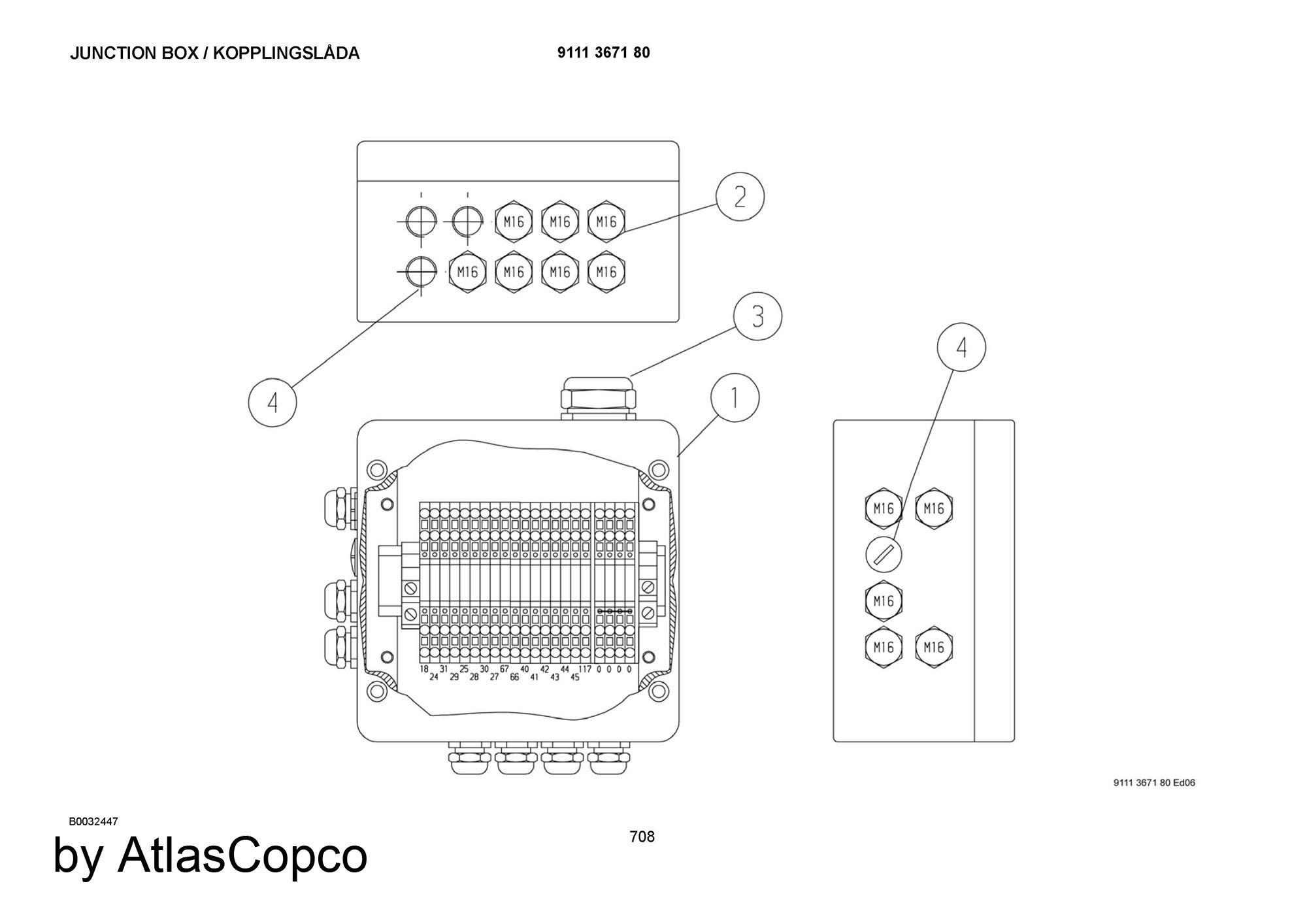

SIMAB H1252 JUNCTION BOX #15691
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
9111367180
JUNCTION BOX
1
9111367110
JUNCTION BOX
2
0698514140
CABLE GLAND
3
0698514063
CABLE GLAND
4
0697981018
END PLUG
5
0698514062
CABLE GLAND
10
3176449101
MARKING PLATE
10
3176449102
MARKING PLATE
11
3176404990
MARKING PLATE
SIMAB H1252 JUNCTION BOX #16346
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112311095
JUNCTION BOX
5
1089022701
JUNCTION BOX
6
0663613900
ORING
7
0160603900
SCREW. SLOTTED
8
5118092900
COUPLING LIST
9
0697981018
END PLUG
10
0698514060
CABLE GLAND
11
0698514061
CABLE GLAND
12
0697974531
ADAPTER
13
3217988204
CONNECTOR
14
9111389110
CABLE. 5CORE
15
0346100202
PIPE CLAMP
16
0346100204
PIPE CLAMP
17
0346100209
PIPE CLAMP
18
0226032600
TAPPING SCREW
19
0699100500
MARKING SLEEVE
19
0699100800
MARKING SLEEVE
19
0699100700
MARKING SLEEVE
19
0699100600
MARKING SLEEVE
19
0699100100
MARKING SLEEVE
20
0697974566
ADAPTER
22
0697980914
LOCK NUT
23
5104088700
CABLE TIES

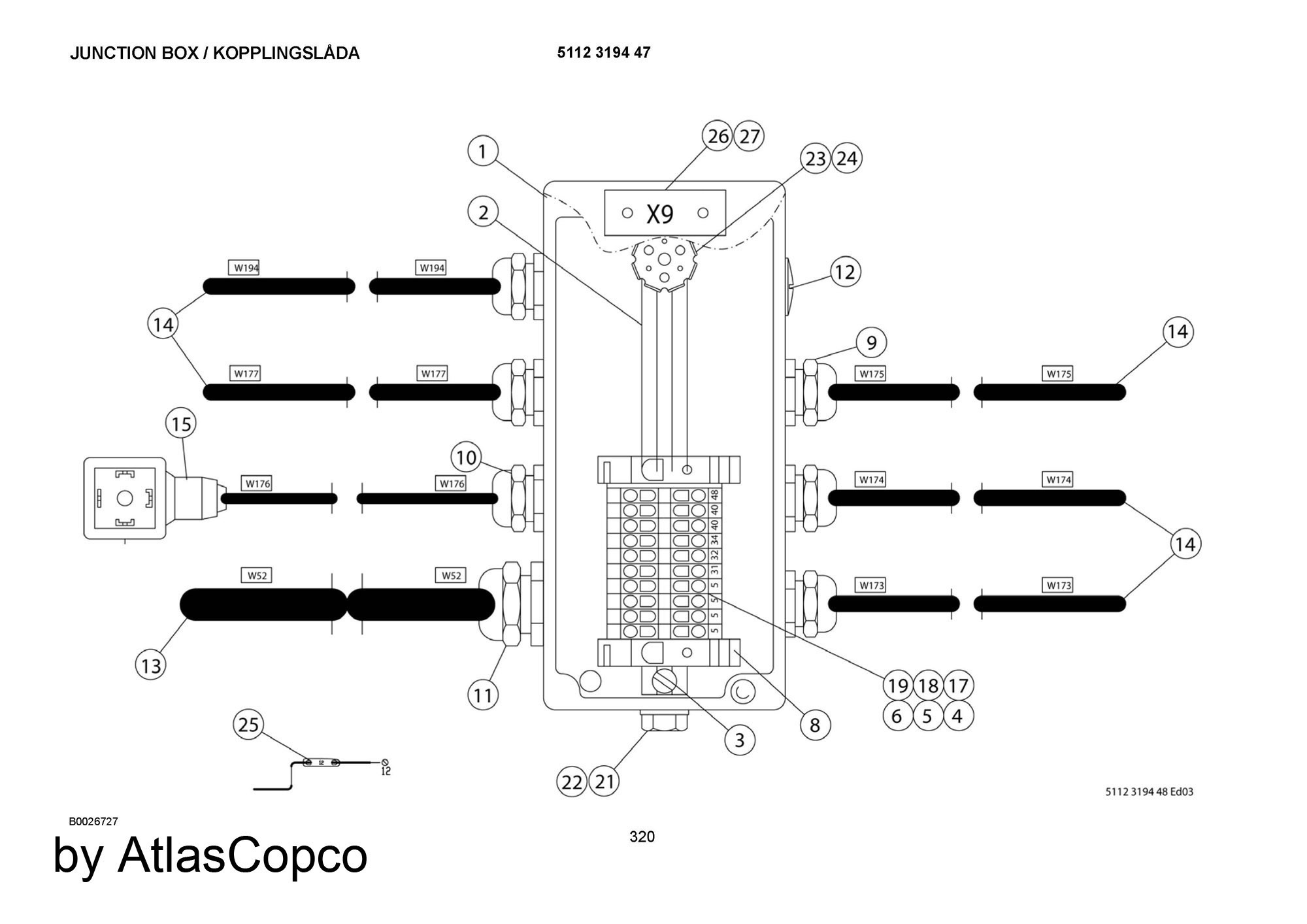

SIMAB H1252 JUNCTION BOX #16350
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112319447
JUNCTION BOX
1
5112000664
DRILLED BOX
2
3214018100
MOUNTING RAIL
3
0160603600
SCREW. SLOTTED
4
3176404920
TERMINAL BLOCK
5
3176404921
END PLATE
6
3176404925
BRIDGE CONN.
8
3176404952
END SUPPORT
9
0698514060
CABLE GLAND
10
0698514140
CABLE GLAND
11
0698514061
CABLE GLAND
12
0697981018
END PLUG
13
9111389113
CABLE. 7CORE
14
9111389144
CABLE. 2CORE
15
3217988204
CONNECTOR
17
3176404964
MARKING PLATE
18
3176404965
MARKING PLATE
19
3176404991
MARKING PLATE
21
0147132203
SCREW. HEX HEAD
22
0301233500
PLAIN WASHER
23
5112221604
EARTH TERMINAL
24
0226035107
TAPPING SCREW

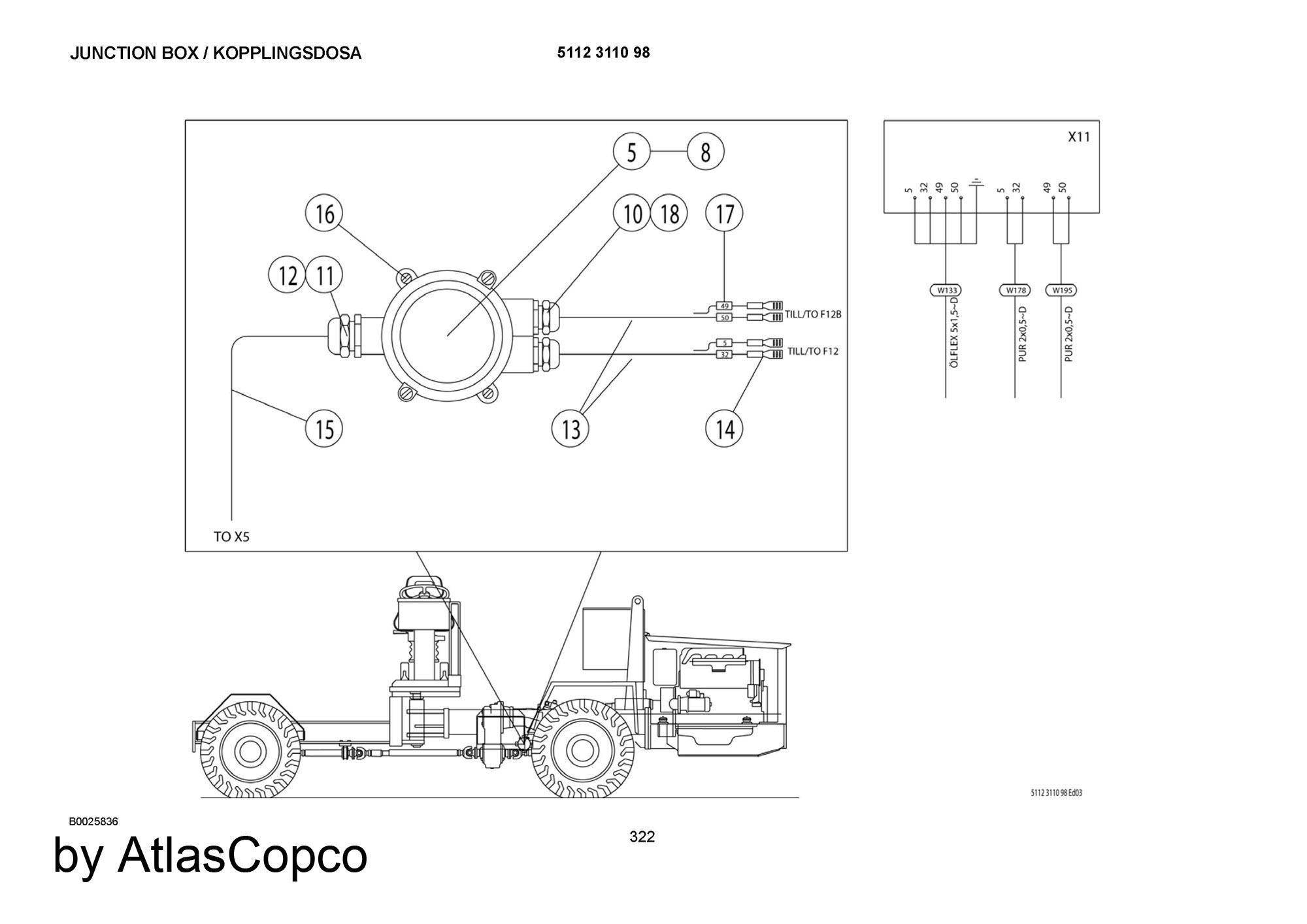

SIMAB H1252 JUNCTION BOX #16371
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
5112311098
JUNCTION BOX
5
0698520500
JUNCTION BOX
6
0663613900
ORING
7
0160603900
SCREW. SLOTTED
8
5118092900
COUPLING LIST
10
0698514060
CABLE GLAND
11
0698514061
CABLE GLAND
12
0697974531
ADAPTER
13
9111389144
CABLE. 2CORE
14
1088000301
FLAT PIN SLEEVE
15
9111389110
CABLE. 5CORE
16
0226032600
TAPPING SCREW
17
0699100300
MARKING SLEEVE
17
0699100000
MARKING SLEEVE
17
0699100500
MARKING SLEEVE
17
0699100400
MARKING SLEEVE
17
0699100200
MARKING SLEEVE
18
0697974566
ADAPTER
19
5112311160
PROTECTION HOSE
20
3222300978
PROTECTION HOSE
21
0346100013
CLAMP
SIMAB H1252 JUNCTION BOX #19908
SIMAB H1252 JUNCTION BOX
ads
Ref
Parts Num
Name
0
9111367101
JUNCTION BOX
0
9111367110
JUNCTION BOX
1
3176404900
TERMINAL BLOCK
2
3176404951
END SUPPORT
3
3176404901
END PLATE
4
3176404902
BRIDGE CONN.
5
3176436308
MOUNTING RAIL
