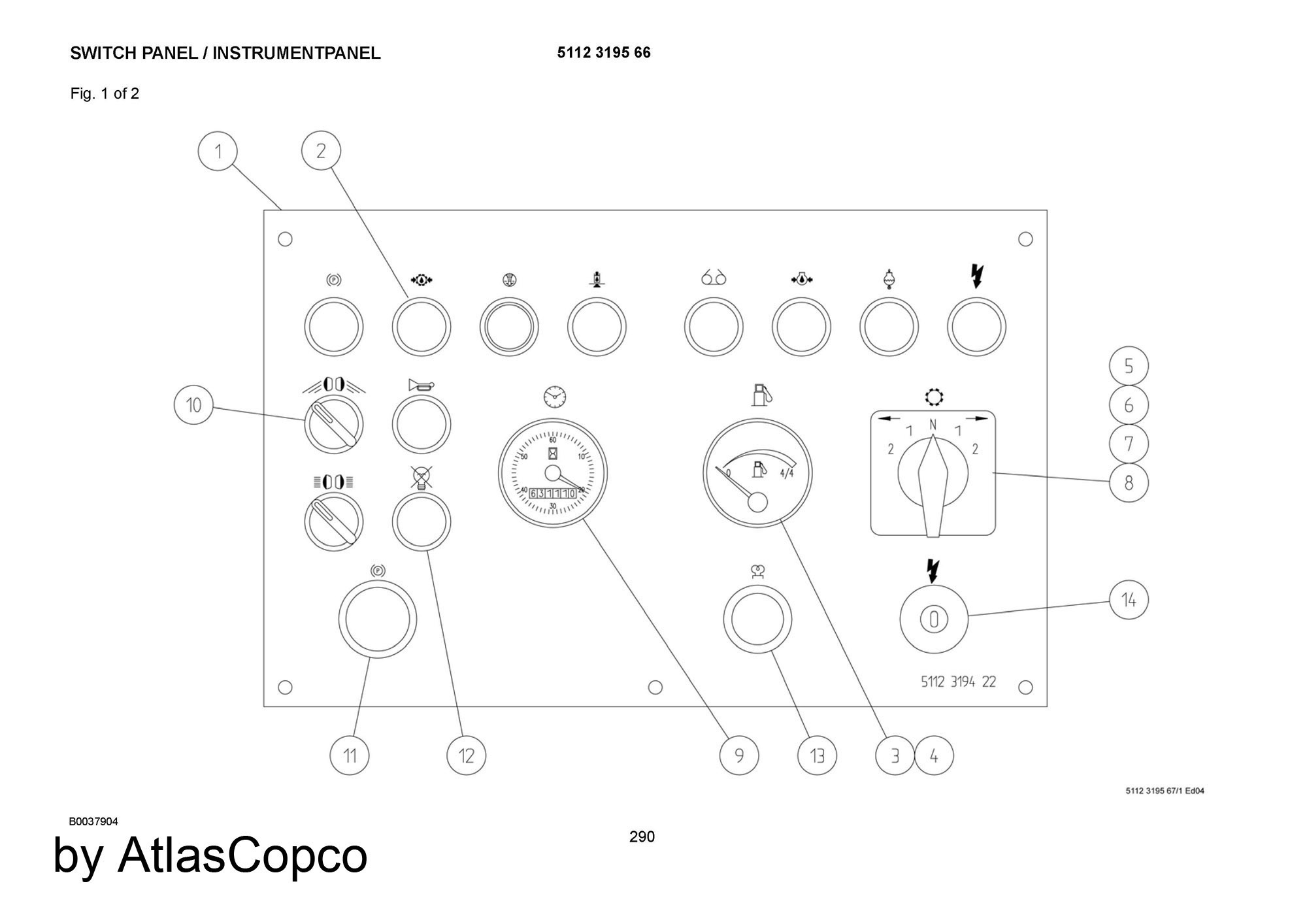

SIMAB H1252 SWITCH PANEL #15492
SIMAB H1252 SWITCH PANEL
ads
Ref
Parts Num
Name
0
5112319566
SWITCH PANEL
2
3217001205
INDICATION LAMP
3
5112313768
FUEL GAUGE
4
3176415800
BULB
5
5112255200
GEAR CONTROL
6
0162417400
SCREW. SLOTTED
7
0291112813
LOCK NUT
8
0301231500
PLAIN WASHER
10
3217001211
SWITCH
11
3217001235
MUSHROOM PUSHB.
12
3217000034
PUSH BUTTON
13
3176417004
HEATER INDICAT.
14
3176451100
IGNITION LOCK
19
5112254700
RELAY SHELF
20
3176413000
RELAY
21
0291112814
LOCK NUT
22
0301231800
PLAIN WASHER
23
0147120503
SCREW. HEX HEAD
24
5118090500
RUBBER PROTEC
25
3176000145
WARNING BUZZER
26
0147132203
SCREW. HEX HEAD
27
0291112818
LOCK NUT
28
5112304333
DIODE UNIT
29
3137167100
DIODE UNIT
30
3176449203
MIN CIRC BREAK
31
3176449202
MIN CIRC BREAK
32
3217958301
RELAY
33
3176404932
TERMINAL BLOCK
34
3176404934
BRIDGE CONN.
35
3176404938
END PLATE
36
3176404930
TERMINAL BLOCK
37
3176404925
BRIDGE CONN.
38
3176404951
END SUPPORT
39
0017206070
CABLE. 1CORE
40
0017206050
CABLE. 1CORE
41
0017206040
CABLE. 1CORE
42
5112242500
EDGE LIST
43
5112221604
EARTH TERMINAL
44
0226035107
TAPPING SCREW
48
5112263300
CUSHION
49
0147124603
SCREW. HEX HEAD
50
3176434402
PIN INSERT
51
3176434301
HOUSING
53
0160604200
SCREW. SLOTTED
54
3217001207
PUSH BUTTON
55
5112304599
PLATE
56
9106107100
READ INSTR.BOOK
57
0129310400
BLIND RIVET
58
0698514061
CABLE GLAND
59
0697981018
END PLUG
60
0697981019
END PLUG
61
0697981020
END PLUG

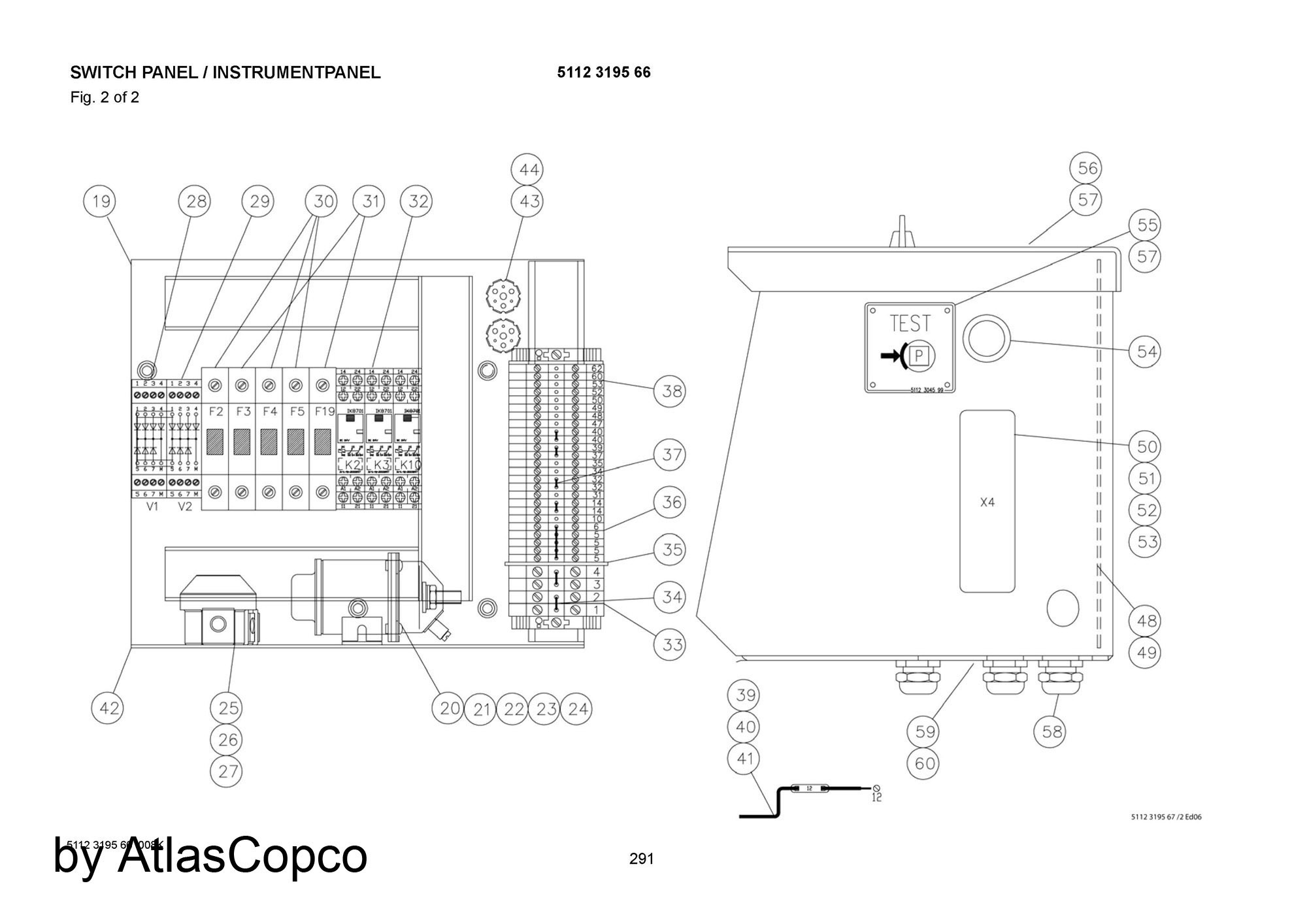

SIMAB H1252 SWITCH PANEL #15569
SIMAB H1252 SWITCH PANEL
ads
Ref
Parts Num
Name
0
5112319566
SWITCH PANEL
2
3217001205
INDICATION LAMP
3
5112313768
FUEL GAUGE
4
3176415800
BULB
5
5112255200
GEAR CONTROL
6
0162417400
SCREW. SLOTTED
7
0291112813
LOCK NUT
8
0301231500
PLAIN WASHER
10
3217001211
SWITCH
11
3217001235
MUSHROOM PUSHB.
12
3217000034
PUSH BUTTON
13
3176417004
HEATER INDICAT.
14
3176451100
IGNITION LOCK
19
5112254700
RELAY SHELF
20
3176413000
RELAY
21
0291112814
LOCK NUT
22
0301231800
PLAIN WASHER
23
0147120503
SCREW. HEX HEAD
24
5118090500
RUBBER PROTEC
25
3176000145
WARNING BUZZER
26
0147132203
SCREW. HEX HEAD
27
0291112818
LOCK NUT
28
5112304333
DIODE UNIT
29
3137167100
DIODE UNIT
30
3176449203
MIN CIRC BREAK
31
3176449202
MIN CIRC BREAK
32
3217958301
RELAY
33
3176404932
TERMINAL BLOCK
34
3176404934
BRIDGE CONN.
35
3176404938
END PLATE
36
3176404930
TERMINAL BLOCK
37
3176404925
BRIDGE CONN.
38
3176404951
END SUPPORT
39
0017206070
CABLE. 1CORE
40
0017206050
CABLE. 1CORE
41
0017206040
CABLE. 1CORE
42
5112242500
EDGE LIST
43
5112221604
EARTH TERMINAL
44
0226035107
TAPPING SCREW
48
5112263300
CUSHION
49
0147124603
SCREW. HEX HEAD
50
3176434402
PIN INSERT
51
3176434301
HOUSING
53
0160604200
SCREW. SLOTTED
54
3217001207
PUSH BUTTON
55
5112304599
PLATE
56
9106107100
READ INSTR.BOOK
57
0129310400
BLIND RIVET
58
0698514061
CABLE GLAND
59
0697981018
END PLUG
60
0697981019
END PLUG
61
0697981020
END PLUG
