SIMBA H1254 HYDR. SYSTEM #9898
SIMBA H1254 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
5112287785
HYDR. SYSTEM
1
5112259500
PRESSURE SWITCH
7
0686644300
PLUG
14
0570501034
NIPPLE
17
3176542800
NIPPLE
20
0570501017
NIPPLE
21
3176264400
NIPPLE
26
0653105500
GASKET
27
3176656700
NIPPLE
28
3176650400
NIPPLE
29
3176293000
CAP NUT
30
0638052700
FLANGE HALF
31
3176664300
NIPPLE
33
3177306800
NIPPLE
34
5112287767
SHUTTLE VALVE
38
0570501018
NIPPLE
40
0653117400
GASKET
41
5112232800
BUSHING
42
3176656600
NIPPLE
43
0570501026
NIPPLE
45
3176652100
NIPPLE
47
0570509020
NIPPLE
48
3176650500
NIPPLE
50
3176657700
NIPPLE
51
3176659100
NIPPLE
52
3176293200
NIPPLE
59
3176733700
NIPPLE
60
3176678800
CAP NUT
61
3176667500
NIPPLE
66
0663918801
ORING
67
0638057100
FLANGE HALF
68
0211196081
SCREW
69
0663918201
ORING
70
0638056500
FLANGE HALF
71
0823005023
CHECK VALVE
72
5112259180
SEQUENCE VALVE
73
5112287777
BRAKE VALVE
74
5112259380
PEDAL
75
5112292101
PRESSURE SWITCH
78
5112262200
PRESS.TAKE OFF
90
5112315100
HYDRAULIC PUMP
91
5112287742
HYDRAULIC MOTOR
92
5112287826
GEAR PUMP
93
5112257080
HYDR. CYLINDER
95
0211196082
SCREW
96
5112294900
PROTECT. COVER
98
5112302343
PRESSURE SWITCH
104
3176657600
NIPPLE
105
5112291500
ACCUMULATOR
106
5112302450
ACCUMULAT.BLOCK
108
0603422500
HEXAGON NIPPLE
109
3176651400
NIPPLE

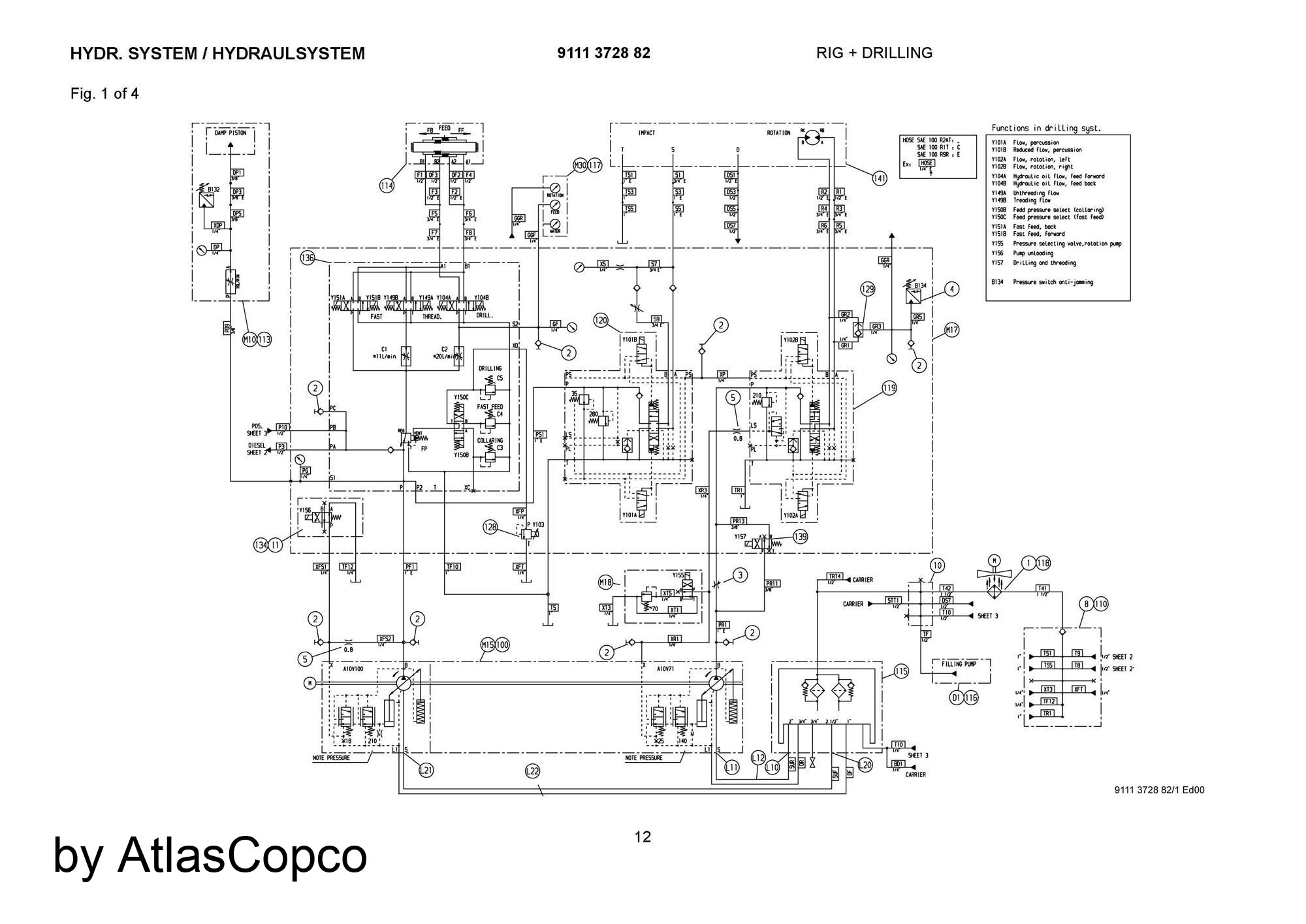

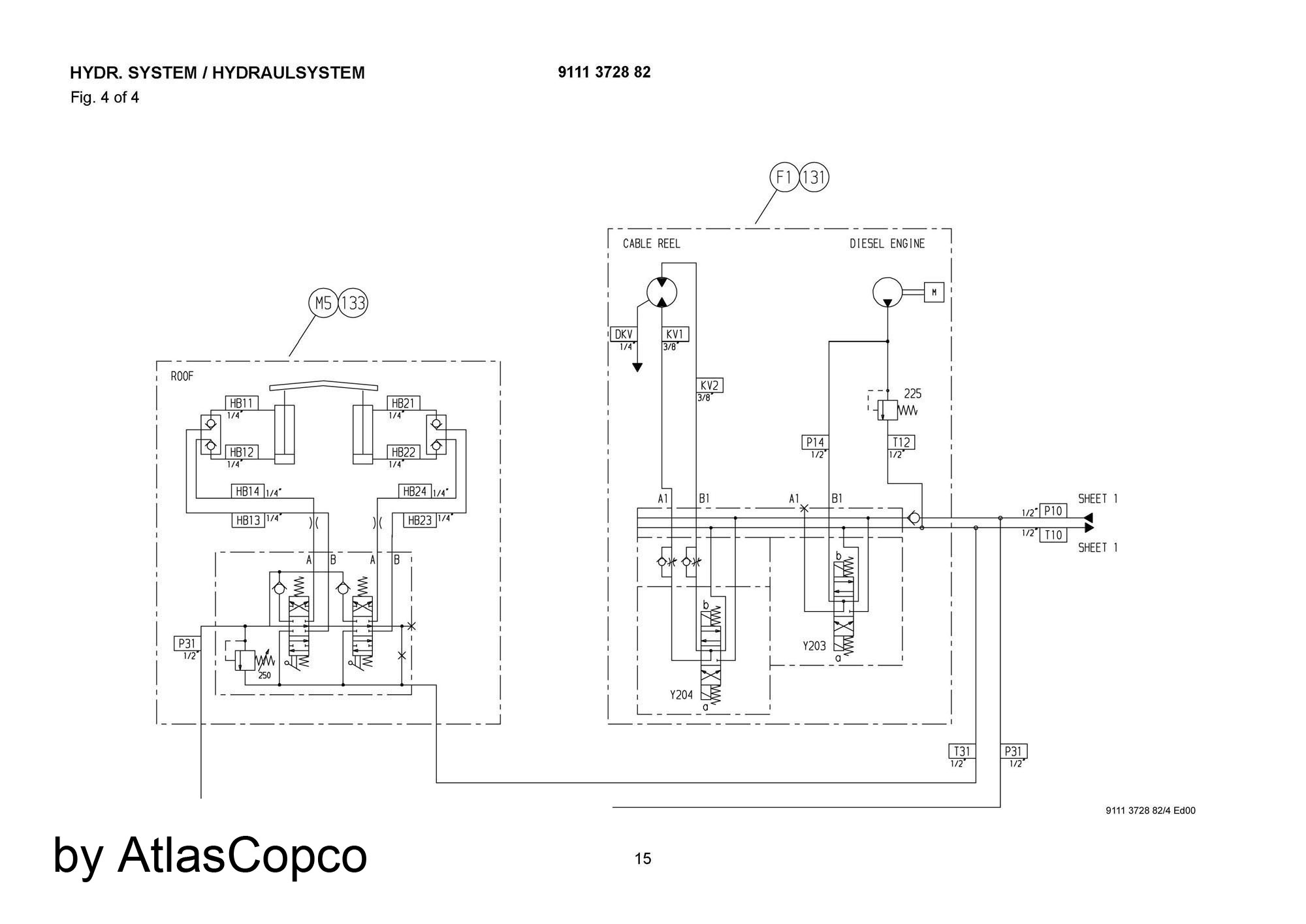

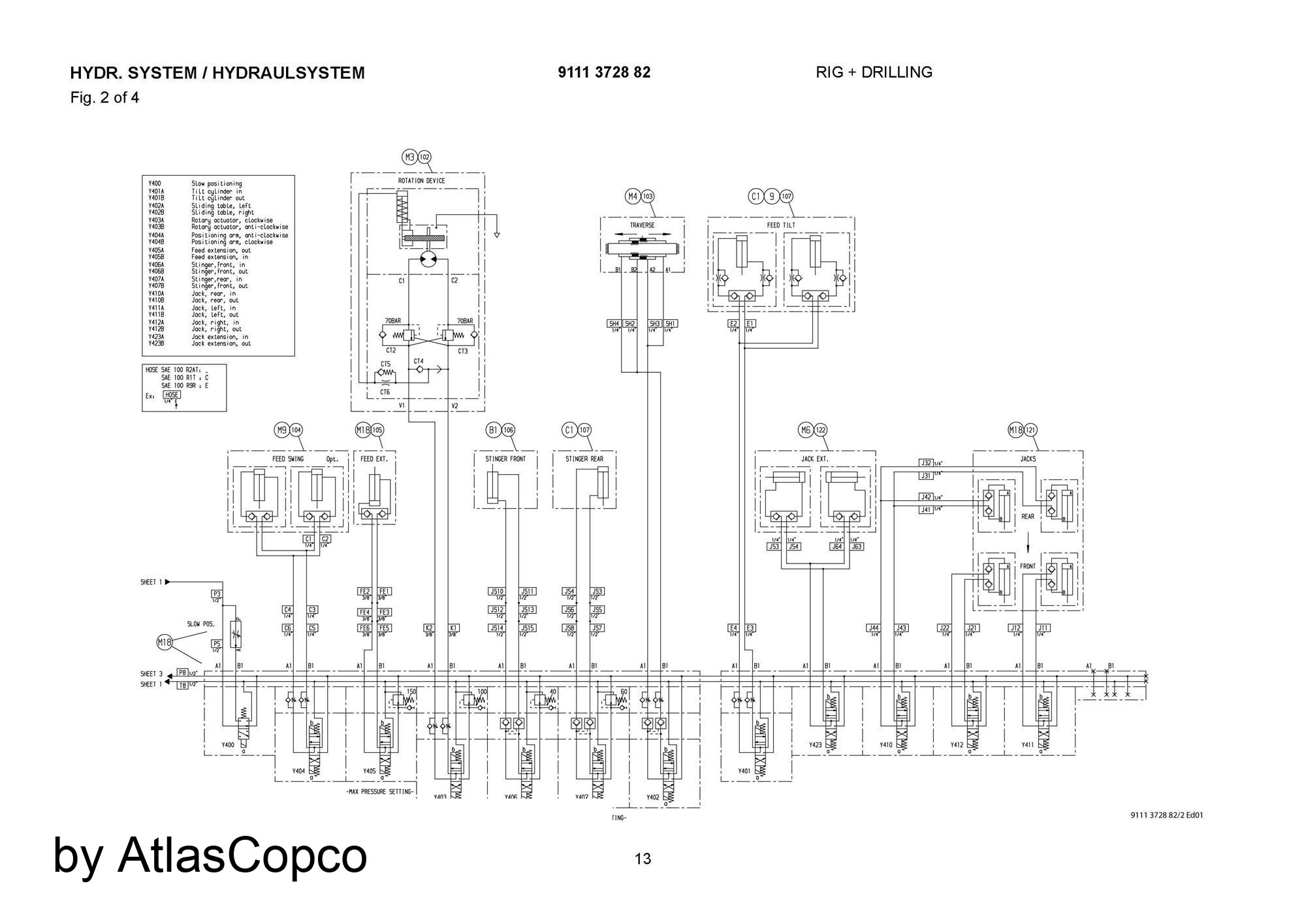

SIMBA H1254 HYDR. SYSTEM #17323
SIMBA H1254 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9111372882
HYDR. SYSTEM
3
3216888300
THROTTLE VALVE
4
3217994600
PRESSURE SWITCH
6
0823005021
CHECK VALVE
M6
9111333700
HYDR. SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
7
3176590100
BRANCH BLOCK
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
E1
9111351602
HYDRAULIC SET
D1
9110909602
FILLER SET
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
M4
9111333301
HYDR. SET
L10
9106065873
SUCT.CONNECTION
8
3176293510
RETURN BLOCK
M3
9111401717
HYDRAULIC SET
SIMBA H1254 HYDR. SYSTEM #17477
SIMBA H1254 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9111372882
HYDR. SYSTEM
3
3216888300
THROTTLE VALVE
4
3217994600
PRESSURE SWITCH
6
0823005021
CHECK VALVE
M6
9111333700
HYDR. SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
7
3176590100
BRANCH BLOCK
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
E1
9111351602
HYDRAULIC SET
D1
9110909602
FILLER SET
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
M4
9111333301
HYDR. SET
L10
9106065873
SUCT.CONNECTION
8
3176293510
RETURN BLOCK
M3
9111401717
HYDRAULIC SET
SIMBA H1254 HYDR. SYSTEM #17501
SIMBA H1254 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9111372882
HYDR. SYSTEM
3
3216888300
THROTTLE VALVE
4
3217994600
PRESSURE SWITCH
6
0823005021
CHECK VALVE
M6
9111333700
HYDR. SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
7
3176590100
BRANCH BLOCK
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
E1
9111351602
HYDRAULIC SET
D1
9110909602
FILLER SET
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
M4
9111333301
HYDR. SET
L10
9106065873
SUCT.CONNECTION
8
3176293510
RETURN BLOCK
M3
9111401717
HYDRAULIC SET
SIMBA H1254 HYDR. SYSTEM #18016
SIMBA H1254 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9111372882
HYDR. SYSTEM
3
3216888300
THROTTLE VALVE
4
3217994600
PRESSURE SWITCH
6
0823005021
CHECK VALVE
M6
9111333700
HYDR. SET
M9
9111346800
HYDR. SET
B1
9111347001
HYDR. SET
C1
9111347101
HYDR. SET
F1
9111360003
HYDRAULIC SET
I1
9111360300
HYDRAULIC SET
M18
9111372800
HYDRAULIC UNIT
M17
9111373100
HYDRAULIC UNIT
7
3176590100
BRANCH BLOCK
L11
9106065872
SUCT.CONNECTION
M10
9111346900
HYDR. SET
E1
9111351602
HYDRAULIC SET
D1
9110909602
FILLER SET
L22
3217950400
HOSE
L12
3217950401
HOSE
M5
9106160960
HYDRAULIC SET
L10
9106065873
SUCT.CONNECTION
M4
9111333301
HYDR. SET
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
M3
9111401717
HYDRAULIC SET
