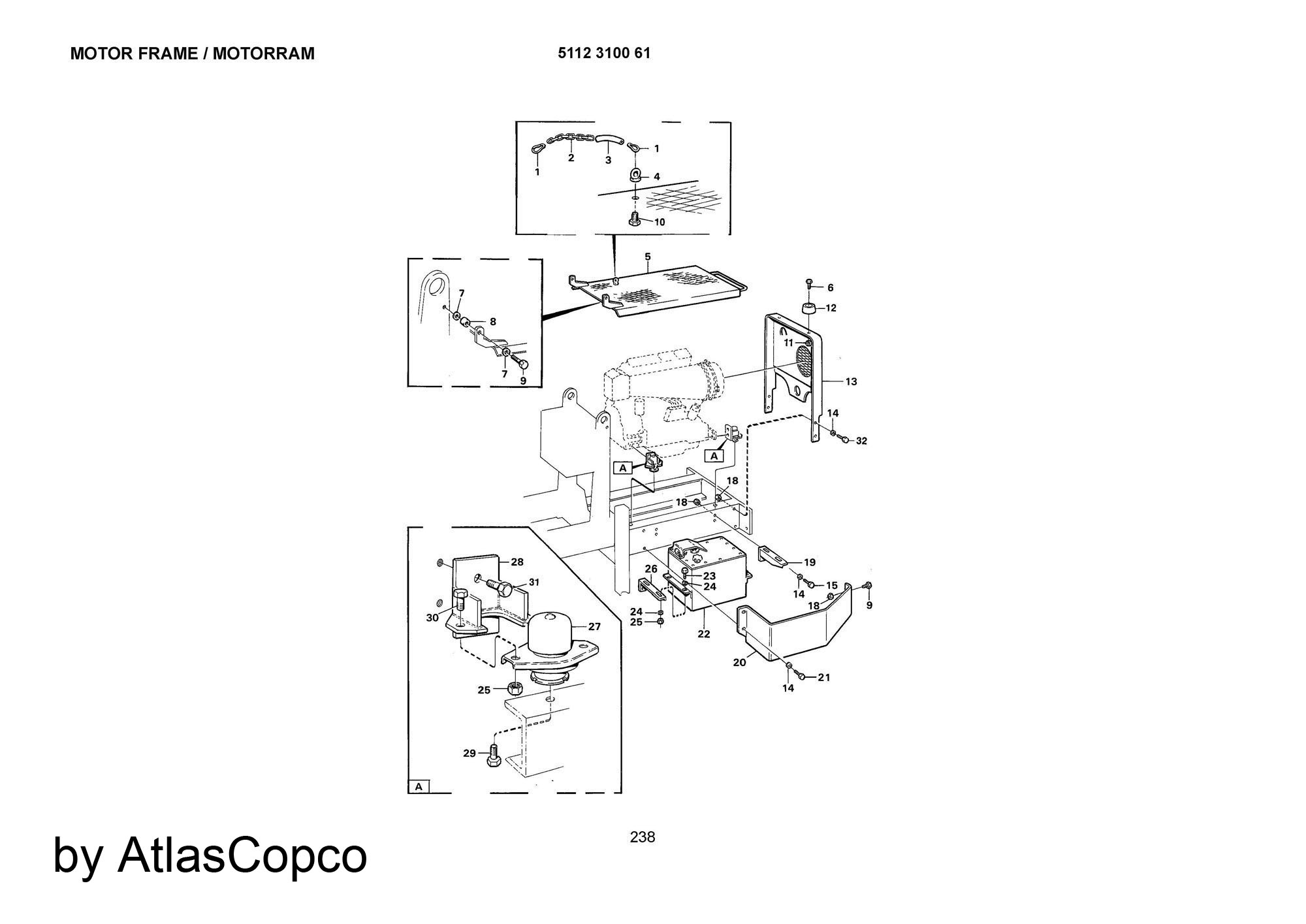

SIMBA H1254 MOTOR FRAME #9138
SIMBA H1254 MOTOR FRAME
ads
Ref
Parts Num
Name
0
5112310061
MOTOR FRAME
1
5112237000
HOOK
2
5112293500
CHAIN
3
9030050000
AIR HOSE
4
0371110006
LIFTING EYE
5
5112254200
MOTOR CAP
6
0160604300
SCREW. SLOTTED
8
0324125300
SPACER SLEEVE
12
5112294601
RUBBER BUFFER
13
5112253400
BACK HEAD
19
5112266600
BRACKET
20
5112266700
FRAME
22
5112253383
FUEL TANK
26
5112266500
BRACKET
27
5112264100
VIBR. DAMPER
28
5112264200
MOTOR BRACKET
SIMBA H1254 MOTOR FRAME #9207
SIMBA H1254 MOTOR FRAME
ads
Ref
Parts Num
Name
3
5112271500
MOTOR FRAME
4
0147155503
SCREW. HEX HEAD
6
5112303639
WAIST PIN
7
5112303638
PLAIN BEARING
8
0333611300
LOCK WASHER
9
0295311300
LOCK NUT
10
5112271000
ATTACHM. PLATE
12
5112209000
SAFETY DETAIL
13
5112209300
RING PIN
14
5112253800
SHAFT
15
0108139500
SPRING PIN
16
5112265000
SHAFT
