1. EPIROC - SIMBA H1254 SWITCH PANEL #11162
2. EPIROC - SIMBA H1254 SWITCH PANEL #11272

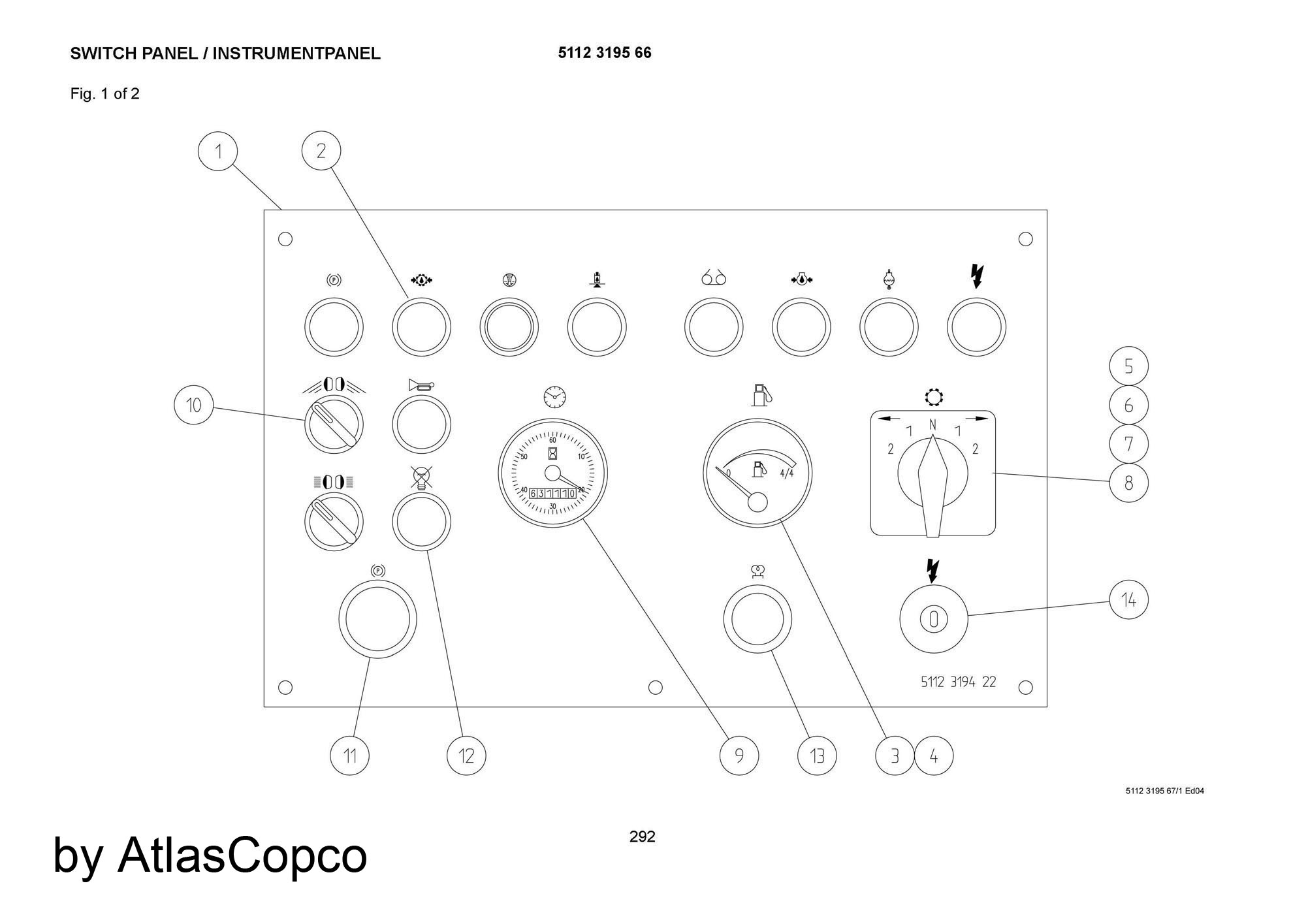

SIMBA H1254 SWITCH PANEL #11162
SIMBA H1254 SWITCH PANEL
ads
Ref
Parts Num
Name
0
5112319566
SWITCH PANEL
3
5112313768
FUEL GAUGE
4
3176415800
BULB
5
5112255200
GEAR CONTROL
6
0162417400
SCREW. SLOTTED
10
3217001211
SWITCH
11
3217001235
MUSHROOM PUSHB.
12
3217000034
PUSH BUTTON
13
3176417004
HEATER INDICAT.
14
3176451100
IGNITION LOCK
19
5112254700
RELAY SHELF
20
3176413000
RELAY
23
0147120503
SCREW. HEX HEAD
24
5118090500
RUBBER PROTEC
25
3176000145
WARNING BUZZER
28
5112304333
DIODE UNIT
29
3137167100
DIODE UNIT
31
3176449202
MIN CIRC BREAK
33
3176404932
TERMINAL BLOCK
34
3176404934
BRIDGE CONN.
35
3176404938
END PLATE
36
3176404930
TERMINAL BLOCK
42
5112242500
EDGE LIST
48
5112263300
CUSHION
50
3176434402
PIN INSERT
51
3176434301
HOUSING
54
3217001207
PUSH BUTTON
55
5112304599
PLATE
61
0697981020
END PLUG
SIMBA H1254 SWITCH PANEL #11272
SIMBA H1254 SWITCH PANEL
ads
Ref
Parts Num
Name
0
5112319566
SWITCH PANEL
3
5112313768
FUEL GAUGE
4
3176415800
BULB
5
5112255200
GEAR CONTROL
6
0162417400
SCREW. SLOTTED
10
3217001211
SWITCH
11
3217001235
MUSHROOM PUSHB.
12
3217000034
PUSH BUTTON
13
3176417004
HEATER INDICAT.
14
3176451100
IGNITION LOCK
19
5112254700
RELAY SHELF
20
3176413000
RELAY
23
0147120503
SCREW. HEX HEAD
24
5118090500
RUBBER PROTEC
25
3176000145
WARNING BUZZER
28
5112304333
DIODE UNIT
29
3137167100
DIODE UNIT
31
3176449202
MIN CIRC BREAK
33
3176404932
TERMINAL BLOCK
34
3176404934
BRIDGE CONN.
35
3176404938
END PLATE
36
3176404930
TERMINAL BLOCK
42
5112242500
EDGE LIST
48
5112263300
CUSHION
50
3176434402
PIN INSERT
51
3176434301
HOUSING
54
3217001207
PUSH BUTTON
55
5112304599
PLATE
61
0697981020
END PLUG
