SIMBA H1354 EPIROC New catalogs

SIMBA H1354 Pages

1. EPIROC - SIMBA H1354 ARM #11916

2. EPIROC - SIMBA H1354 ARM #12580

3. EPIROC - SIMBA H1354 ARM #13807

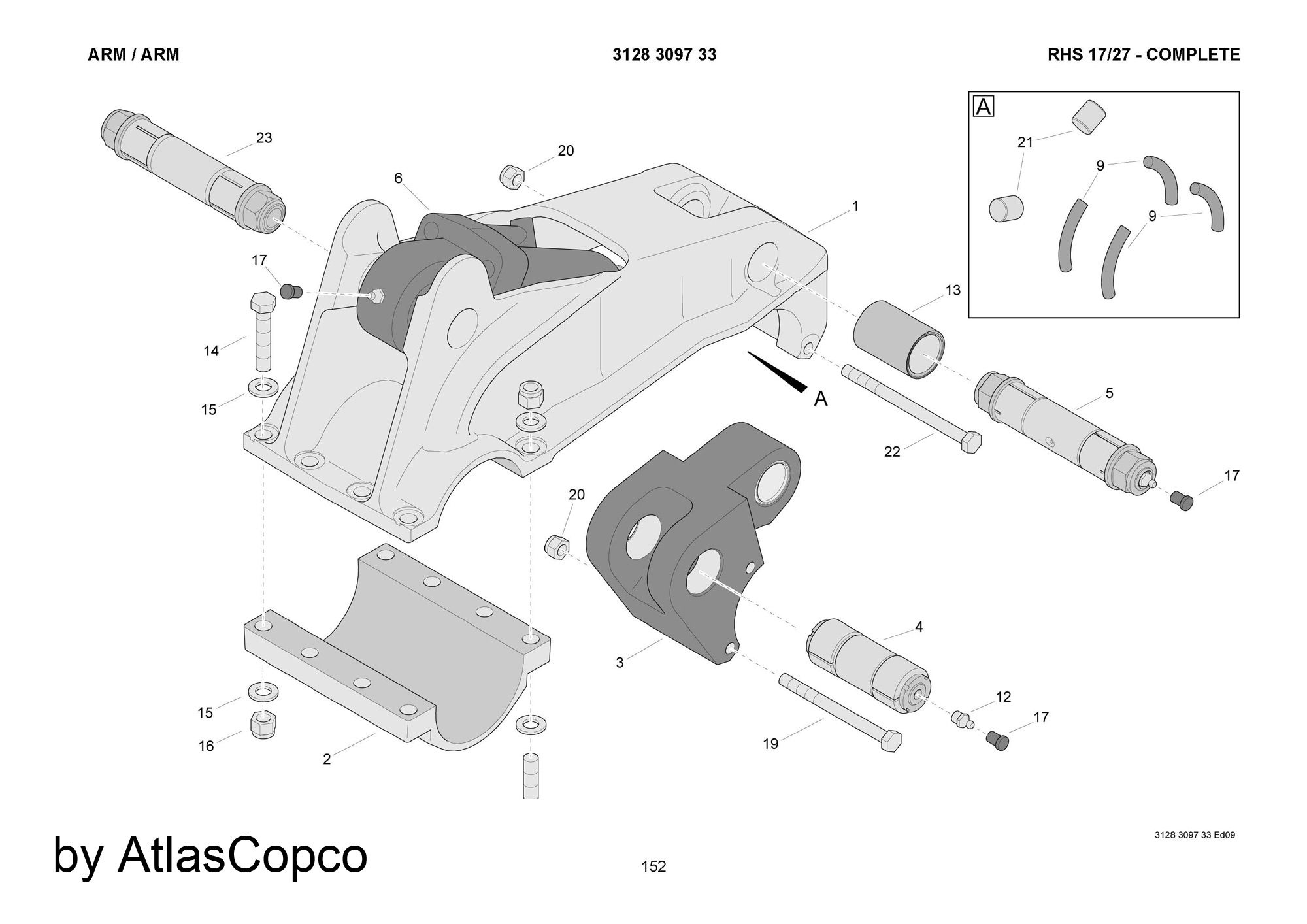

SIMBA H1354 ARM #11916

SIMBA H1354 ARM

ads

Ref

Parts Num

Name

0

ARM

1

ARM

2

CLAMP

3

JAW

4

EXPANDING SHAFT

5

EXPANDING SHAFT

6

HYDR. CYLINDER

9

DAMPING ELEMENT

13

BUSHING

14

SCREW. HEX HEAD

15

PLAIN WASHER

16

LOCK NUT

19

SCREW. HEX HEAD

21

PIN

22

SCREW. HEX HEAD

23

EXPANDING SHAFT

SIMBA H1354 ARM #12580

SIMBA H1354 ARM

ads

Ref

Parts Num

Name

1

ARM

2

ATTACHMENT

3

SHAFT

4

PLAIN WASHER

5

PLAIN BEARING

6

SCREW. HEX HEAD

7

FLAT BAR

8

SPRING WASHER

9

PALM GRIP

10

RING PIN

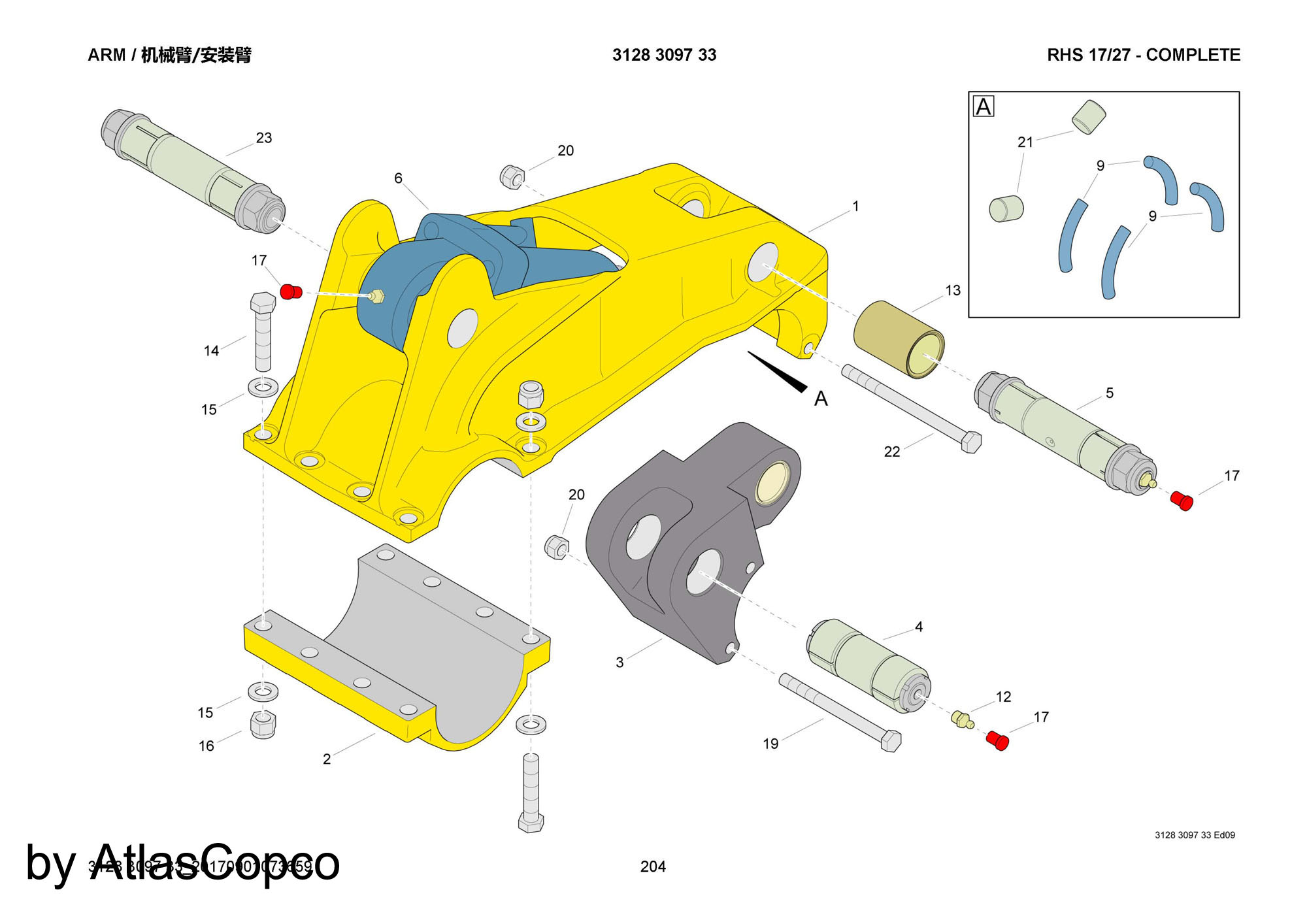

SIMBA H1354 ARM #13807

SIMBA H1354 ARM

ads

Ref

Parts Num

Name

0

ARM

1

ARM

2

CLAMP

3

JAW

4

EXPANDING SHAFT

5

EXPANDING SHAFT

6

HYDR. CYLINDER

9

DAMPING ELEMENT

12

GREASE NIPPLE

13

BUSHING

14

SCREW. HEX HEAD

15

PLAIN WASHER

16

LOCK NUT

17

PROTECTION CAP

19

SCREW. HEX HEAD

20

LOCK NUT

21

PIN

22

SCREW. HEX HEAD

23

EXPANDING SHAFT
