SIMBA H1354 Pages
1. EPIROC - SIMBA H1354 BRAKE #12096
2. EPIROC - SIMBA H1354 BRAKE #12393

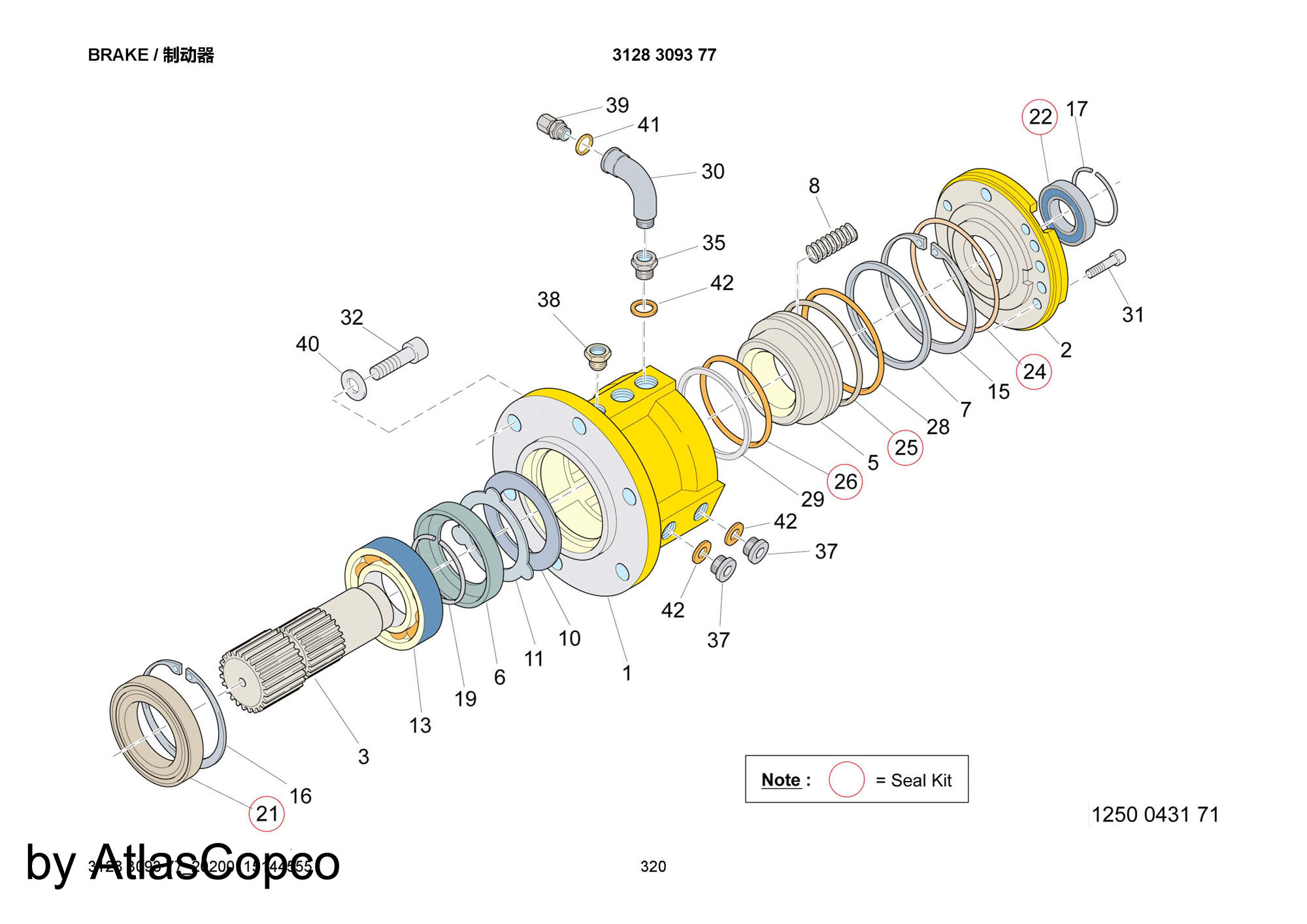

SIMBA H1354 BRAKE #12096
SIMBA H1354 BRAKE
ads
Ref
Parts Num
Name
0
3128309377
BRAKE
0
3128317024
SEAL KIT
1
3177000161
BRAKE HOUSING
2
3177000162
FLANGE
3
3177000163
SHAFT
5
3177000164
PISTON
6
3177000165
SPACER
7
3177000166
RING
8
3177000167
SPRING
10
3177000168
DISK
11
3177000169
STEEL DISK
13
3177000170
BEARING
15
3177000171
CIRCLIP
16
3177000172
CIRCLIP
17
3177000173
RETAINING RING
19
3177000174
RETAINING RING
28
3177000180
RING
29
3177000181
RING
30
3177000182
BEND
31
3177000183
SCREW
32
3177000184
SCREW
35
3177000185
STUD
37
3177000186
PLUG
38
3177000187
PLUG
39
3177000188
PLUG
40
3177000189
WASHER
41
3177000190
WASHER
42
3177000191
WASHER

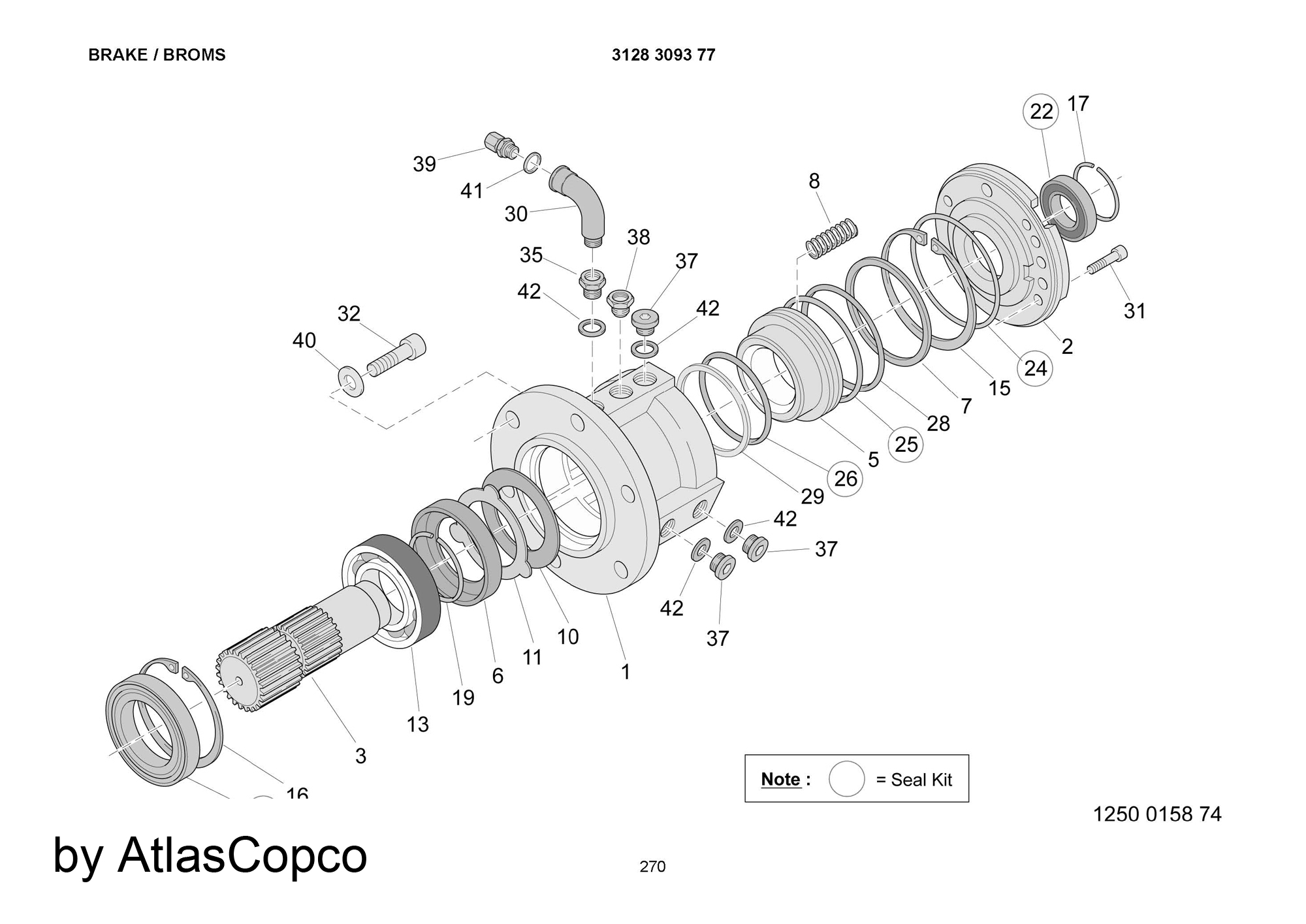

SIMBA H1354 BRAKE #12393
SIMBA H1354 BRAKE
ads
Ref
Parts Num
Name
0
3128309377
BRAKE
0
3128317024
SEAL KIT
1
3177000161
BRAKE HOUSING
2
3177000162
FLANGE
3
3177000163
SHAFT
5
3177000164
PISTON
6
3177000165
SPACER
7
3177000166
RING
8
3177000167
SPRING
10
3177000168
DISK
11
3177000169
STEEL DISK
13
3177000170
BEARING
15
3177000171
CIRCLIP
16
3177000172
CIRCLIP
17
3177000173
RETAINING RING
19
3177000174
RETAINING RING
28
3177000180
RING
29
3177000181
RING
30
3177000182
BEND
31
3177000183
SCREW
32
0211140103
SCREW
35
3177000185
STUD
37
3177000186
PLUG
38
3177000187
PLUG
39
3177000188
PLUG
40
3177000189
WASHER
41
3177000190
WASHER
42
3177000191
WASHER
