SIMBA H1354 Pages
1. EPIROC - SIMBA H1354 HYDRAULIC SET #11701
2. EPIROC - SIMBA H1354 HYDRAULIC SET #12003
3. EPIROC - SIMBA H1354 HYDRAULIC SET #12211
4. EPIROC - SIMBA H1354 HYDRAULIC SET #12868
5. EPIROC - SIMBA H1354 HYDRAULIC SET #12956
6. EPIROC - SIMBA H1354 HYDRAULIC SET #13589
7. EPIROC - SIMBA H1354 HYDRAULIC SET #18340

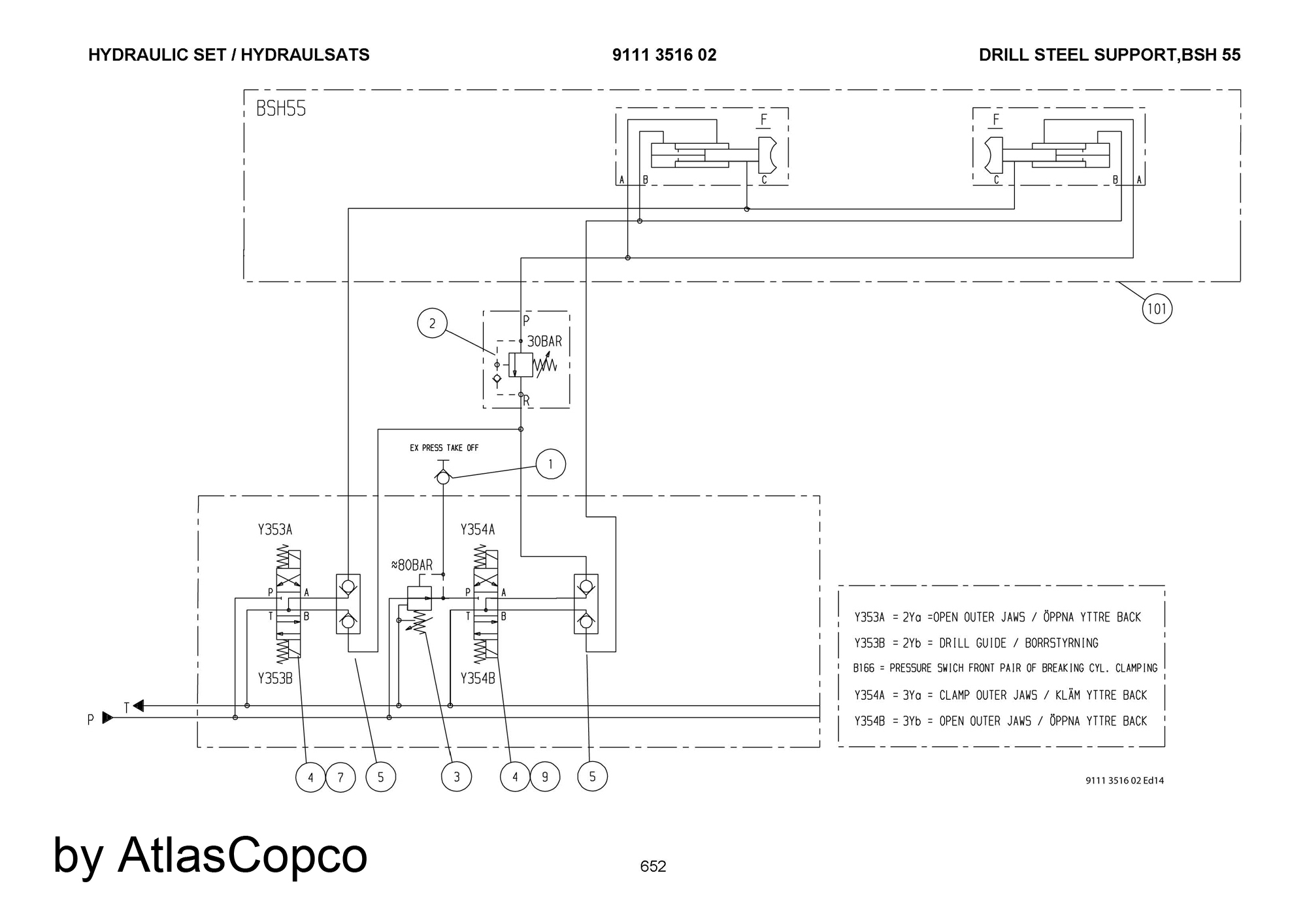

SIMBA H1354 HYDRAULIC SET #11701
SIMBA H1354 HYDRAULIC SET
ads
Ref
Parts Num
Name
0
9111351602
HYDRAULIC SET
2
3125279403
PRESS.REL.VALVE
5
3222326896
DOUBLE CH.VALVE
6
3217906006
CONNECT. PLATE
7
4090063000
HEX SOCK. SCREW
9
0211196558
HEX SOCK. SCREW
SIMBA H1354 HYDRAULIC SET #12003
SIMBA H1354 HYDRAULIC SET
ads
Ref
Parts Num
Name
M3
9111333520
HYDRAULIC SET
1
5724000051
OIL COOLER
3
3216888300
THROTTLE VALVE
4
3217000620
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
L21
9106065885
SUCT.CONNECTION
M17
9111373100
HYDRAULIC UNIT
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M30
9111371437
PRES. GAUGE SET
M18
9111421301
HYDRAULIC UNIT
L12
3217950401
HOSE
L22
3217950400
HOSE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
10
9106126409
CONNECTING PIPE
E1
9111351602
HYDRAULIC SET
SIMBA H1354 HYDRAULIC SET #12211
SIMBA H1354 HYDRAULIC SET
ads
Ref
Parts Num
Name
M3
9111333520
HYDRAULIC SET
1
5724000051
OIL COOLER
3
3216888300
THROTTLE VALVE
4
3217000620
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
L21
9106065885
SUCT.CONNECTION
M17
9111373100
HYDRAULIC UNIT
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M30
9111371437
PRES. GAUGE SET
M18
9111421301
HYDRAULIC UNIT
L12
3217950401
HOSE
L22
3217950400
HOSE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
10
9106126409
CONNECTING PIPE
E1
9111351602
HYDRAULIC SET
SIMBA H1354 HYDRAULIC SET #12868
SIMBA H1354 HYDRAULIC SET
ads
Ref
Parts Num
Name
M3
9111333520
HYDRAULIC SET
1
5724000051
OIL COOLER
3
3216888300
THROTTLE VALVE
4
3217000620
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
L21
9106065885
SUCT.CONNECTION
M17
9111373100
HYDRAULIC UNIT
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M30
9111371437
PRES. GAUGE SET
M18
9111421301
HYDRAULIC UNIT
L12
3217950401
HOSE
L22
3217950400
HOSE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
10
9106126409
CONNECTING PIPE
E1
9111351602
HYDRAULIC SET

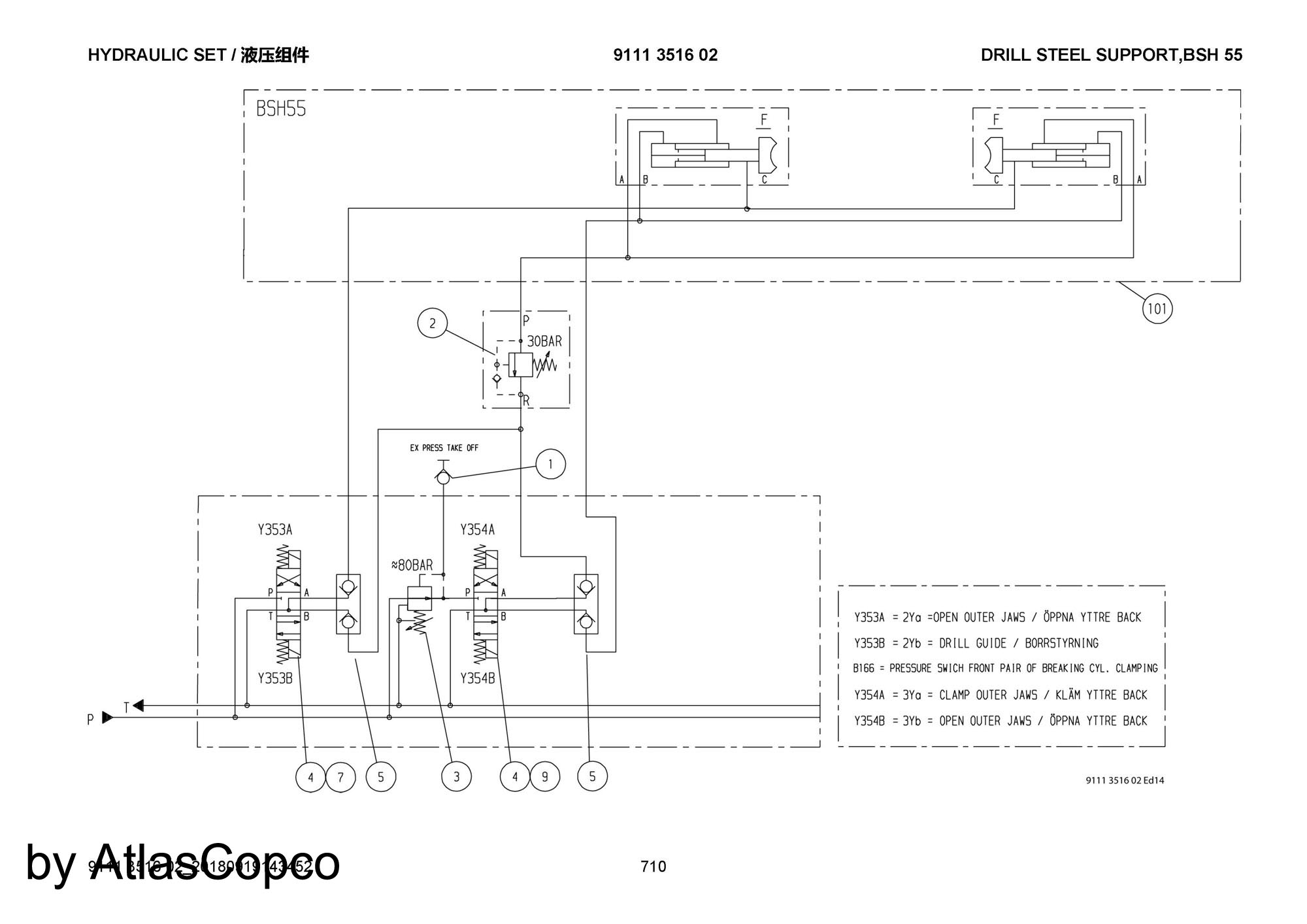

SIMBA H1354 HYDRAULIC SET #12956
SIMBA H1354 HYDRAULIC SET
ads
Ref
Parts Num
Name
0
9111351602
HYDRAULIC SET
1
3177301600
COUPLING
2
3125279403
PRESS.REL.VALVE
3
3214871280
PRESS.RED.VALVE
4
3177309283
DIRECTION VALVE
5
3222326896
DOUBLE CH.VALVE
6
3217906006
CONNECT. PLATE
7
0211122300
SCREW
8
3217988204
CONNECTOR
9
0211122900
SCREW
SIMBA H1354 HYDRAULIC SET #13589
SIMBA H1354 HYDRAULIC SET
ads
Ref
Parts Num
Name
M3
9111333520
HYDRAULIC SET
1
5724000051
OIL COOLER
3
3216888300
THROTTLE VALVE
4
3217000620
PRESSURE SWITCH
L11
9106065872
SUCT.CONNECTION
L21
9106065885
SUCT.CONNECTION
M17
9111373100
HYDRAULIC UNIT
M10
9111346900
HYDR. SET
M4
9111333301
HYDR. SET
M30
9111371437
PRES. GAUGE SET
M18
9111421301
HYDRAULIC UNIT
L12
3217950401
HOSE
L22
3217950400
HOSE
8
3176293510
RETURN BLOCK
9
3176814993
RESTRICTION SET
10
9106126409
CONNECTING PIPE
E1
9111351602
HYDRAULIC SET
SIMBA H1354 HYDRAULIC SET #18340
SIMBA H1354 HYDRAULIC SET
ads
Ref
Parts Num
Name
0
9111333520
HYDRAULIC SET
4
0211122900
SCREW
