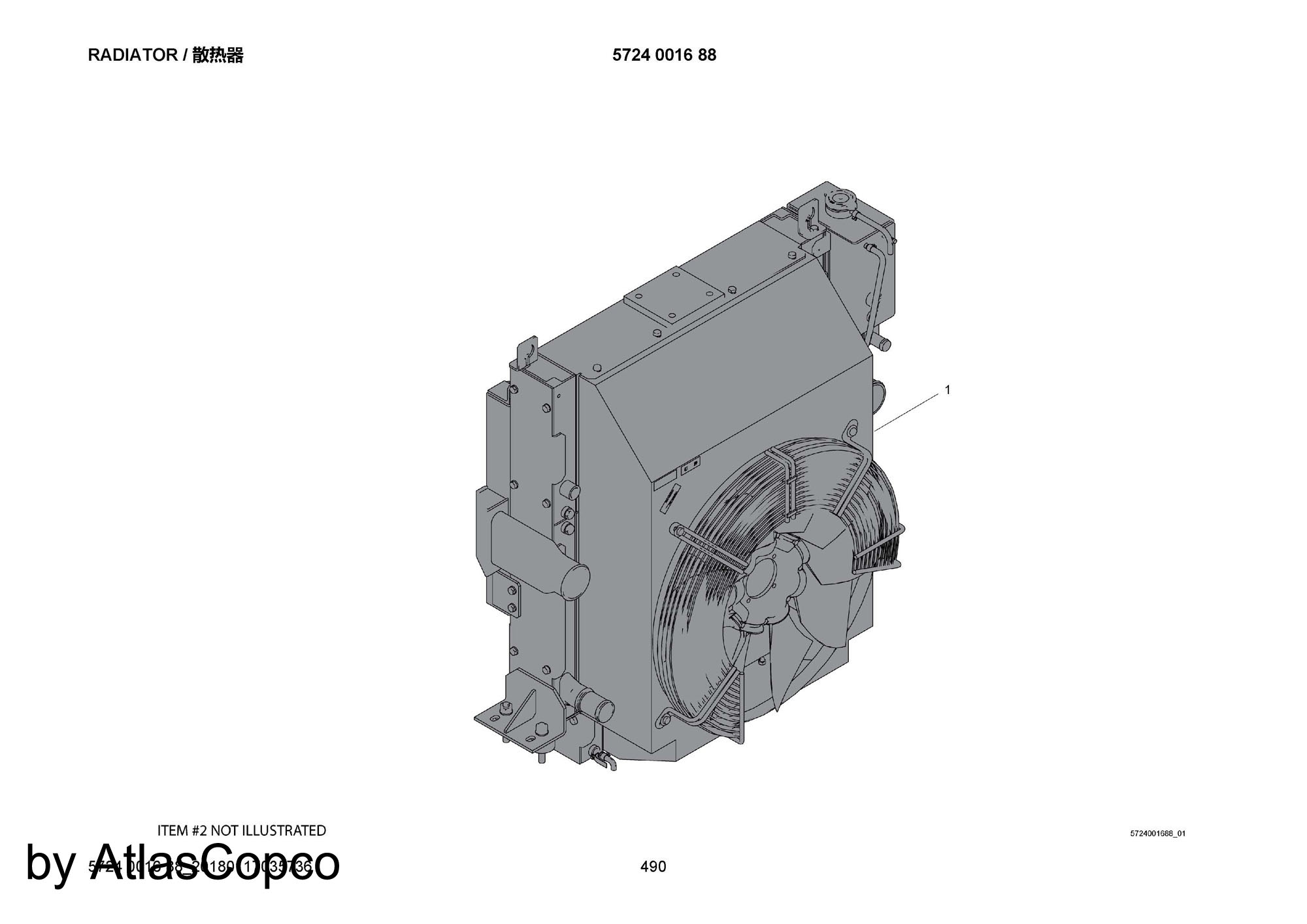

SIMBA H1354 RADIATOR #11654
SIMBA H1354 RADIATOR
ads
Ref
Parts Num
Name
0
5724001690
RADIATOR
1
5724001691
FAN
2
5724001692
FAN GUARD
3
5724001693
FAN GUARD
4
5724001794
EXPANSION TANK
5
5724001795
VIBR. DAMPER
SIMBA H1354 RADIATOR #12818
SIMBA H1354 RADIATOR
ads
Ref
Parts Num
Name
1
5724001688
RADIATOR
2
5724001797
WATER PIPE
3
5724001798
WATER PIPE
4
3176360400
UBOLT
5
0301235800
WASHER
6
0291112822
LOCK NUT
7
0147140003
SCREW. HEX HEAD
9
0147132503
SCREW. HEX HEAD
10
0301233500
PLAIN WASHER
11
5724001799
AIR PIPE
12
5724001801
AIR PIPE
13
5724001802
CONNECT. SLEEVE
14
5724001803
CONNECT. SLEEVE
15
5724001804
CONNECT. SLEEVE
16
5724002822
HOSE
18
5724001987
BRACKET PLATE
20
0147120803
SCREW. HEX HEAD
21
0301231800
PLAIN WASHER
22
0291112814
LOCK NUT
23
5724002028
PIPE
24
0301234400
PLAIN WASHER
25
0291112820
LOCK NUT
26
0347613218
HOSE CLIP
27
5724002971
CLAMP
28
0347610800
HOSE CLIP
29
0347610300
HOSE CLIP
30
5112013439
LEVEL SENSOR
31
5724002124
BRACKET
32
0147145003
SCREW. HEX HEAD
33
5728100047
WASHER
34
5728100046
DAMPER
35
0301237100
PLAIN WASHER
36
0291112841
LOCK NUT
37
5724002133
PLATE
38
3176661900
NIPPLE
39
3217957809
HOSE ASSEMBLY
40
3176661200
NIPPLE
41
0147132203
SCREW. HEX HEAD
42
5724002848
RUBBER BUFFER
43
0570519107
TEST CONNECTION
44
3177307000
NIPPLE
SIMBA H1354 RADIATOR #13066
SIMBA H1354 RADIATOR
ads
Ref
Parts Num
Name
0
5724001688
RADIATOR
1
5724001690
RADIATOR
2
5724001689
INTERCOOLER
SIMBA H1354 RADIATOR #13935
SIMBA H1354 RADIATOR
ads
Ref
Parts Num
Name
1
5724001688
RADIATOR
2
5724001797
WATER PIPE
3
5724001798
WATER PIPE
4
3176360400
UBOLT
5
0301235800
WASHER
6
0291112822
LOCK NUT
7
0147140003
SCREW. HEX HEAD
9
0147132503
SCREW. HEX HEAD
10
0301233500
PLAIN WASHER
11
5724001799
AIR PIPE
12
5724001801
AIR PIPE
13
5724001802
CONNECT. SLEEVE
14
5724001803
CONNECT. SLEEVE
15
5724001804
CONNECT. SLEEVE
16
5724002822
HOSE
18
5724001987
BRACKET PLATE
20
0147120803
SCREW. HEX HEAD
21
0301231800
PLAIN WASHER
22
0291112814
LOCK NUT
23
5724002028
PIPE
24
0301234400
PLAIN WASHER
25
0291112820
LOCK NUT
26
0347613218
HOSE CLIP
27
5724002971
CLAMP
28
0347610800
HOSE CLIP
29
0347610300
HOSE CLIP
30
5112013439
LEVEL SENSOR
31
5724002124
BRACKET
32
0147145003
SCREW. HEX HEAD
33
5728100047
WASHER
34
5728100046
DAMPER
35
0301237100
PLAIN WASHER
36
0291112841
LOCK NUT
37
5724002133
PLATE
38
3176661900
NIPPLE
39
3217957809
HOSE ASSEMBLY
40
3176661200
NIPPLE
41
0147132203
SCREW. HEX HEAD
42
5724002848
RUBBER BUFFER
43
0570519107
TEST CONNECTION
44
3177307000
NIPPLE
