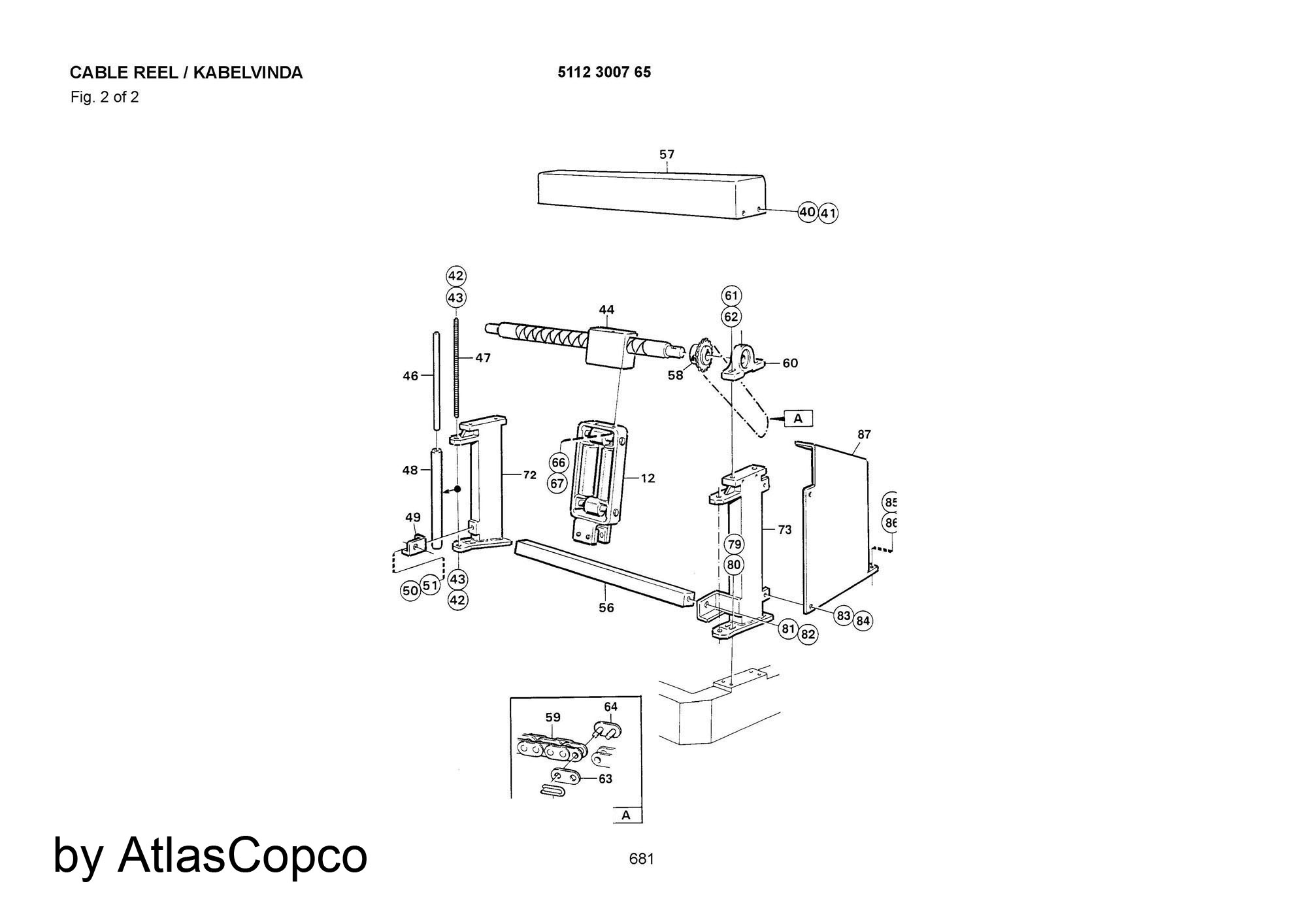

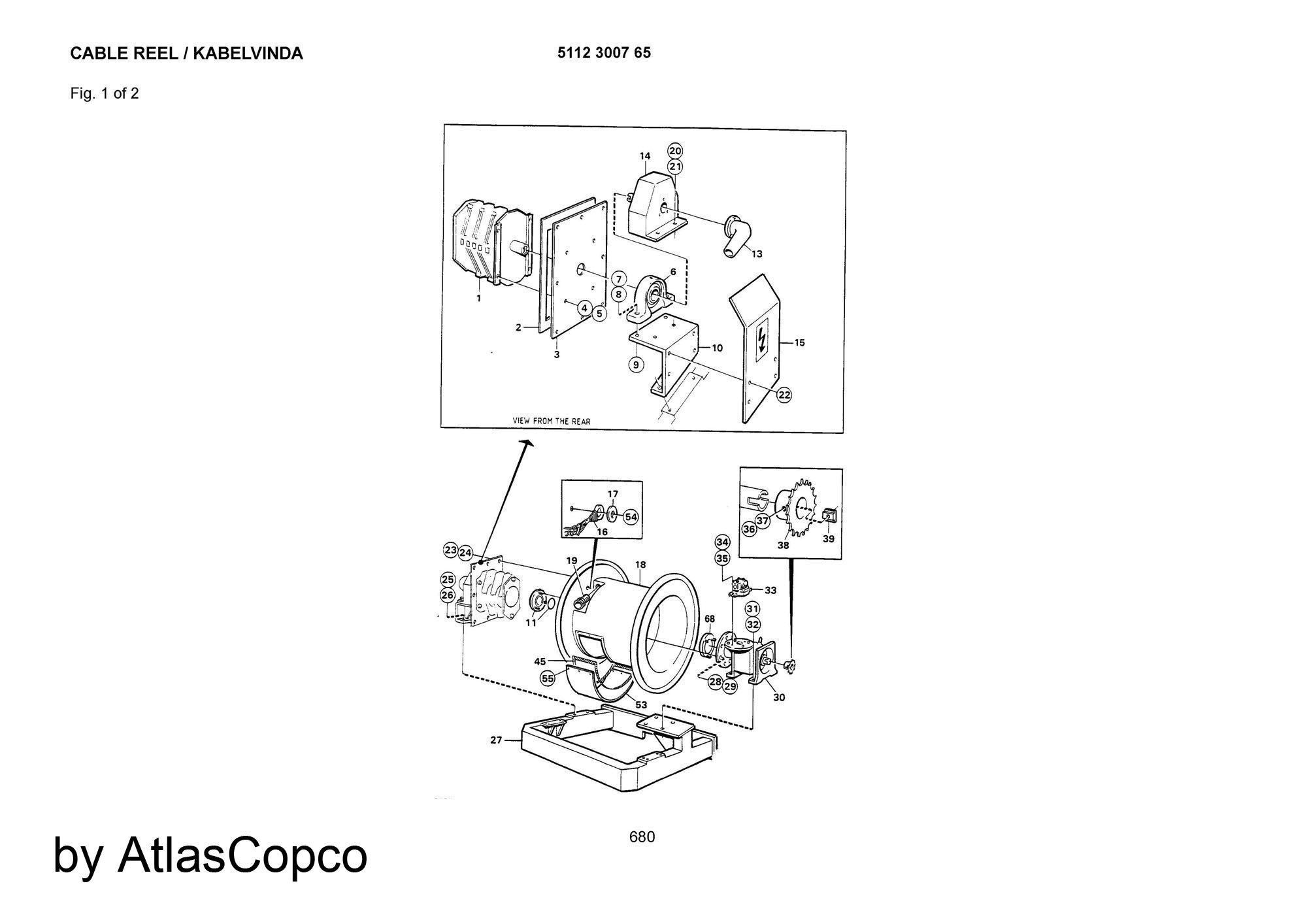

SIMBA H157 CABLE REEL #9251
SIMBA H157 CABLE REEL
ads
Ref
Parts Num
Name
0
5112300765
CABLE REEL
0
5112301024
CONTACT SET
0
5112301077
CONVERSION KIT
1
3217929484
COMMUTATOR
2
5112310000
GASKET
3
5112310106
COVER
6
0502801017
BEARING UNIT
7
0147155303
SCREW. HEX HEAD
8
0300027413
PLAIN WASHER
9
0266211600
NUT
10
5112310107
SUPPORT
11
5112310001
COVER SET
12
5112310018
CABLE STEERING
13
5112310002
CABLE INLET
14
5112310108
SUPPORT
15
5112310109
PROTECT. SHIELD
16
5112310019
WIRE MESH HOSE
18
5112310003
CABLE DRUM
19
5112310004
CABLE GLAND
27
5112310110
FRAME
30
3217492600
GEAR HOUSING
33
3217903420
HYDRAULIC MOTOR
37
5112310020
LOCK WASHER
38
5112310005
SPROCKET WHEEL
39
5112310006
KEY
42
0261109028
NUT
43
0301237100
PLAIN WASHER
44
5112310055
SHAFT SET
45
5112310111
GASKET
46
5112310009
PIPE
47
5112310010
PULL ROD SET
48
5112310011
ROLLER
49
5112310113
ATTACHMENT
53
5112310112
COVER
55
0216124300
SCREW
56
5112310114
GUIDE
57
5112310054
COVER
58
5112310013
SPROCKET WHEEL
59
5112310014
ROLLER CHAIN
60
0502801016
BEARING UNIT
63
5112310015
LINK
64
5112310016
COUPLING
65
5112310017
LINK
68
5112310104
COVER COMPL.
72
5112310029
SUPPORT
73
5112310115
SUPPORT
87
5112310116
PROTECTION
SIMBA H157 CABLE REEL #10327
SIMBA H157 CABLE REEL
ads
Ref
Parts Num
Name
0
5112300765
CABLE REEL
0
5112301024
CONTACT SET
0
5112301077
CONVERSION KIT
1
3217929484
COMMUTATOR
2
5112310000
GASKET
3
5112310106
COVER
6
0502801017
BEARING UNIT
7
0147155303
SCREW. HEX HEAD
8
0300027413
PLAIN WASHER
9
0266211600
NUT
10
5112310107
SUPPORT
11
5112310001
COVER SET
12
5112310018
CABLE STEERING
13
5112310002
CABLE INLET
14
5112310108
SUPPORT
15
5112310109
PROTECT. SHIELD
16
5112310019
WIRE MESH HOSE
18
5112310003
CABLE DRUM
19
5112310004
CABLE GLAND
27
5112310110
FRAME
30
3217492600
GEAR HOUSING
37
5112310020
LOCK WASHER
38
5112310005
SPROCKET WHEEL
39
5112310006
KEY
42
0261109028
NUT
43
0301237100
PLAIN WASHER
44
5112310055
SHAFT SET
45
5112310111
GASKET
46
5112310009
PIPE
47
5112310010
PULL ROD SET
48
5112310011
ROLLER
49
5112310113
ATTACHMENT
53
5112310112
COVER
55
0216124300
SCREW
56
5112310114
GUIDE
57
5112310054
COVER
58
5112310013
SPROCKET WHEEL
59
5112310014
ROLLER CHAIN
60
0502801016
BEARING UNIT
63
5112310015
LINK
64
5112310016
COUPLING
65
5112310017
LINK
68
5112310104
COVER COMPL.
72
5112310029
SUPPORT
73
5112310115
SUPPORT
87
5112310116
PROTECTION
SIMBA H157 CABLE REEL #10448
SIMBA H157 CABLE REEL
ads
Ref
Parts Num
Name
0
5112300647
CABLE REEL
1
5112300765
CABLE REEL
77
3177312603
FLOW CONT.VALVE

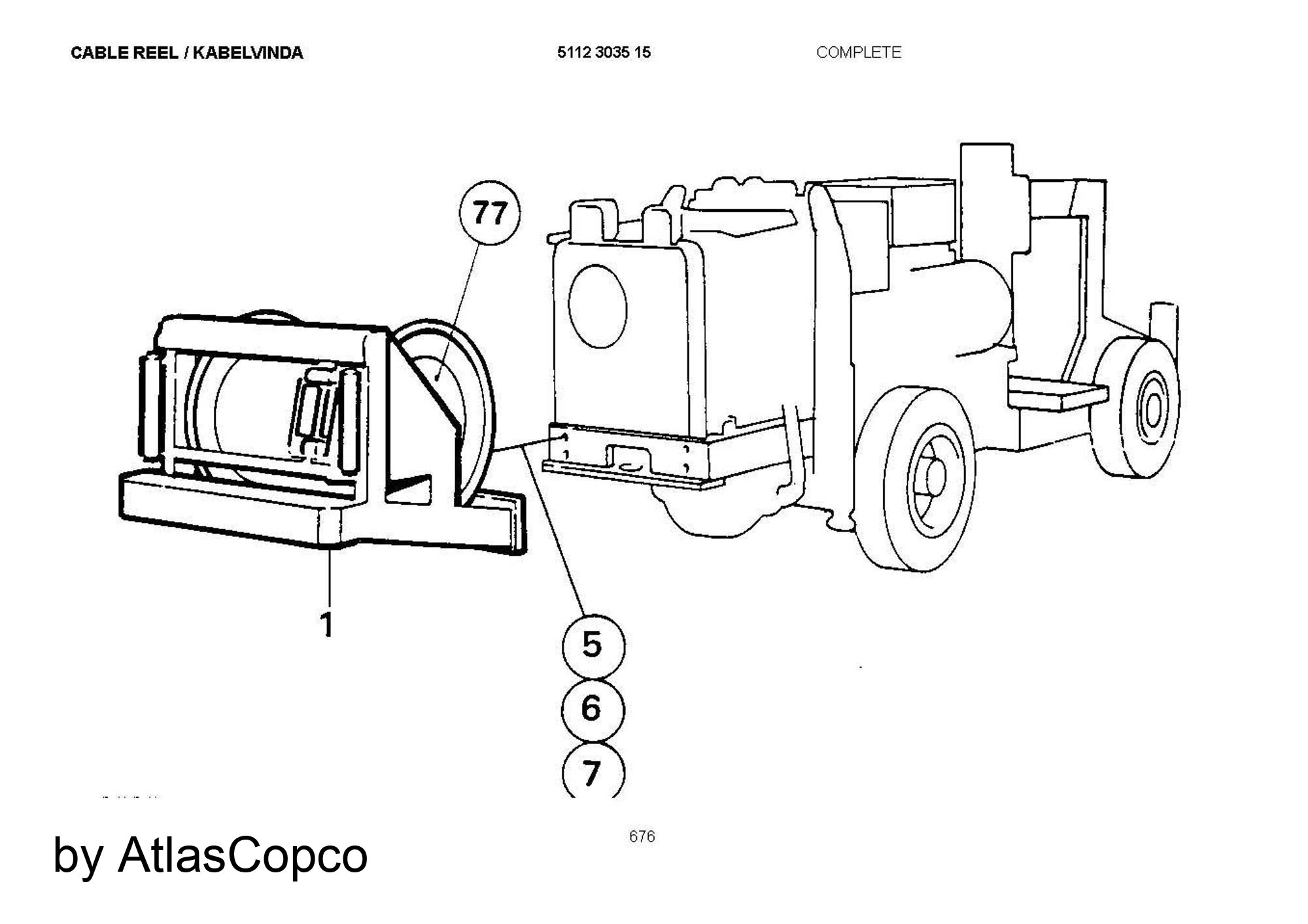

SIMBA H157 CABLE REEL #20741
SIMBA H157 CABLE REEL
ads
Ref
Parts Num
Name
0
5112303515
CABLE REEL
1
5112300647
CABLE REEL
