SIMBA H157 Pages
1. EPIROC - SIMBA H157 DIRECTION VALVE #9147
2. EPIROC - SIMBA H157 DIRECTION VALVE #9785
3. EPIROC - SIMBA H157 DIRECTION VALVE #9901
4. EPIROC - SIMBA H157 DIRECTION VALVE #9917
5. EPIROC - SIMBA H157 DIRECTION VALVE #9927
6. EPIROC - SIMBA H157 DIRECTION VALVE #10020
7. EPIROC - SIMBA H157 DIRECTION VALVE #10195
8. EPIROC - SIMBA H157 DIRECTION VALVE #10643
9. EPIROC - SIMBA H157 DIRECTION VALVE #17931
10. EPIROC - SIMBA H157 DIRECTION VALVE #20621

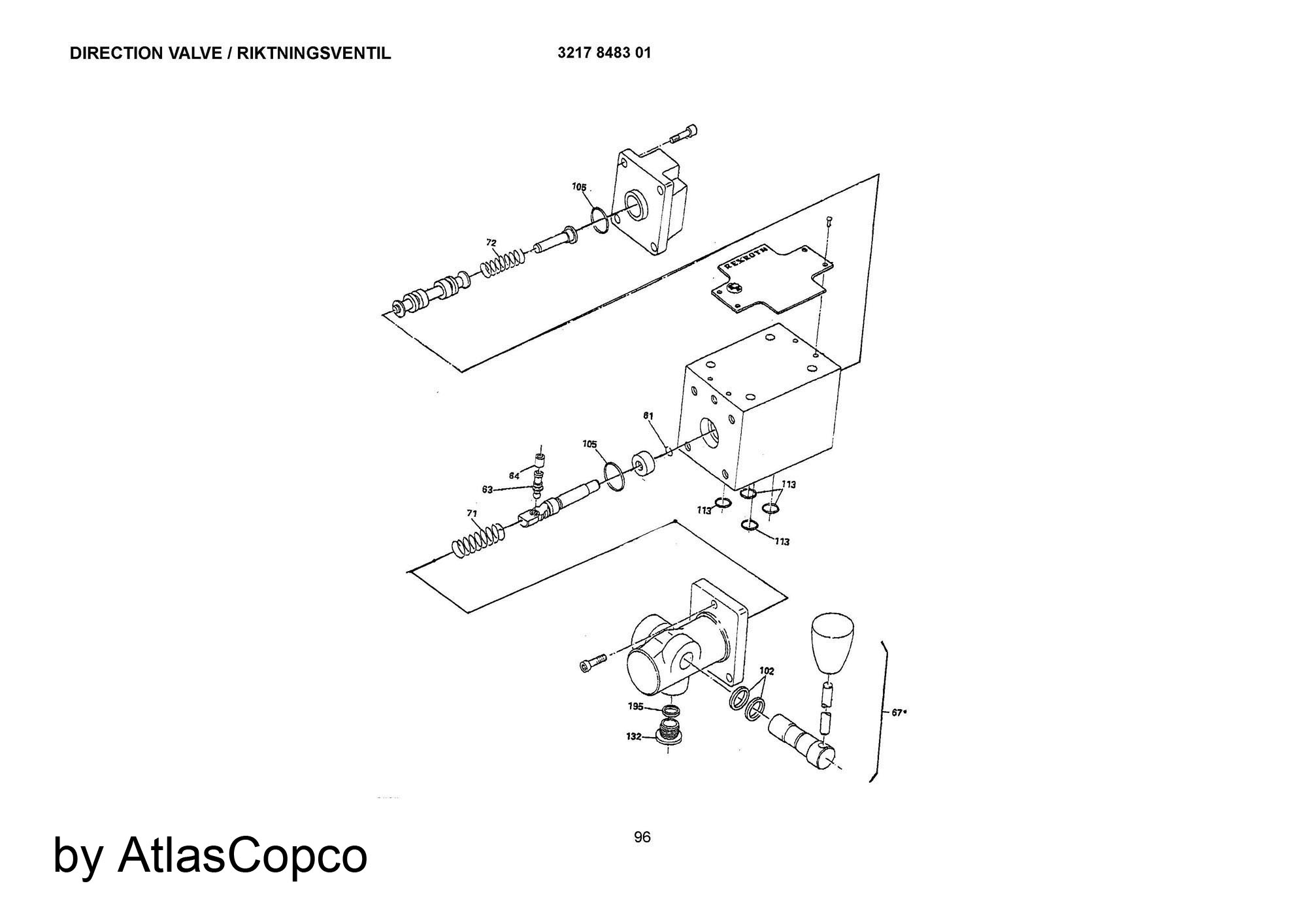

SIMBA H157 DIRECTION VALVE #9147
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217848301
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3218200775
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL

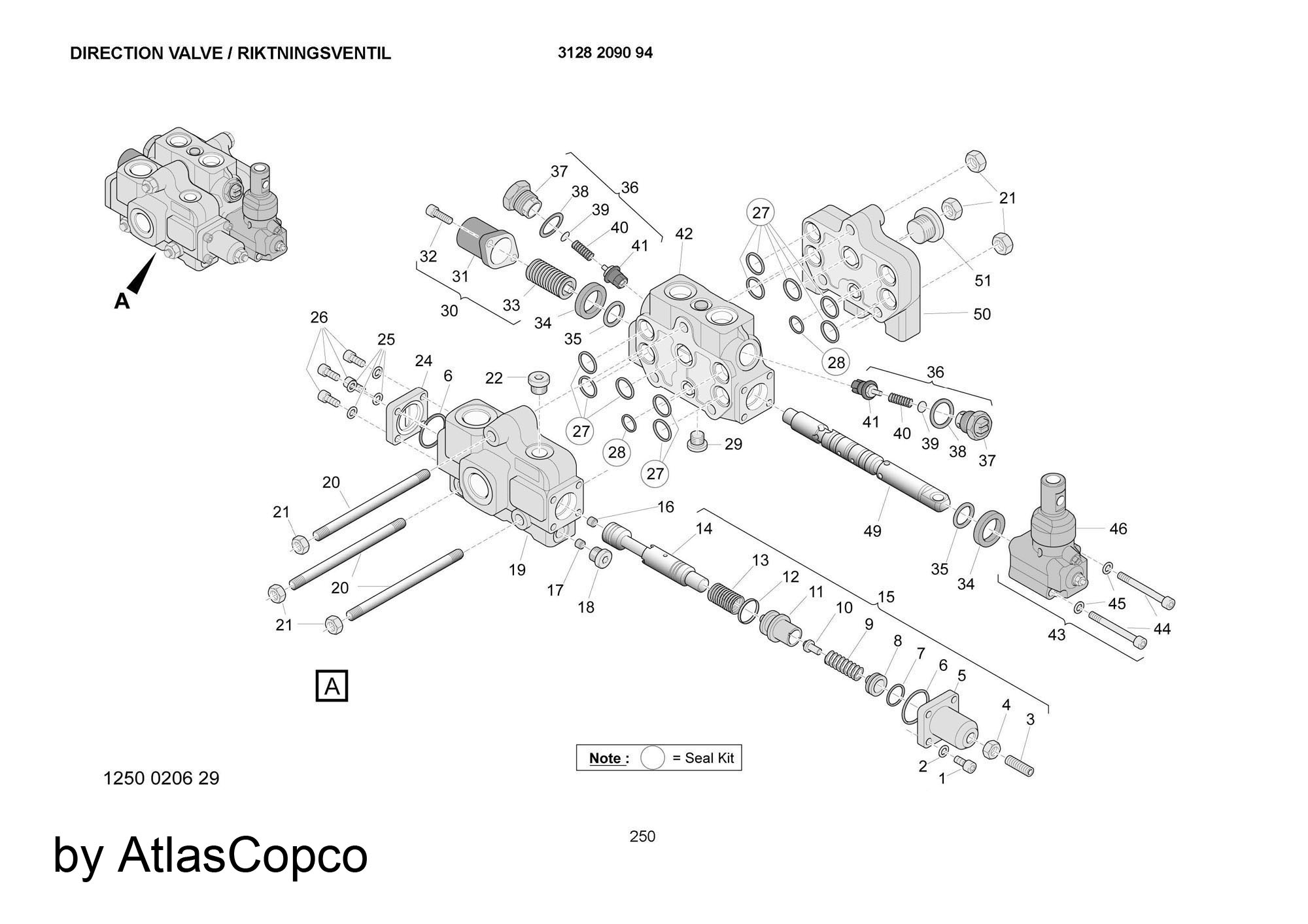

SIMBA H157 DIRECTION VALVE #9785
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3128209094
DIRECTION VALVE
0
3128209152
SEAL KIT
6
3128209153
O-RING
7
3128209154
O-RING
12
3128209155
O-RING
15
3128209156
PRESS.REL.VALVE
30
3128209157
COVER
35
3128209158
O-RING
36
3128209159
SHOCK VALVE
43
3128209160
HOUSE
SIMBA H157 DIRECTION VALVE #9901
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217848301
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3218200775
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL
SIMBA H157 DIRECTION VALVE #9917
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217848301
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3218200775
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL

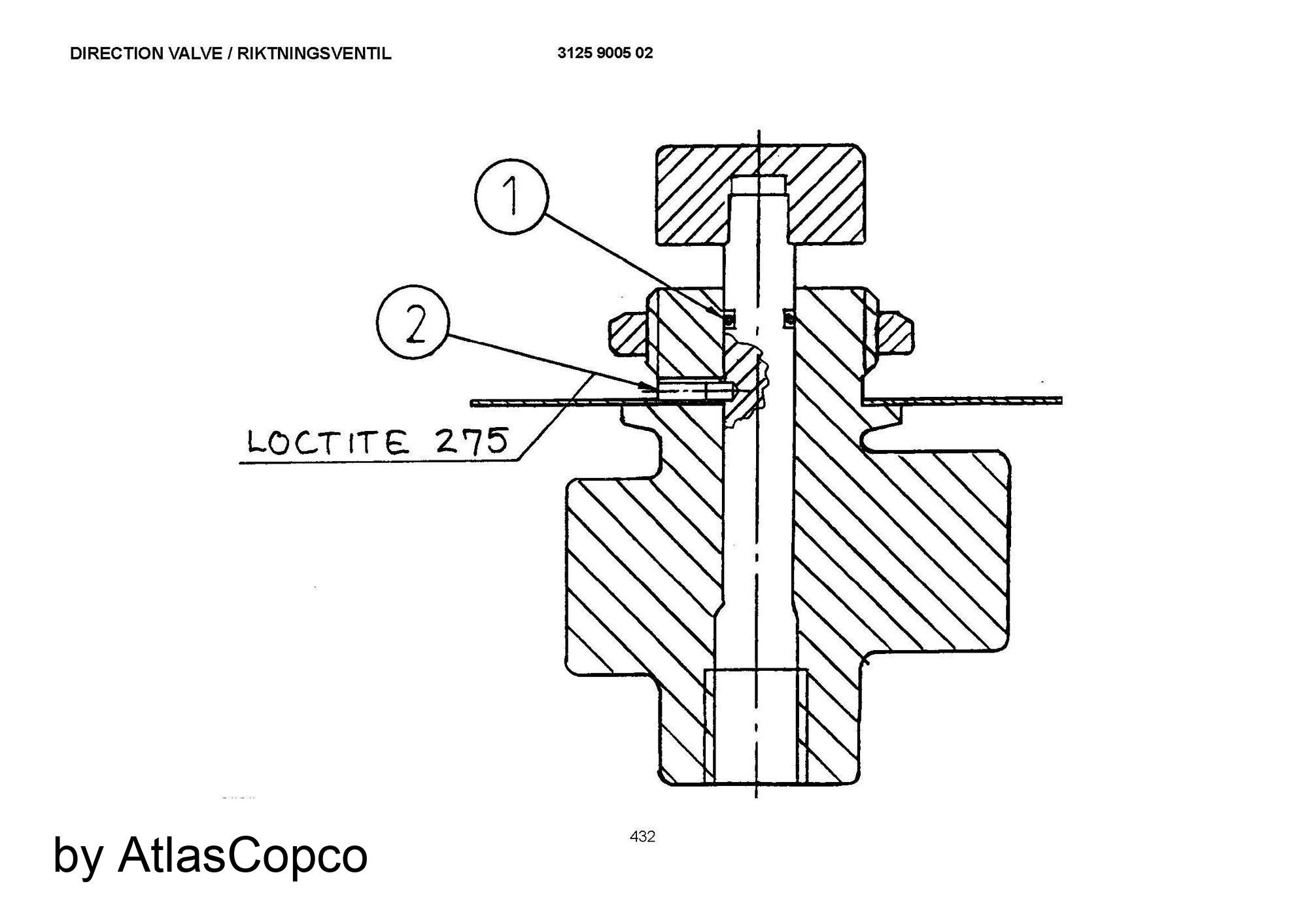

SIMBA H157 DIRECTION VALVE #9927
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3125900502
DIRECTION VALVE
1
0663210846
O RING
2
0192117000
SET SCREW

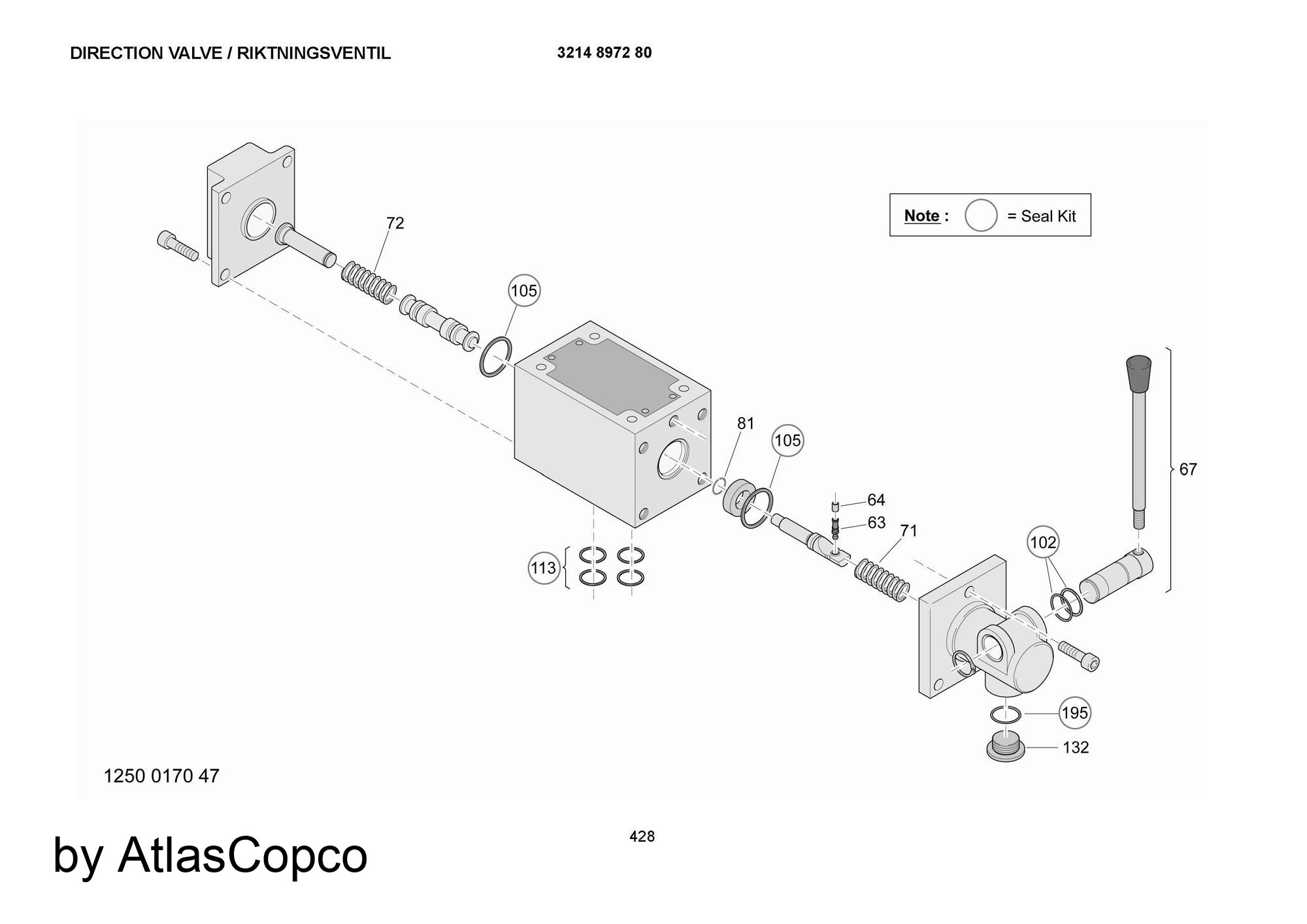

SIMBA H157 DIRECTION VALVE #10020
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3214897280
DIRECTION VALVE
0
3217848303
SEAL KIT
63
3217848304
BOLT
64
3218200775
SPACER
67
3217848306
LEVER SET
71
3217848307
SPRING
72
3217848308
SPRING
132
3217848309
PLUG
195
3217848310
SEAL
SIMBA H157 DIRECTION VALVE #10195
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3125900502
DIRECTION VALVE
1
0663210846
O RING
2
0192117000
SET SCREW

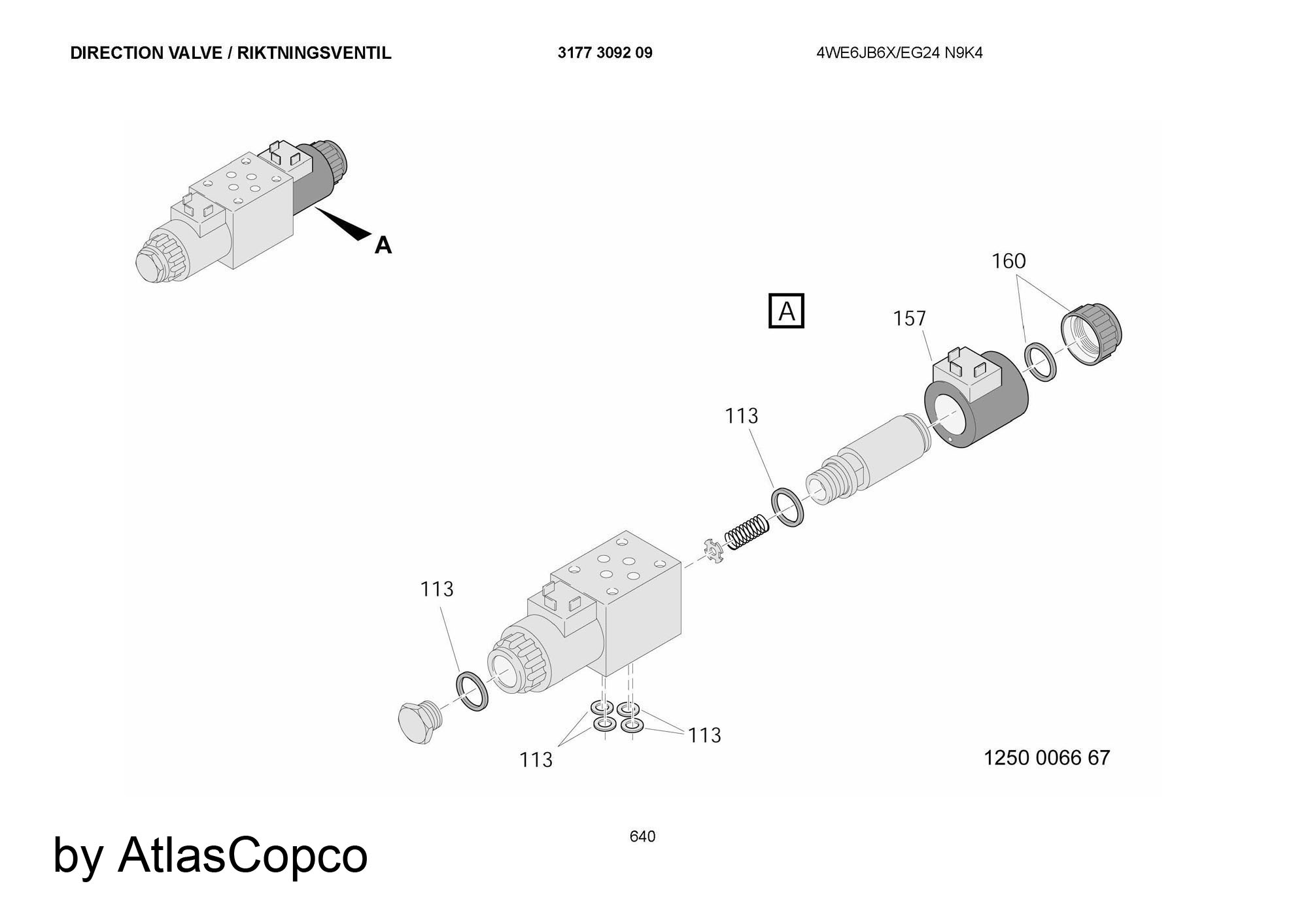

SIMBA H157 DIRECTION VALVE #10643
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3177309209
DIRECTION VALVE
113
3222305858
SEAL KIT
157
3177309252
COIL
160
3177309254
NUT SET

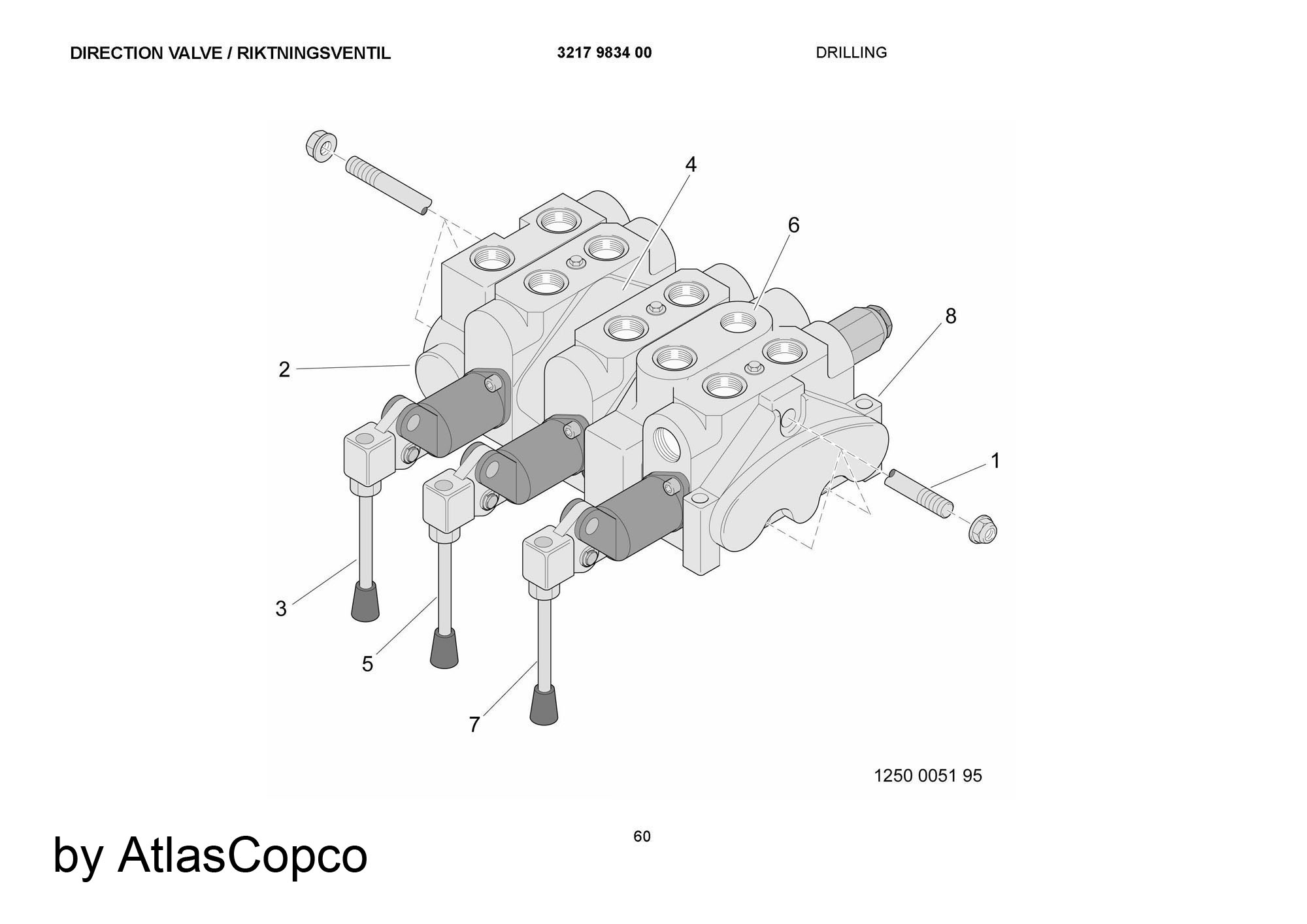

SIMBA H157 DIRECTION VALVE #17931
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3217983400
DIRECTION VALVE
1
3217983401
PULL ROD SET
2
3217983405
INLET SECTION
3
3217983410
CONTROL SET
4
3217983430
INTERMED. PART
5
3217983435
CONTROL SET
6
3217983440
INTERMED. PART
7
3217983445
CONTROL SET
8
3217983451
COVER

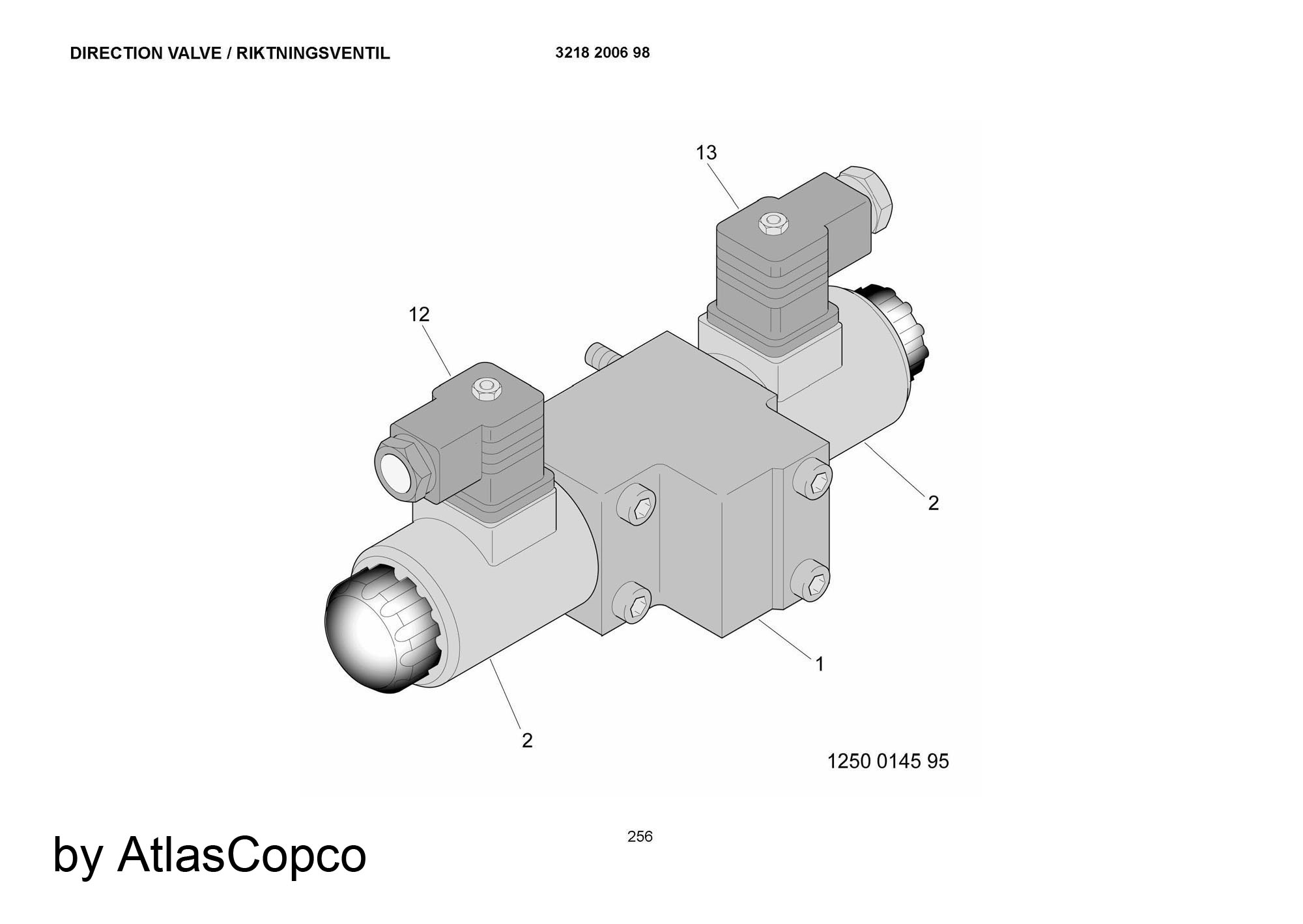

SIMBA H157 DIRECTION VALVE #20621
SIMBA H157 DIRECTION VALVE
ads
Ref
Parts Num
Name
0
3218200698
DIRECTION VALVE
2
3218200719
SOLENOID CARTR.
12
3218200720
CONTACT
13
3218200721
CONTACT
