SIMBA H157 Pages
1. EPIROC - SIMBA H157 HYDR. CYLINDER #9688
2. EPIROC - SIMBA H157 HYDR. CYLINDER #9975
3. EPIROC - SIMBA H157 HYDR. CYLINDER #10096
4. EPIROC - SIMBA H157 HYDR. CYLINDER #10322
5. EPIROC - SIMBA H157 HYDR. CYLINDER #10726
6. EPIROC - SIMBA H157 HYDR. CYLINDER #10891
7. EPIROC - SIMBA H157 HYDR. CYLINDER #11197
8. EPIROC - SIMBA H157 HYDR. CYLINDER #11308
9. EPIROC - SIMBA H157 HYDR. CYLINDER #11461

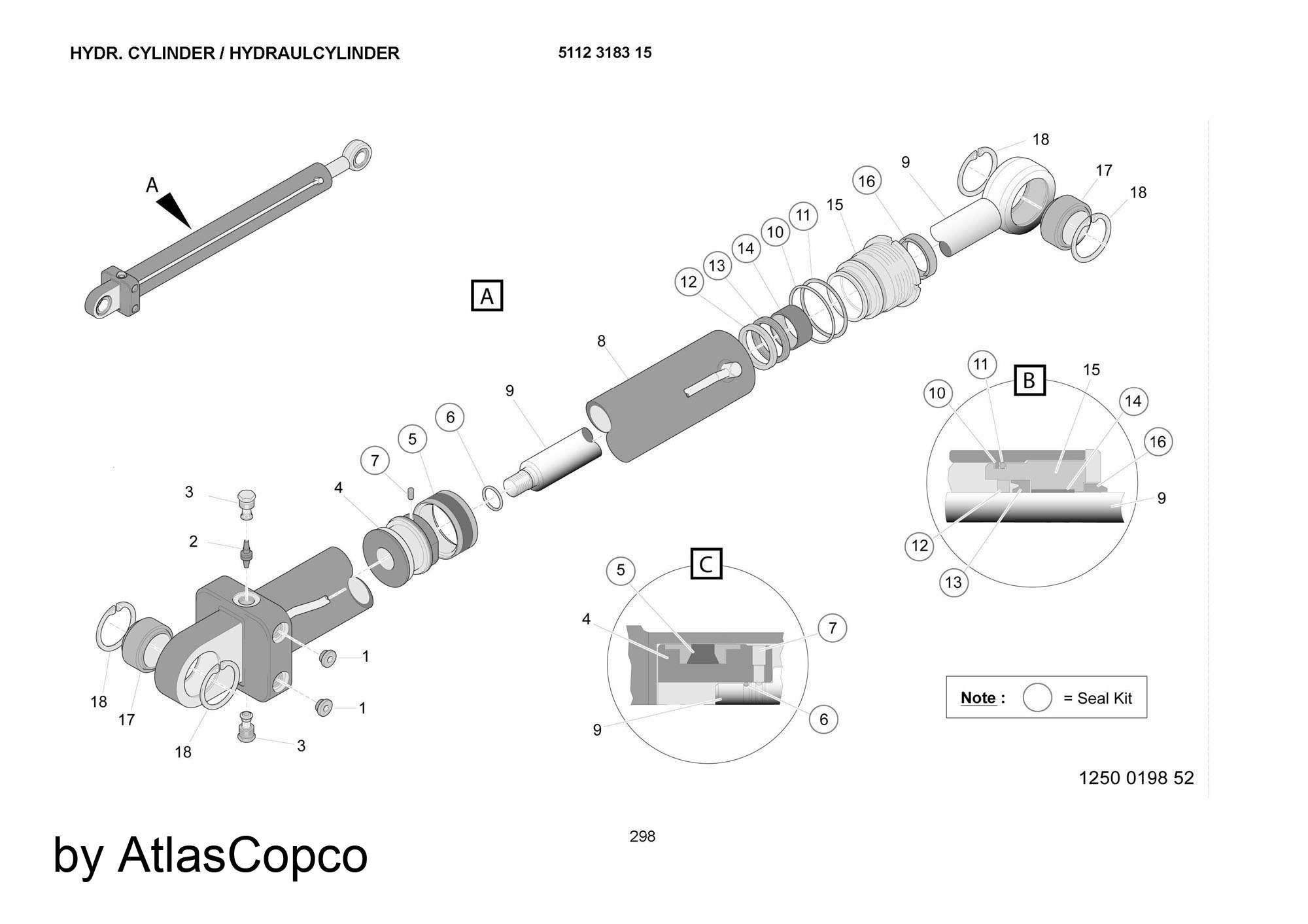

SIMBA H157 HYDR. CYLINDER #9688
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
5112318315
HYDR. CYLINDER
0
9120099308
SEAL KIT
2
3222317628
PILOT PISTON
4
3222328871
PISTON
15
9126395100
COVER
17
0501001400
BEARING.SP.PL.
18
0335214300
CIRCLIP

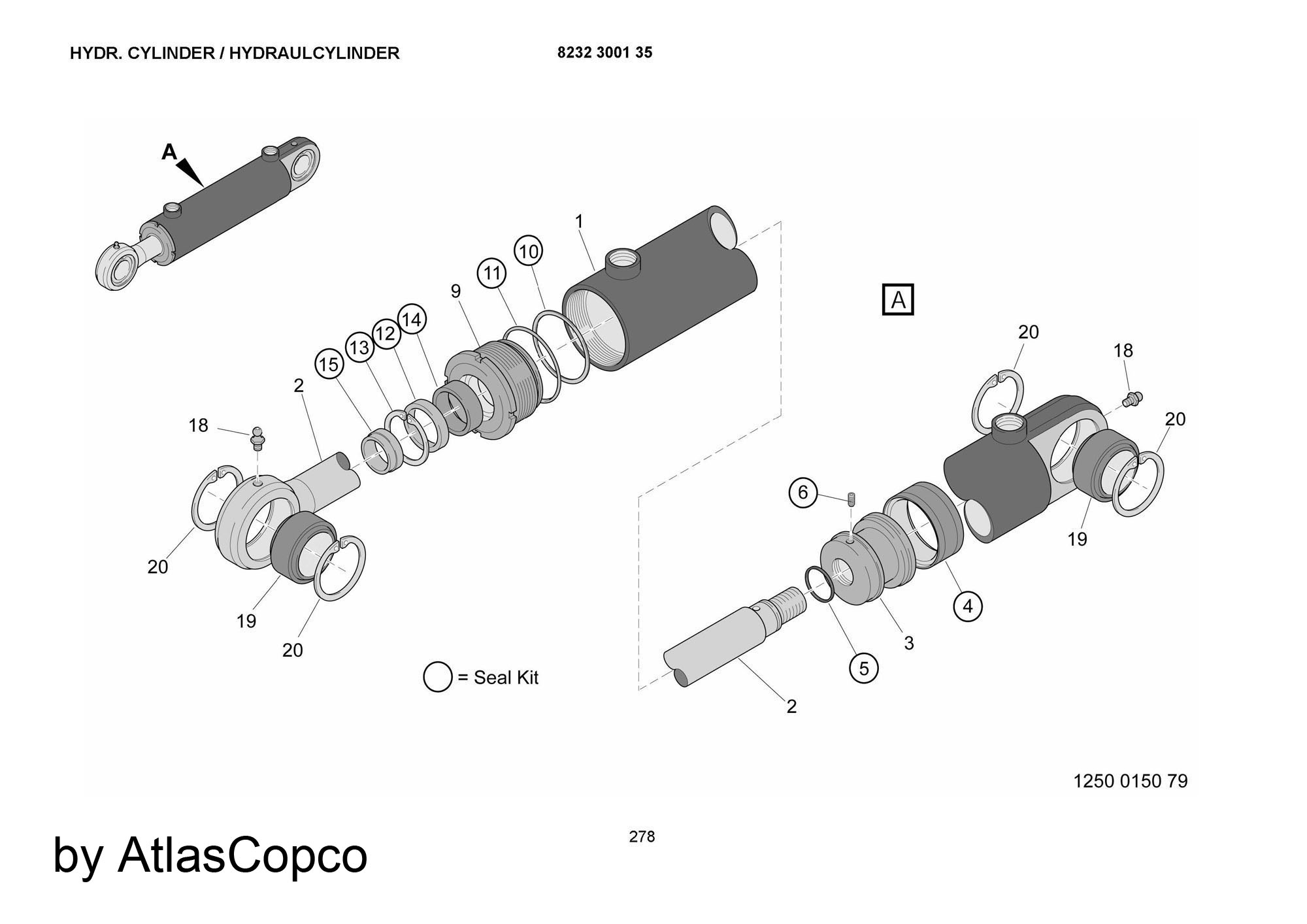

SIMBA H157 HYDR. CYLINDER #9975
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
8232300135
HYDR. CYLINDER
0
9120099306
SEALING SET
1
3222290038
MANTLE
2
3222290037
PISTON ROD
3
9126394800
PISTON
9
9126394400
COVER
21
0501001300
BEARING.SP.PL.
22
0335214100
CIRCLIP
SIMBA H157 HYDR. CYLINDER #10096
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
3128311250
HYDR. CYLINDER
0
3128315263
SEAL KIT
3
3128317088
STEERING
7
3128317092
CYL.TUBE ASSY
8
3128317093
PIST.ROD COMPL
12
3128317089
PISTON

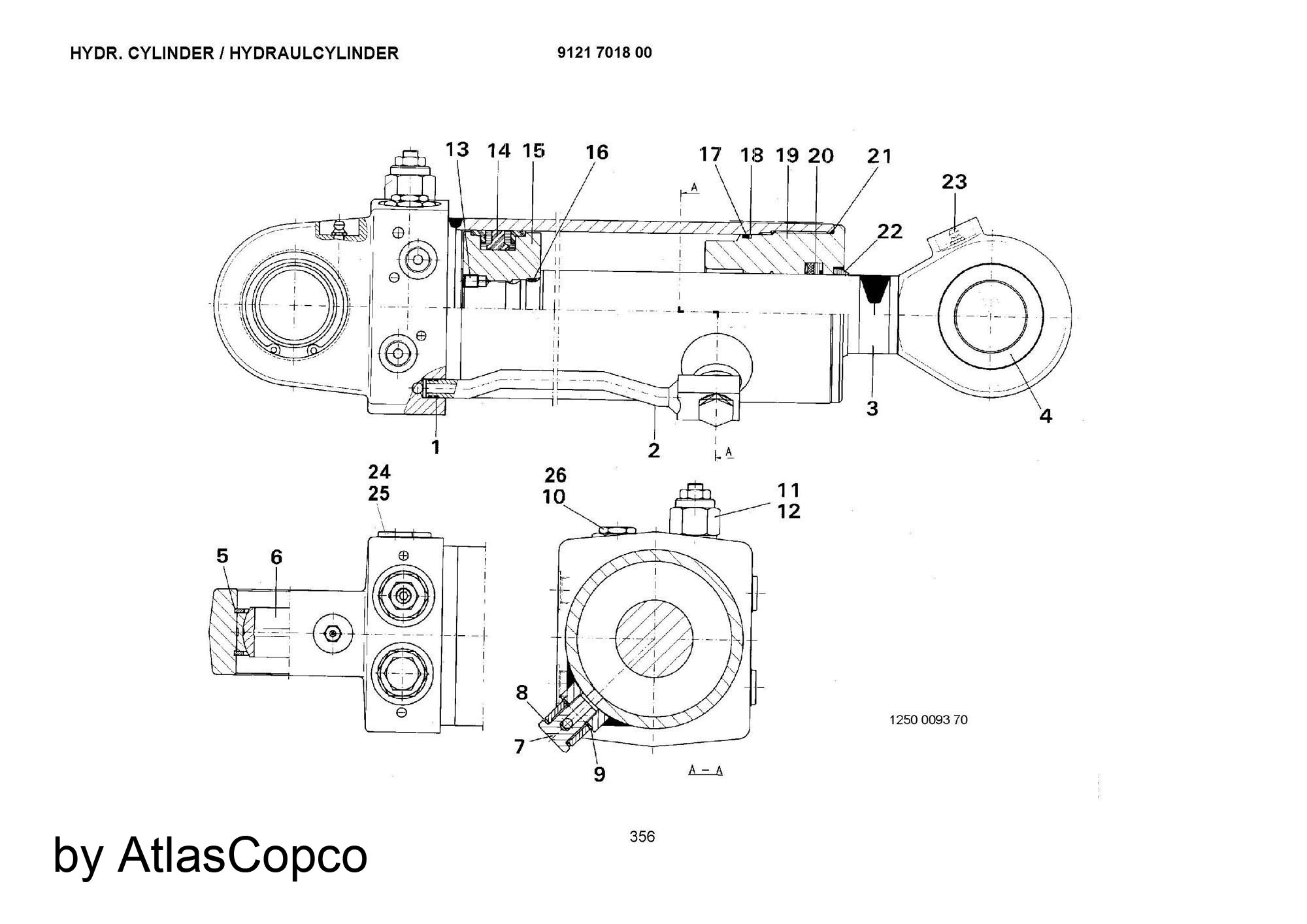

SIMBA H157 HYDR. CYLINDER #10322
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
9121701800
HYDR. CYLINDER
0
9121701750
SEAL KIT
0
9120099401
SEAL KIT
1
9125618600
ORING
2
9126449202
PIPE
3
9126181203
PISTON ROD
4
9128734400
BUSHING
5
0335215500
CIRCLIP
6
0501000016
BEARING.SP.PL.
8
9125664800
SEAL WASHER
9
0661100013
SEAL WASHER
11
8231120306
OVERCENT.VALVE
14
0665080034
PISTON SEAL
15
9124956700
PISTON
16
0663213100
ORING
18
0661150068
BACKUP RING
19
9123650711
COVER COMPL.
20
0665700405
SEAL
21
9125605900
ORING
22
0665918100
WIPER
24
9125801600
PLUG
25
0661100016
SEAL WASHER
SIMBA H157 HYDR. CYLINDER #10726
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
1
3128306002
HYDR. CYLINDER
2
5112300509
STAND
7
9106180480
COVER PLUG

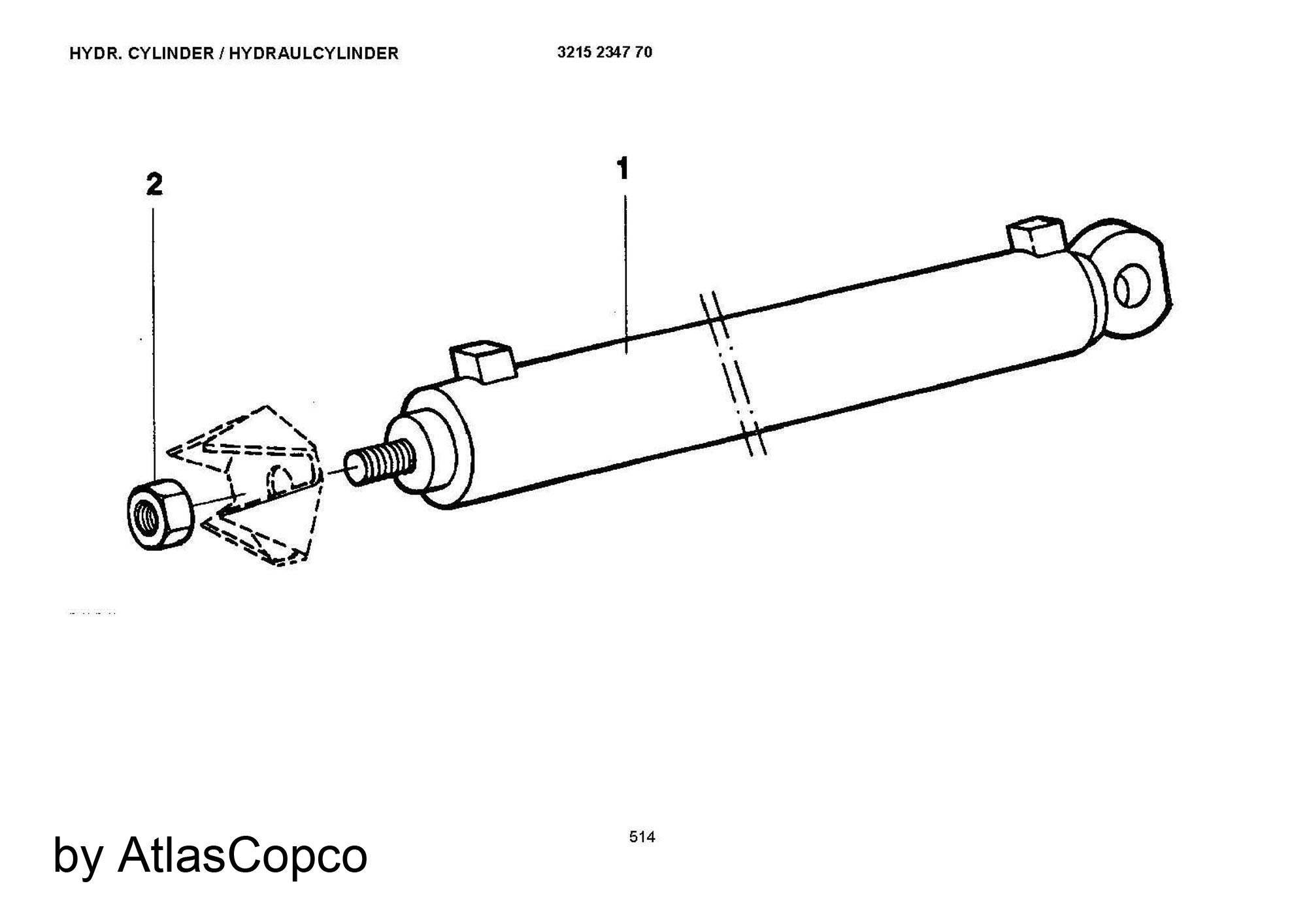

SIMBA H157 HYDR. CYLINDER #10891
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
3215234770
HYDR. CYLINDER
1
3128311250
HYDR. CYLINDER
2
0291112802
LOCK NUT

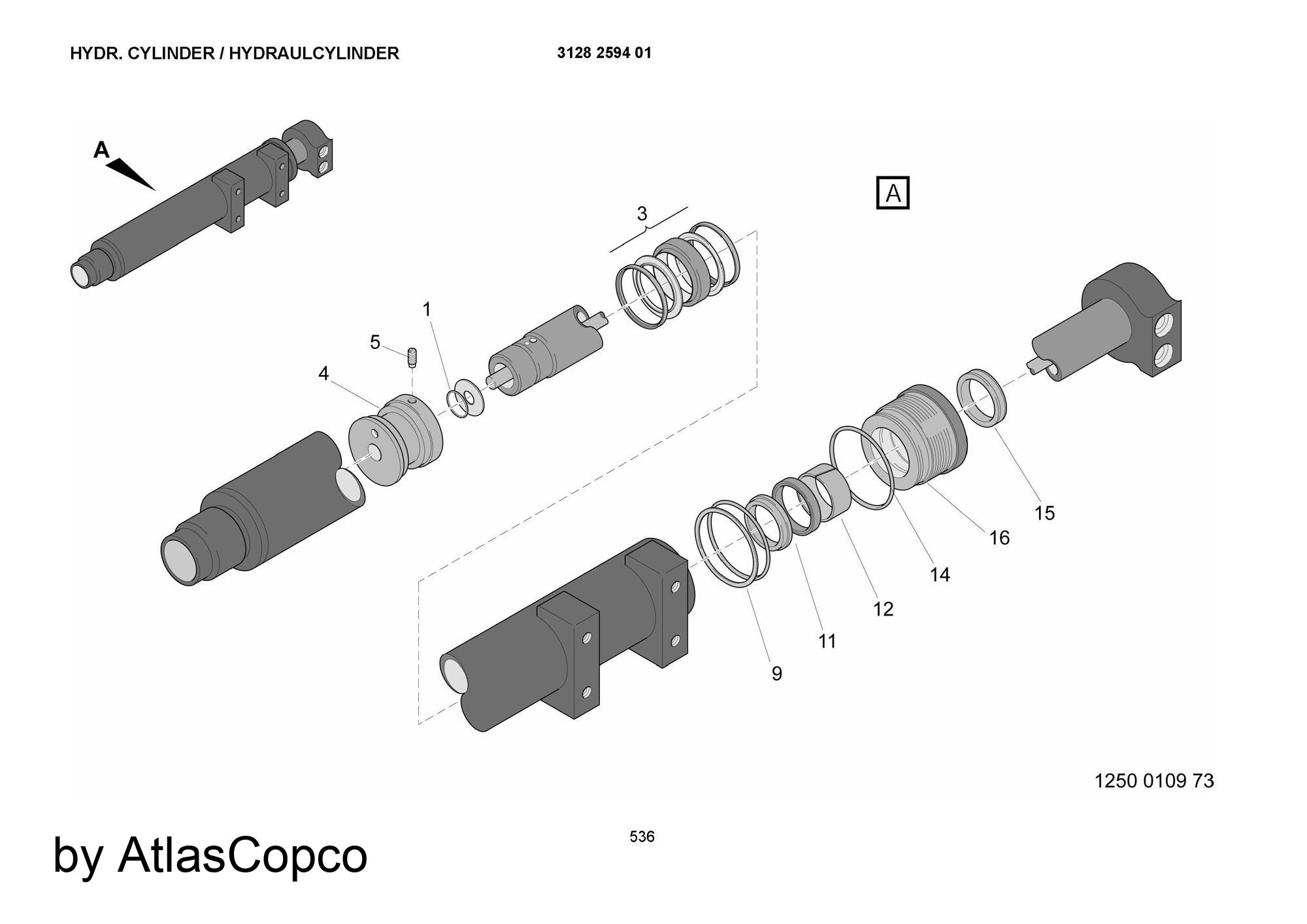

SIMBA H157 HYDR. CYLINDER #11197
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
3128259401
HYDR. CYLINDER
0
3128259405
SEAL KIT
4
9236201029
PISTON

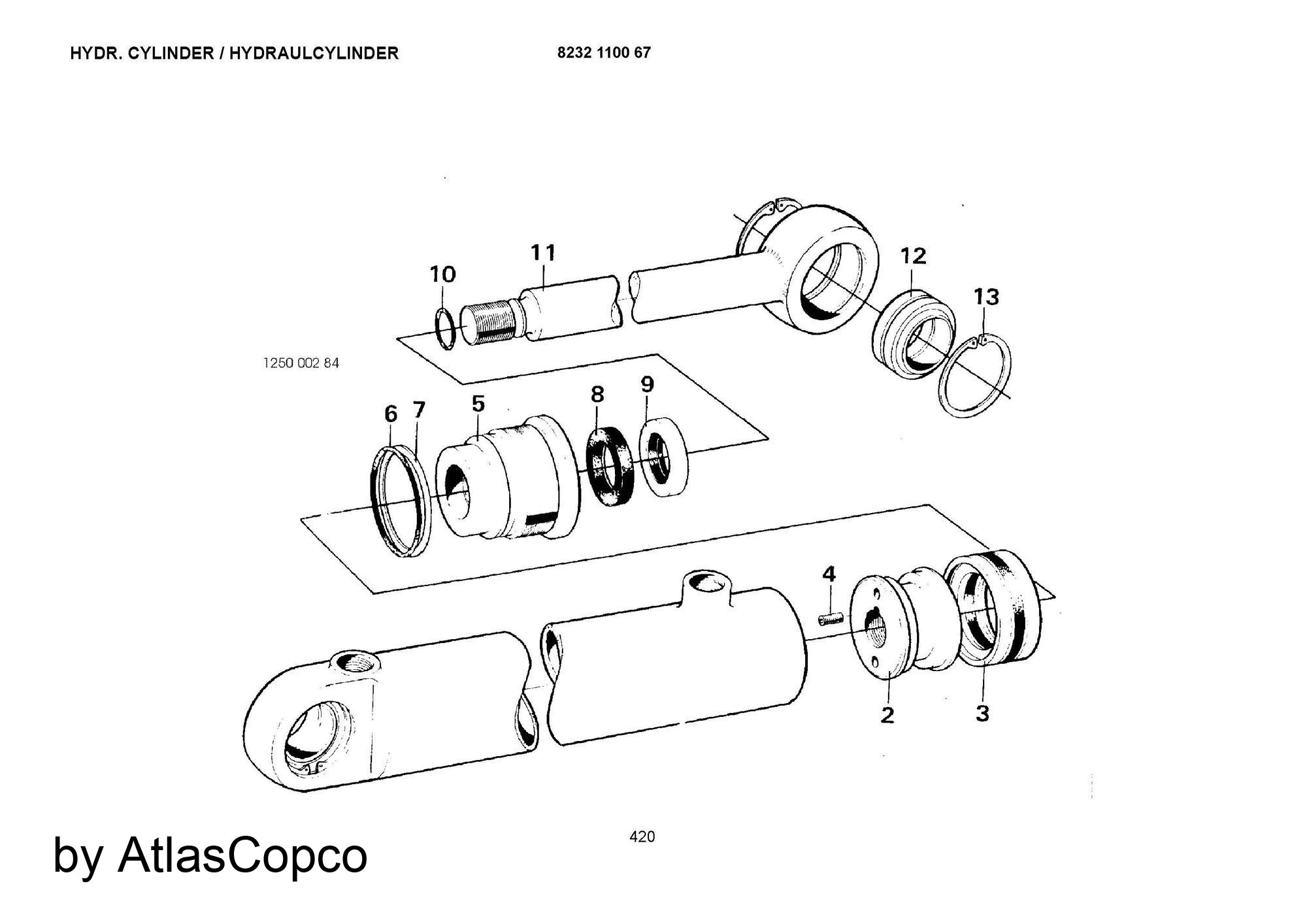

SIMBA H157 HYDR. CYLINDER #11308
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
8232110067
HYDR. CYLINDER
0
9120099004
SEAL KIT
2
9124945600
PISTON
5
9123650703
COVER
11
9123959800
PISTON ROD
12
9124950700
BUSHING
13
0335213600
CIRCLIP

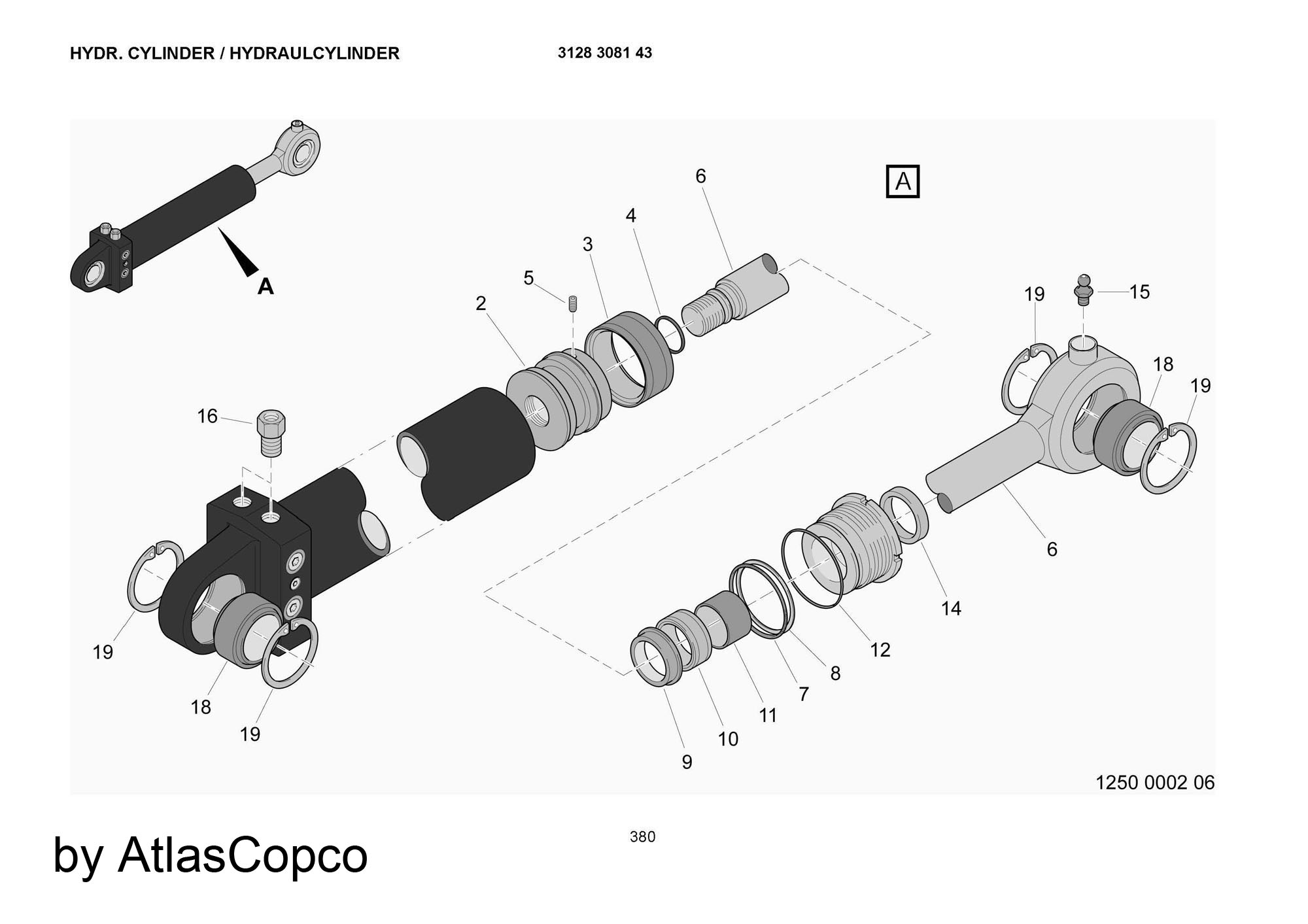

SIMBA H157 HYDR. CYLINDER #11461
SIMBA H157 HYDR. CYLINDER
ads
Ref
Parts Num
Name
0
3128308143
HYDR. CYLINDER
2
3222290030
PISTON
6
3222317340
PISTON ROD
16
9106063013
OVERCENT.VALVE
18
9125955200
BALL JOINT
19
0335220400
CIRCLIP
19
9120099309
SEAL KIT
