SIMBA H157 Pages
1. EPIROC - SIMBA H157 HYDR. SYSTEM #10244
2. EPIROC - SIMBA H157 HYDR. SYSTEM #10519
3. EPIROC - SIMBA H157 HYDR. SYSTEM #10630
4. EPIROC - SIMBA H157 HYDR. SYSTEM #10995
5. EPIROC - SIMBA H157 HYDR. SYSTEM #11372

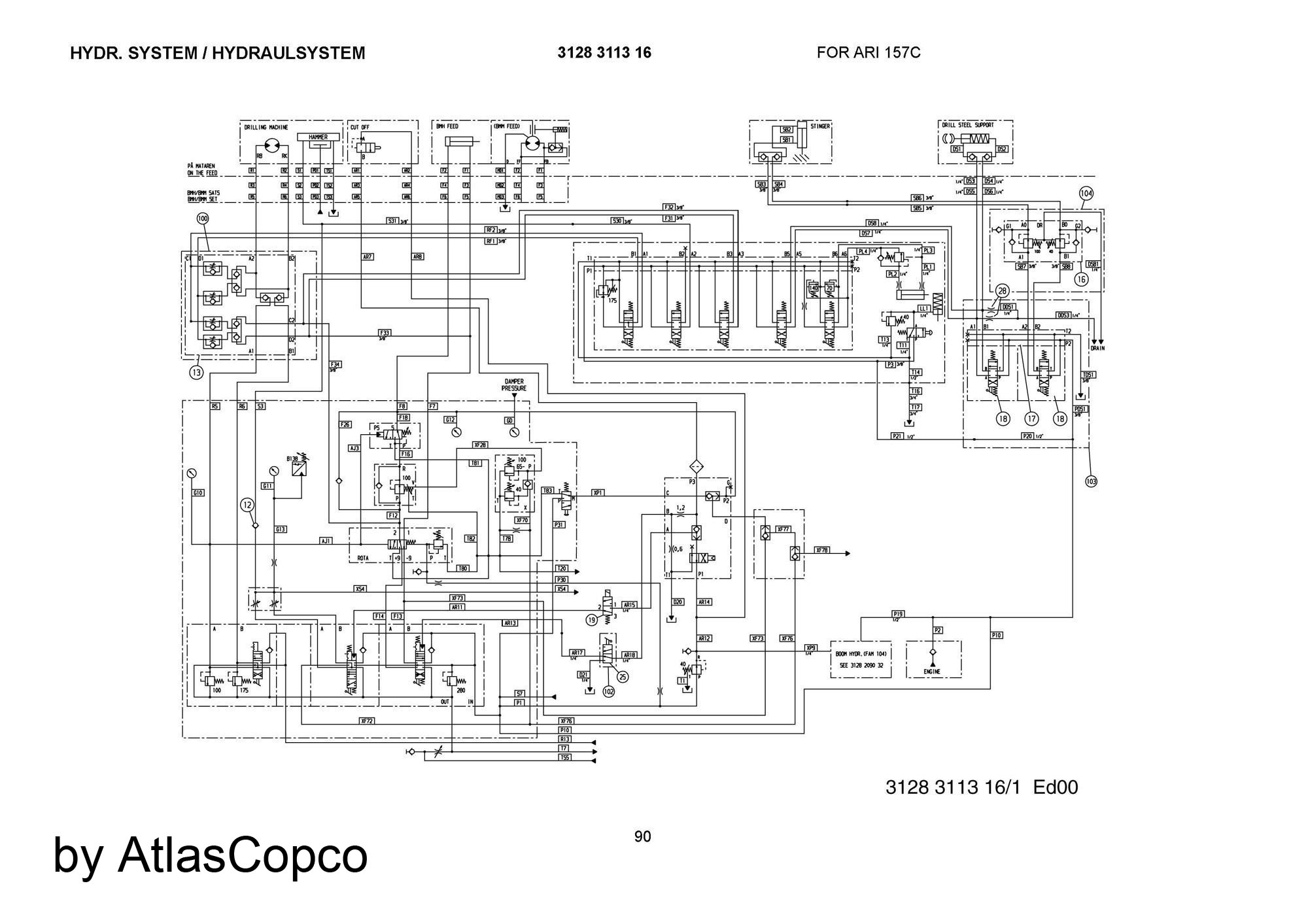

SIMBA H157 HYDR. SYSTEM #10244
SIMBA H157 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3128311316
HYDR. SYSTEM
12
0823005024
CHECK VALVE
13
3128305629
VALVE
16
3128201985
PRESS.RED.VALVE
17
3217906002
CONNECT. PLATE
18
3217848301
DIRECTION VALVE
19
8231112787
SOLENOID VALVE
25
3217869000
DIRECTION VALVE

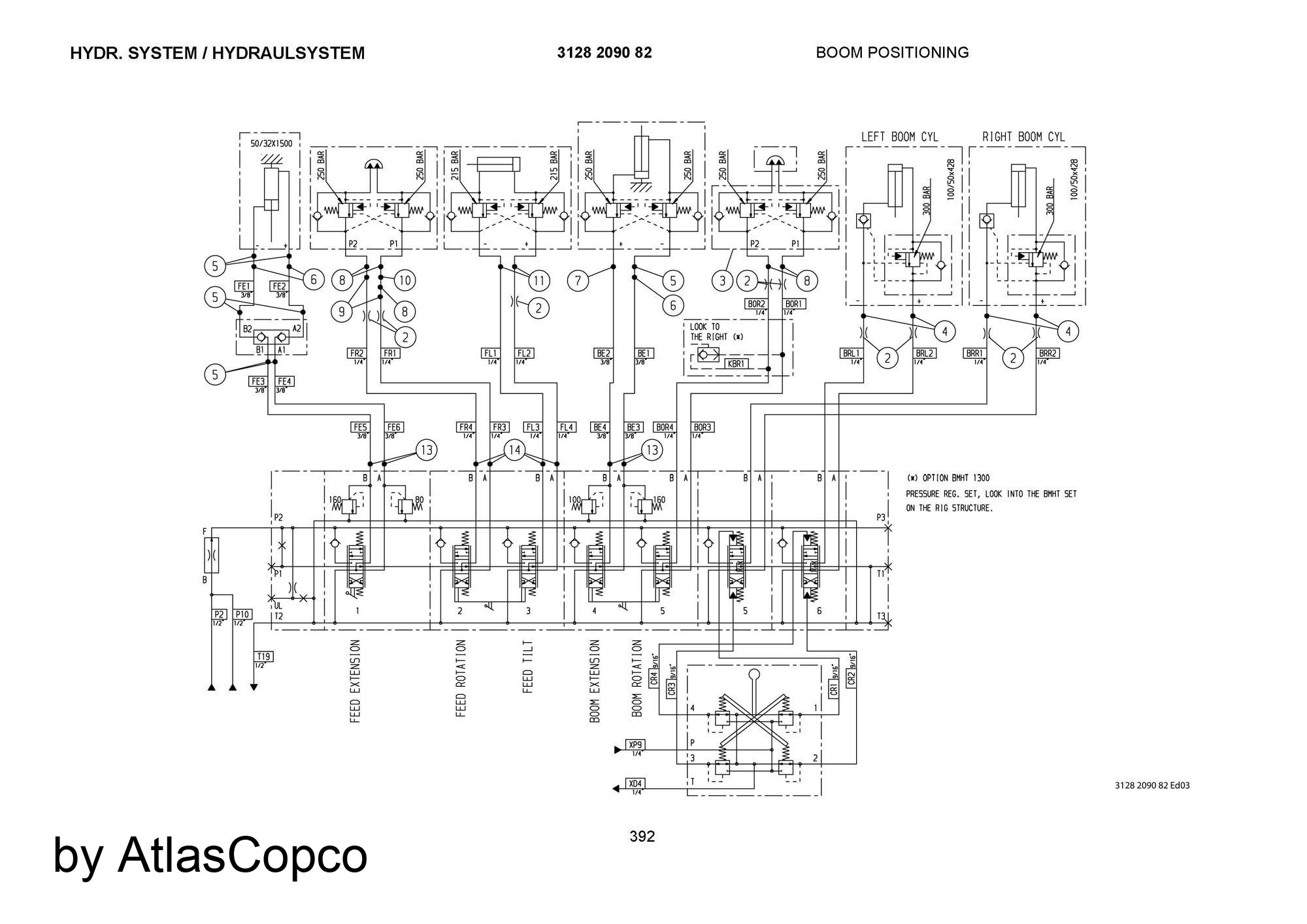

SIMBA H157 HYDR. SYSTEM #10519
SIMBA H157 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
3128209082
HYDR. SYSTEM
3
3128308391
OVERCENT.VALVE

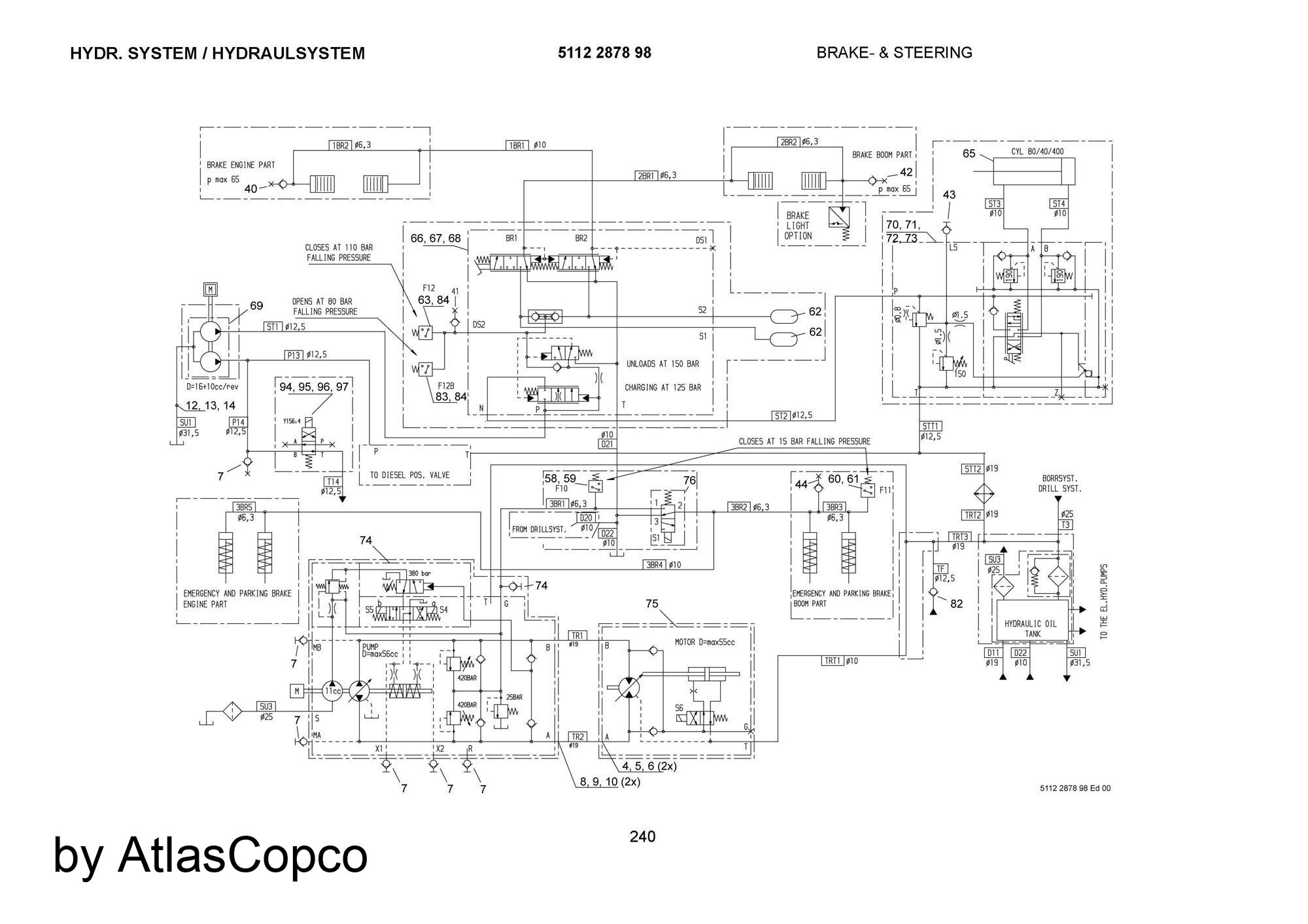

SIMBA H157 HYDR. SYSTEM #10630
SIMBA H157 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
5112287898
HYDR. SYSTEM
5
0663918201
ORING
6
0638056500
FLANGE HALF
7
5112262200
PRESS.TAKE OFF
8
0211196081
SCREW
12
0638052700
FLANGE HALF
58
5112259500
PRESSURE SWITCH
59
5112294900
PROTECT. COVER
62
5112268032
ACCUMULATOR
63
5112292101
PRESSURE SWITCH
65
5112257080
HYDR. CYLINDER
66
5112287805
BRAKE VALVE
69
5112287826
GEAR PUMP
70
3128209094
DIRECTION VALVE
74
5112315100
HYDRAULIC PUMP
75
5112287741
HYDRAULIC MOTOR
82
9106083301
CHECK VALVE
83
5112302343
PRESSURE SWITCH
97
3217887150
ATTACHMENT
SIMBA H157 HYDR. SYSTEM #10995
SIMBA H157 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9106153311
HYDR. SYSTEM
1
3217955366
HYDRAULIC PUMP
8
3217884051
DISTRIBUT. PIPE
10
3217893740
VALVE BLOCK
18
3217958440
VALVE BLOCK
21
3125900502
DIRECTION VALVE
22
3217801401
SEQUENCE VALVE
23
0823005017
CHECK VALVE
56
0653090506
GASKET
60
3222300100
FLANGE CONNECT.
62
0211536800
SCREW
67
3214766981
FLOW REGULATOR
68
3177307306
SAE FLANGE
70
0211532800
SCREW
71
3217983400
DIRECTION VALVE
72
3217896820
VALVE BLOCK
73
3217893700
VALVE BLOCK
74
3125090691
VALVE UNIT
80
3177314700
PRESSURE GAUGE
83
3217867400
STRAINER
87
3176458905
PRESSURE SWITCH

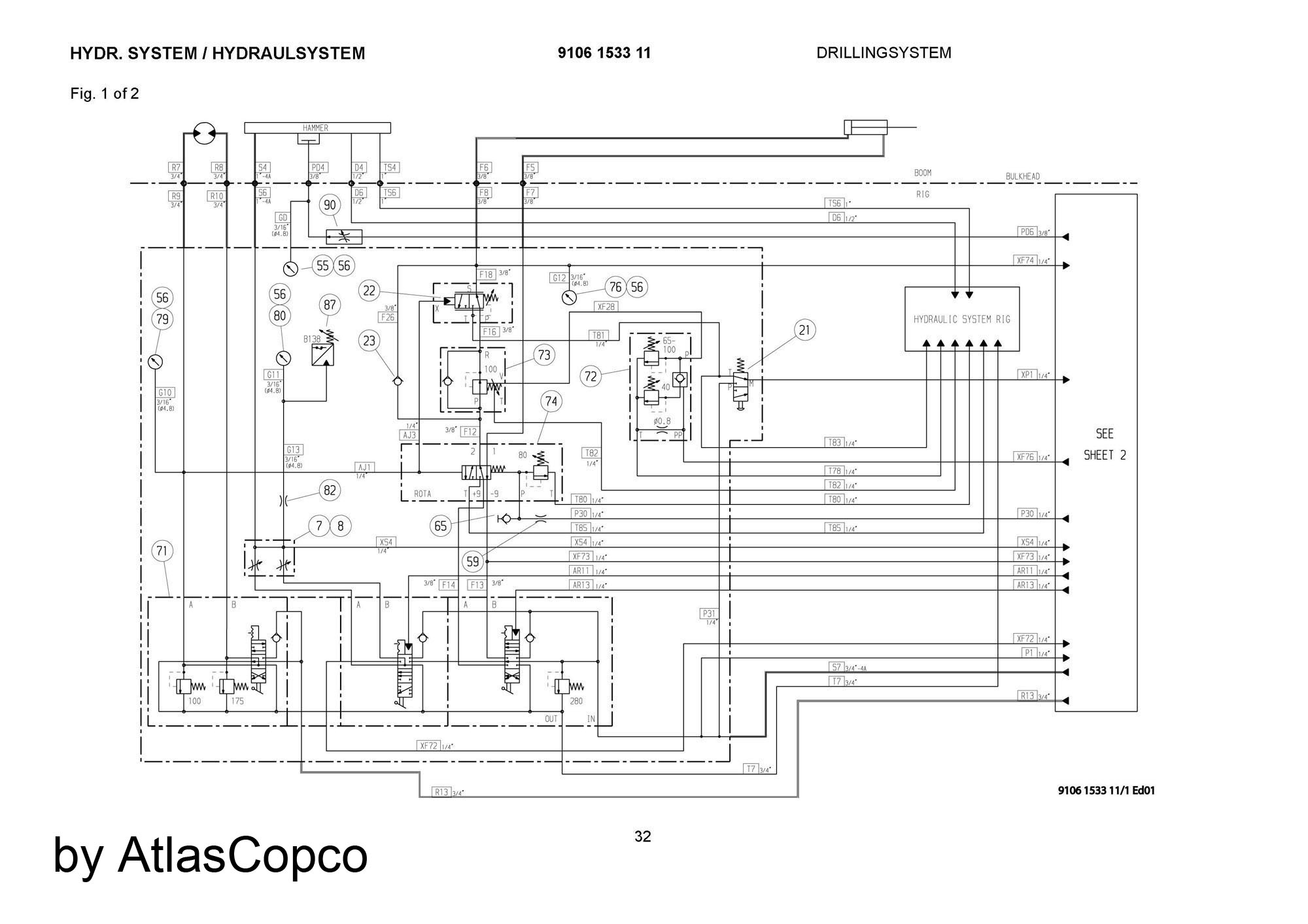

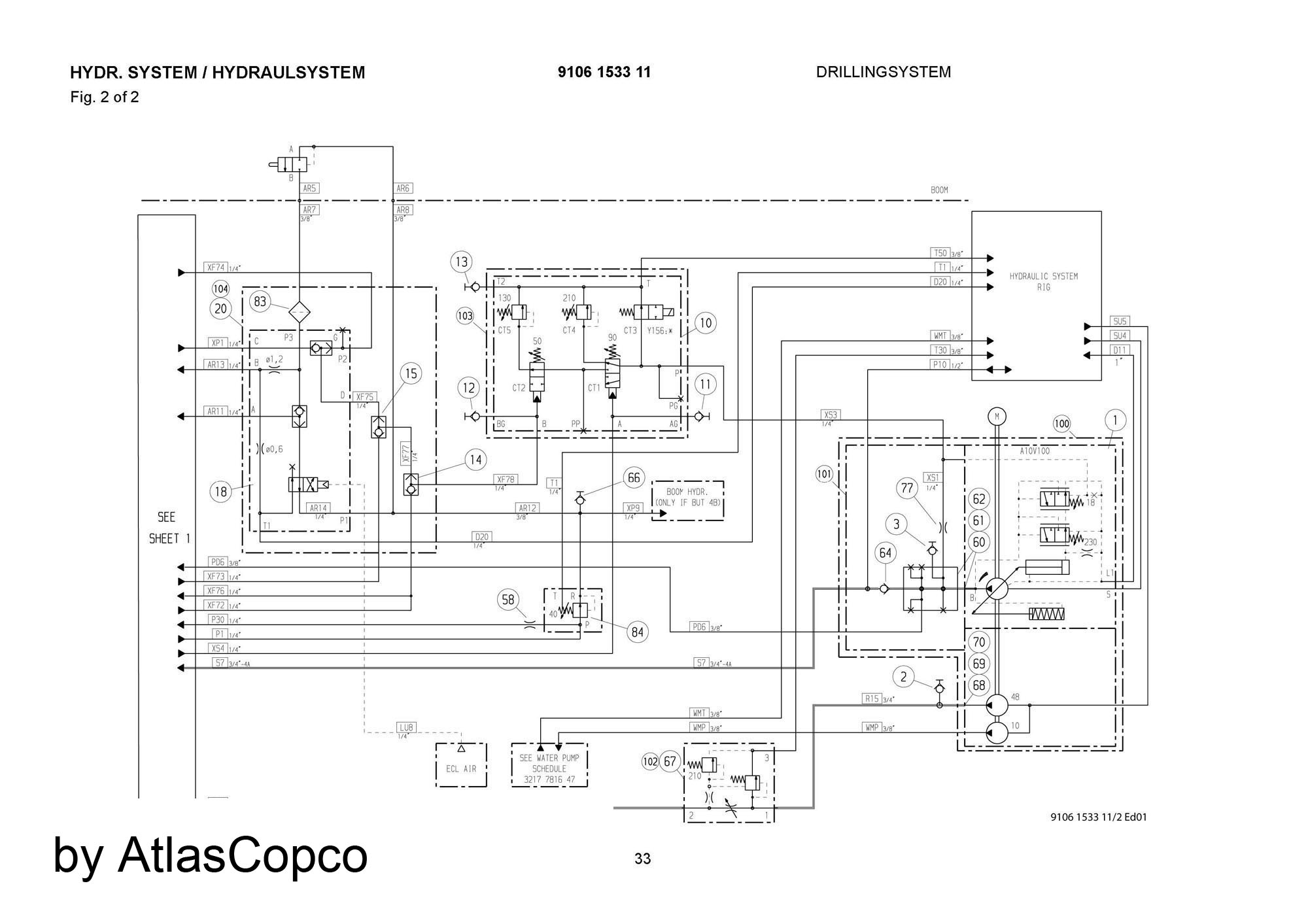

SIMBA H157 HYDR. SYSTEM #11372
SIMBA H157 HYDR. SYSTEM
ads
Ref
Parts Num
Name
0
9106153311
HYDR. SYSTEM
1
3217955366
HYDRAULIC PUMP
8
3217884051
DISTRIBUT. PIPE
10
3217893740
VALVE BLOCK
18
3217958440
VALVE BLOCK
21
3125900502
DIRECTION VALVE
22
3217801401
SEQUENCE VALVE
23
0823005017
CHECK VALVE
56
0653090506
GASKET
60
3222300100
FLANGE CONNECT.
62
0211536800
SCREW
67
3214766981
FLOW REGULATOR
68
3177307306
SAE FLANGE
70
0211532800
SCREW
71
3217983400
DIRECTION VALVE
72
3217896820
VALVE BLOCK
73
3217893700
VALVE BLOCK
74
3125090691
VALVE UNIT
80
3177314700
PRESSURE GAUGE
83
3217867400
STRAINER
87
3176458905
PRESSURE SWITCH
