SIMBA S7D Pages
1. EPIROC - SIMBA S7D CHECK VALVE #14847
2. EPIROC - SIMBA S7D CHECK VALVE #15078
3. EPIROC - SIMBA S7D CHECK VALVE #15819
4. EPIROC - SIMBA S7D CHECK VALVE #16021
5. EPIROC - SIMBA S7D CHECK VALVE #19431
SIMBA S7D CHECK VALVE #14847
SIMBA S7D CHECK VALVE
ads
Ref
Parts Num
Name
1
3128253995
CHECK VALVE
2
3128253806
EXTENDER
3
0580000200
PIPE COUPLING
4
0580220200
PIPE COUPLING
5
3128300537
PLUG
6
3128253817
VALVE HOUSING
7
0653104100
GASKET
8
0147125403
SCREW. HEX HEAD
10
0301232100
PLAIN WASHER
11
0147126003
SCREW. HEX HEAD
13
3128253809
HOSE ADAPTER
14
3128253808
THREADED SLEEVE
15
0291112815
LOCK NUT
16
3128305400
VALVE HOUSING
17
3128253837
VALVE HOUSING
18
0580201407
PIPE COUPLING
19
0605835034
BUSHING
21
0605830100
BUSHING
101
5112216400
HIGH POWER PIPE
102
5112157900
PROTECTION COIL
103
5112157800
PROTECTION COIL
104
0346100006
PIPE CLAMP
105
0346100201
PIPE CLAMP
106
0346100203
PIPE CLAMP
107
0346100242
PIPE CLAMP
108
0226032600
TAPPING SCREW
SIMBA S7D CHECK VALVE #15078
SIMBA S7D CHECK VALVE
ads
Ref
Parts Num
Name
401
3125900401
CHECK VALVE
402
9106160730
VALVE BLOCK
403
0823005018
CHECK VALVE
404
3176458906
PRESSURE SWITCH
405
3217919303
REGULATOR
406
9106160722
VALVE BLOCK
407
9106107776
COLLECT. BLOCK
410
9106161861
OIL COOLER
SU1
3217950400
HOSE
SU2
3217950401
HOSE
411
8231085484
MANOMETER
416
3177301600
COUPLING
431
9106161863
COLLECT. BLOCK
432
0663920500
ORING
436
0823009006
CHECK VALVE
438
3217799281
THERMOSTAT
439
8202030402
BALL VALVE
440
8231045401
RETURN FILTER
441
8231085419
BREATHER FILTER
442
5112300555
LEVEL SWITCH
491
9106215414
HOSE SET

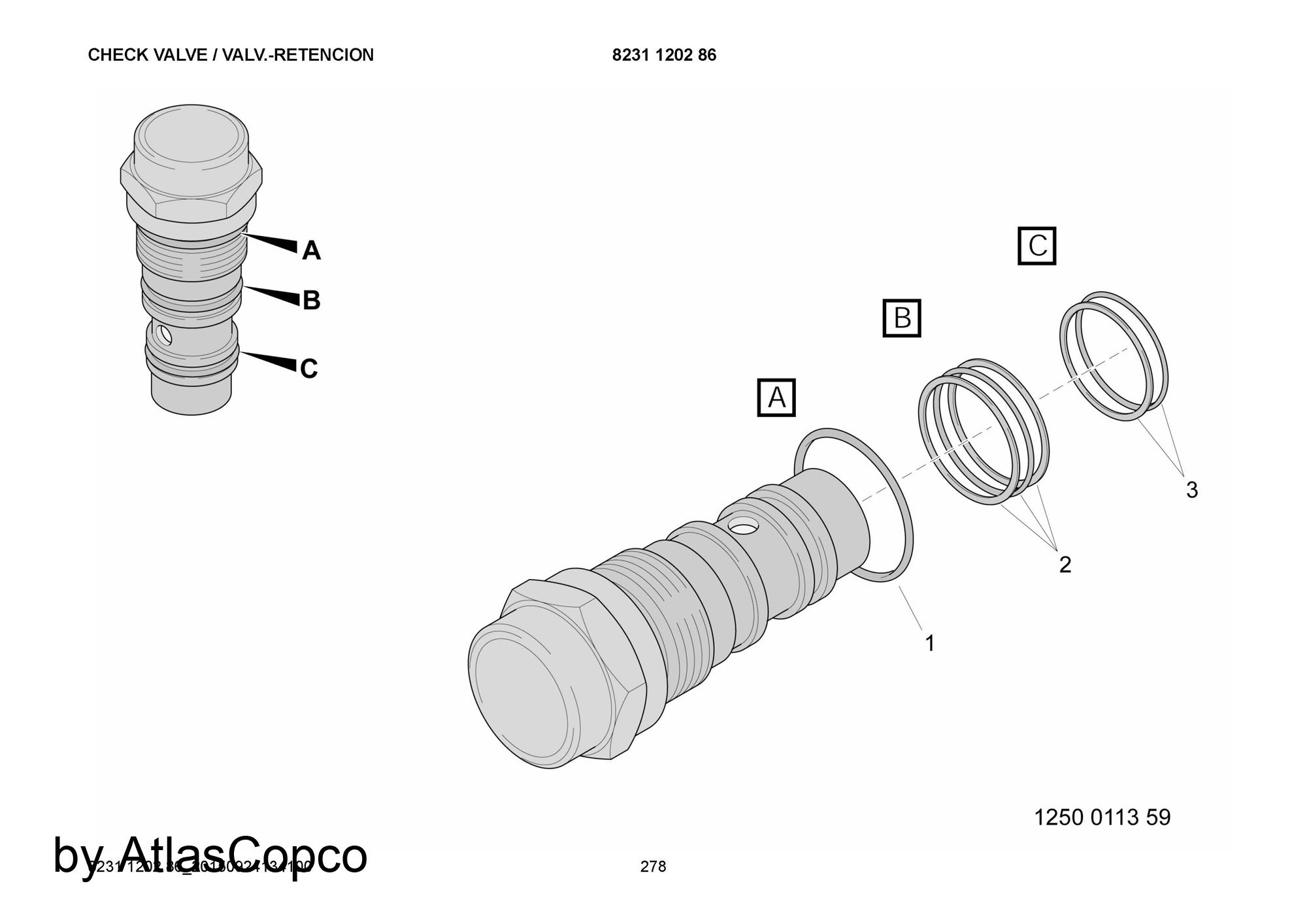

SIMBA S7D CHECK VALVE #15819
SIMBA S7D CHECK VALVE
ads
Ref
Parts Num
Name
0
8231120286
CHECK VALVE
0
8231120698
SEAL KIT
SIMBA S7D CHECK VALVE #16021
SIMBA S7D CHECK VALVE
ads
Ref
Parts Num
Name
1
3128253995
CHECK VALVE
2
3128253806
EXTENDER
3
0580000200
PIPE COUPLING
4
0580220200
PIPE COUPLING
5
3128300537
PLUG
6
3128253818
VALVE HOUSING
7
0653104100
GASKET
8
0147125703
SCREW. HEX HEAD
9
3128304519
HOLDER
10
0301235800
WASHER
11
0147140203
SCREW. HEX HEAD
12
0605830100
BUSHING
13
3128253809
HOSE ADAPTER
14
3128253808
THREADED SLEEVE
15
0324100014
SPACER SLEEVE
16
3128253817
VALVE HOUSING
101
5112216400
HIGH POWER PIPE
102
5112157900
PROTECTION COIL
103
5112157800
PROTECTION COIL
104
0346100006
PIPE CLAMP
105
0346100201
PIPE CLAMP
106
0346100203
PIPE CLAMP
107
0346100242
PIPE CLAMP
108
0226032600
TAPPING SCREW
SIMBA S7D CHECK VALVE #19431
SIMBA S7D CHECK VALVE
ads
Ref
Parts Num
Name
401
3125900401
CHECK VALVE
403
0823005018
CHECK VALVE
