SIMBA S7D EPIROC New catalogs

SIMBA S7D Pages

1. EPIROC - SIMBA S7D HYDR. CYLINDER #14576

2. EPIROC - SIMBA S7D HYDR. CYLINDER #15807

3. EPIROC - SIMBA S7D HYDR. CYLINDER #16064

4. EPIROC - SIMBA S7D HYDR. CYLINDER #16397

SIMBA S7D HYDR. CYLINDER #14576

SIMBA S7D HYDR. CYLINDER

ads

Ref

Parts Num

Name

0

HYDR. CYLINDER

0

SEAL KIT

4

PISTON

SIMBA S7D HYDR. CYLINDER #15807

SIMBA S7D HYDR. CYLINDER

ads

Ref

Parts Num

Name

1

HYDR. CYLINDER

2

COVER PLUG

3

PLAIN WASHER

4

SCREW. HEX HEAD

5

FOOT PLATE

6

SCREW. HEX HEAD

7

CLAMP

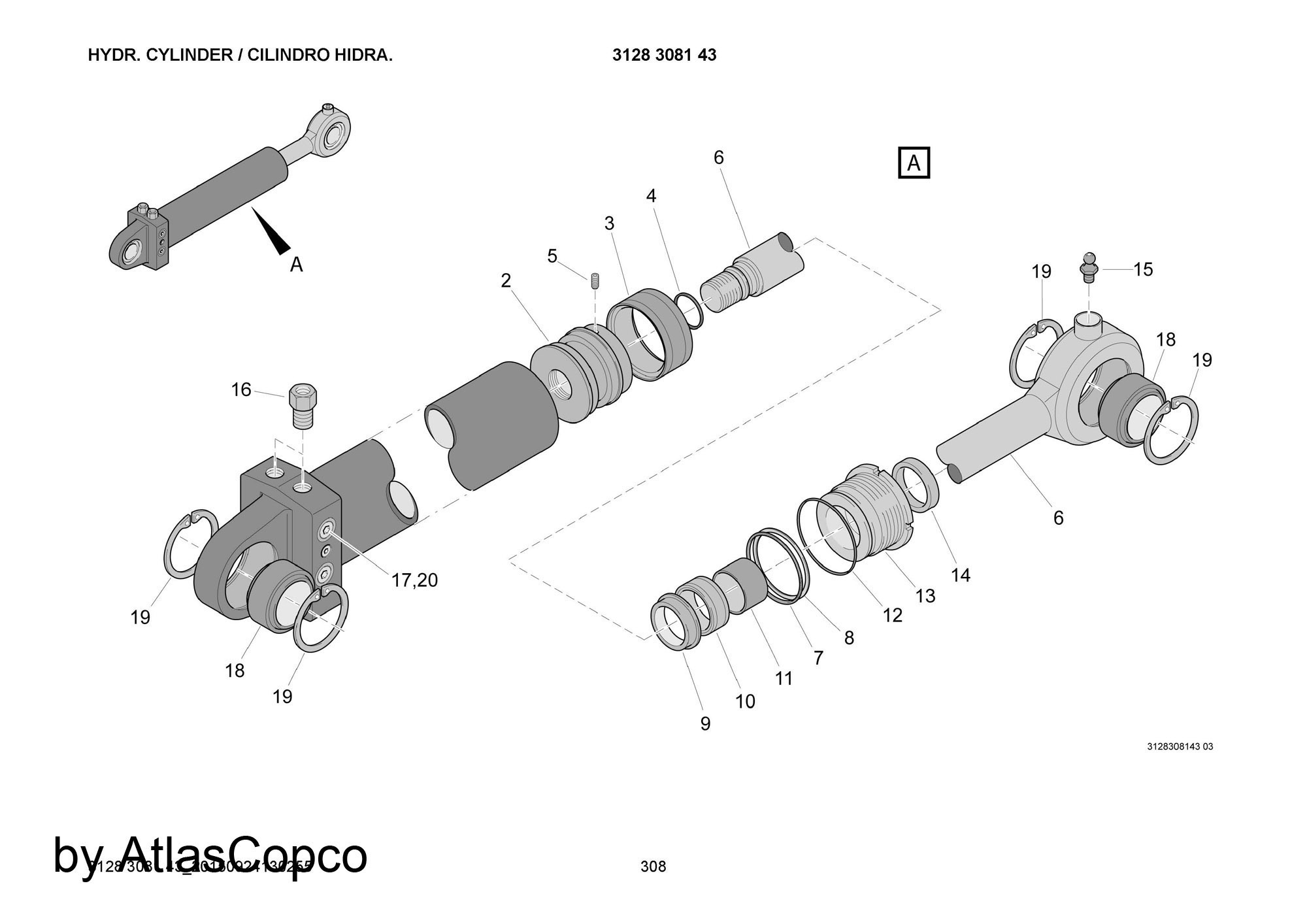

SIMBA S7D HYDR. CYLINDER #16064

SIMBA S7D HYDR. CYLINDER

ads

Ref

Parts Num

Name

0

HYDR. CYLINDER

0

SEAL KIT

2

PISTON

4

O RING

6

PISTON ROD

7

ORING

8

BACK UP RING

10

SEAL

11

GUIDE RING. EXT

12

O RING

13

COVER

14

WIPER

15

GREASE NIPPLE

16

OVERCENT.VALVE

17

PLUG

18

BEARING.SP.PL.

19

CIRCLIP

20

SEAL WASHER

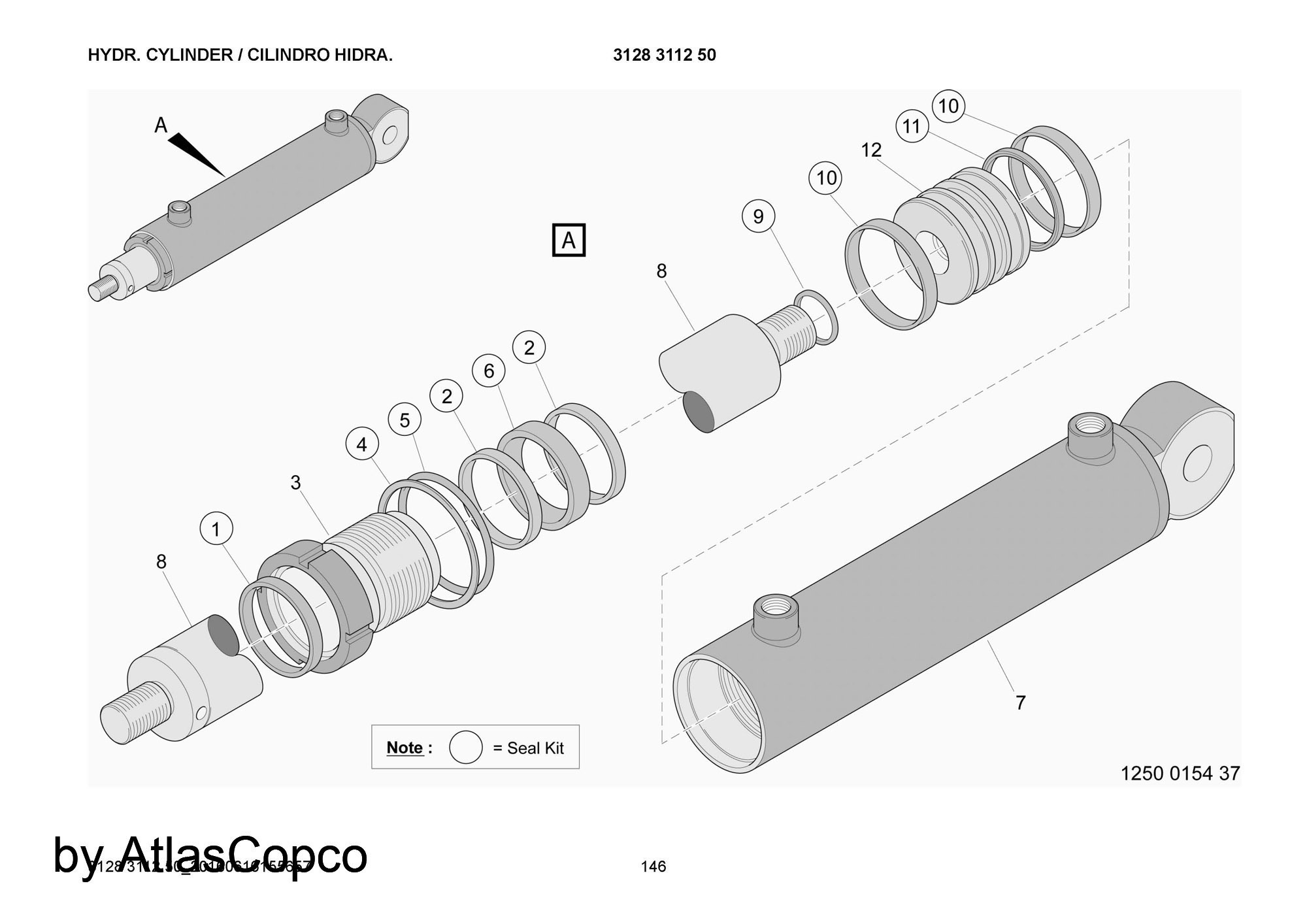

SIMBA S7D HYDR. CYLINDER #16397

SIMBA S7D HYDR. CYLINDER

ads

Ref

Parts Num

Name

0

HYDR. CYLINDER

0

SEAL KIT

3

STEERING

7

CYL.TUBE ASSY

8

PIST.ROD COMPL

12

PISTON
