1. EPIROC - SIMBA S7D PLINTH MODULE #14220

2. EPIROC - SIMBA S7D PLINTH MODULE #15012

3. EPIROC - SIMBA S7D PLINTH MODULE #15246

4. EPIROC - SIMBA S7D PLINTH MODULE #15886

5. EPIROC - SIMBA S7D PLINTH MODULE #15973

6. EPIROC - SIMBA S7D PLINTH MODULE #15977

7. EPIROC - SIMBA S7D PLINTH MODULE #16017

8. EPIROC - SIMBA S7D PLINTH MODULE #19342

9. EPIROC - SIMBA S7D PLINTH MODULE #19570

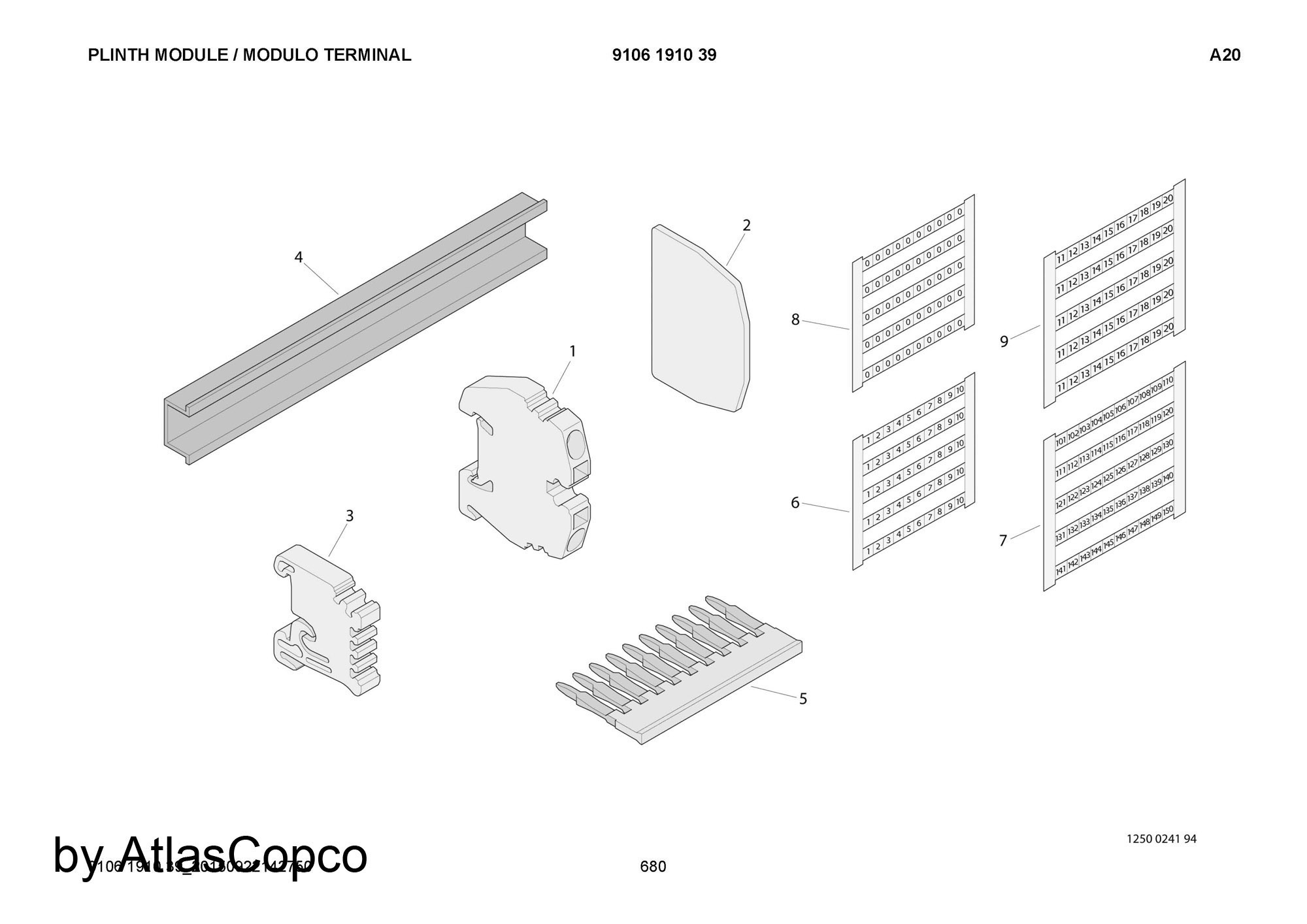

SIMBA S7D PLINTH MODULE #14220

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

X2

PLINTH MODULE

S03

INTERMED. PART

S2324

LIMIT SWITCH

K01

CONNECTION SET

T02

TRANSFORMER

T04

TRANSFORMER

K21

RELAY SOCKET

F25

RESIDUAL CUR.CB

X40

PLINTH MODULE

X41

PLINTH MODULE

0

ELECTR.CABINET

4

EARTH BAR

R02

RESISTOR

X6

CONNECTOR

F14

MIN CIRC BREAK

H02

INDICATION LAMP

H06

INDICATION LAMP

T10

TRANSFORMER

S03

TRIGGER

F03

MOTORPROTECTOR

ECL

PULSE UNIT

K01T

TIMING RELAY

P01

VOLT METER

V02

DIODE UNIT

K107

RELAY SOCKET

F107

FUSE CON. TERM.

S03

CONTACT BLOCK

X6

LOCK NUT

Q01

MAIN SWITCH

K107T

TIMING RELAY

3

GROUND BRAID

U41

POWER SUPPLY

K51

EARTHFAULTRELAY

K50

PHASE SEQ.RELAY

K107

RELAY

S11

SWITCH

K53

SAFETYRELAY

K03

CONTACTOR

K03

AUX. CONTACT

K01

AUX. CONTACT

F15

MIN CIRC BREAK

F10

MOTORPROTECTOR

51

PLATE

M10

FAN SET

2

LOCK YOKE

F01

OVERLOAD RELAY

K01

CONTACTOR

K03

AUX. CONTACT

T11

TRANSFORMER

F107

MARKING PLATE

52

PLATE

F02

MOTORPROTECTOR

P02

HOUR METER

K21

RELAY

U40

BATTERY CHARGER

F107

FUSE

SIMBA S7D PLINTH MODULE #15012

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

5

PLINTH MODULE

S100

SWITCH

H01

LIGHTNING

S105

LAMPPUSHBUTTON

13

PLATE

1

SCREW. SLOTTED

3

PLINTH MODULE

H08

LIGHT EMIT. DIO

S105

CONTACT BLOCK

14

CABLE. 1CORE

4

COVER

S106

LAMPPUSHBUTTON

SIMBA S7D PLINTH MODULE #15246

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

0

PLINTH MODULE

1

MOUNTING RAIL

2

END SUPPORT

3

END PLATE

4

TERMINAL BLOCK

5

BRIDGE CONN.

6

TERMINAL BLOCK

7

MARKING PLATE

8

MARKING PLATE

9

SUPPLY TERMINAL

10

BRIDGE CONN.

F105

FUSE CON. TERM.

F105

MIN CIRC BREAK

11

TERMINAL BLOCK

12

CABLE. 1 CORE

SIMBA S7D PLINTH MODULE #15886

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

0

PLINTH MODULE

1

TERMINAL BLOCK

2

TERMINAL BLOCK

3

TERMINAL BLOCK

4

END SUPPORT

6

END PLATE

7

MARKING PLATE

8

MARKING PLATE

9

MOUNTING RAIL

10

BRIDGE CONN.

SIMBA S7D PLINTH MODULE #15973

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

0

PLINTH MODULE

1

MOUNTING RAIL

2

TAPPING SCREW

6

TERMINAL BLOCK

K113

TIMING RELAY

K116

CP 400

K112

TIMING RELAY

K118

RELAY

7

END PLATE

8

BRIDGE CONN.

9

MARKING PLATE

10

MARKING PLATE

12

MARKING PLATE

13

END SUPPORT

14

CABLE. 1CORE

SIMBA S7D PLINTH MODULE #15977

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

0

PLINTH MODULE

1

TERMINAL BLOCK

2

END PLATE

3

END SUPPORT

4

MOUNTING RAIL

5

BRIDGE CONN.

6

MARKING PLATE

7

MARKING PLATE

8

MARKING PLATE

9

MARKING PLATE

10

MARKING PLATE

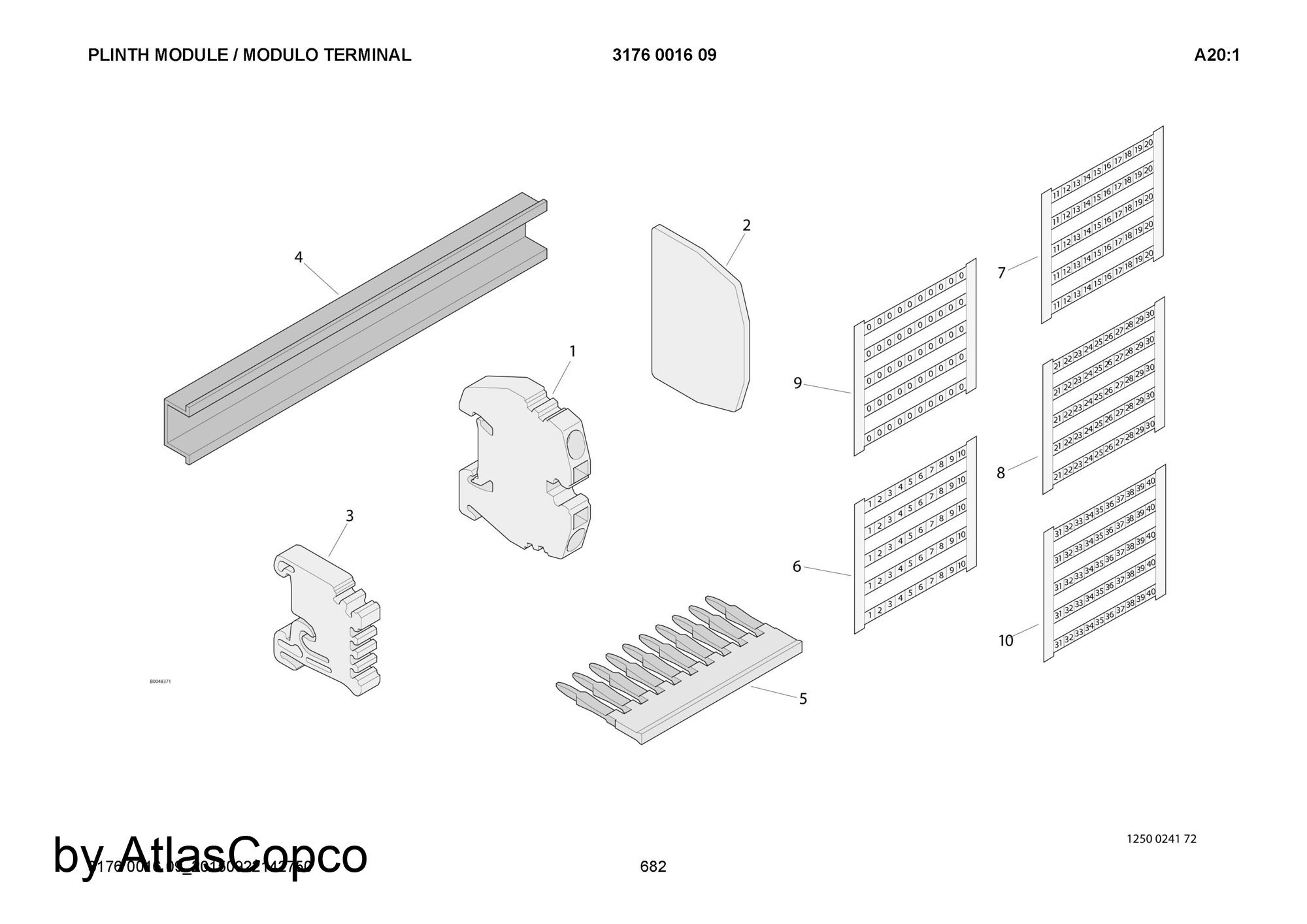

SIMBA S7D PLINTH MODULE #16017

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

0

PLINTH MODULE

1

TERMINAL BLOCK

2

END PLATE

3

END SUPPORT

4

MOUNTING RAIL

5

BRIDGE CONN.

6

MARKING PLATE

7

MARKING PLATE

8

MARKING PLATE

9

MARKING PLATE

SIMBA S7D PLINTH MODULE #19342

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

0

PLINTH MODULE

1

TERMINAL BLOCK

2

END PLATE

3

BRIDGE CONN.

4

TERMINAL BLOCK

5

END PLATE

6

BRIDGE CONN.

10

TERMINAL BLOCK

11

TERMINAL BLOCK

12

BRIDGE CONN.

19

END SUPPORT

20

MOUNTING RAIL

SIMBA S7D PLINTH MODULE #19570

SIMBA S7D PLINTH MODULE

ads

Ref

Parts Num

Name

0

PLINTH MODULE

1

TERMINAL BLOCK

2

TERMINAL BLOCK

3

END PLATE

4

END SUPPORT

5

MOUNTING RAIL
